Proper pipe installation is very important in stormwater, sewer, and utility construction. Even a small grading error can lead to drainage failure, costly rework, and project delays.

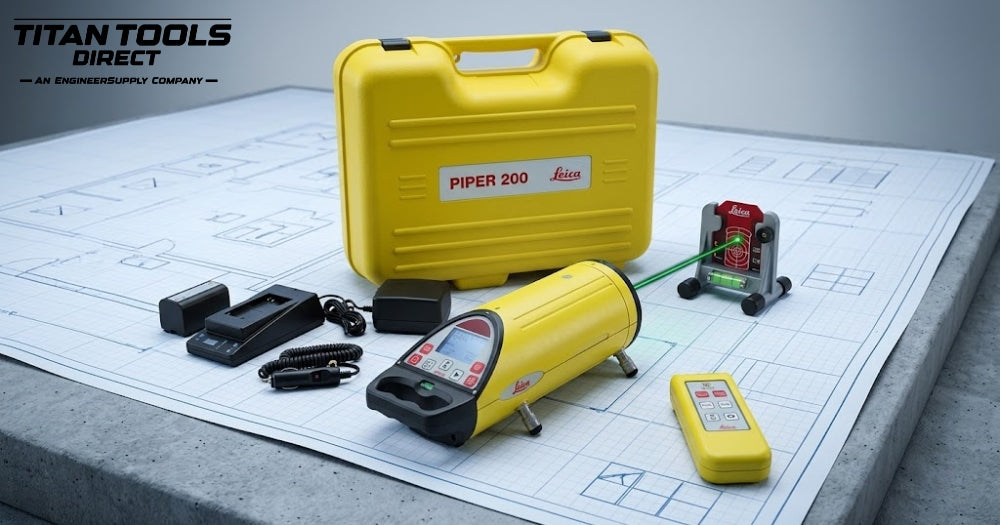

This is where Leica pipe lasers become essential. Built for high-level alignment inside confined pipe environments, they help contractors achieve consistent line and grade results from start to finish. To compare top models for different jobsite needs, explore our guide to best leica pipe lasers.

In this guide, you’ll learn exactly how to set up and use a Leica pipe laser step by step to improve accuracy and avoid costly mistakes on site.

Step - by - Step Leica Pipe Laser Setup Guide

Follow these steps to correctly set up your Leica pipe laser:

1. Position the Laser in the Trench

Place the Leica laser on the centerline of the pipe run. This ensures the beam follows the intended pipe direction.

You can position it:

• Inside the pipe (using centering supports)

• Inside a manhole

• On a stable base in the trench

Make sure it is secure and cannot shift during operation.

2. Level the Unit

Once positioned, activate the leveling system.

• Turn on the laser

• Wait for automatic self-leveling

• Check that the unit stabilizes without obstruction

A properly leveled laser ensures your grade readings remain accurate throughout the job.

3. Set the Required Grade (Slope)

The grade controls how water flows through the pipe system.

To set grade:

• Use the control panel arrows for small adjustments

• Enter exact slope values if needed

• Confirm the display shows the correct percentage or ratio

This is one of the most important steps; incorrect slope leads to drainage issues later.

4. Align the Laser Beam

After setting the grade, align the beam with the pipe direction.

• Use left/right controls or remote adjustment

• Aim toward the target in the next pipe section

• Confirm beam is centered on the alignment target

Proper alignment ensures the pipe follows the correct path across the entire trench.

5. Confirm Target Position

Place the target in the last installed pipe section.

• Ensure it is centered

• Match target height with pipe elevation

• Double-check bubble level alignment

This step ensures consistency between pipe sections.

How to Use Leica Pipe Lasers During Installation

Once set up, the laser becomes your continuous reference point.

During installation:

• Continuously check beam alignment

• Adjust pipe position based on target reading

• Monitor grade consistency as new sections are added

• Recheck alignment after each pipe placement

This process reduces human error and ensures smooth pipe flow design.

Common Mistakes to Avoid

Even experienced crews can make setup errors. Avoid these issues:

Incorrect base positioning

• If the laser is off-center, the entire line can shift.

Ignoring vibration effects

• Heavy machinery nearby can affect stability.

Skipping grade verification

• Never assume previous settings are correct.

Poor target alignment

• Misreading the target leads to inaccurate pipe placement.

Pro Tips for Better Accuracy on Site

For better accuracy on site, it helps to follow a few simple and practical steps. Recheck calibration daily, especially on long projects, to make sure the laser stays accurate throughout the job. Keep the unit clean since mud, dust, and debris can affect readings and reduce performance. Protect the pipe laser from vibration by placing it on stable ground and keeping it away from heavy equipment that may cause movement. Monitor weather conditions because heavy rain, extreme heat, or changing conditions can affect visibility and stability. Lastly, make sure operators are properly trained, since most errors usually come from incorrect handling rather than equipment issues.

Maintenance and Care Guidelines

Proper maintenance extends equipment life and ensures consistent accuracy.

Basic care includes:

• Clean lens and housing after use

• Store in protective case

• Charge or replace batteries regularly

• Avoid exposure to extreme moisture when not in use

• Schedule periodic calibration checks

A well-maintained laser performs more reliably and reduces downtime.

Why Proper Setup Matters

In pipe installation, small errors create large consequences over distance.

Incorrect slope or alignment can lead to:

• Drainage failure

• Water pooling or backflow

• Expensive excavation repairs

• Project delays and rework costs

Using a Leica pipe laser correctly helps eliminate these risks by maintaining a consistent reference line throughout the entire installation.

Ready to Get Accurate Pipe Installation?

At Titan Tools Direct, we help you find the right Leica pipe laser for your jobsite needs. Whether you’re working on sewer, stormwater, or utility projects, our team can help you choose the right tool to achieve precise alignment, consistent grade, and reliable results every time.

Frequently Asked Questions

Can Leica pipe lasers be used in wet conditions?

Yes. They are designed for construction sites and can work in wet or damp environments, but they should not be fully submerged in water.

Do I need special training to use a pipe laser?

Basic training is recommended. While the tool is user-friendly, proper training helps avoid setup mistakes and improves accuracy.

What power source do Leica pipe lasers use?

Most models use rechargeable batteries, which can last a full workday depending on usage and model type.

What is the difference between a pipe laser and a rotary laser?

A pipe laser is designed specifically for pipe installation and slope control, while a rotary laser is used for general leveling and grading tasks.

How far can a Leica pipe laser project a beam?

Most Leica pipe lasers can project a visible beam for long pipe runs, often over hundreds of meters depending on conditions like dust, light, and visibility.
