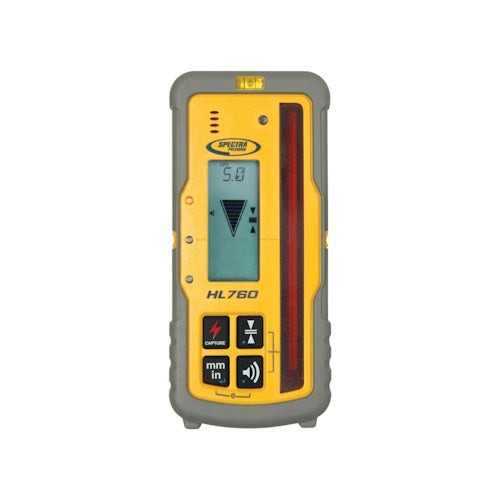

• The Spectra Precision HL760 Receiver w/Radio Transceiver, C70 Rod Clamp and Level Vial can help with various leveling and aligning tasks using rotating laser transmitters.
• The HL760U is ideal for use with any rotating transmitter including red beam and green beam lasers.
• Digital readout of elevation – no need to go to "on-grade" to measure, saves considerable time
• Large 12.7 cm (5 inch) reception height acquires the beam quickly and makes it easy to stay in the beam
• Works with another HL760 or HL760U for long range wireless remote display and monitoring – even when the second receiver is out of sight (up to 80 m or 260 ft.)
• Anti-strobe sensor stops construction strobe lights from setting off the receiver, and makes it easier to identify true laser beam signals
• Dust and weatherproof housing withstands a drop of up to 3 m (10 ft) onto concrete for reduced downtime
• Includes C70 rod clamp with bubble vial
• The HL760U accepts red beam and green beam laser frequencies

• Working Radius: 1 m - 460 m (3 ft - 1500 ft)
• (Laser dependent):
• Laser Detection Height: 127.0 mm (5")
• Numeric Readout Height: 102.0 mm (4")
• Internal Radio: Full 2-way communication, operation and security lock with paired device
• Radio Working Radius: Up to 220 m (720 ft), depending on orientation, conditions and paired device
• Accuracy (Deadband):
• Ultra Fine 0.5 mm 0.02 in 1/32 in
• Super Fine 1.0 mm 0.05 in 1/16 in
• Fine 2.0 mm 0.10 in 1/8 in
• Medium 5.0 mm 0.20 in 1/4 in
• Coarse 10.0 mm 0.50 in 1/2 in
• Calibration 0.1 mm 0.01 in 1/64 in
• Reception Angle: ± 45° minimum
• Detectable Spectrum:
• 610 nm ... 780 nm (HL760)
• 520 nm ... 780 nm (HL760U)
• Beeper Volumes:
• Loud = 110 dBA
• Medium = 95 dBA
• Low = 65 dBA
• LED Grade Indicators: Front, Green on-grade, Red Hi, Blue Low
• Power Supply: 2 x 1.5 Volt "AA" batteries
• Battery Life: 60+ hours
• Automatic Shut Off: Selectable, 30 min, 24 h, Off
• Environmental: Waterproof, Dustproof to IP67
• Weight without clamp: 371 g (13.1 oz.)
• Dimensions without clamp: 168.0 x 76.0 x 36.0 mm (6.6" x 3.0" x 1.4")
• Operating Temperature: -20°C...+60°C (-4°F... +140°F)
• Storage Temperature: -40°C...+70°C (-40°F...+158°F)

*Specifications subject to change without notice.
