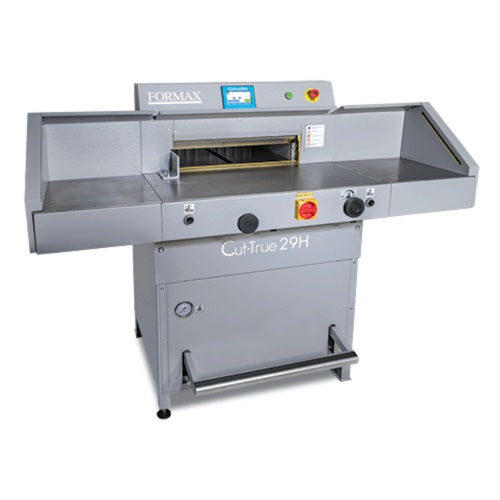

Formax Hydraulic Programmable 20" Guillotine Paper Cutter

Model Number: Cut-True 29H

Features:

• The Formax Hydraulic Programmable 20" Guillotine Paper Cutter helps you tackle tasks with unmatched precision and ease, handling paper stacks up to 20.5" wide like a breeze. Ideal for print shops and demanding users, the Cut-True 29H delivers power, precision, and automation, all in one exceptional package.
• Features:
  • Hardened Steel Blade: Designed for accurate cuts and long life
  • Hydraulically-Controlled: Adjustable hydraulics control paper clamp and blade carrier
  • False Clamp: Minimizes marking of sensitive paper stock, easily stores within the machine when not in use
  • Touchscreen Control Panel: Easily set, adjust and program jobs
  • LED Cutting Line: Bright red LED line indicates exactly where the blade will cut
  • Solid Steel Blade Carrier
  • Fine-Tuning Knob: Allows users to precisely adjust the back gauge position
  • Hydraulic Pressure Gauge: Liquid-filled display shows pressure and allows for easy adjustment
  • Low-Friction Work Table: Makes it easy for operators to move and position large paper stacks
  • Internal Light: Illuminates the cutting area
• Operating Features:
  • Cutting Capacity: Paper stacks up to 3.15" high, up to 20.5" wide
  • Automatic Blade Return from Any Position
  • Programmable Jobs: Up to 100 jobs/100 steps
  • Foot Pedal Pre-Clamp: Holds paper stack in position to check alignment prior to cutting
• Safety Features:
  • Infrared Safety Curtain: Light beam curtain shuts down operation if the plane is interrupted
  • Two-Hand Operation: Electronically controlled for added safety
  • Easy Blade Change from Front of Cutter: Blade change safety tool included
  • Wooden Paper Push Tool: Helps to quickly and safely align the paper stack
  • Main Switch and Safety Key Lock: Keeps cutter secure from unauthorized operators
  • Transparent Rear Safety Guard
• Options:
  • Wide Side Tables (Pair): Provide additional space to maneuver larger paper stock
• Supplies:
  • 29-10: Replacement Blade
  • 29-20: Replacement Cutting Sticks, pkg of 8

Specifications:

• Cutting Action: Dual-button hydraulic
• Maximum Cutting Width: 20.5" (520mm)
• Maximum Paper Stack Height: 3.15" (80mm)
• Programmable Jobs: Up to 100 programs with up to 100 steps each
• Touchscreen Features: Program jobs, alternate between inches/mm, paper eject function, programming via cutting, business card cutting mode
• Length Behind Blade: 20.5" (520mm)
• Length in Front of Blade: 18.25" (464mm)
• Minimum Cut w/False Clamp: 2.36" (60mm)
• Minimum Cut w/o False Clamp: 1.18" (30mm)
• Table Size:
  • 30.75" W x 15.75" D ( 781 x 400mm)
  • 56" W x 15.75" D (1422 x 400mm) w/optional wide side tables
• Clamp Style: Automatic, hydraulic
• Hydraulic Clamp Pressure: 700 - 4,500 psi (49 - 316 kg/cm2)
• Back Gauge Adjustment: Fully programmable using touchscreen, accurate to 0.1mm
• Blade Change Safety Tool: Included
• Dimensions*: 49.25" H x 31" W x 53.25" D (1250mm H x 864mm W x 1352mm D)
• Dimensions w/optional side tables: 49.25" H x 61.5" W x 53.25" D (1250mm H x 1563mm W x 1352mm D)
• Weight: 1,014 lbs. (460kg)
• Power Supply: 220V, 60Hz, 20A dedicated line, NEMA 6-20P

* 31"W with safety curtains removed for easier transport through doorways. 33.5"W including safety curtains.
