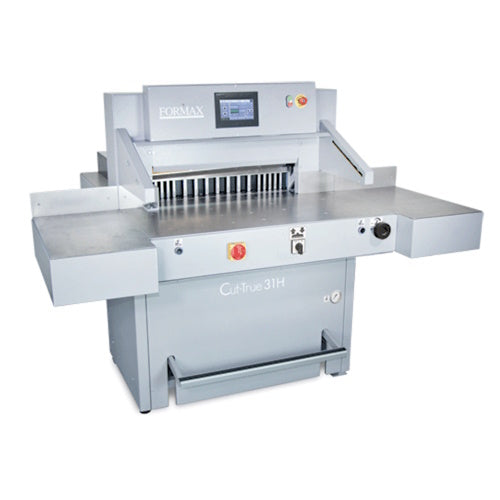

Formax Hydraulic Programmable 28" Guillotine Paper Cutter

Model Number: Cut-True 31H

Features:
  • The Formax Hydraulic Programmable 28" Guillotine Paper Cutter is engineered for demanding tasks, this hydraulic powerhouse effortlessly tackles paper stacks up to 28" wide and 4" high with laser-sharp accuracy. Ideal for digital print shops and high-volume operations, the Cut-True 31H delivers unmatched power, precision, and safety for large-format cutting.
  • Features:
    • Heavy Duty Construction: Designed for true two-shift operation
    • Hydraulically-Controlled: Adjustable hydraulics control paper clamp and blade carrier
    • Low-Friction Air-Assist Ball Deck: Makes it easy for operators to move and position heavy paper stacks
    • High-Speed Hardened Steel Blade: Designed for accurate cuts and long life
    • False Clamp: Minimizes marking of sensitive paper stock, easily stores within the machine when not in use
    • Color Touchscreen Control Panel: Easily set, adjust and program jobs
    • LED Cutting Line: Bright red LED line indicates exactly where the blade will cut, allowing for precise adjustments prior to cutting
    • Solid Steel Blade Carrier: Built for longevity and minimal maintenance
    • Internal Light: Illuminates the cutting area for improved visibility
    • Extra-Large Side Tables: Allow users to maneuver large paper stacks with ease
    • Electronic Fine-Tuning Switch: Allows users to precisely adjust the back gauge position
    • Hydraulic Pressure Gauge Knob: Displays pressure and allows for easy adjustment of clamp pressure
  • Operating Features:
    • Cutting Capacity: Paper stacks up to 4” high and up to 28” wide
    • Automatic Blade Return from Any Position: Provides safe and accurate operation
    • Programmable Jobs: Up to 100 jobs/100 steps, including paper eject and cues for turning directions
    • Foot Pedal Pre-Clamp: Holds paper stack in position to check alignment prior to cutting
    • Business Card Cutting Mode: Allows for quick and easy set-up
    • Automatically-Adjusting Back Gauge: Ensures accuracy and reduces operator effort
  • Safety Features:
    • Infrared Safety Curtain: Light beam curtain shuts down operation if the plane is interrupted
    • Two-Button Operation: Both buttons must be pressed simultaneously, keeping hands away from the cutting area
    • Blade Change Safety Tool: Allows users to easily and safely change the blade
    • Wooden Paper Push Tool: Helps to quickly and safely align the paper stack
    • Main Switch and Safety Key Lock: Keeps cutter secure from unauthorized operators
  • Supplies:
    • 31-10: Replacement Blade
    • 31-20: Replacement Cutting Sticks, pkg of 8
Specifications:
  • Cutting Action: Dual-button hydraulic
  • Maximum Cutting Width: 28.7" (730mm)
  • Maximum Paper Stack Height: 3.94" (100mm)
  • Programmable Jobs: Up to 100 programs with up to 100 steps each
  • Length Behind Blade: 26.5" (673mm)
  • Length in Front of Blade: 25" (635mm)
  • Minimum Cut w/False Clamp: 2.36" (60mm)
  • Minimum Cut w/o False Clamp: 1.18" (30mm)
  • Table Size:
    • 72.75" W x 25.125" D (1848 x 638mm) with standard side tables
    • 43.12" W x 21.125" D (1095 x 537mm) without standard side tables
  • Clamp Style: Automatic, hydraulic
  • Hydraulic Clamp Pressure: 700 - 4,500 psi (49 - 316 kg/cm2)
  • Back Gauge Adjustment: Fully programmable using touchscreen, accurate to 0.1mm
  • Blade Change Safety Tool: Included
  • Dimensions: 73" W x 69" D x 56.9" H (1857mm W x 1754mm D x 1445mm H)
  • Weight: 1,323 lbs. (600kg)
  • Power Supply: 208V, 60Hz, 30A dedicated line, NEMA L6-30P
