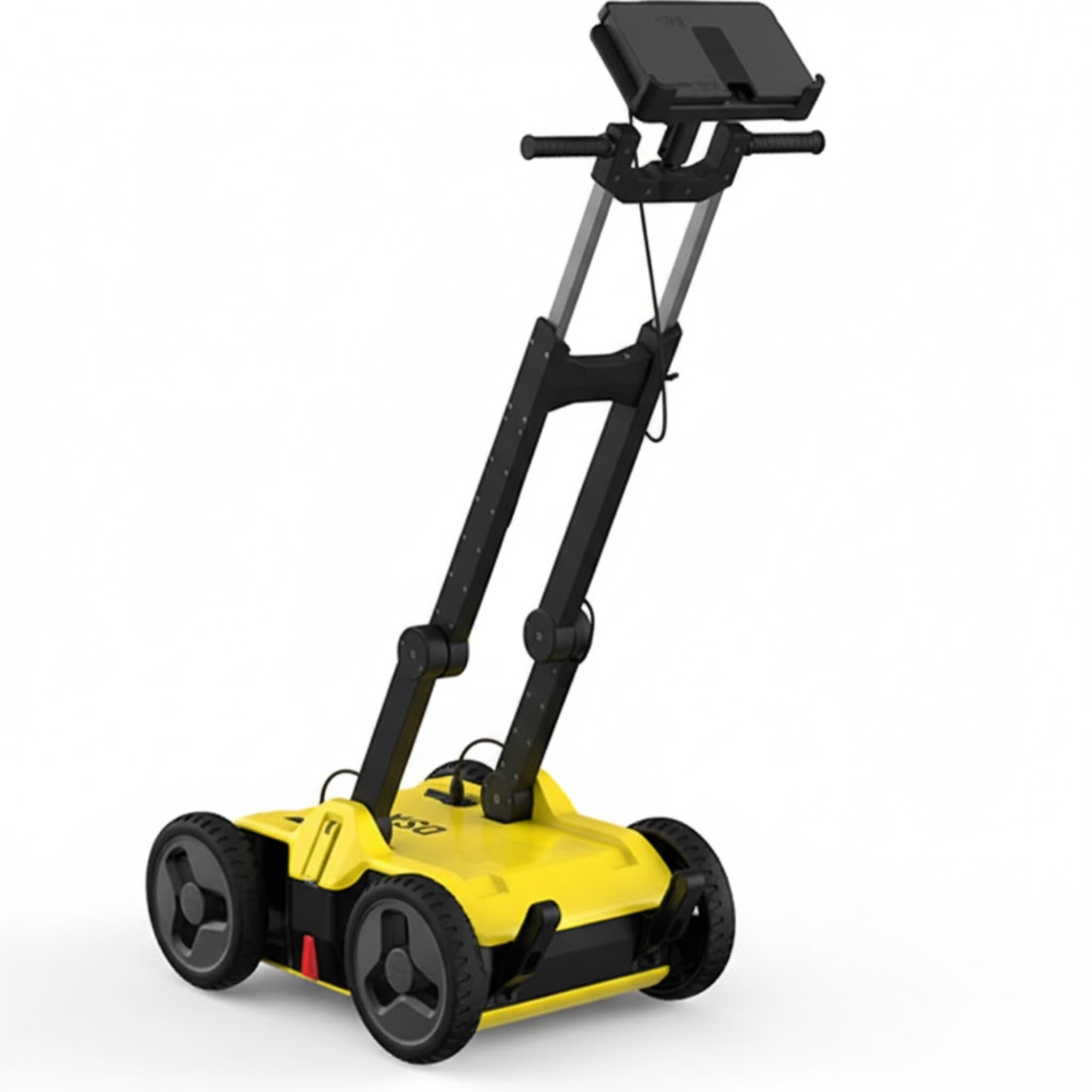

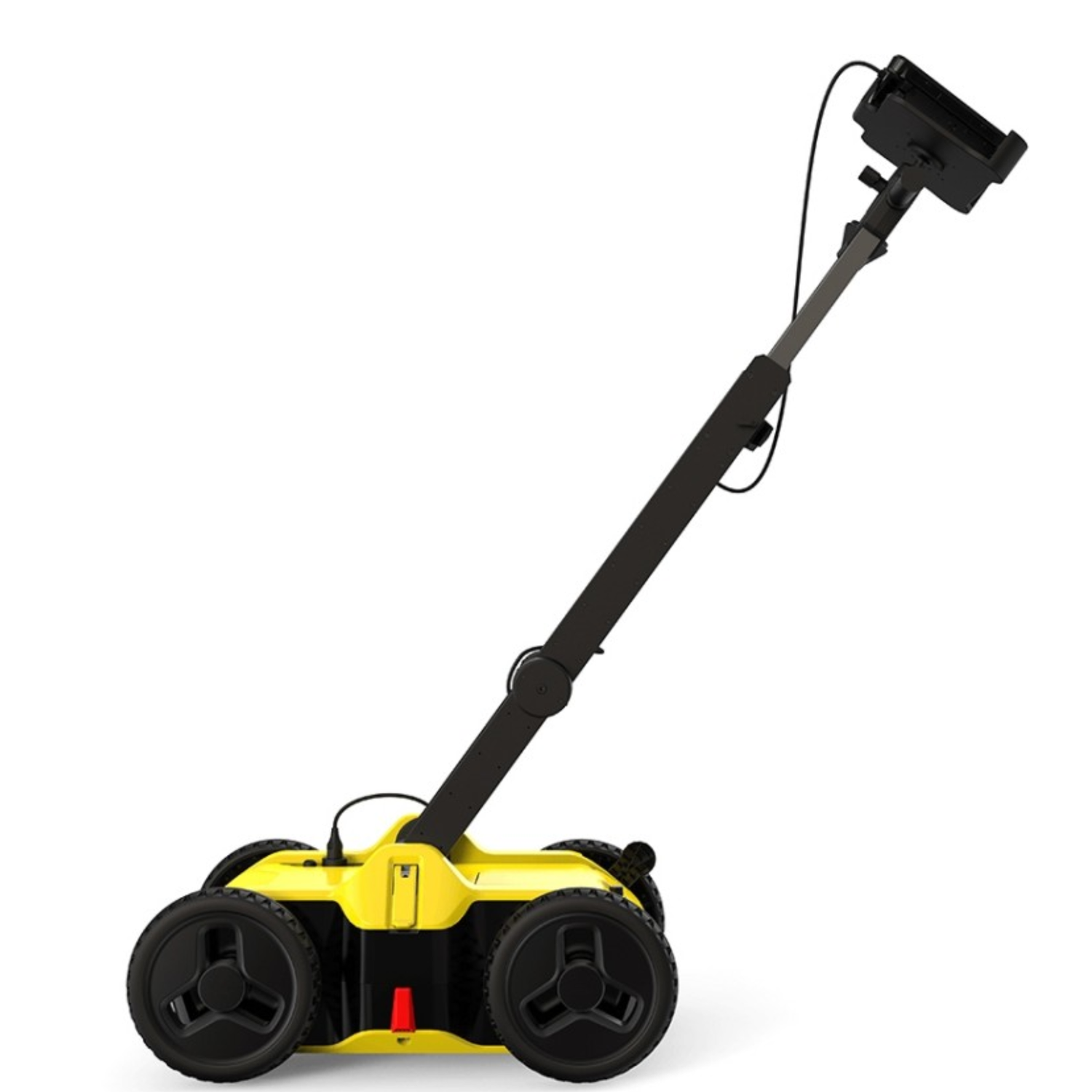

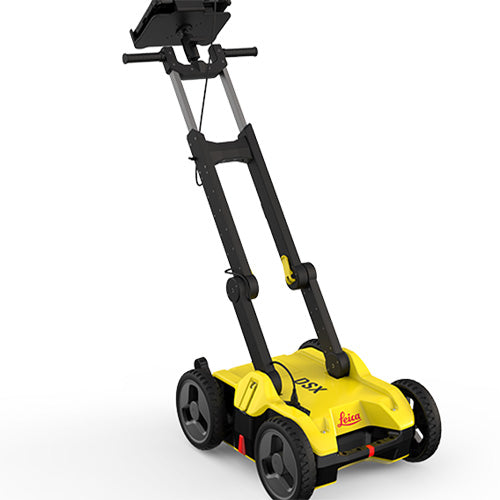

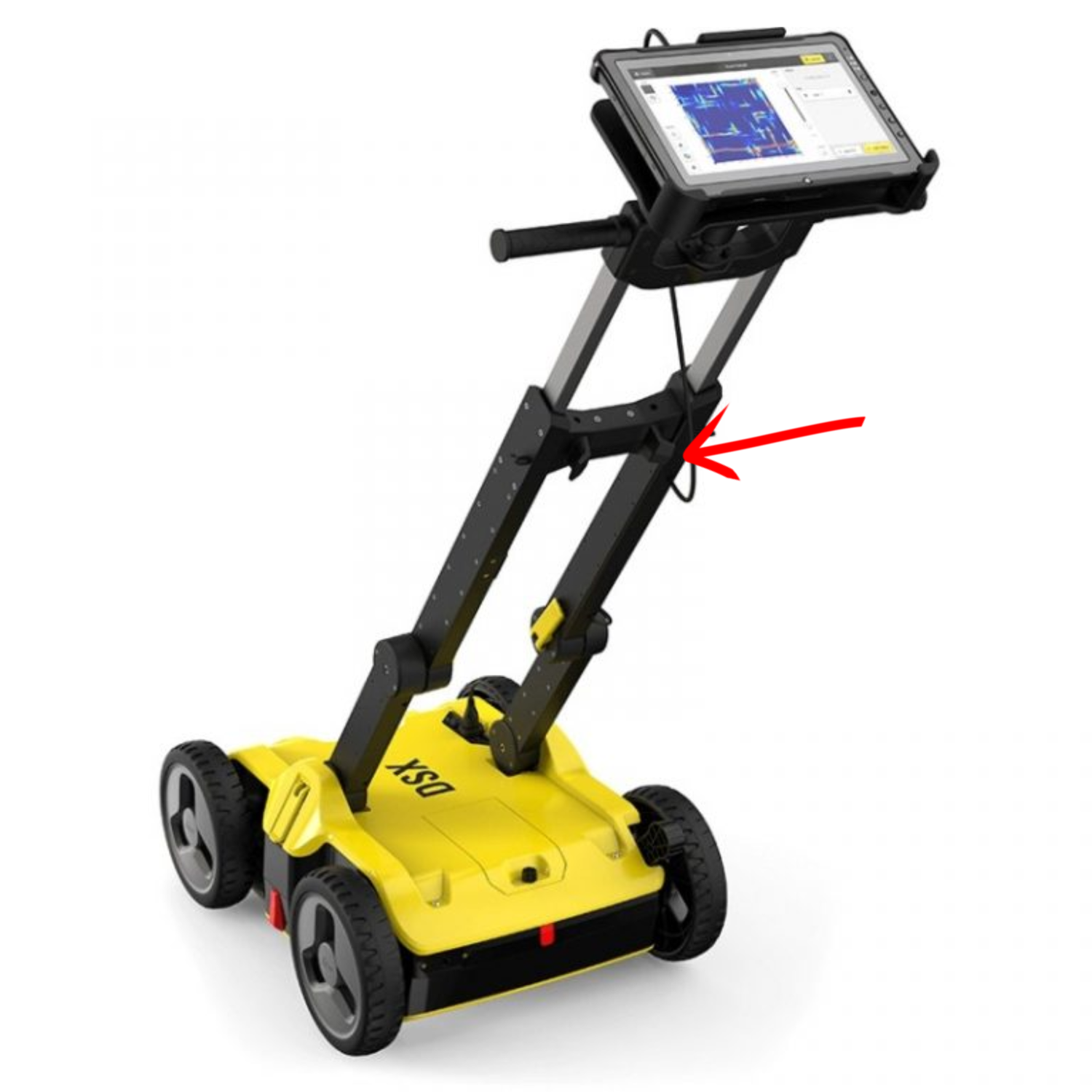

Leica DSX Utility Detection Radar System (GPR) with Perpetual License, Surveyor Kit - 6015141

SKU:
ET17162
$23,880.00
$23,880.00

Order today and Save! Price going up soon

✅ Free shipping over $175
🛡️100% satisfaction
🏅 Authorized dealer
💬 Have a question?
In Stock
$23,880.00
$23,880.00
Quantity
$23,880.00
$23,880.00
Shipping calculated at checkout.
Guaranteed Safe Checkout
American Express Apple Pay Discover Google Pay Mastercard PayPal Shop Pay Visa

📍 Location:

3310 Mayflower Dr, Lynchburg, Va, 24501

🗨️ Let’s Talk! Reach out to us anytime at:

540-600-4204

TRUSTED INDUSTRY EXPERTS

AEC & construction specialists

Fast & Free Delivery

Free Shipping over $175*

30 Days Returns

Hassle-free 30-day returns*

USA-BASED EXPERT SUPPORT

Real experts, Real guidance

Leica DSX Utility Detection Radar System (GPR) with Perpeutal Liscense, Surveyor Kit

Model Number - 6015141

*Optional accessories shown in video are not included in the purchase of this model*

The DSX Surveyor package includes the DXplore Survey software add-on, which enables the operator to combine GPR data with GNSS or TPS coordinates. An integrated GPS antenna is required and is not included. Click Here to view the compatible GPS antenna.

What's in the box
  • DSX Utility Detection System
  • CT1000 Tablet Controller
  • 2 Year DSX Basic Customer Care Program (CCP)
  • 2 Year DSX Survey Customer Care Program (CCP)
  • DXplore Build Edition and DXplore Survey with perpetual license
Reliable Detection Results
  • Detect underground utilities in high resolution to mark out reliable avoidance zones.
  • Verify specific utility locations obtained from existing maps, DigSafe, or from a first pass using a cable locator.
  • Import point-of-interest aspects as well as utility records to help you make better decisions.
Ease of Use
  • Ensure smooth and accurate underground utility detection without expert knowledge.
  • Complete utility detection and mapping in just a few steps through intuitive user interface.
  • Scan anywhere and at any time, even in narrow areas and under severe conditions.
Instant 2D/3D Utility Map
  • Save time on site by mapping underground utilities in just minutes.
  • Export utilities in CAD or BIM-ready formats for future use on site or in the office.
  • Create customizable, professional deliverables.
Integrated Solution
  • Offers a complete workflow from data acquisition to excavation.
  • Add DXplore Survey to generate utility maps compatible with coordinate reference systems.
Specifications
  • DSX Utility Detection Radar
    • Central Frequency - 600 MHz
    • Detection Depth - up to 6.56ft / 2m
    • Acquisition Speed - Up to 4.3mph or 7km/h
    • Scan Interval - 18in / 0.50m
    • Positioning - 2 encoders on wheels, GNSS antenna integration (Surveyor Kit only)
    • Environmental - IP65
    • Battery - Li-ion 14.8V / 5800mAh up to 8 hours operating time
    • Operating Temperature - 14&degF to 104&degF / -10&degC to 40&degC
    • Warranty - 2 years
  • CT1000 Tablet
    • Display - 11.6in
    • Processor - Intel Core i3-7100U
    • Memory - RAM 4GB, 128GB SSD
    • Operating System - Windows 10 Professional
    • Positioning - GPS (GlobalSat)
    • Environmental - Sunlight readable display (LCD + Touchscreen + Hard Tip stylus) IP65/MIL-STD810G
    • Weight - 3.1lbs / 1.39kg
    • Battery - Li-ion 11.4V / 2160mAh
    • Communications - WiFi, Bluetooth v4.2, 4G LTE (Model 880920) - RJ45 connection to DSX
    • Warranty - 2 Year Global Warranty (Battery - 1 Year)
  • Software
    • Setup
      • Offline tutorials
      • Status check (connection, battery level, etc.)
      • Project and draft management
    • Acquisition
      • Grid Scan Mode
      • Radar sensor control (scan and pause, etc.)
    • Positioning
      • Real-time position display from wheel encoders
      • Google Maps and current location support
      • Reference point entering support
      • Local coordinate system support.
      • GNSS antenna support (Leica GS14, 16, 18 T; iCON gps 70, 70 T; GG03, GG04, GG04 Plus)
    • Process and Analysis
      • On-site radar tomography
      • Generation
      • POI support
      • Utility marking
    • View
      • 2D View
      • 3D View
    • Import
      • Utility records in DXF and DWG formats
    • Export
      • Customized report in PDF format
      • Detected utilities in DXF and DWG formats
      • Tomography in JPG format

DSX Demo - Ground Penetrating Radar, A Step-By-Step Walkthrough of the Leica DSX Detecting Utilities
*Optional accessories shown in video are not included in the purchase of this model*
