The TPI 6400W Infrared Heat Panel is designed for industrial and heavy-commercial applications, providing efficient, precise heating for tasks like paint curing, collision repair, and finishing work. With its rugged construction, rapid heat-up time, and adjustable positioning, this heat panel offers unmatched reliability and performance for demanding environments.
Key Features:
-
Rugged Steel Construction: Built with a 20-gauge steel frame, base, and housing to withstand industrial use and heavy wear.
-

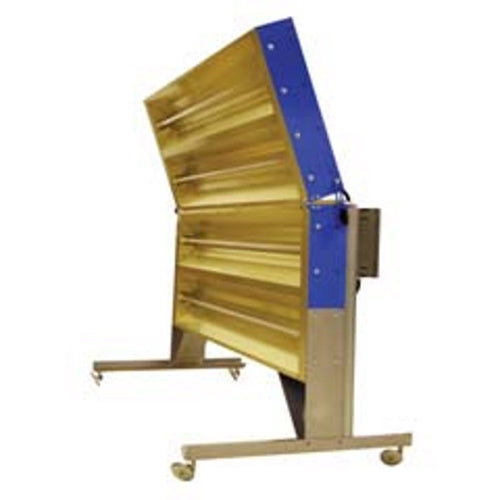

Adjustable Heat Positioning: Equipped with adjustable hinges, allowing precise heat application to target areas.
-
Rapid Heat-Up Time: Medium-wave infrared elements reach full temperature in under 2 minutes, minimizing downtime.
-
High Mobility: Features 3-inch steel casters for stability and easy movement between workstations.
-
Enhanced Efficiency: Gold anodized aluminum reflectors and end caps reduce curing time by 10%, even in paint or dust-laden environments.
-
Medium-Wave Radiant Heat: Offers gentle but effective heat that reduces the risk of blistering or overheating coatings, ensuring high-quality finishes.
-
Environmentally Friendly: Supports flash-off of water-based coatings mandated by environmental regulations in many states.
-
Fused Disconnect Switches: Installed on the back of each unit for added safety and easy control.
Specifications:
- Model Number: HP-6-QT
- Watts: 6,400
- Voltage: 240V
- Amps: 26.7
- Heat Sources: 4
- Cable Type: 20 feet, 12-3 SO
- Dimensions (inches): 66 5/8 (W) x 56 1/2 (H)
- Heated Area (inches): 61 (W) x 44 (H)
- Weight: 141 lbs
Frequently Asked Questions (FAQ)
Q1: What makes this unit suitable for paint and dust-laden environments?
The gold anodized aluminum reflectors and end caps improve curing time by 10% and maintain efficiency in challenging atmospheres.
Q2: Is this unit portable?
Yes, the 3-inch steel casters provide stability and easy mobility, allowing you to move the panel effortlessly between workstations.
Q3: Does the panel include safety features?
Yes, it comes with fused disconnect switches on the back for added safety and easy shutoff.
Q4: How long is the power cable?
The panel includes a 20-foot, 12-3 SO cable, offering flexibility in positioning the unit.
Q5: Does the panel have multiple heat settings?
While it doesn’t have multiple heat settings, the medium-wave infrared technology ensures consistent and precise heat for various applications.
Q6: How quickly does the panel heat up?
The medium-wave infrared elements reach full temperature in less than 2 minutes, ensuring quick startup.
Q7: Does the panel require special maintenance?
Maintenance is minimal. Clean the reflectors and housing periodically to maintain efficiency and performance.
