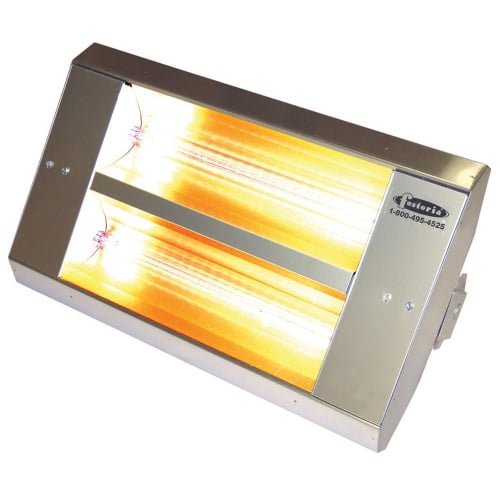

TPI 2 Lamp 3.2KW 208V 30Sym Mul-T Mount Infrared Htr SS

Model Number: 222-30-THSS-208V

Features:

• Listed for suspended, totally exposed (outdoor), high-bay (indoor) comfort heating and exterior snow & ice control applications
• Listed for recessed applications
• Series:

  • 222 (Stainless Steel Version) 2-lamp –– THSS Series
• Housing:

  • 20 gauge Stainless Steel for durability and corrosion-resistance.
• Reflectors and End Caps:

  • .040 Gold anodized Aluminum reflectors and end caps for superior reflectivity.
  • Five choices of reflector patterns including 30 degree narrow (symmetric & asymmetric), 60 degree medium (symmetric & asymmetric), and 90 degree wide (symmetric)
  • THSS models have stainless steel endcaps.
• Elements:

  • Clear quartz lamps.
  • Coiled tungsten filament located within a sealed quartz envelope, halogen filled, with porcelain end caps and 6" wire pigtail leads.
  • Elements are 12mm in diameter and deliver a 96% radiant efficiency with high moisture and thermal shock resistance.
  • Instantaneous heat-up and cool-down performance.
  • Available wattages from 1600 to 3650 Watts per element.
  • Available voltages from 208 to 600 Volts
• Controls:

  • Mul-T-Mount heaters are not manufactured with any control device on the unit.
  • All controls are accessories and should be specified as such.
  • Please consult the technical sales department of factory for help in determining applicable controls.
  • Please follow installation instructions that accompany each heater.
• Accessories:

  • Recessed mounting frames (painted or stainless steel)
  • Adjustable mounting brackets (stainless steel only)
  • Vertical mounting brackets (stainless steel only)
  • Wire guards, thermostats, snow detectors, SCR controllers, and power contactor panels (ICP Series)
• In-Built surface mounting brackets allows for fixture adjustment up to 45° horizontal tilt
• In-built surface mounting brackets attached to the top wiring channel
• 0 to 45-degree tilt @15-degree increments
• Made in U.S.A.

Specifications:

• Quantity: 1
• MFG CATALOG NUMBER: 04444002
• KW: 3.2
• BTU: 10,922
• VOLTS: 208
• REFLECTOR PATTERN: 30° Symmetrical
• 12mm DIAMETER REPLACEMENT LAMP: 63016209
• WT. (LBS): 20

NOTE: Consult the factory, the product instruction manual, or a licensed electrician for 3-phase wiring of all 2-element heaters.
