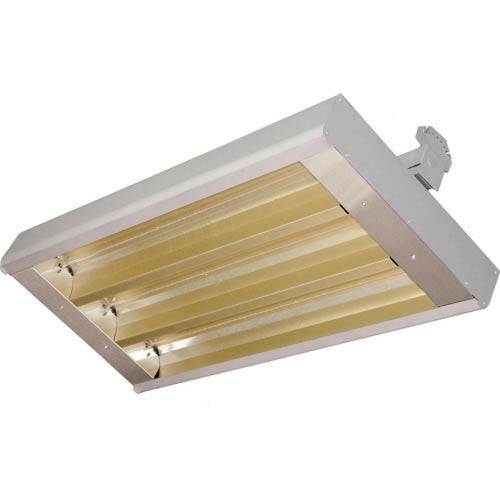

TPI 2 Lamp 8MM 3.2KW 240V 90Sym MTM EIR Htr Alum.Extru. W.AG-Sleeves

Model Number: 222-90-THA-240V

Features:

• ETL C/US listed for suspended, totally exposed outdoor and indoor spot comfort heating applications, including exterior snow/ice control applications
• Clear quartz lamp heating elements, offered in both 2-lamp and 3-lamp heaters that operate on 208, 240, or 480 volt
• Gold anodized one-piece reflector offered in 30°, 60°, or 90° symmetrical patterns for various distribution of infrared heat
• 6063 extruded aluminum housing, with a painted powder coated nickel gray finish
• Housing is extremely durable and attractively designed for commercial applications
• All 3-lamp heaters wire for either single or three-phase wiring.
• 2-lamp heaters wire for single-phase operation
• Includes surface mounting brackets & glare-reducing sleeves to eliminate 94% of the quartz lamp lumen output
• Made in the USA

Specifications:

• Quantity: 1
• MFG CATALOG NUMBER: 04893902
• KW: 3.2
• BTUs: 10,922
• VOLTS: 240
• REFLECTOR PATTERN: 90° Symmetrical
• 8mm DIAMETER REPLACEMENT LAMP: 04912902
• WT. (LBS): 20

NOTE:

• All THA models have the same housing dimensions and require the same mounting clearances as the TH/THSS models
• Asymmetrical pattern units are also available for 30° & 60°, contact factory for more information
• Consult the factory, the product instruction manual, or a licensed electrician for 3-phase wiring of all 2-element heaters.

WARNING: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer, and chromium, which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.ca.gov.
