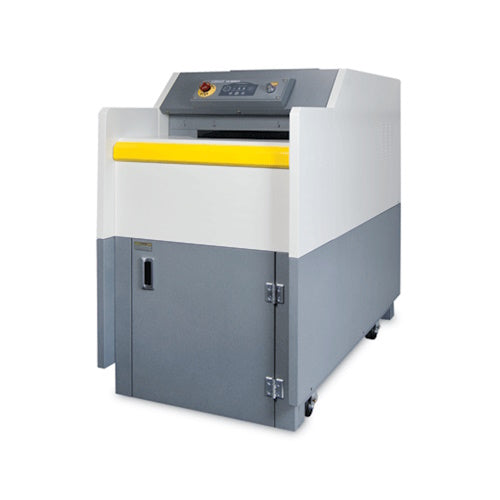

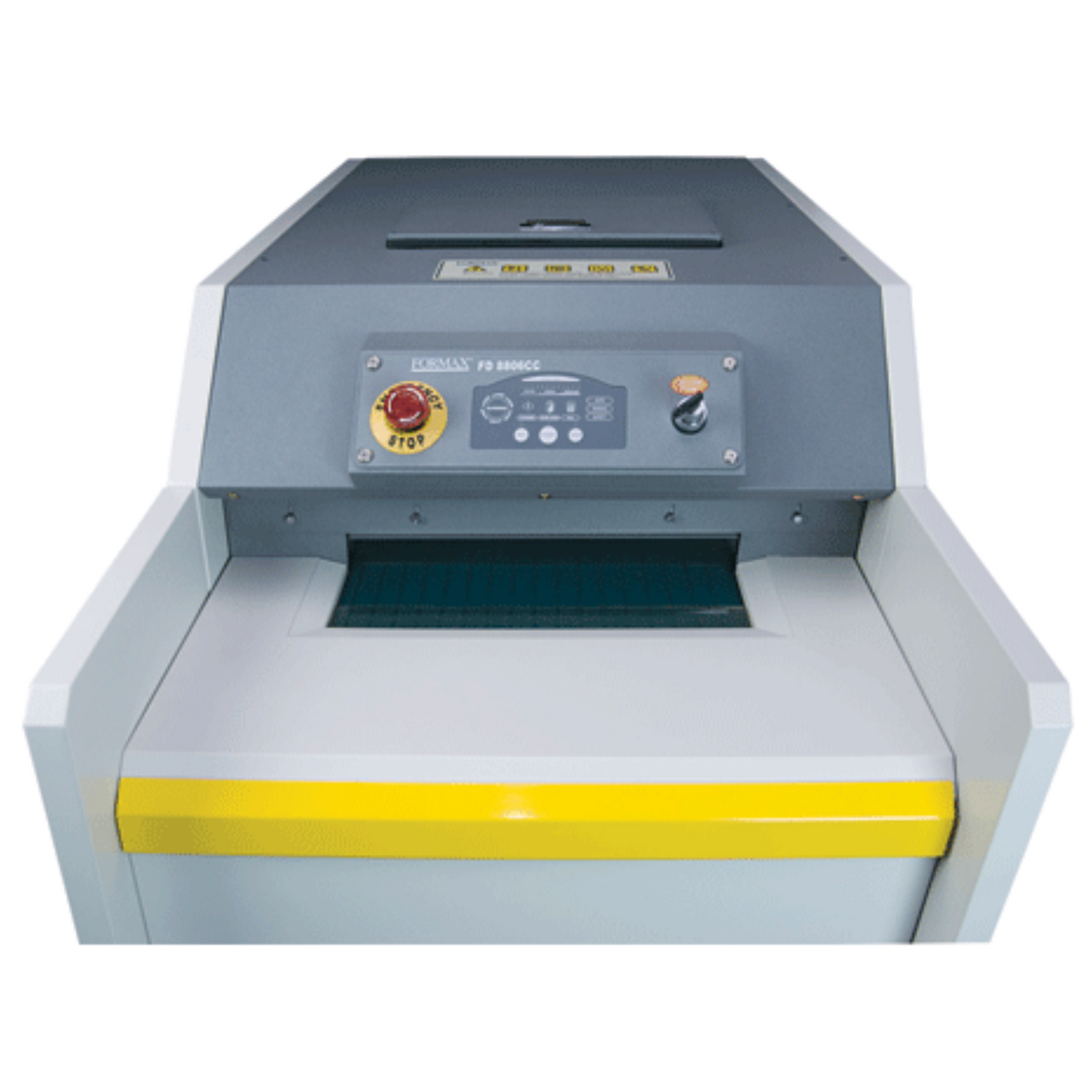

Formax Industrial Conveyor Shredder, Cross-Cut

Model Number: FD 8806CC

Features:

• The Formax Industrial Conveyor Shredder, Cross-Cut are the ultimate choice for high volume industrial shredding. The shredders come with the EvenFlow™ Automatic Oiling System, which lubricates the cutting blades automatically for optimal performance.
• Standard Features:
  • Belt-Feed Industrial Shredding System: Designed to shred entire files, stacks of computer forms, cardboard, tapes, ribbons, CDs and magnetic disks

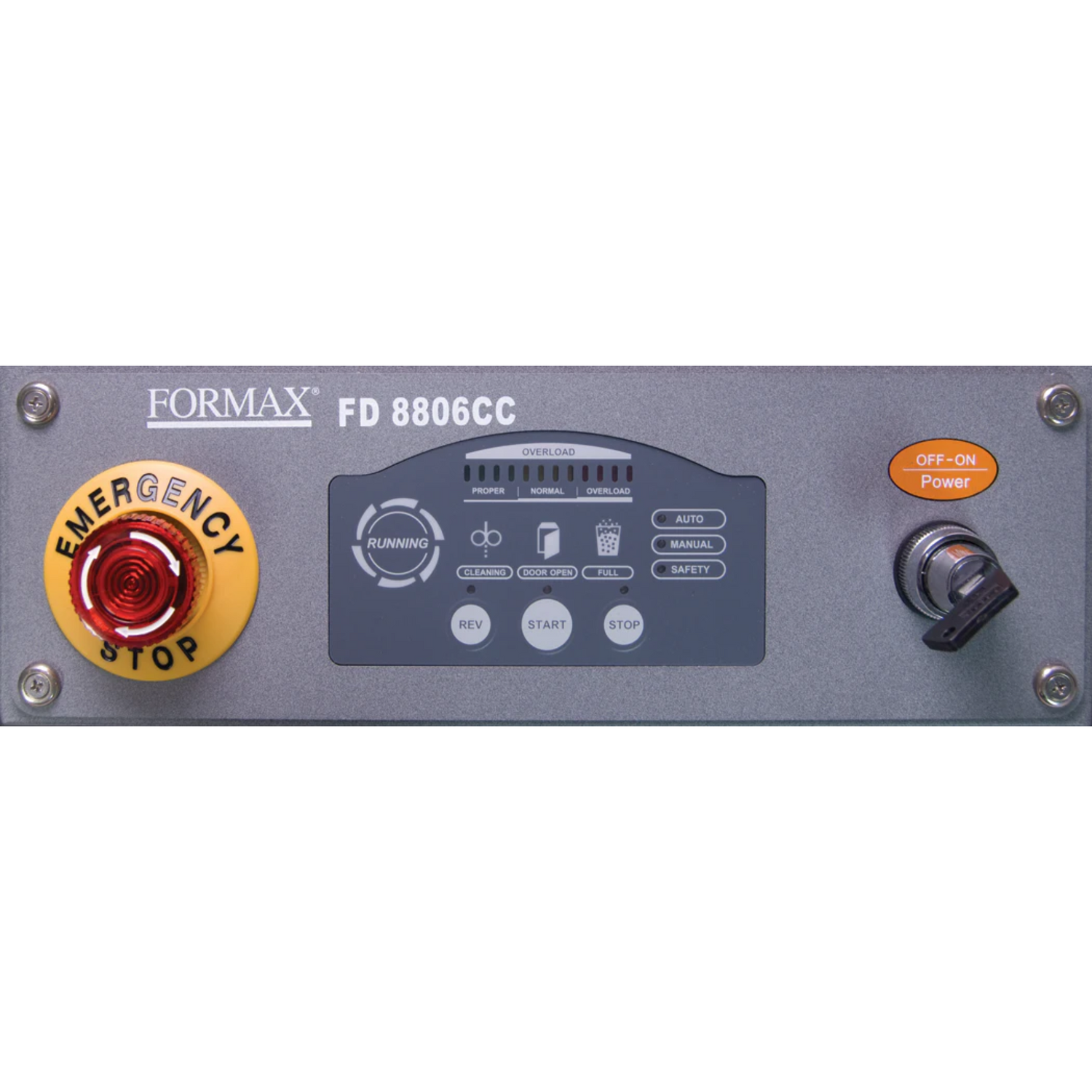

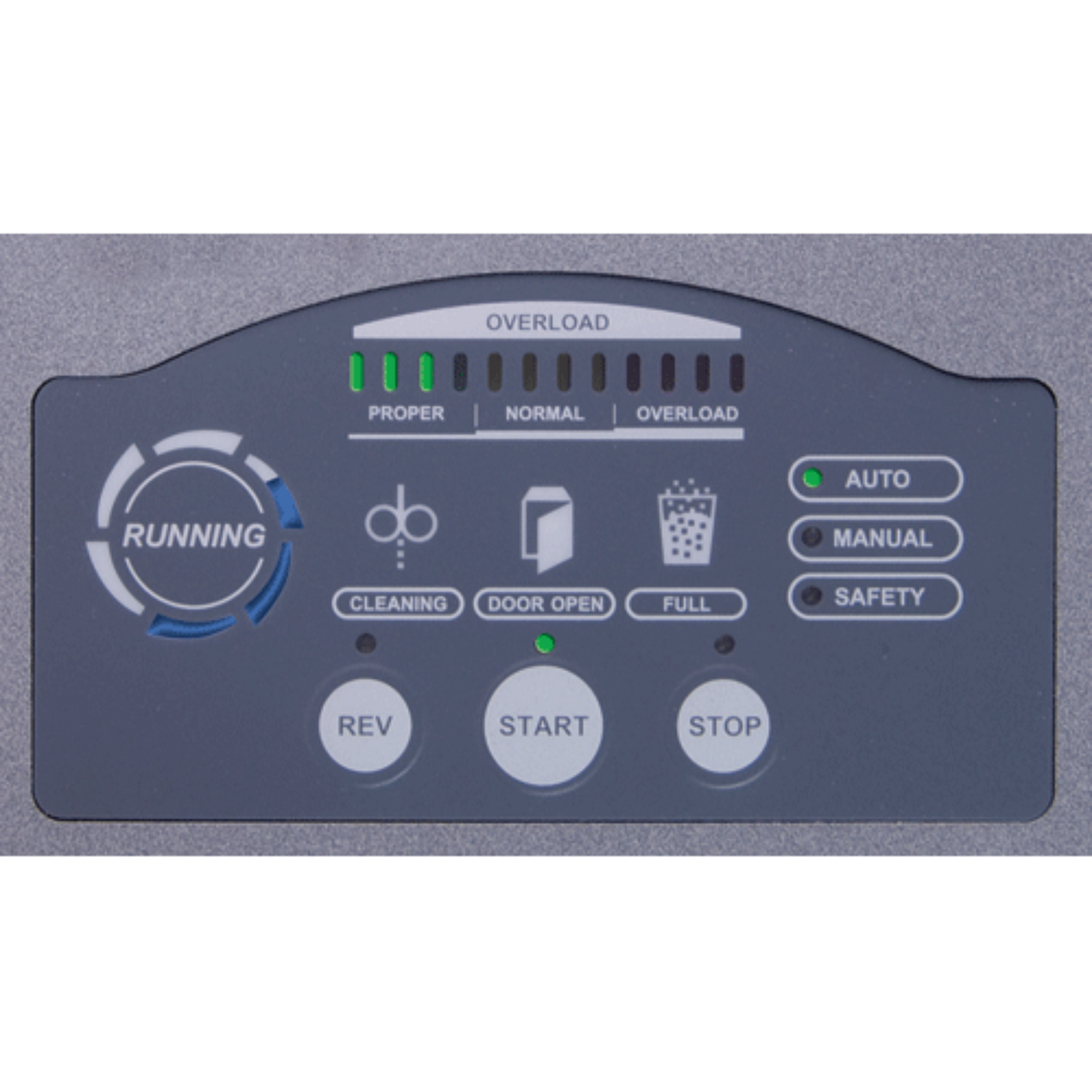

  • LED Control Panel: Integrated digital load indicator and sensors

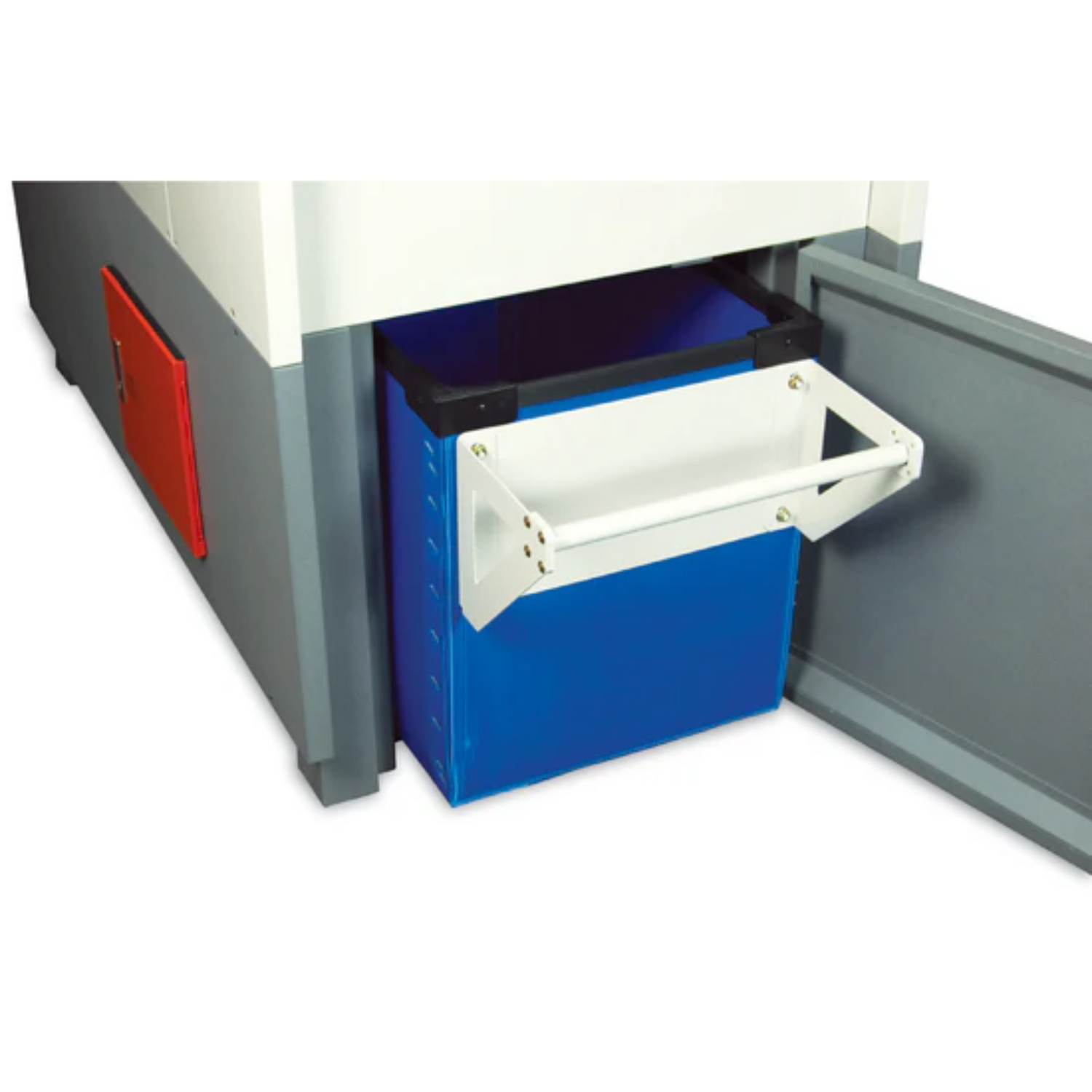

  • Front Waste Bin Access: Front cabinet door allows the shredder to be placed against a wall to maximize space savings
  • Auto Start/Stop Mode: Optical sensor detects paper and starts operation automatically

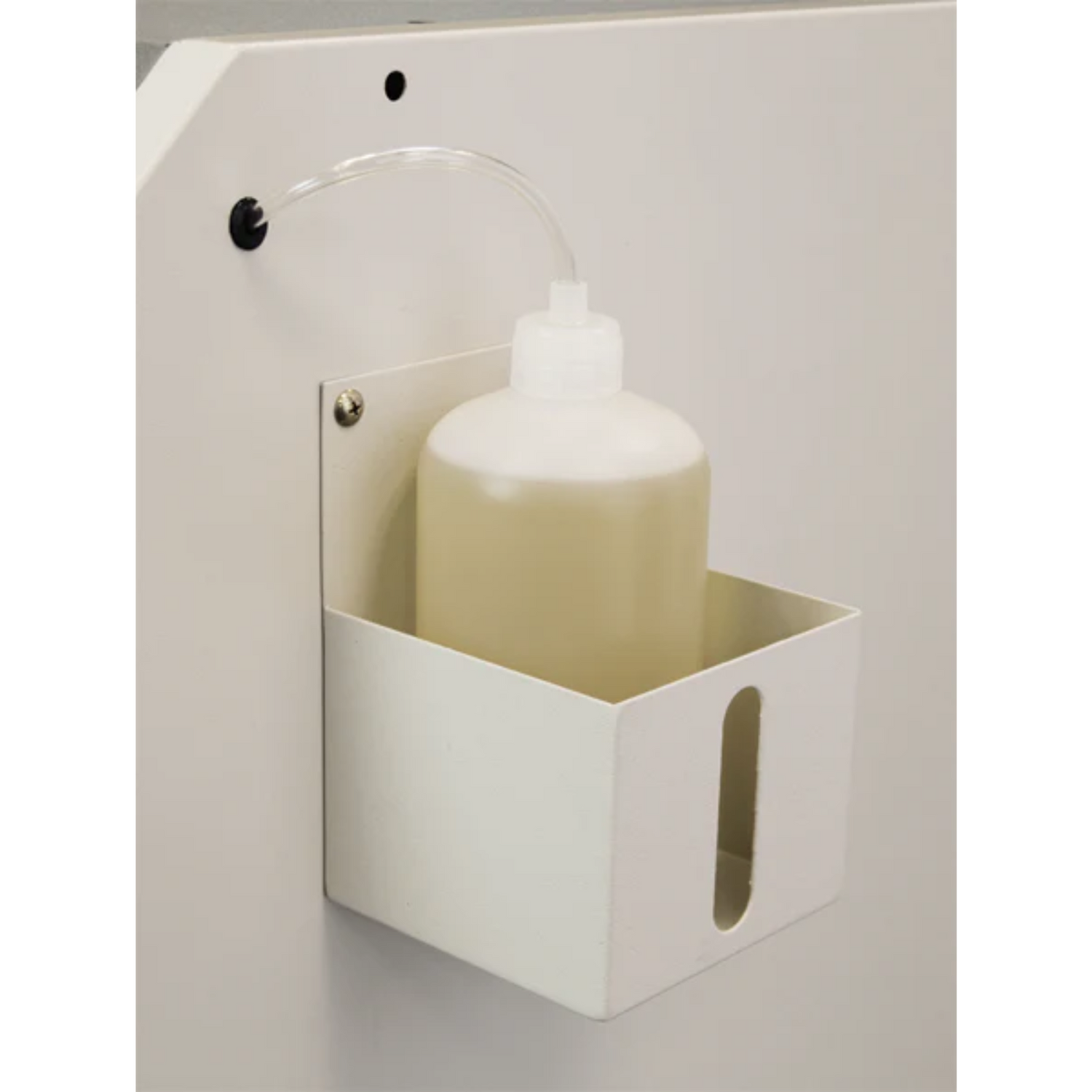

  • EvenFlow™ Automatic Internal Oiling System: Lubricates cutting blades for optimal performance
  • Heat-Treated Solid-Steel Cutters: Specially ground for longevity and require minimal oiling
  • Door Safety Sensor: Motor stops automatically if cabinet door is opened
  • Auto Reverse: In case of paper jam, built-in controls switch motor into reverse to clear jam
  • Continuous-Duty Motor for non-stop operation
  • Manual Mode: Shredder operates continuously for shredding small sized paper or films
  • Waste Bin Full Sensor: When the waste bin is full the motor stops automatically
  • Auto Cleaning: Allows the motor to run in reverse for one minute to clear shred particles
  • Self-Diagnosis System: Provides a variety of operational data with optional diagnostic reader
  • Large Safety Bar to stop operation
  • Rugged molded plastic Waste Bin on casters
  • Thermal Overload Protection: Motor and PCB
  • Safety Circuit Breaker: Ensures safe operation

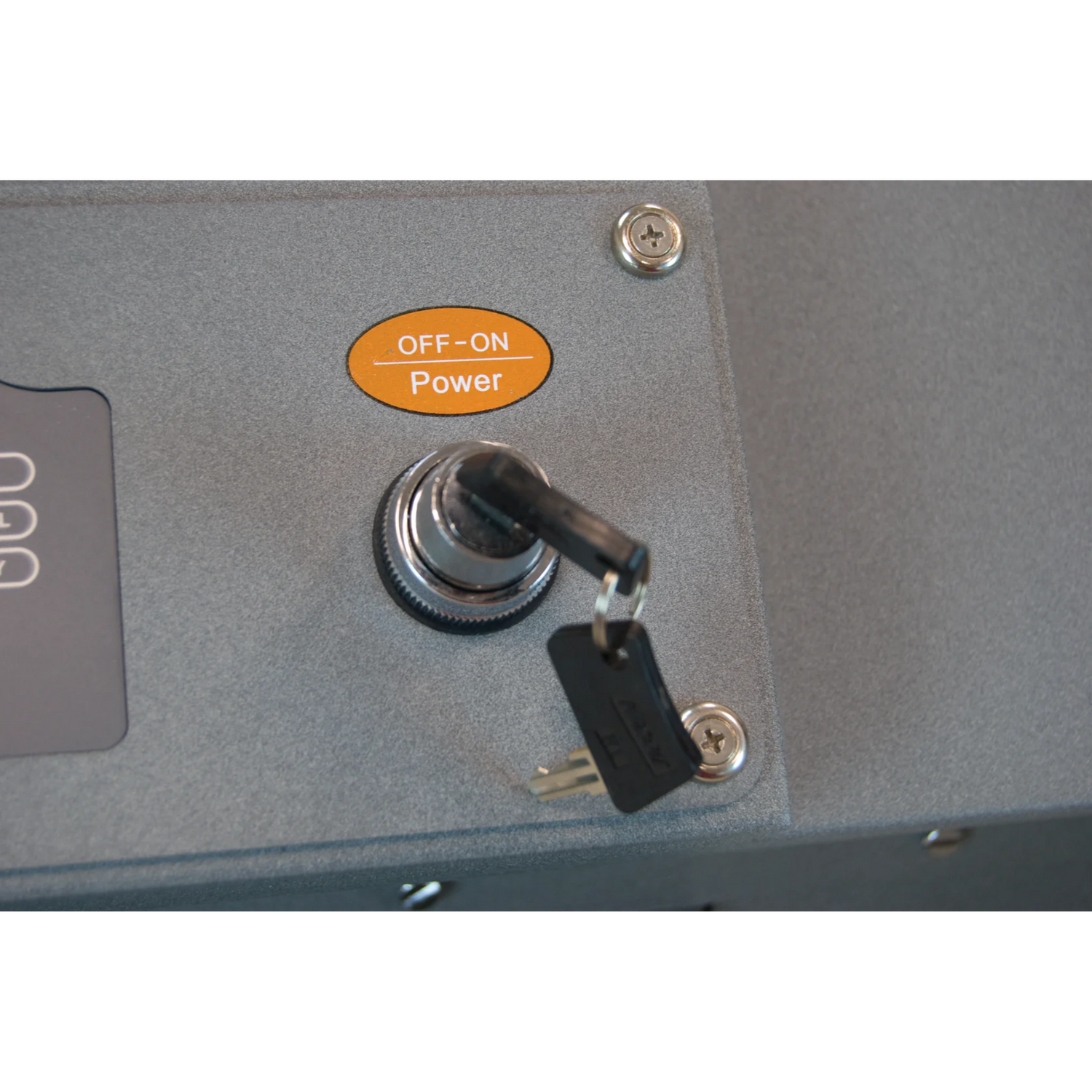

  • Safety Key and Lock: Provides maximum control of the shredder
• Options & Supplies:
  • Additional Waste Bin on casters
  • Cutting Head Lubricating Oil: #8000-20, one case / four 1-gallon bottles
  • Shredder Bags: Uses #8000-80, case of 100
• Warranty:
  • Cutting Head: Limited lifetime warranty (parts only)
  • All Other Parts: 1-year warranty

Specifications:

• Cutting Style:
  • FD 8806CC: Cross-Cut
  • FD 8806SC: Strip Cut
• Shred Size:
  • FD 8806CC: 1/4" x 1.57"
  • FD 8806SC: 1/2"
• Sheet Capacity:
  • FD 8806CC: Up to 90*
  • FD 8806SC: Up to 110*
• Speed:
  • FD 8806CC: Up to 43 fpm
  • FD 8806SC: Up to 49 fpm
• Feed Opening (FD 8806CC & FD 8806SC): 16"
• Dimensions (FD 8806CC & FD 8806SC): 28.3" W x 52.3" L x 48.5" H
• Bin Capacity (FD 8806CC & FD 8806SC): 36 gallons
• Weight (FD 8806CC & FD 8806SC): 1008 lbs
• Security Level:
  • FD 8806CC: P-3
  • FD 8806SC: P-1
• Power Supply:
  • 3-Phase 220V, 60Hz, 20A
  • NEMA L15-20P plug included, NEMA L15-20R receptacle required

  * Sheet capacity may vary due to variations in paper and power supply.
