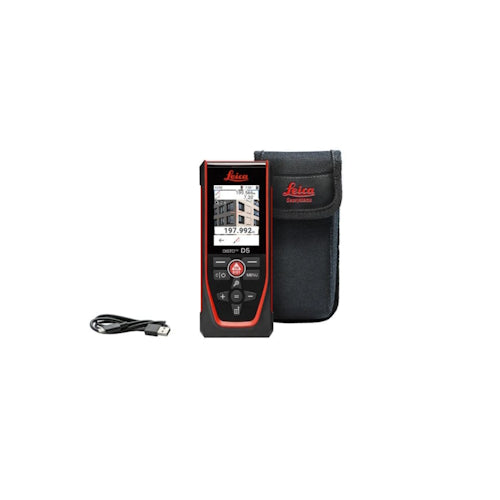

The Leica Disto D5 Laser Distance Meter is a precision tool designed for professionals who demand accuracy and efficiency. With a range of up to 200 meters and ± 1.0 mm accuracy, this device offers advanced features like Smart Horizontal mode, Bluetooth® 5.0 technology, and a bright 2.4" IPS display for seamless and reliable measurements.

• Range up to 200 m
• ± 1.0 mm accuracy, 0.1 mm resolution
• Measuring slopes
• Smart Horizontal mode
• Fast Start-up time – ready in under 1 second
• Foldable end-piece with automatic detection
• Bright and clear 2.4” IPS display with scratch-proof lens
• Trigger measurements with gestures
• Memory for 50 measurements
• Li-Ion rechargeable battery
• USB-C charging
• Keyboard simulating data-transfer via Bluetooth®
• Bluetooth® 5.0 Technology for error-free data transfer
• Works with DISTO™ Plan App (iOS and Android) and DISTO™ transfer (Windows)
• Includes:
  • Leica DISTO™ D5
  • Pouch
  • USB-C to USB-A Cable
  • Hand Loop
  • Quick Start Guide
  • Warranty card
  • Safety Manual
  • Calibration Certificate Silver

• Accuracy with favorable conditions *: 1.0 mm / 1/16" ***
• Accuracy with unfavorable conditions **: 2.0 mm / 1/8" ***
• Range with favorable conditions *: 0.05 – 200 m / 0.07 – 660 ft ***
• Range with unfavorable conditions **: 0.05 – 120 m / 0.07 – 400 ft ***
• Smallest unit displayed: 0.1 mm / 1/32 in
• X-Range Power Technology: yes
• Laser Class 2: 635 nm, <1 mW
• Digital Point finder with 4-fold zoom: yes
• Tilt measuring range ****: 360°
• Tilt measuring tolerance: ± 0.2°
• ø laser point | at distances: 6 / 30 / 60 mm | 10 / 50 / 100 m
• Protection class: IP54 (dust- and splash water protected)
• Auto. laser switch off after: 90 s
• Auto. power switch off after: 180 s
• Bluetooth® Smart: Bluetooth® v5.0
• Range of Bluetooth®: up to 10 m
• Battery durability (Li-Ion 2 000 mAh):
  • up to 5’000 measurements
  • up to 10 hours operation time
• Dimension (H x D x W): 144 x 60 x 24 mm | 5.7 x 2.4 x 0.9 in
• Weight (with batteries): 180 g / 6.35 oz
• Temperature range storage | operation: -25 to 70 °C / -13 to 158 °F | -10 to 50 °C / 14 to 122 °F

* favourable conditions: white and diffuse reflecting target (white painted wall), low background illumination and moderate temperatures.
** unfavourable conditions: targets with lower or higher reflectivity or high background illumination or temperatures at the upper or lower end of the specified temperature range.
*** Tolerances apply from 0.05 m to 10 m with a confidence level of 95%. Above 5 m the tolerance may deteriorate according to the values given in the manual of the unit.
**** after user calibration. Additional angle related deviation are according to the values given in the manual of the unit.
