• The Bosch 500 ft. Red-Beam Rotary Laser Receiver - LR10 is designed to increase red beam rotary laser detection up to 800 Ft., with a backlit LCD display for use in darker areas or outdoors.
• Receiver to extend working range increases rotary detection up to 2,000 Ft., with easy-to-see LED indicators, adjustable audio.

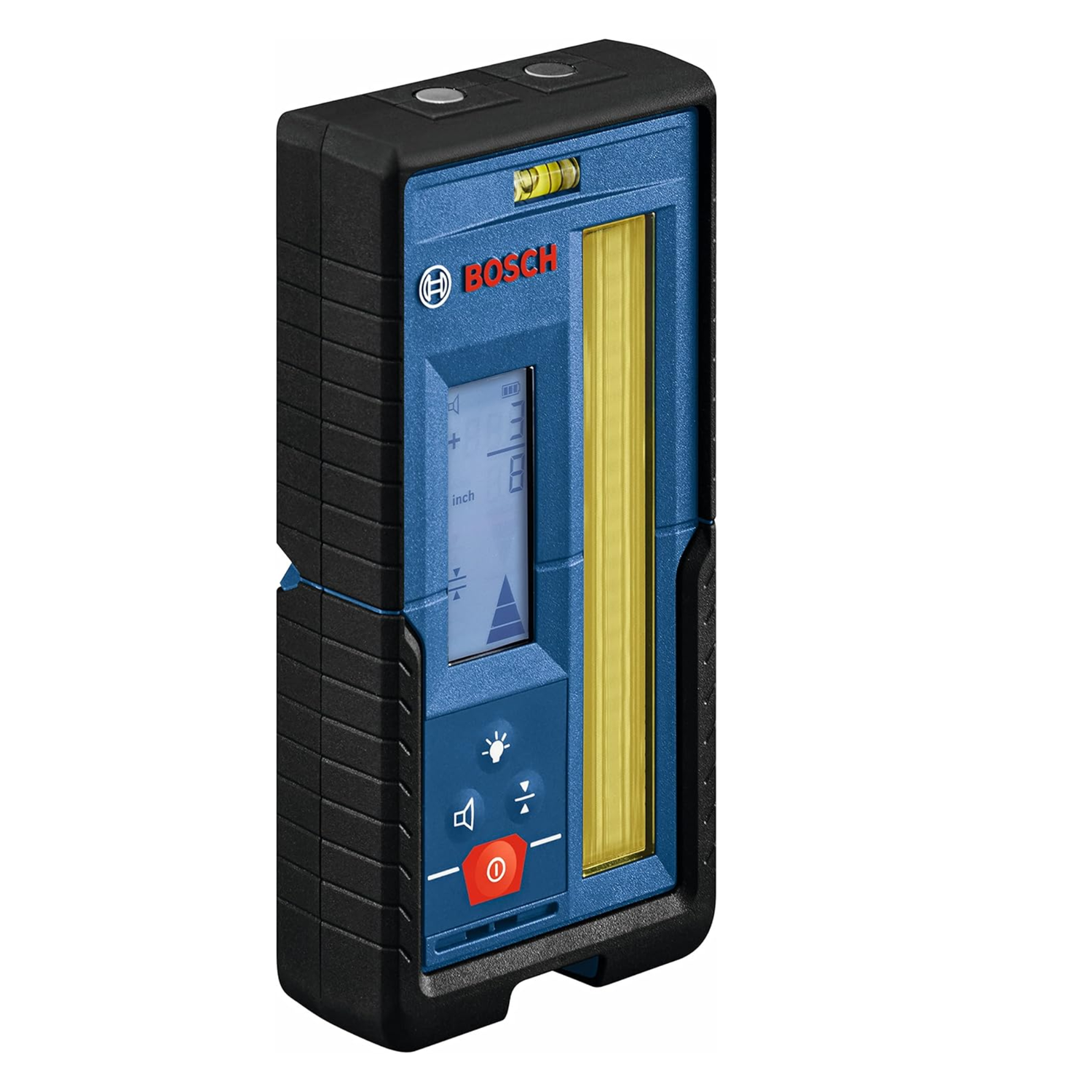

• Dual-sided backlit LCD display illuminates easy-to-see up/down arrows, center line, accuracy level, battery levels and more.
• Dual-sided indicators provide easy visual readout on both sides of the receiver.
• Oversized detection area enables fast laser reception.
• Built-in magnets allow for secure attachment to metal surfaces.
• Adjustable audio indicator provides clear signal of on-grade position and facilitates precise plus/minus control.
• Intuitive six-button keypad enables simple operation and center line function in both X and Y axes.
• Receiver vial helps ensure accurate leveling results.
• Ergonomic soft grip provides secure handling and comfort.

• Quantity: 1
• Automatic Shut-Off: No
• Degree of protection: IP 66
• Length: 6.22"
• Range: Up to 1,000-ft.
• Receiving Laser Color: Green and Red
• Weight: 0.765lb
• Width: 3.15"
• Receivable wavelength: 635-650 nm
• Suitable for rotational laser level: GRL2000-40H, GRL2000-40HV
• Working range ¹⁾ 1000 ft (300 m)
• Receiving angle: ±35º
• Receiving rotation speed: 150,300,600 min^-1
• Accuracy ^{2) 3) 4)}

  • –Setting "fine"

    • ±1/32 in (±0.05 in) ±1 mm
    • ±1/16 in (±0.1 in) ±2 mm
  • –Setting "medium"

    • ±1/8 in (±0.15 in) ±3 mm
    • ±1/4 in (±0.25 in) ±5 mm
  • –Setting "coarse"
    • ±1/2 in (±0.5 in) ±7 mm
    • ±1 in (±1 in) ±10 mm
• Operating temperature: 14 °F ~ 122 °F (–10 °C ~ +50 °C)
• Storage temperature: –4 °F ~ 158 °F (–20 °C ~ +70 °C)
• Battery: 2 x 1.5V LR6 (AA)
• Operating time, approx.: 40h ⁵⁾
• Weight according to EPTA-Procedure 01:2014:
  • 0.661 lb (0.300 kg) without battery
  • 0.765 lb (0.347 kg) with battery
• Dimensions: 6.22 x 3.15 x 1.33 in (158 x 80 x 33.9 mm)

¹⁾ The working range (radius) can be reduced due to unfavorable ambient conditions (e.g. direct sunlight).
²⁾ Depends on distance between laser receiver and rotational laser level
³⁾ Dependent on laser class and laser type of the rotational laser level.
⁴⁾ The accuracy can be impacted by unfavorable environmental conditions (e.g. direct sun irradiation)
⁵⁾ With display illumination deactivated.

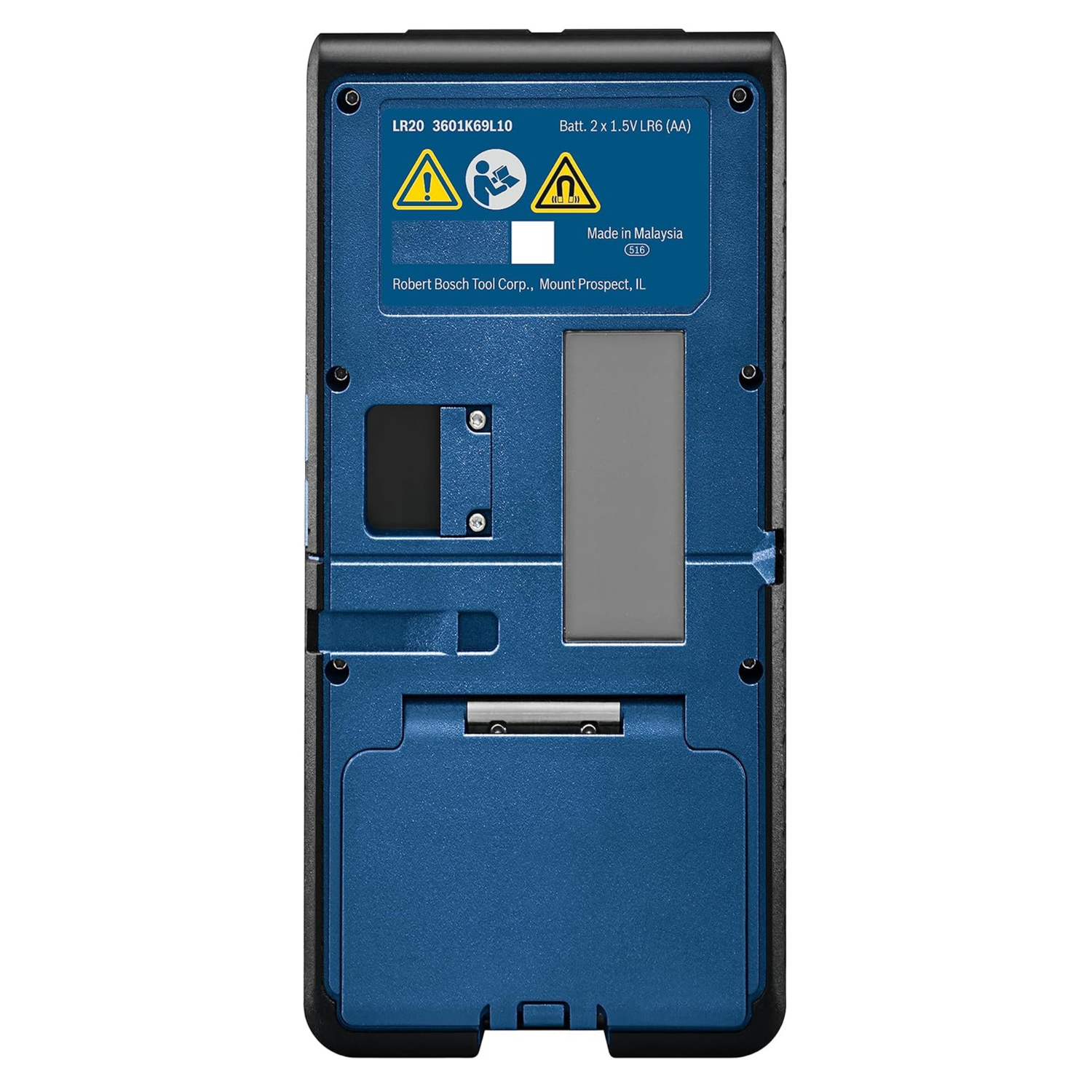

The laser receiver can be clearly identified with the serial number 11 on the type plate.

Includes:

• (1) LR20 1,000 Ft. Red and Green-Beam Rotary Laser Receiver

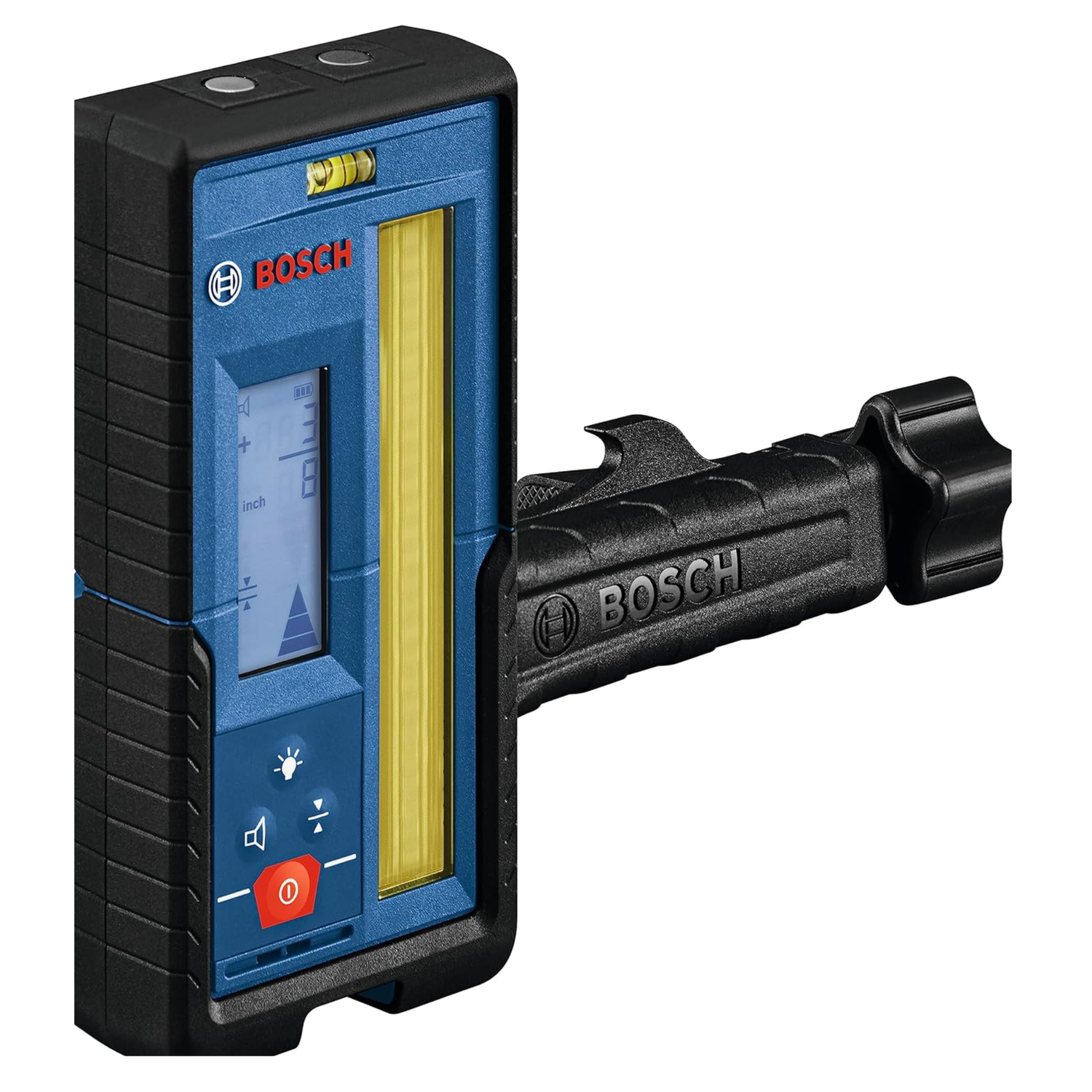

• (1) Mounting Bracket
• (1) 9V Battery
