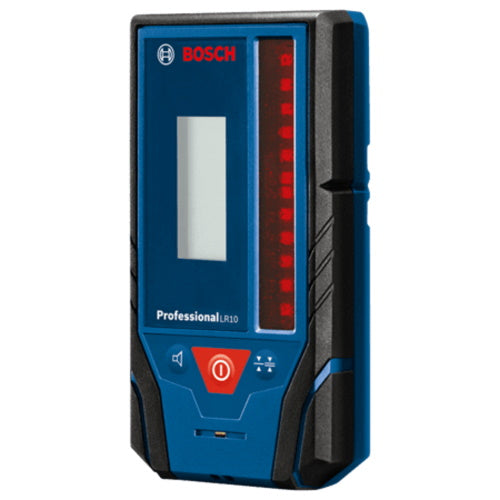

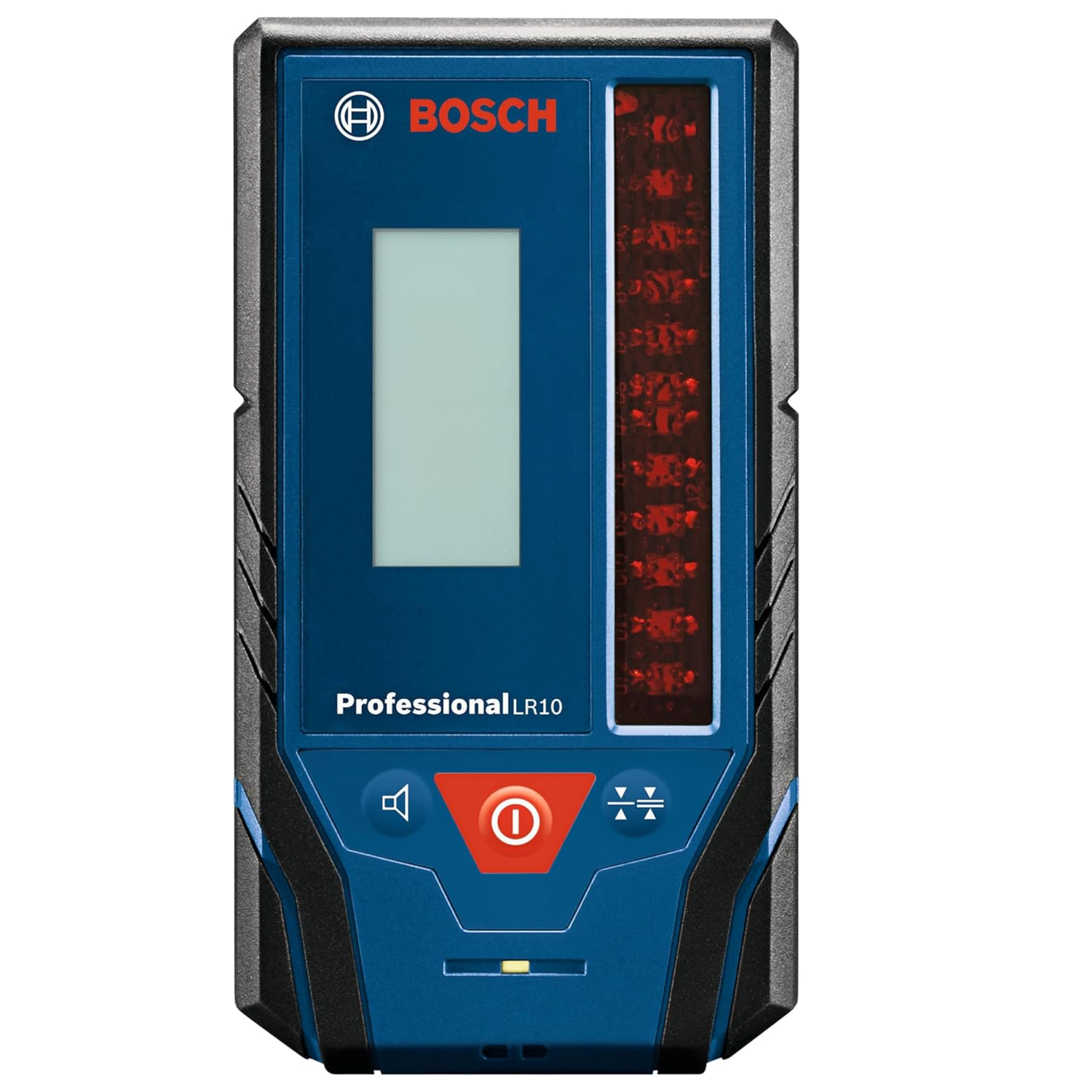

• The Bosch 500 ft. Red-Beam Rotary Laser Receiver - LR10 is designed to increase red beam rotary laser detection up to 800 Ft., with a backlit LCD display for use in darker areas or outdoors.
• Receiver to extend working range increases rotary detection up to 2,000 Ft., with easy-to-see LED indicators, adjustable audio.

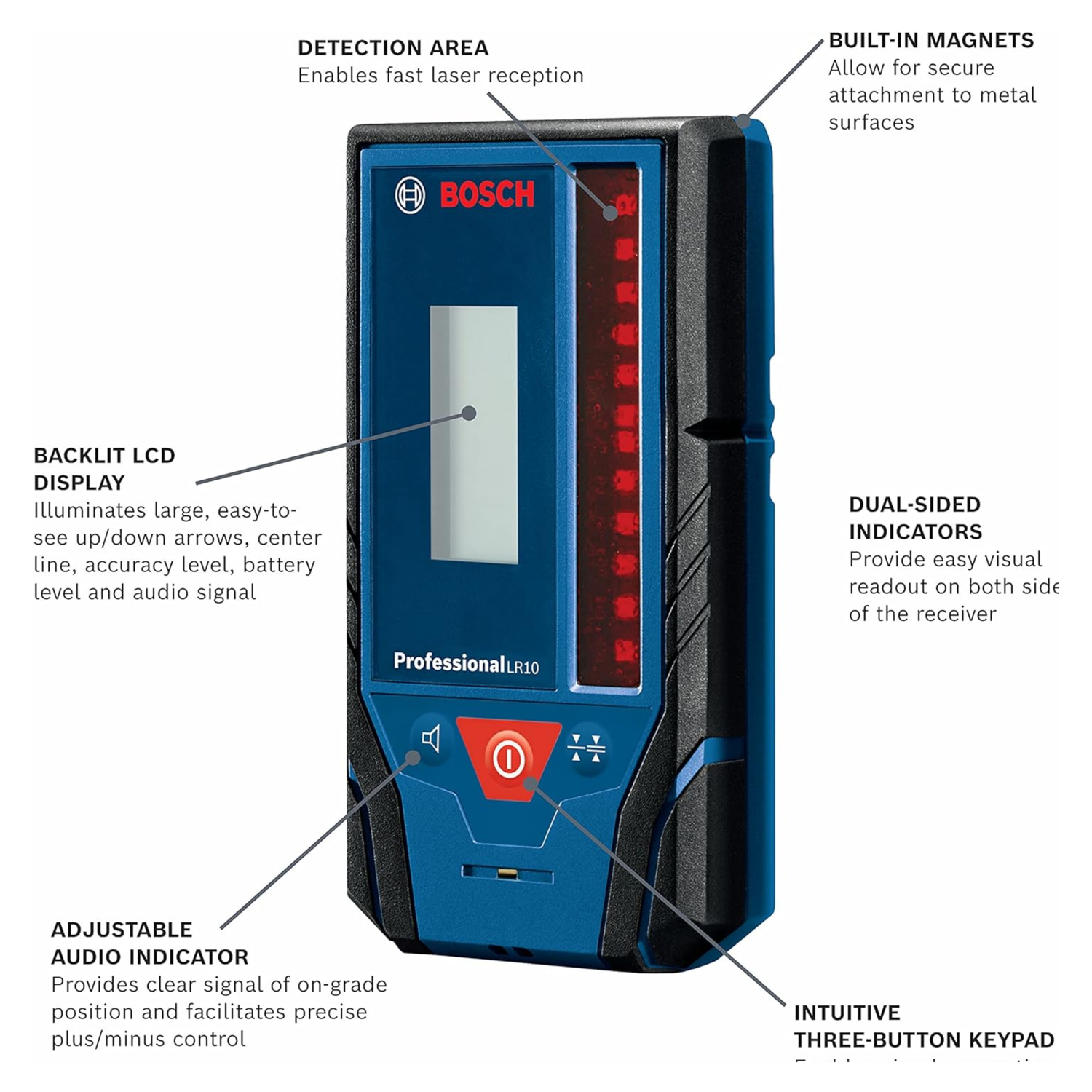

• Dual-sided backlit LCD display illuminates easy-to-see up/down arrows, center line, accuracy level, battery levels and more.
• Dual-sided indicators provide easy visual readout on both sides of the receiver.
• Oversized detection area enables fast laser reception.
• Built-in magnets allow for secure attachment to metal surfaces.
• Adjustable audio indicator provides clear signal of on-grade position and facilitates precise plus/minus control.
• Intuitive six-button keypad enables simple operation and center line function in both X and Y axes.
• Receiver vial helps ensure accurate leveling results.
• Ergonomic soft grip provides secure handling and comfort.

• Quantity: 1
• Dimensions: 2.9" x 1.1" x 5.4" (73 x 28x 137 mm)
• Length: 2.5"
• Material: Plastic
• Power: 9V Range Up to 800-ft.
• Receiving Laser Color: Red
• Weight: 1.31lb
• Width: 1.06"
• Receivable wavelength: 635-650 nm
• Suitable for rotational laser level: GRL 900-20HV, GRL1000-20HV
• Working range¹⁾: 500 ft (150 m)
• Receiving angle: 45º
• Receiving rotation speed: 150,300,600 min^-1
• Accuracy^{2) 3) 4)}

  • –Setting "fine": ±1/32 in (±1 mm)
  • –Setting "coarse": ±1/8 in (±3 mm)
• Operating temperature: 14 °F ~ 122 °F (–10 °C ~ +50 °C)
• Storage temperature: –4 °F ~ 158 °F (–20 °C ~ +70 °C)
• Battery: 2 x 1.5V LR6 (AA)
• Operating time, approx.: 40h⁵⁾
• Weight according to EPTA-Procedure 01:2014: .33 lb (0.15kg)
• Degree of protection: IP 54 (dust and splash water protected)

¹⁾ The working range (radius) can be reduced due to unfavorable ambient conditions (e.g. direct sunlight).
²⁾ Depends on clearance between laser receiver and rotational laser level
³⁾ Dependent on laser class and laser type of the rotational laser level
⁴⁾ The accuracy can be impacted by unfavorable environmental conditions (e.g. direct sun irradiation).
⁵⁾ With display illumination deactivated.

The laser receiver can be clearly identified with the serial number 14 on the type plate.

Includes:

• (1) LR10 800 ft. Red-Beam Rotary Laser Receiver

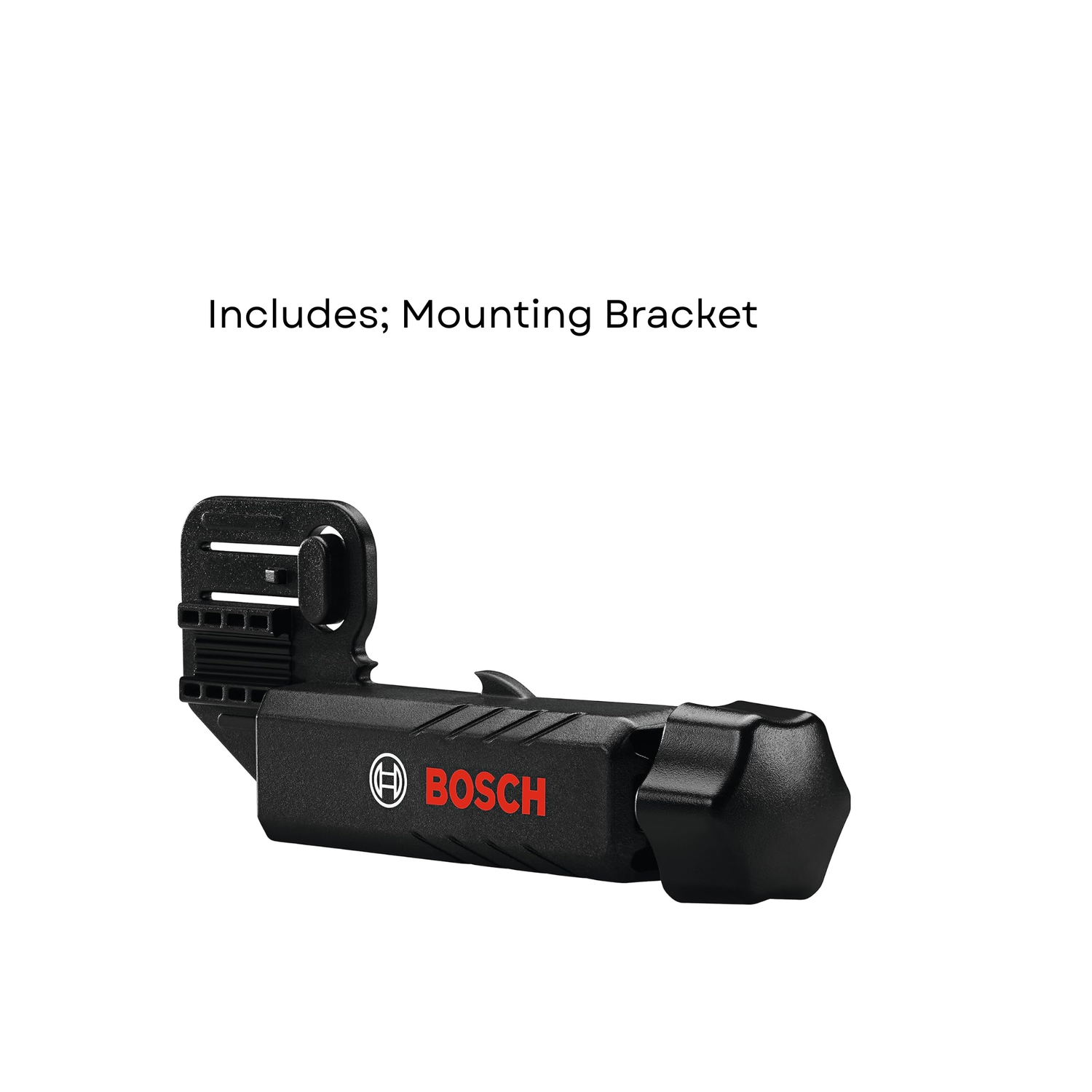

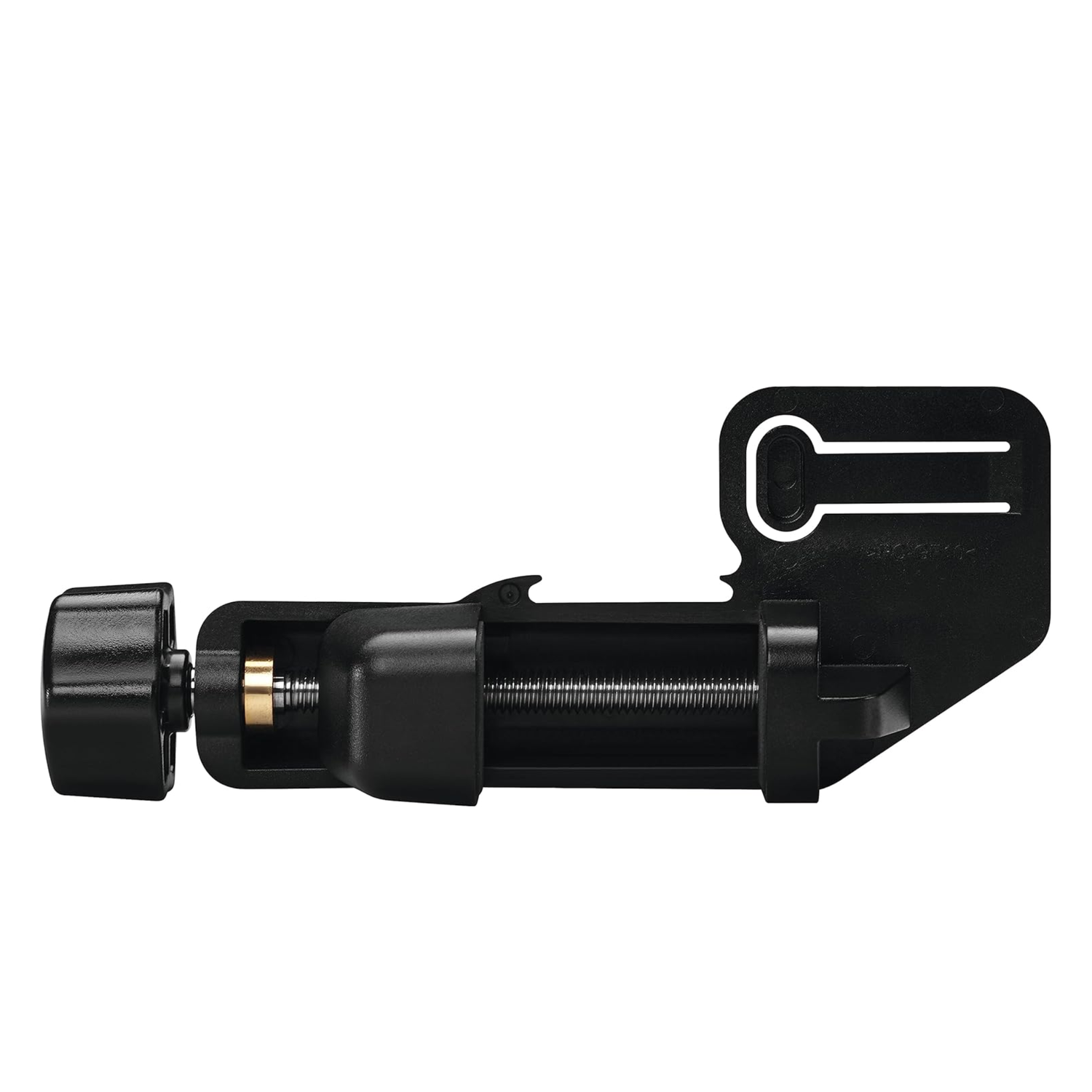

• (1) Mounting Bracket
• (1) 9V Battery
