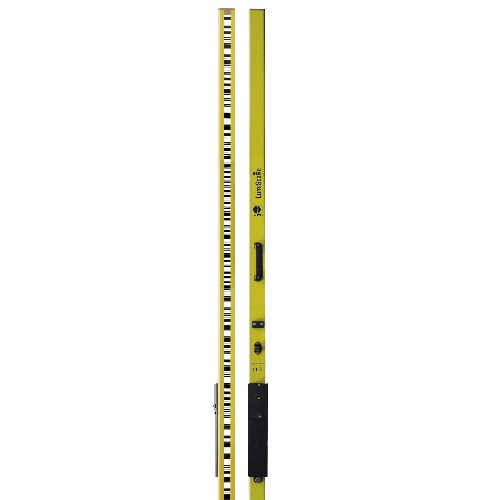

Nedo LumiScale Self-Illuminating Leveling Rod with Leica Sprinter Bar-code

Model Number: 340225-185

The LumiScale is a self-illuminating bar-code staff. Bar-code staffs are used in underground or tunnel construction applications. With regard to its precision LumiScale is classified between traditional leveling staffs (DIN 18703) and precision leveling staffs (DIN 18717).The LumiScale graduation is backlit via a electroluminescent foil which, contrary to an external illumination, illuminates the entire graduation and does not form shades.

Features:

• Illuminated graduation
• Illuminated bubble
• Works with Leica Sprinter bar-code scanner instruments

Specifications:

• Graduation: bar-code
• Carrier of graduation: Polyester film (?TH < 18 ppm/°C)
• Accuracy: ?l = ±(0,2 mm + 2l*10-4)
• Illuminated area: 2125 mm x 25 mm
• Illumination: electroluminescent foil
• Power supply: removable NiMH rechargeable battery, 2000 mA
• Operation duration: approx. 5.5 h
• Circular Bubble: illuminated, sensitivity 12'
• Protection class: IP 54
• Dimensions: 87'' x 3'' x 2.5''
• Body of staff: Aluminium profile
• Weight: approx. 9 lbs. (with rechargeable battery)

Includes:

• 340225-185 LumiScale leveling rod
• Rechargeable batteries
• Charger
• Carrying bag
• One Year Manufacturers Warranty
