Leica Lino L4P1 Layout Laser Level Kit

Model Number: 834838

The Leica Lino L4P1 Point and Cross Line Laser 834838 offers the benefits of a line and plumb laser.

Features:
  • It provides a working range of up to 50’ with leveling and plumb point accuracy at ±1/16” @ 30’.
  • When used with a receiver, the laser beam has an extended range and can reach up to 164’.
  • Has a ¼” x 20 and a 5/8” x 11 tripod thread
  • 180°s coverage in each of 1 horizontal and 3 vertical lines, that project at 90°s from each other, making aligning and transferring points easier
  • It also has a laser plumb point to help increase precision.
  • Self-Leveling: The Leica Lino L4P1 automatically compensates for any misalignment within ±3°s. If the angle is further out of level, the instrument prevents the laser point from being projected to avoid errors.
  • Long Battery Life: long lasting, rechargeable, Li-Ion battery pack.
  • From a single charge, you can use the laser for up to 24 continuous hours.
  • Smart Power: Comes with a separate battery plate for you to use 4 standard, alkaline AA batteries. This way you can still use the laser while the battery recharges.
  • Precise Layout: full 360° mobility base. This allows you to set up your laser plumb over a specific point and not have to move it, regardless of the direction that you need the beams.
  • Easy-to-use fine adjustment knob. This allows you to move the vertical lines in super small increments, providing higher accuracy.
Specifications:
  • Range: 15 m | 50ft
  • Range with laser receiver: 50 m | 165ft
  • Accuracy: 2mm at 10m | 1/16" at 33ft
  • Self-leveling range: +/- 3°
  • No. of laser lines: 4
  • No. of laser dots: 1
  • Beam directions: Vertical, horizontal
  • Laser type: Laser Class 2, IEC60825-1:2014 compliance: 620 - 690 nm
  • Battery types: Rechargeable Li-Ion batteries or Alkaline batteries 4xAA, 1.5V
  • Battery life Li-Ion batteries: 24 hours
  • Protection level: IP 54
  • Tripod thread: 1/4"-20, 5/8"-11
  • Operating temperature: -10°C - 50°C | 14°F - 122°F
  • Storage temperature: -25°C - 70°C | -13°F - 155°F
  • Dimensions: 125 x 125 x 162 mm | 5 x 5 x 6.4in
  • Weight (with Li-Ion batteries): 1.17 kg | 41.27oz

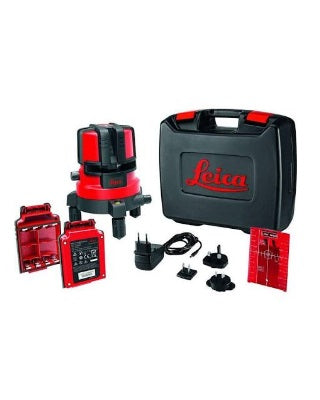

Includes:
  • L4P1 laser
  • Rechargeable Li-Ion battery pack
  • Charger and a variety of plugs.
  • Battery tray for alkaline batteries
  • Standard target plate
  • Carry case.
  • 2 year limited manufacturer's warranty
