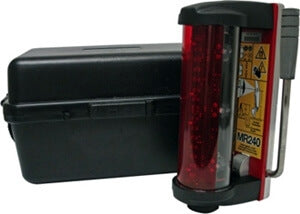

Agatec MR240 Machine Control Receiver Package

Model Number: 775123

Ideal for use with backhoes and mini excavators. It provides accurate grade information for all visual machine control applications, with 240-degree detection of any rotating laser.

Features:

• LED indicators show the position of cutting edge in relation to the laser reference beam
• Memory stores the last signal received; LED arrows to indicate which way to move the bucket to pick up the laser beam again
• Magnetic mount allows quick mounting and easy movement from machine to machine
• Automatic shutoff after 1 hour of no activity
• Rugged, waterproof construction

Includes:

• MR240 receiver
• Built-in magnet mount
• (3) AA batteries
• Hard carrying case
• Batteries

Specifications:

• Range: 650' (200 m)
• Accuracy (fine): 1/4" (6 mm) typical; Actual accuracy depends on beam diameter and distance to the laser.
• Accuracy (course): 1" (30 mm) typical; Actual accuracy depends on beam diameter and distance to the laser.
• Laser capture height: 6" (15 cm)
• Reception angle: 230°
• Power: 3 AA alkaline batteries
• Battery life: ~130 hours; depends on use and temperature
• Environmental: Waterproof; IP67
• Size: 8.5" x 5" x 4" (22 x 10 x 12 cm)
• Weight without batteries: 4.8 lbs (2.2 kg)

Warranty:

• One year manufacturer's limited warranty
