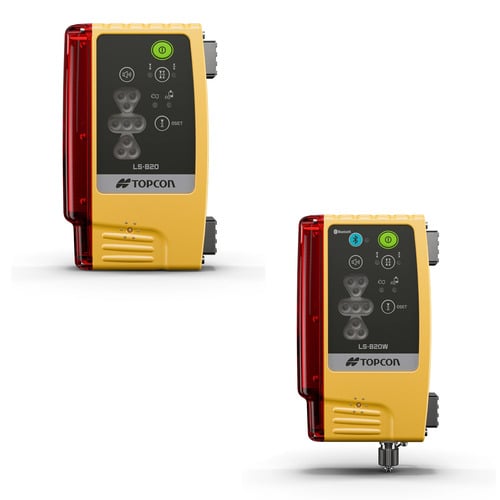

Topcon LS-B20/LS-B20W Machine Control Laser Receivers

Available Options:

• 1063525-03: LS-B20 Machine Control Laser Receiver
• 1063525-04: LS-B20W Machine Control Laser Receiver

The LS Series of machine-mounted laser sensors are low-cost grade indicate systems designed to improve production and accuracy. Fast to set up and easy to use, these depth-control sensors can be mounted to your earth-moving machines in minutes.

Features:

• One-touch “On Grade” matching
• 100 hours (LS-B20) and 30 hours (LS-20W) operation time
• Rotary Laser and Laser Receiver low battery warning LED
• Integrated CAN support (LS-B20W)
• IP66 environmental rating with ISO 13766-1 certification
• Laser Manager available (LS-B20W)

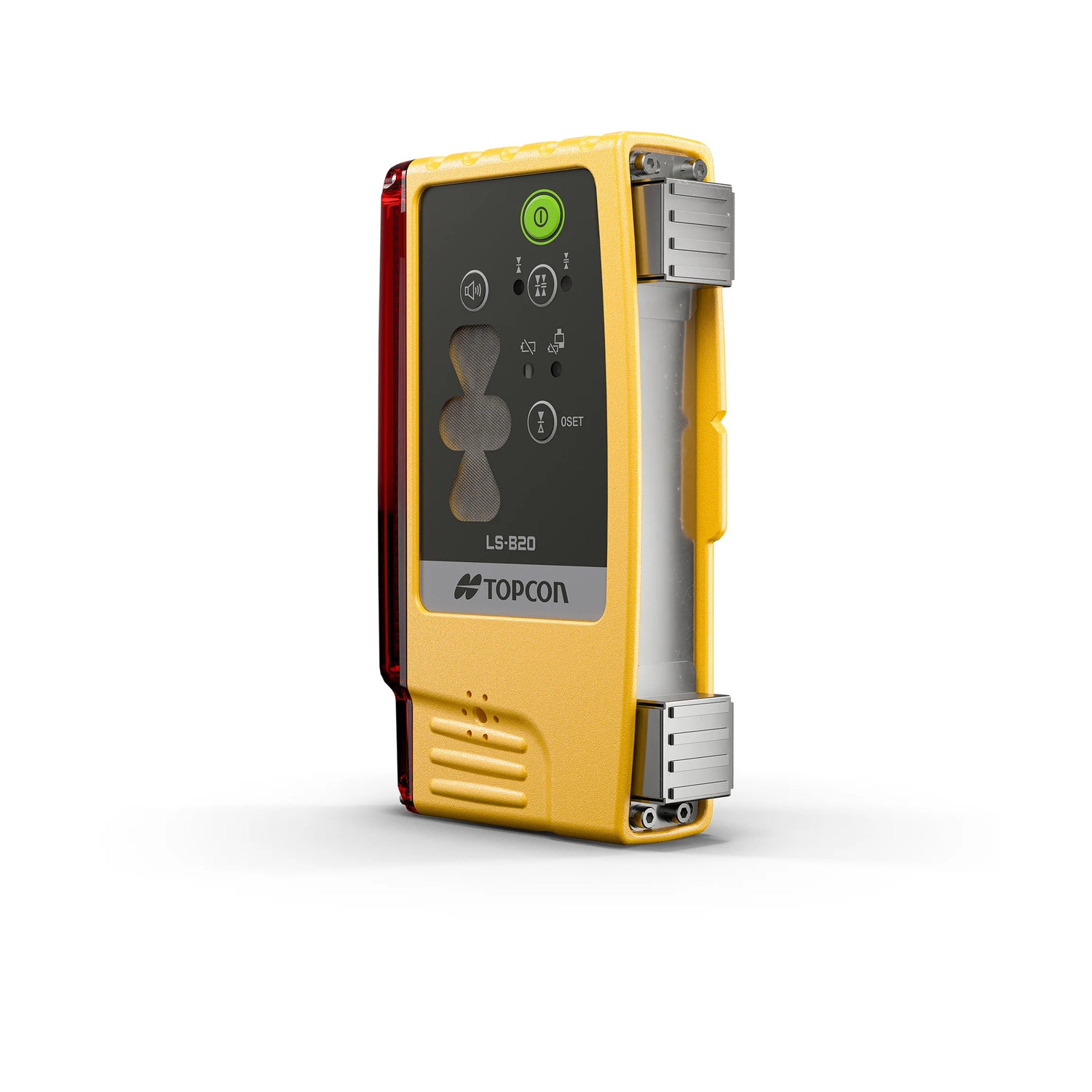

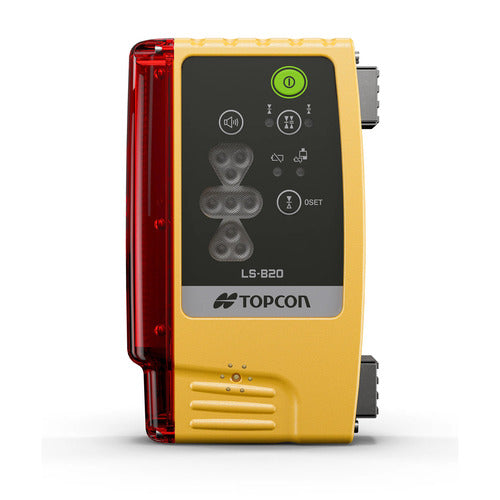

Topcon LS-B20 Machine Control Laser Receiver - 1063525-03

• 360° Detection Capability: Provides full-range laser detection for comprehensive grade monitoring.
• Bright LED Indicators: Clear, easy-to-read grade information for quick and accurate adjustments.
• Durable Construction: Built to withstand tough job site conditions, with excellent water and dust resistance.
• Adjustable Accuracy Settings: Choose the precision level that fits your project requirements.
• Machine-Mount Compatibility: Easily attaches to equipment for hands-free operation, improving workflow efficiency.
• Versatile Application: Compatible with most rotating lasers for a wide range of construction and grading tasks.
• Display: High-visibility LED indicators with adjustable brightness
• Power Supply: Standard batteries or external power source options
• Battery Life: Approximately 120 hours of continuous use (alkaline batteries)
• Water and Dust Resistance: IP66 rated for robust performance in harsh conditions
• Package Includes: LS-B20 Machine Control Laser Receiver and User Manual

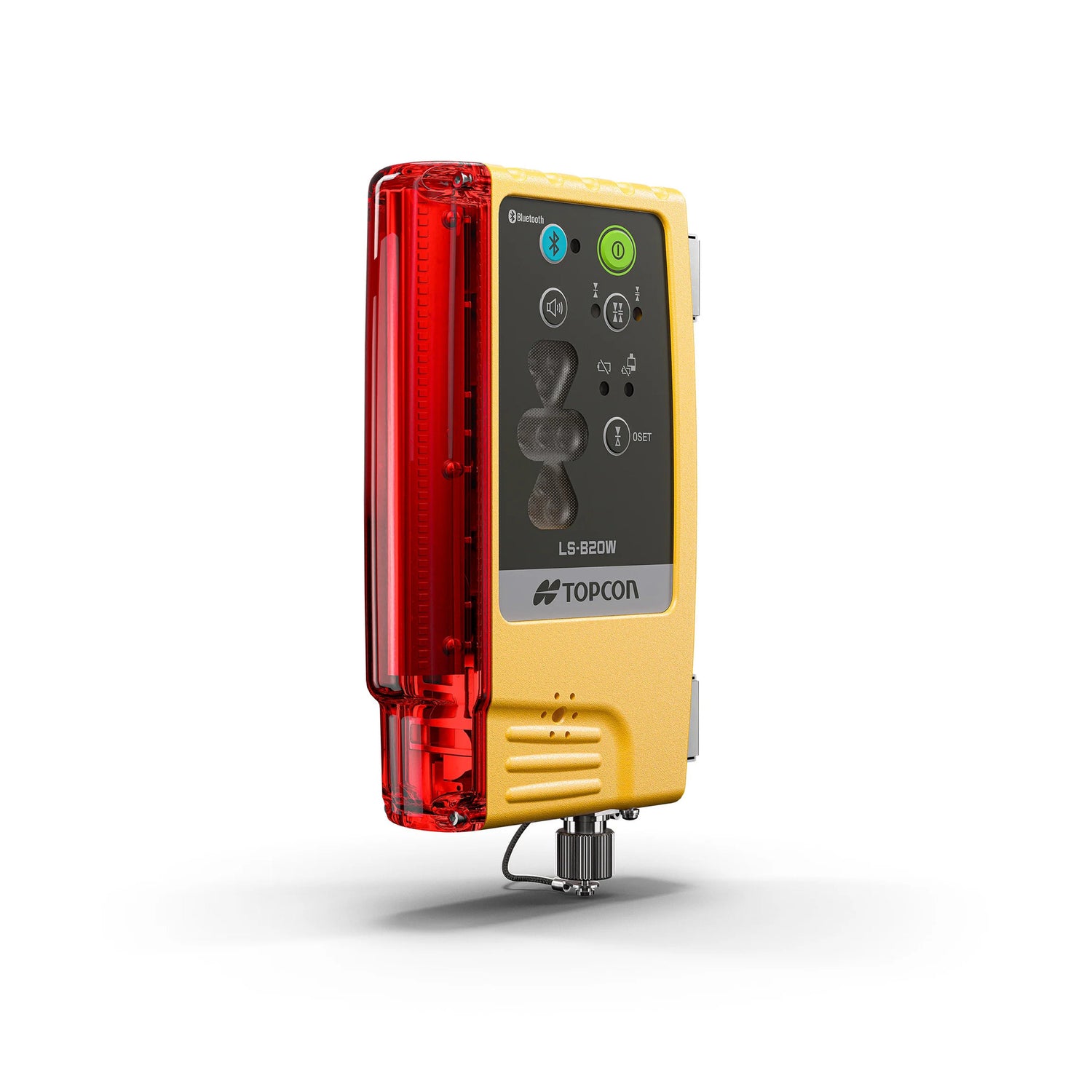

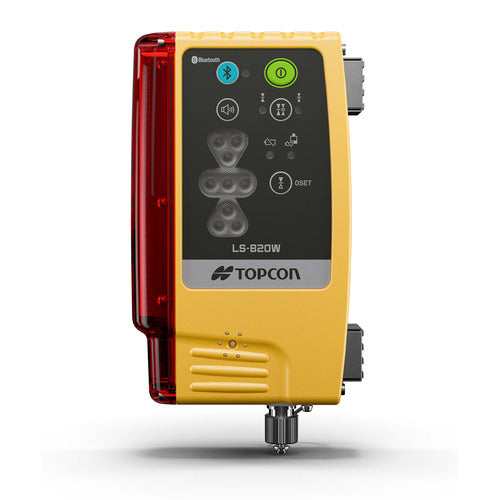

Topcon LS-B20W Machine Control Laser Receiver - 1063525-04

• Wireless Connectivity: Integrated Bluetooth technology for cable-free communication with control systems.
• 360° Detection Coverage: Full-range laser detection ensures precise readings from any direction.
• High-Visibility LEDs: Bright LED indicators provide clear visual guidance, even in challenging lighting conditions.
• Selectable Accuracy Settings: Adjustable settings (Fine, Medium, Coarse) to suit various application needs.
• Durable Design: Built to withstand harsh job site environments with an IP66 water and dust resistance rating.
• Universal Mounting Options: Compatible with a variety of brackets and magnetic mounts for versatile usage.
• Extended Battery Life: Offers approximately 100 hours of continuous operation with standard alkaline batteries.
• User-Friendly Interface: Simplified controls for quick setup and operation.
• Power Supply: Standard alkaline batteries or external power source
• Battery Life: Approximately 100 hours of continuous use
• Water and Dust Resistance: IP66 rated
• Package Includes: LS-B20W Machine Control Laser Receiver and User Manual

Specifications:

• Detection Range: 360° laser detection coverage
• Operating Range: Up to 2,000 feet (with compatible laser)
• Accuracy Settings: Fine, Medium, Coarse (user-selectable)
• Operating Temperature Range: -4°F to 122°F (-20°C to 50°C)
• Dimensions: 6.7 x 3.9 x 1.6 inches (170 x 100 x 40 mm)
• Weight: Approximately 1.1 lbs (500 g)

Info and Guides:

Click Here for Brochures
