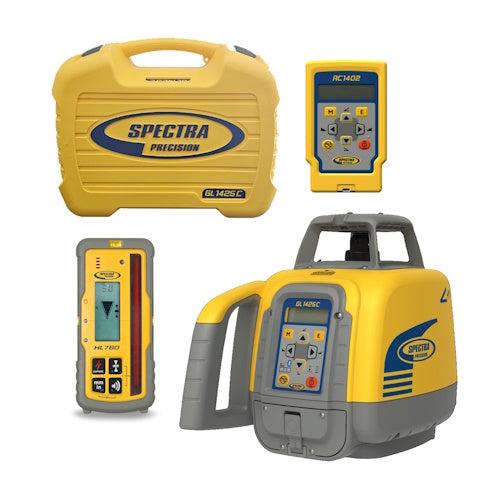

Spectra Precision GL1425C Dual Grade Laser, HL760, C70, RC1402N, 105516, 10 NiMH Battery Pack and Charger, Small Carrying Case

Model Number: GL1425C

Features:

• The Spectra Precision GL1425C Dual Grade Laser is a versatile and powerful tool that can handle any leveling, grading, or alignment task.
• Automatic self-leveling - Horizontal, vertical, and grade
• Accuracy 1.5mm @ 30m (1/16 inch @ 100 ft)
• Working range of 800m (2,600 ft) diameter
• Radio communication between the HL760 digital receiver and the laser provides automatic Grade Matching and PlaneLok
• Bluetooth connection allows laser control with a smartphone
• Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
• Rotation selection of 300, 600 or 900 RPM
• Extremely durable and portable
• 5 Years warranty

User Benefits

Simplifies level, grade and vertical alignment setups

Increases reliability, accuracy and durability

Easy to transport, easy to carry, easy to store

Energy-efficient design offers long battery life

Highly durable design enables the GL1425C to survive a drop up to 1m (3 feet) onto concrete

Remote control or remote control app allows operation of all laser functions from anywhere on the jobsite

Applications

Grading and excavation

Leveling concrete forms and footers

General construction vertical alignment such as anchor bolt and form alignment

Sports fields, tennis courts, driveways and landscaping

Ramps and drainage

Specifications:
GL1425C Laser Specification

• Leveling Accuracy vertical, horizontal: ± 1,5 mm / 30 m; 1/16 in @ 100 ft; 10 arc seconds
• Grade Accuracy: ± 3,0 mm / 30 m; 1/8 in @ 100 ft.; 20 arc seconds
• Grade temperature drift, typical: ± 0,9 mm / 30 m / 1°C; 1/16" @ 310ft. @ 1°F
• Grade range no tilt adjustment: Typical ± 9 %
• Grade range with tilt adjustment: ± 15 %
• Rotation Speed: 300, 600, 900 rpm
• Operational Diameter, with HL760: Typical 800 m (2600 ft) diameter
• GradeMatch Distance: Typical 80 m (260 ft)
• PlaneLok Distance: Typical 80 m (260 ft)
• Laser Type: 630 – 643 nm
• Laser Class: Class 2
• Self Leveling Range: Typ. ± 5° (± 8.7%)
• Radio Range (HL760): Up to 100 m (330 ft)
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• Storage Temperature: -25°C to +70°C (-13°F to +158°F)
• Power Source: 10000 mAh NiMH battery back (included); or 4 x 1.5V D alkaline batteries (not included)
• Battery Life Time, NiMH: Typical 45 hours
• Battery Charging Time: < 10 hours
• Battery Charging Temperature: 5°C to +40°C (+41°F to +104°F)
• Tripod Attachments: 5/8 x 11 horizontally and vertically
• Warranty: 5 Years
• Dust and Water Proof (IP): IP66
• Weight: 3.49 kg (7.7 lbs) (incl. Battery pack)
• Product Dimensions: 280 x 180 x 240 mm (11.0 x 7.1 x 9.5 in)

HL760 Receiver Specification

• Operating range: Up to 920 m (3000 ft)
• Laser Detection Height: 127 mm (5.0 in)
• Battery life: (2 x 1.5V "AA") Typ. 60+ hours
• Warranty: 3 Years
• Dust and Water proof: IP67
• Weight (without batteries): 0.32 kg (0.72 lbs)
