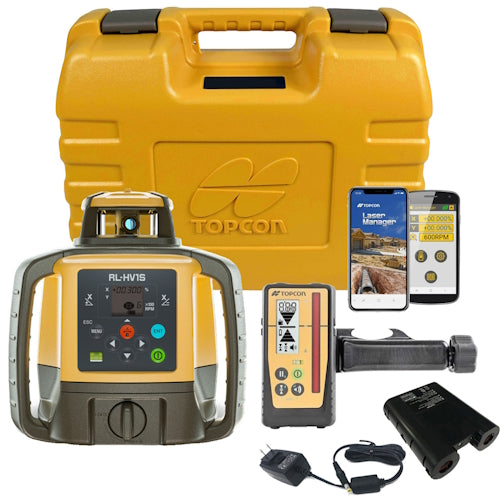

Topcon RL-HV1S Self-Leveling Single Grade Laser RB Kit with LS-100D Receiver and Rechargeable Batteries

Model Number: 1051612-29

Features:

The Topcon RL-HV1S is a versatile single-slope laser designed for a variety of tasks, including horizontal, sloping, and vertical applications. With an operating range of over 800 meters and the ability to handle slopes up to ±5% (±15% with a tilting plate), it offers exceptional accuracy and durability for construction and surveying projects. The included LS-100D receiver enhances functionality, ensuring reliable performance. It is compatible with Bluetooth Laser Manager app that lets you control the laser with your cell phone.

  • Horizontal, vertical, single, and dual slope applications
  • Long-range operation (800 m)
  • Tough IP66 construction rating
  • Extra-long battery life (up to 120 hours)
  • Laser class 1
Laser Manager Mobile App:

The Laser Manager is a revolutionary mobile app that streamlines laser operation by bringing many of the most common functions directly to your mobile device. This innovative functionality speeds up laser setup and allows you to adjust the laser beam across all axes. The Laser Manager App is available for free on both the Google Play Store and the Apple App Store.

  • Setting up position and slope
  • Setting up rotation speed and different working modes
  • Self inspection mode – will guide you easily through the calibration process

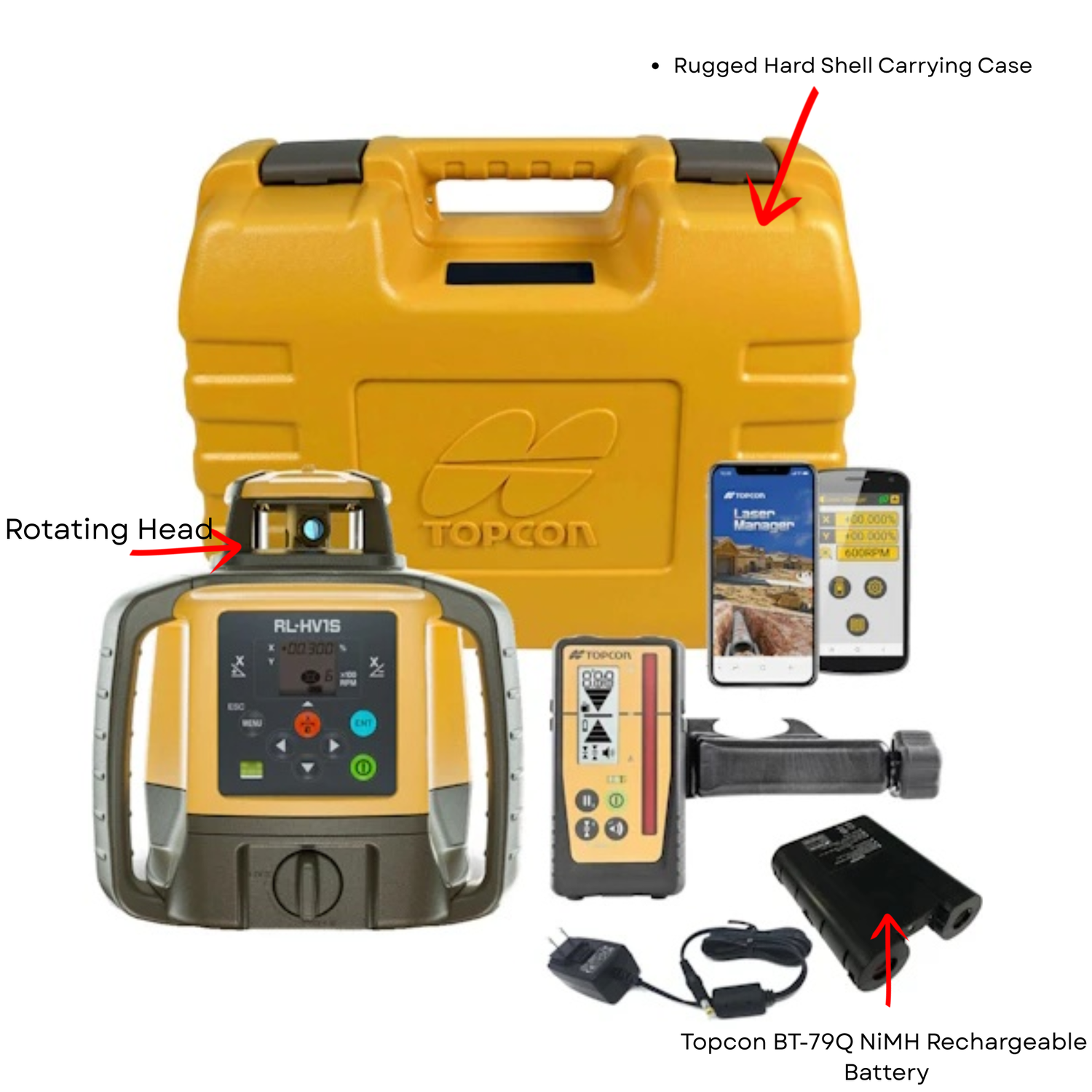

  • Includes:
    • RL-HV1S Single Grade Laser (Rechargeable Batteries)

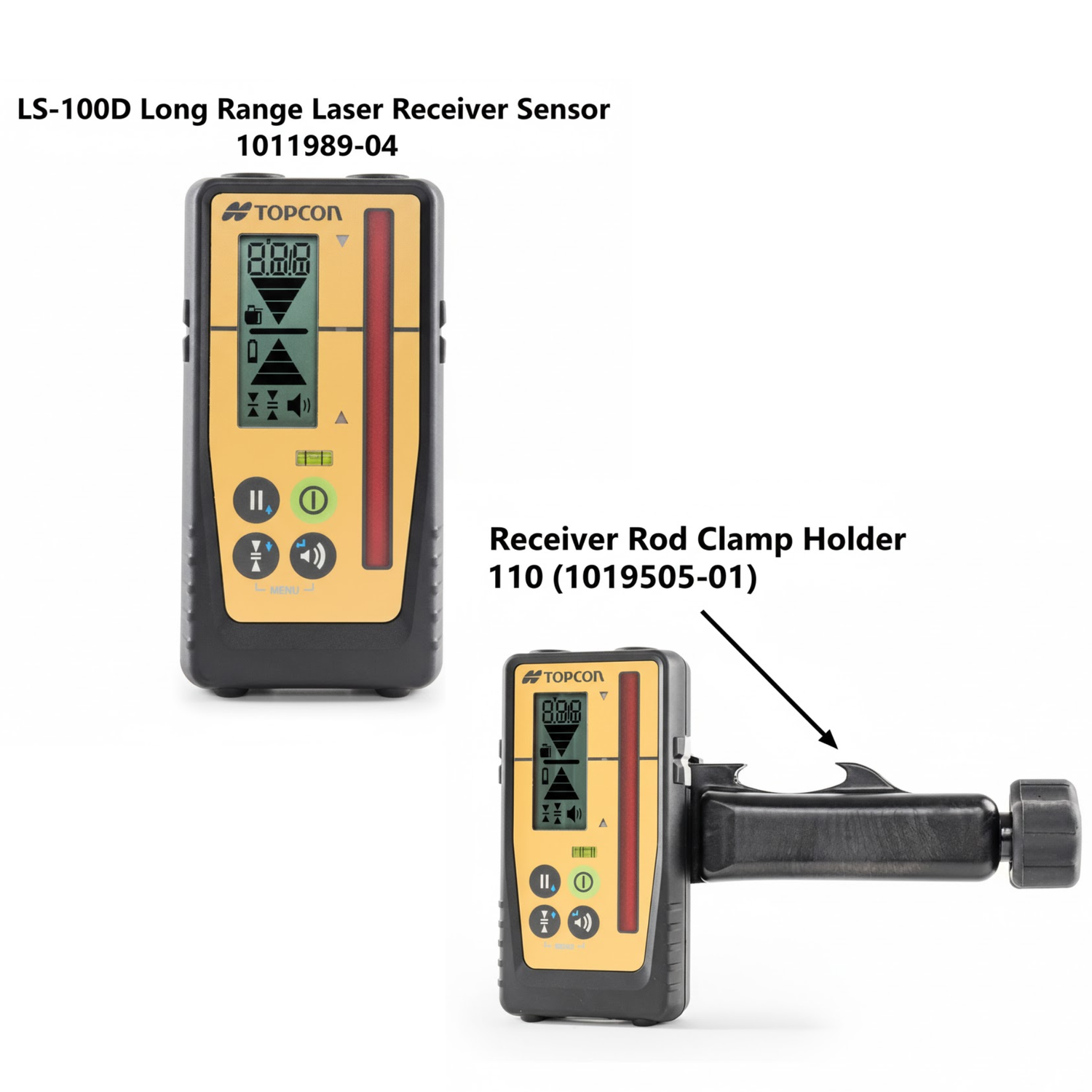

    • LS-100D Long Range Laser Receiver Sensor 1011989-04
    • Receiver Rod Clamp Holder 110 (1019505-01)

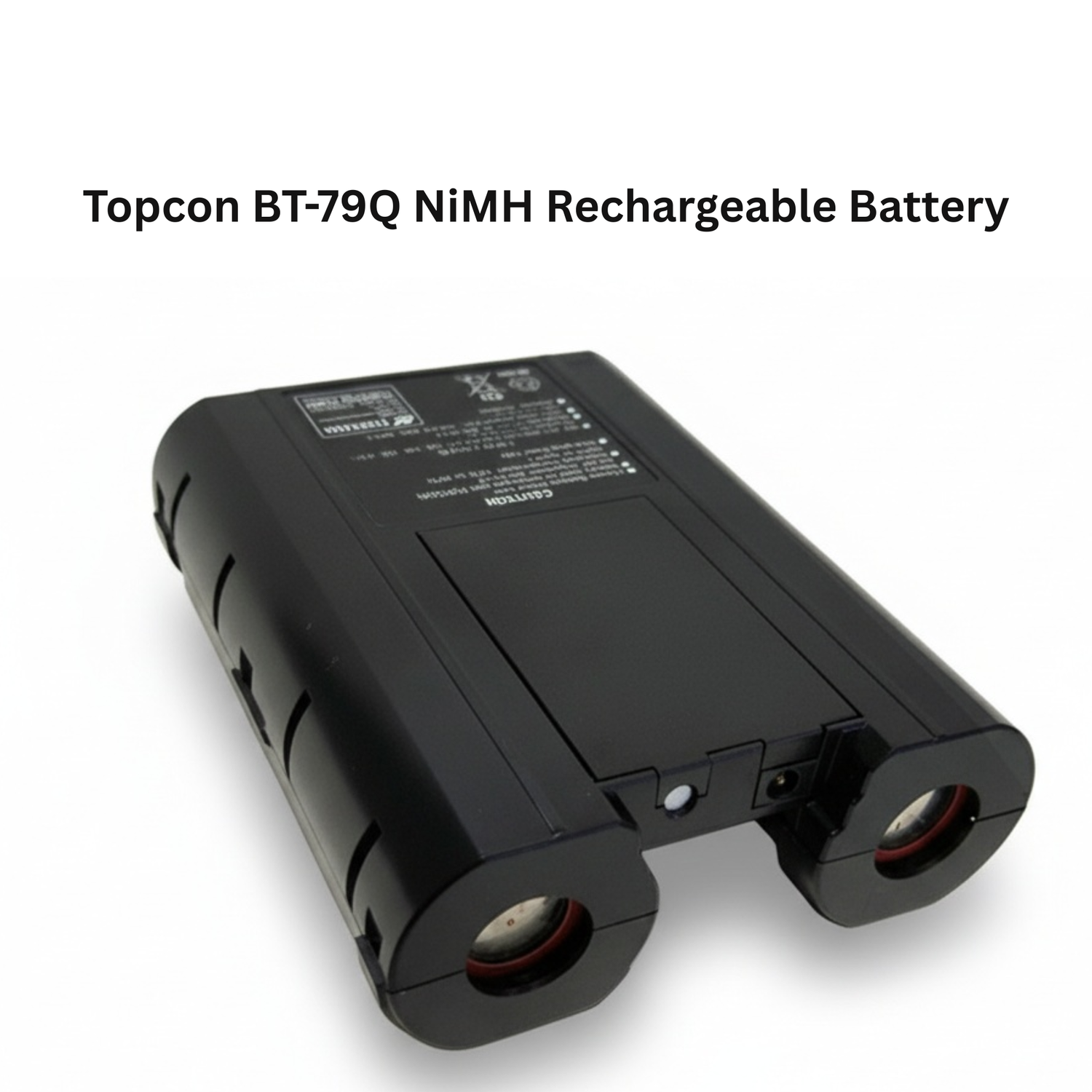

    • BT-79Q NiMH Rechargeable Batteries (4 x D-Cell Alkaline batteries can be used as back-up)
    • Rugged Hard Shell Carrying Case
    • 5-Year Warranty Guarantee

    Specifications:
  • RL-HV1S Laser Specifications:
    • Accuracy: 1/16-inch @ 100-feet
    • Self-Leveling Range: ± 5 degrees
    • Working Range diameter: 2,600 feet
    • Rotation Speed: 300, 600 RPM
    • Light Source: Visible Red Laser 635NM
    • Laser Class: CDRH(FDA) IIIa IEC Class 3R
    • Dust / Water Rating: IP66
    • Operation Time: Alkaline: 120 hours
    • Operational Temp: -4ºF to 122ºF
    • Size: 7.0 x 7.7 x 8.5 in
    • Maximum Power Output: 2.4mW
    • Tripod Screw Thread: 5/8-11
  • LS-100D Laser Receiver Specifications:
    • Working Range (diameter): 2,500 feet with the RLHC, RL-SV2S, RL-HV2S and RL-200 Series Lasers
    • Vertical Detecting Range: 3.5 inch
    • LCD Digital Readout Range: 2.7 inch
    • Horizontal Detecting Range: ±45º
    • Strobe Light Suppression: Yes
    • Units / Measurements: mm / cm / inch / fractional inch
    • Grade Resolution Settings:
      • ±0.02 inch
      • ±0.05 inch
      • ±0.10 inch
      • ±0.20 inch
      • ±0.50 inch
    • LCD Grade Indicators: 9 Channels
    • LED Grade Indicators: Orange, Green, Red (On/Off selectable)
    • Display: LCD on each side
    • Buzzer: Loud / Low / Off selectable
    • Bubble Tube: Yes
    • Warning Icons: HI Alert, Low Battery (for the RL-4HC, RL-SV2S, RL-HV2S and RL-200 Series)
    • Battery: One AA/LR6 dry-cell battery
    • Operation Time: Up to 45 hours with alkaline batteries
    • Battery Level indicator: LCD Icon
    • Auto Shut-off: Approximately 30 minutes
    • Dust/Water Rating: IP67
    • Operating Temperature: -4ºF to 122ºF
    • Dimensions ( L x W x H ):
      • Weight
    • Magnetic Mount: Two Round Magnets on Top
    • Receiver Sensor Bracket: Screw mount
