Schonstedt 1205CXB TDR Cable Analyzer and Fault Finder

Model Number: 10/1205CXB-US

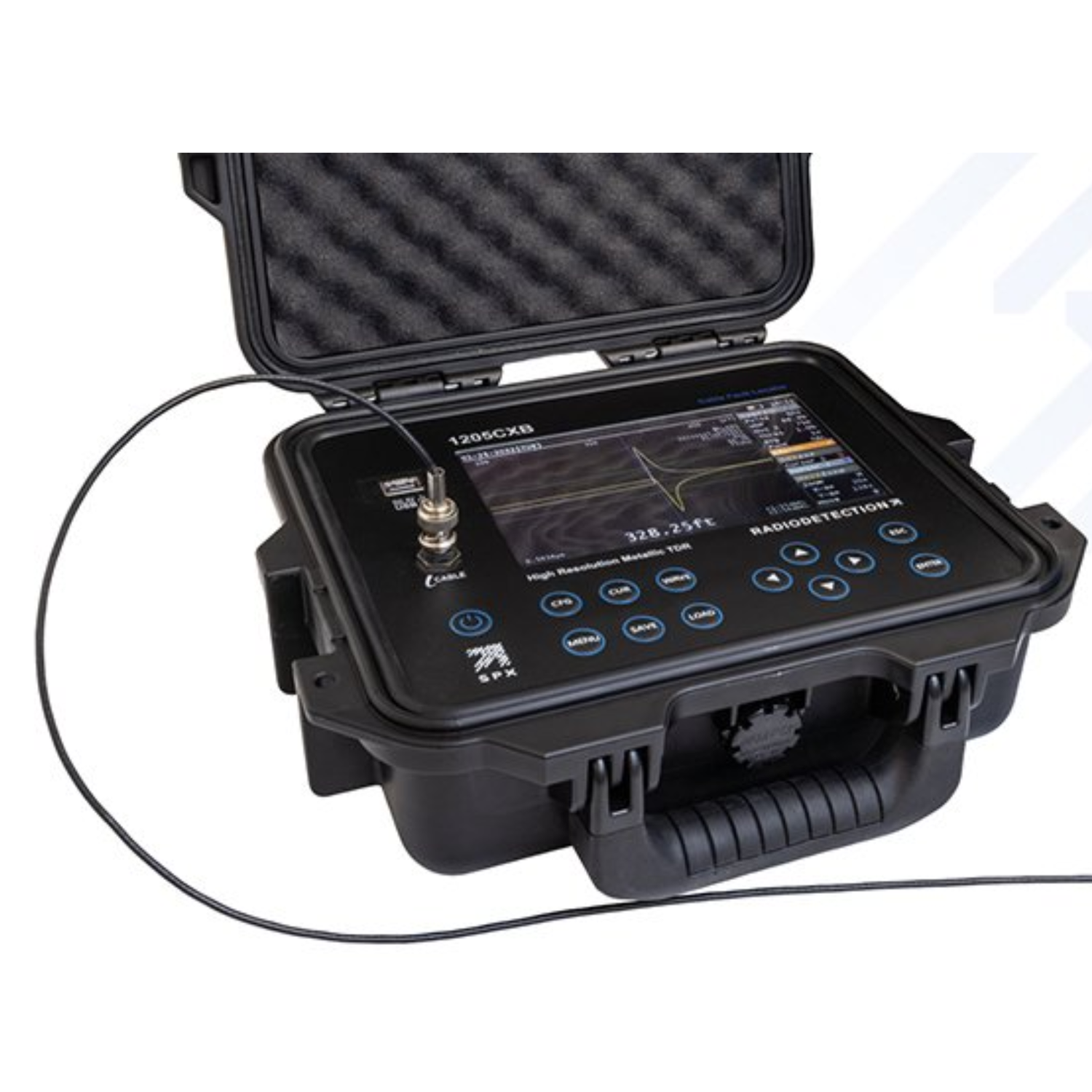

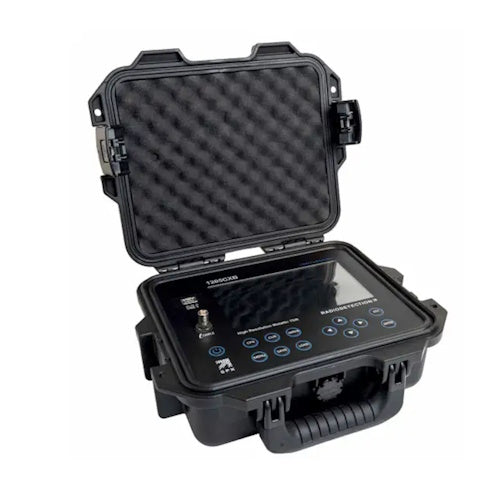

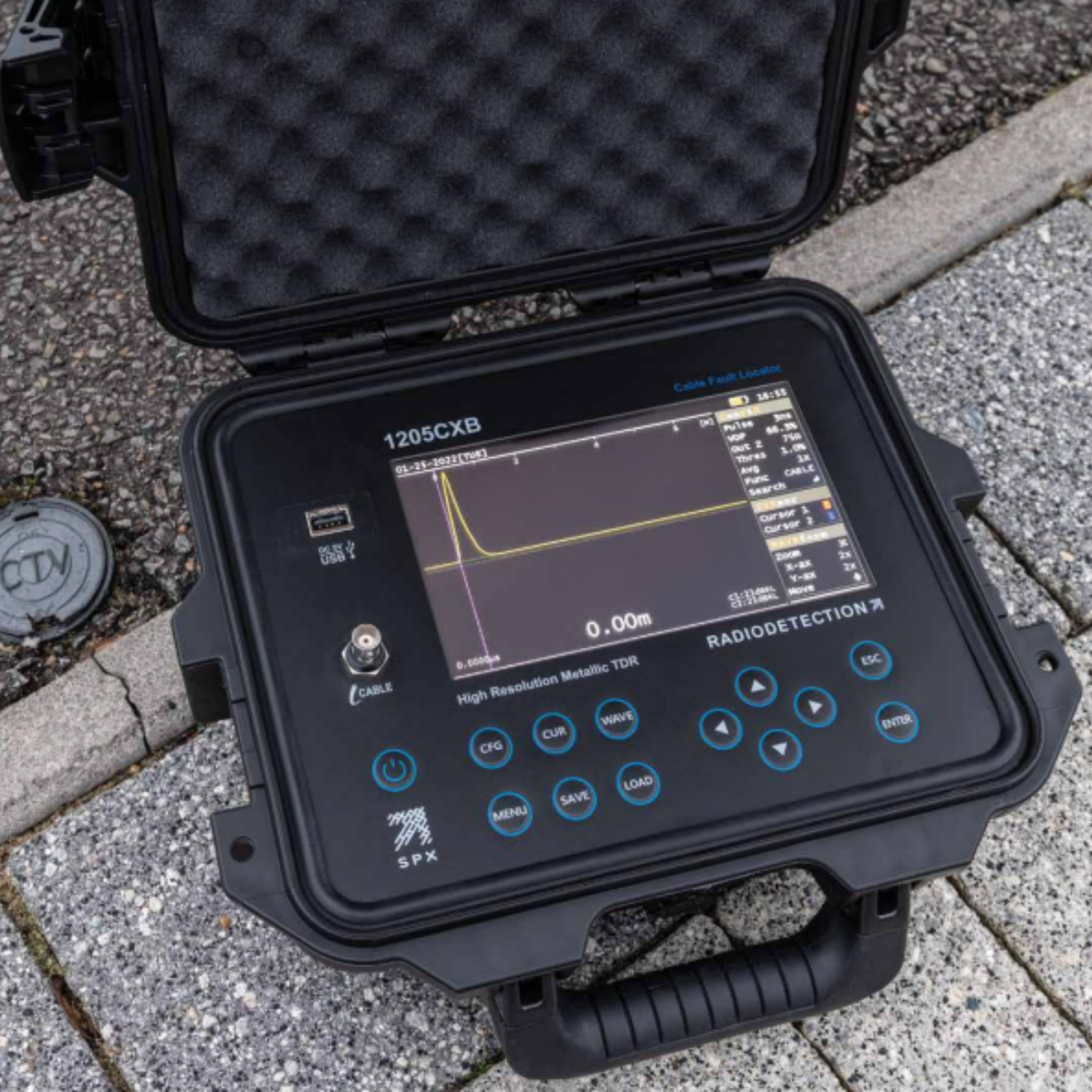

The Schonstedt 1205CXB Cable Analyzer TDR is a powerful and versatile tool for testing and troubleshooting copper cables in any network. The 1205CXB uses a high-resolution color display and intuitive on-screen controls to show you the cable condition and fault location in real time and is one of the easiest to use instruments in the industry.

Features:

• Easy to use. All TDR functions available at the top level, no additional screens or menus to search through.
• Ultra-clean, low noise signals. Spot cable issues clearly without having to hunt through the noise.
• Automatic scanning. Let the 1205CXB find the faults for you. You can set the threshold of the seriousness of the problem for the 1205CXB to find.
• Automatic and manual cursor placement functions. Two independent cursors: the distance between cursors is automatically calculated as their placement changes – giving straightforward positioning of problems
• Automatic dBRL calculation. Eliminates the need to calculate impedance changes in a cable visually and/or manually, saving you time finding the most serious faults.
• Multipurpose USB Port
• WaveView™ PC software
• Examine and interpret on-site waveforms in unprecedented detail
• Generate reports for your client and office
• Pan and zoom to scrutinize every detail of the waveform to pinpoint and diagnose cable faults
• Add notes, assess Return Loss (dBRL) figures and even correct mistakes such as VOP errors made on site

Specifications

• Distance Accuracy: ± 0.1 ft (0.03 m) plus ± .01% of reading. Accuracy will vary with cable VOP and cable type.
• Horizontal Resolution: Up to 2,000 ft (610 m): <0.05 ft (.03 m) at .990 VOP; <0.02 ft (.01 m) at .300 VOP. Over 2,000 ft (610 m): 1 ft. (.1 m) at any VOP
• Maximum Ranges: 63,700 feet (19,400 meters) at 99.0% VOP; 51,500 feet (15,500 meters) at 80.0% VOP. Ranges varies with VOP. Maximum testable cable length varies with pulse width and cable type.
• Physical Dimensions:

  • Width: 10.5 inches (267 mm)
  • Height: 9.75 inches (247.6 mm)
  • Depth: 5 inches (127 mm)
  • Weight: 6 pounds (2.7 kg)
