Spectra Precision LL300N-3 Laser Level Kit

Model Number: LL300N-3

Features:

• LL300N Laser Level features a rugged design with a metal sunshade that provides superior drop and weather protection (IP66).
• Available with a choice of system case (with receiver, tripod and choice of grade rod) or small carry case with receiver and clamp.
• Fully automatic self-leveling provides fast and accurate setup
• Rechargeable battery pack or alkaline batteries keeps the unit working with no downtime due to power loss
• Optional RC601 remote control allows easy grade matching using the remote control from rod position
• 1650 ft (500 m) operating diameter
• Single-axis manual slope mode with ‘cross-axis’ self-leveling allowing grade matching for basic slope work, while maintaining accuracy in the cross-axis
• Built to withstand severe drops of up to 3 ft (1 m) directly onto concrete, or up to 5 ft (1.5 m) when pushed over on a tripod means less downtime and cost due to damage caused by an accidental drop or tip-over
• Comes with a choice of HL450 or HR320 receivers allowing you to choose the best option to suit your application

Applications:

• Checking/setting elevations, concrete forms, footings, and foundations for small and medium sized jobs
• Basic slope work such as driveways and ramps
• Excavating, digging footings, and septic tanks

Specifications:

LL300N

• Laser Source: 650 nm, Class 2, <3,4mW
• Laser Accuracy: ±3/32 in at 100 ft (±2.2 mm at 30 m)
• Operating Range: 1,650 ft (500 m) diameter
• Self-leveling Range: ±5 degrees electronic servo self-leveling
• Compensation Method: Electronic self-leveling
• Drop Height on Concrete Performance: 3 ft (1 m)
• Single Axis Manual Slope Mode: Yes (w/self-leveling mode on the second axis), with optional RC601 remote control
• Out-of-level Warning: Rotor stops, red out-of-level HI-LED flashes
• Power Source: 4 x D-cell NiMH or alkaline batteries
• Battery Life: Rechargeable - NiMH - 45 hours, Alkaline - 90 hours
• Battery Status LED: Flashing red LED
• Rotation Speed: 600 RPM
• Tripod Mount (Horizontal and Vertical): 5/8” x 11
• Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)
• Storage Temperature: -4 °F to 158 °F (-20 °C to 70 °C)
• Water Resistant: Yes, IP66
• Size: 10.7L × 7.7W × 7.9H in (27.2L × 19.7W × 20.1H cm)
• Weight: 5.9 lbs (2,7 kg)
• Warranty: 5 Years

HL450 Receiver

• Digital Readout Units: mm, ft, in, frac
• Reception Height: 4 inches (102 mm)
• Three On-grade Sensitivities: Fine ~1/16 in (1 mm) / Medium ~1/4 in (5 mm) / Calibration Mode ~1/64 in (0.1 mm)
• Battery Life (2 x AA): 70+ hrs
• Automatic Shutoff: 30 minutes
• Operating Temp.: -4°F to 122°F (-20°C to 50°C)
• Dust & Waterproof: Yes IP67
• Weight without Clamp: 13.1 oz (0.371 kg)
• Warranty: 3 Years, 2 Years “No Excuses”

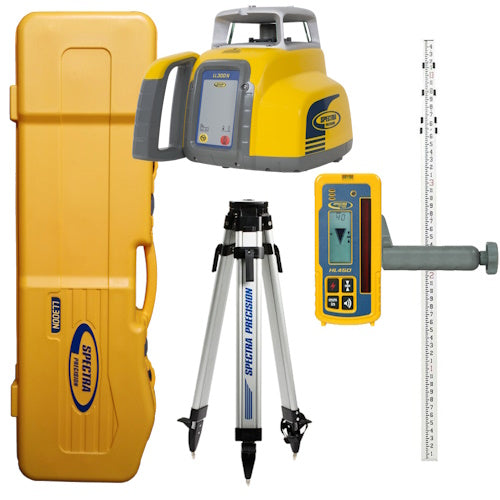

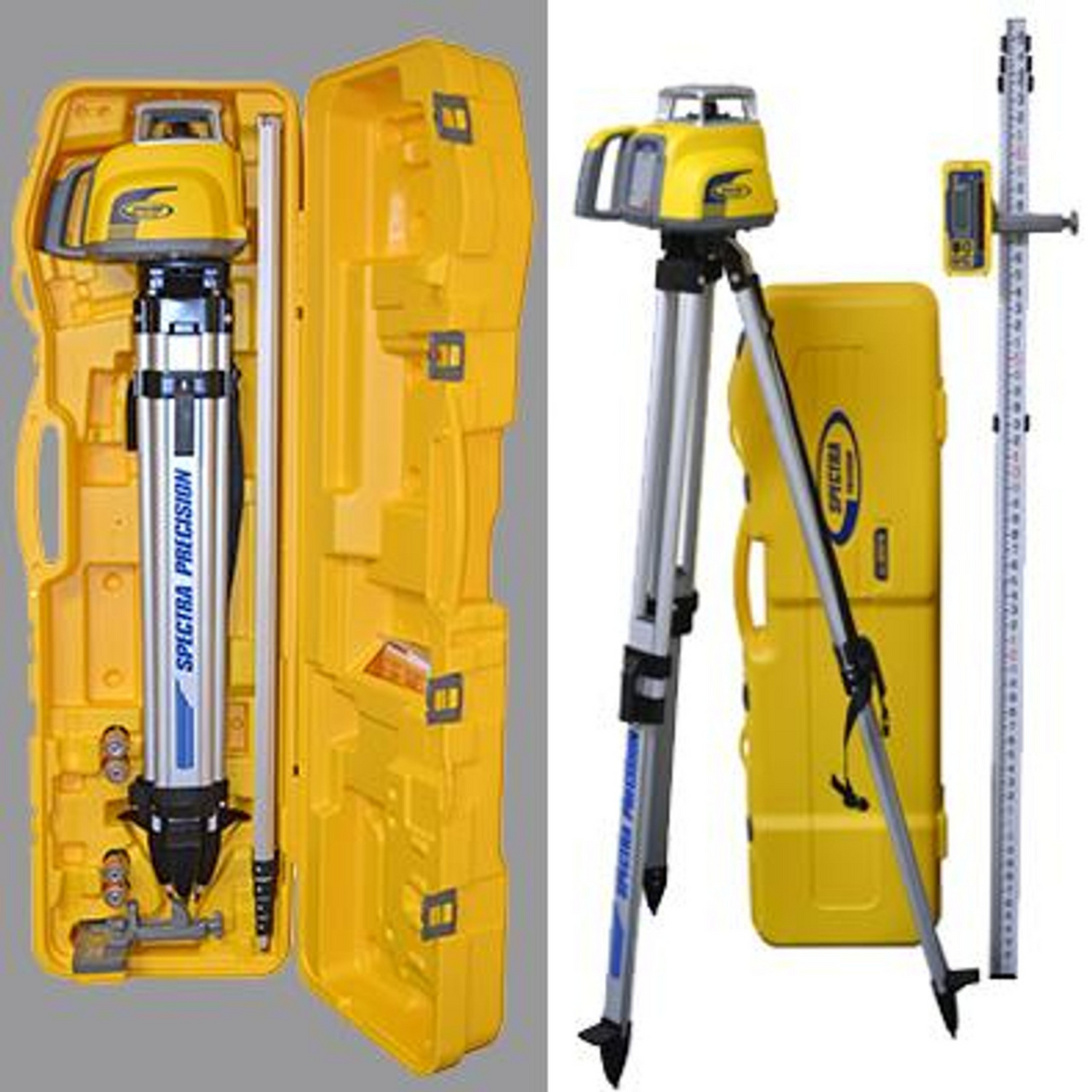

Includes:

• Receiver / Clamp: HL450 / C45
• Power: 4 D Alkaline
• Rod: GR153 Metric

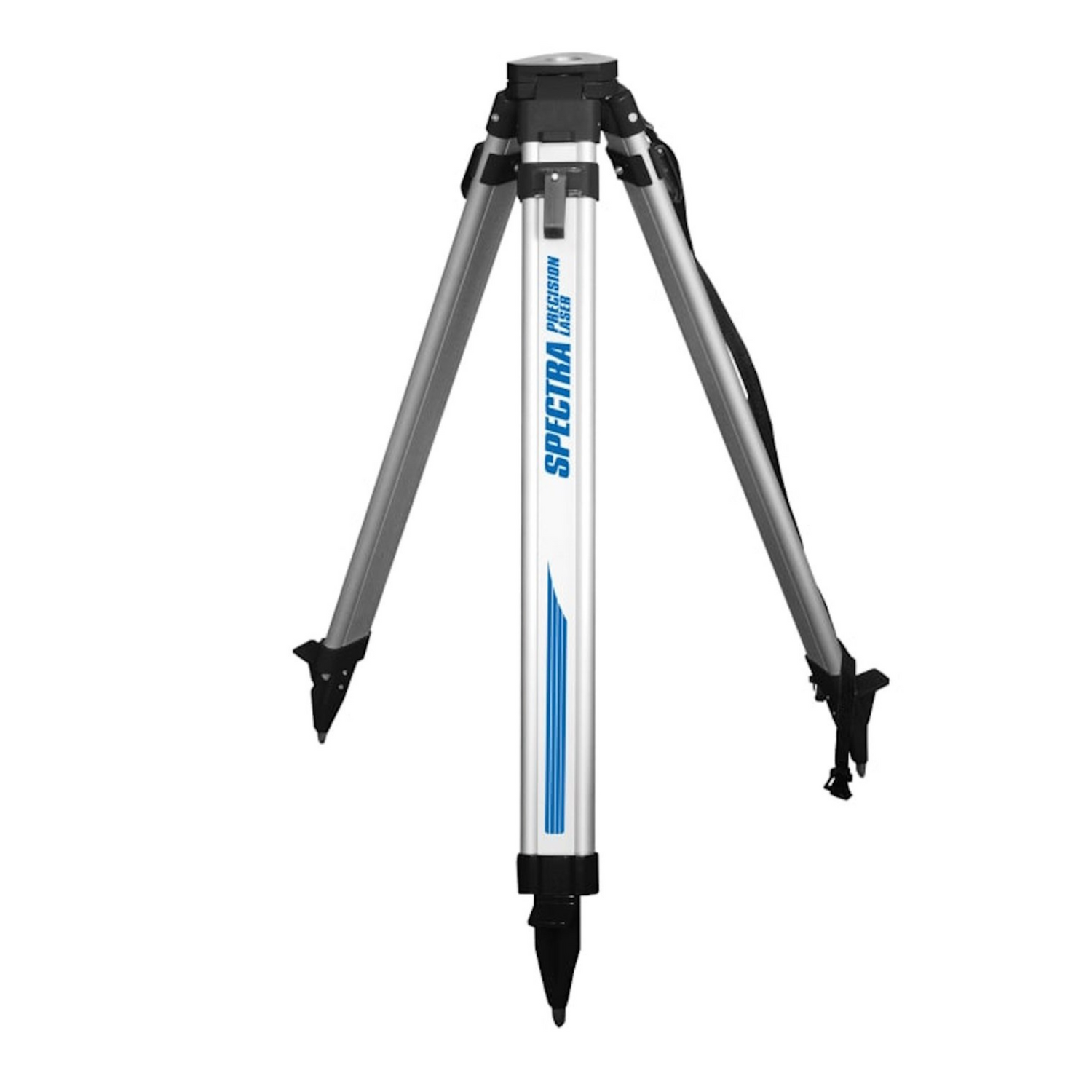

• Tripod: Q104025

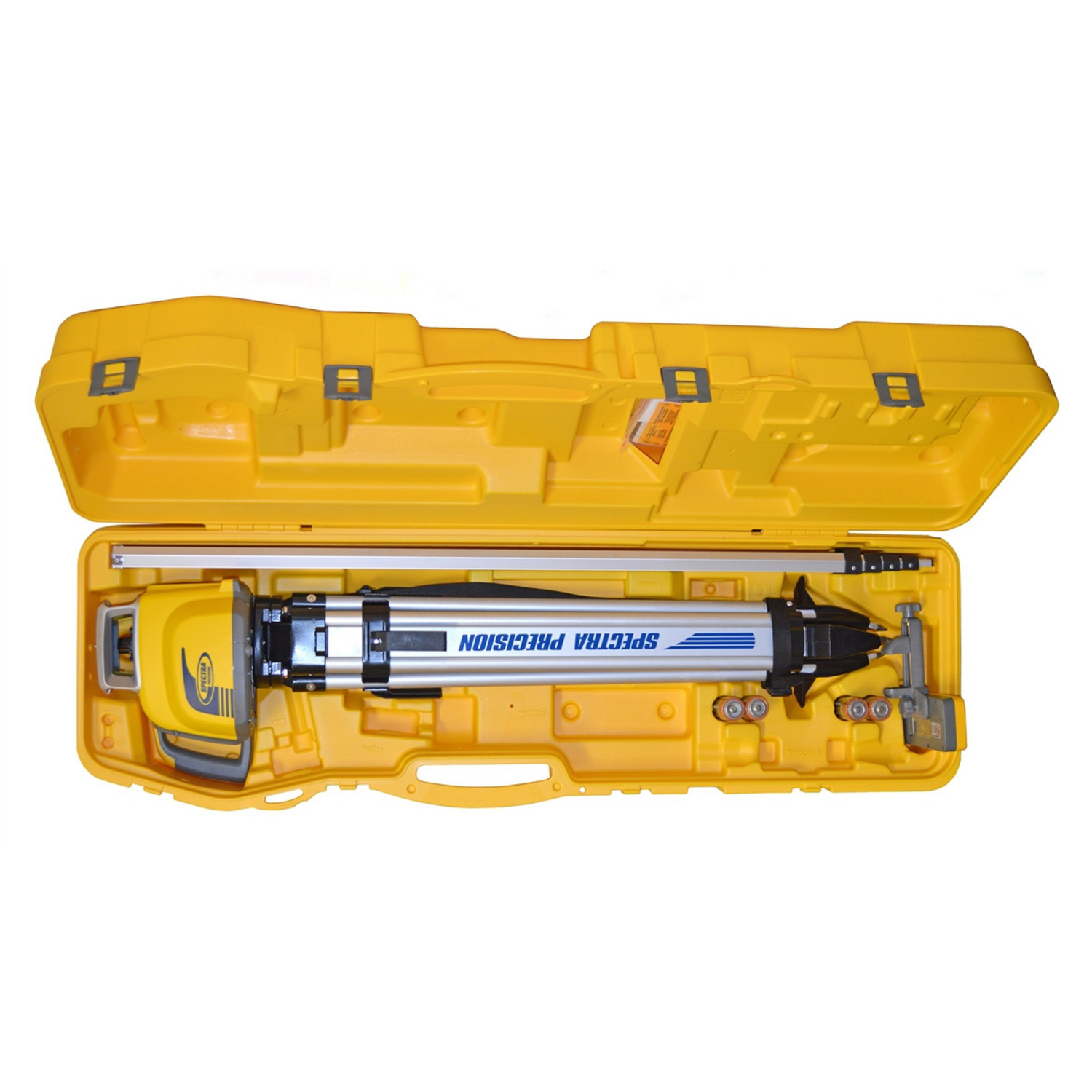

• Case: System Case
