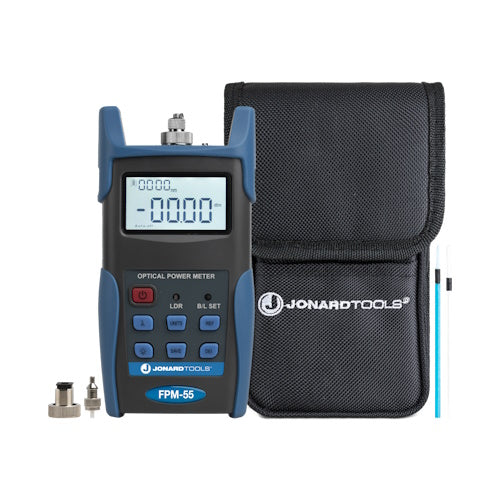

Jonard Tools - Fiber Optic Power Meter with Data Storage (-50 to +26 dBm) and FC/SC/LC Adapters

Model Number: FPM-55

Features:
  • The Jonard Tools Fiber Optic Power Meter with Data Storage is the perfect power meter for measuring and recording both the absolute optical power and relative power loss in fiber optic cables. This power meter features the following:
  • Measures a wide variety of wavelengths from 850-1650 nm, with a mere 0.01 dB resolution
  • Measures 8 preset calibrated wavelengths with high precision to determine absolute or relative power
  • Intelligent backlight control adjusts the screen brightness automatically to reduce power consumption
  • Stores up to 1,000 data entries which can be downloaded via USB
  • Reference power level can be set up and stored via included software
Specifications:
  • CONNECTOR TYPES: FC, SC (APC/PC/UPC) & LC (PC/UPC)
  • MEASUREMENT RANGE: -50 dBm to +26 dBm
  • DATA STORAGE: Yes
  • CALIBRATED WAVELENGTHS (nm): 850, 980, 1300, 1310, 1490, 1550, 1625, 1650
  • DETECTOR TYPE: InGaAs
  • SINGLE MODE RANGE: 980, 1310, 1490, 1550, 1625, 1650 nm, ? ± 0.25 dB
  • MULTI MODE RANGE: 850, 1300 nm, ? ± 0.8 dB
  • RESOLUTION: 0.01 dB
  • OPERATING TIME: ?130 hours
  • BATTERY TYPE: (3) AA batteries
  • DIMENSIONS: 6.89" x 3.54" x 1.75" (175 mm x 90 mm x 44.5 mm)
  • WEIGHT: 0.66 lb (300 g)
