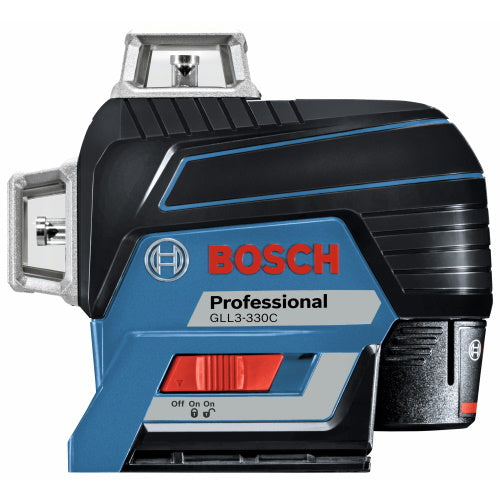

Bosch 360 Degree Connected Three-Plane Leveling and Alignment-Line Laser

Model Number: GLL3-330C

The Bosch GLL3-330C 360° Connected Three-Plane Leveling and Alignment-Line Laser provides an all-in-one level and alignment solution for one-person job setup. The leveling laser generates three laser chalk lines in 360° laser planes – one horizontal and two vertical. With Bluetooth® connectivity, users can control the setup of the laser from across the room with their smart phone and the free Bosch Leveling Remote App.

Features:

• Ultimate all-in-one leveling and alignment laser – facilitates one-person job setup with connected capability, dual-power technology and long working range
• Built-in VisiMax technology – monitors power consumption to maximize line visibility and extend battery life
• Bluetooth® connectivity – controls the operation of the laser from across the room with their smart phone and the free Bosch Leveling Remote App
• Bosch Leveling Remote App – free to download and free to use, this app turns the leveling laser and receiver mode on and off, select the laser planes, adjust line visibility and provide battery and level alerts
• Dual power technology – utilizes the included Bosch 12V Max Lithium-ion battery or four AA alkaline batteries
• Upgraded diode with a brighter beam – delivers a visible range of up to 200 Ft. diameter
• Pulse mode – extends the working range up to 330 Ft. (diameter) and/or in bright lighting, using the optional LR 6 or LR8 receiver
• Smart Pendulum System – self levels and indicates out-of-level condition up to ±4°
• Manual mode – locks lines for use at any angle

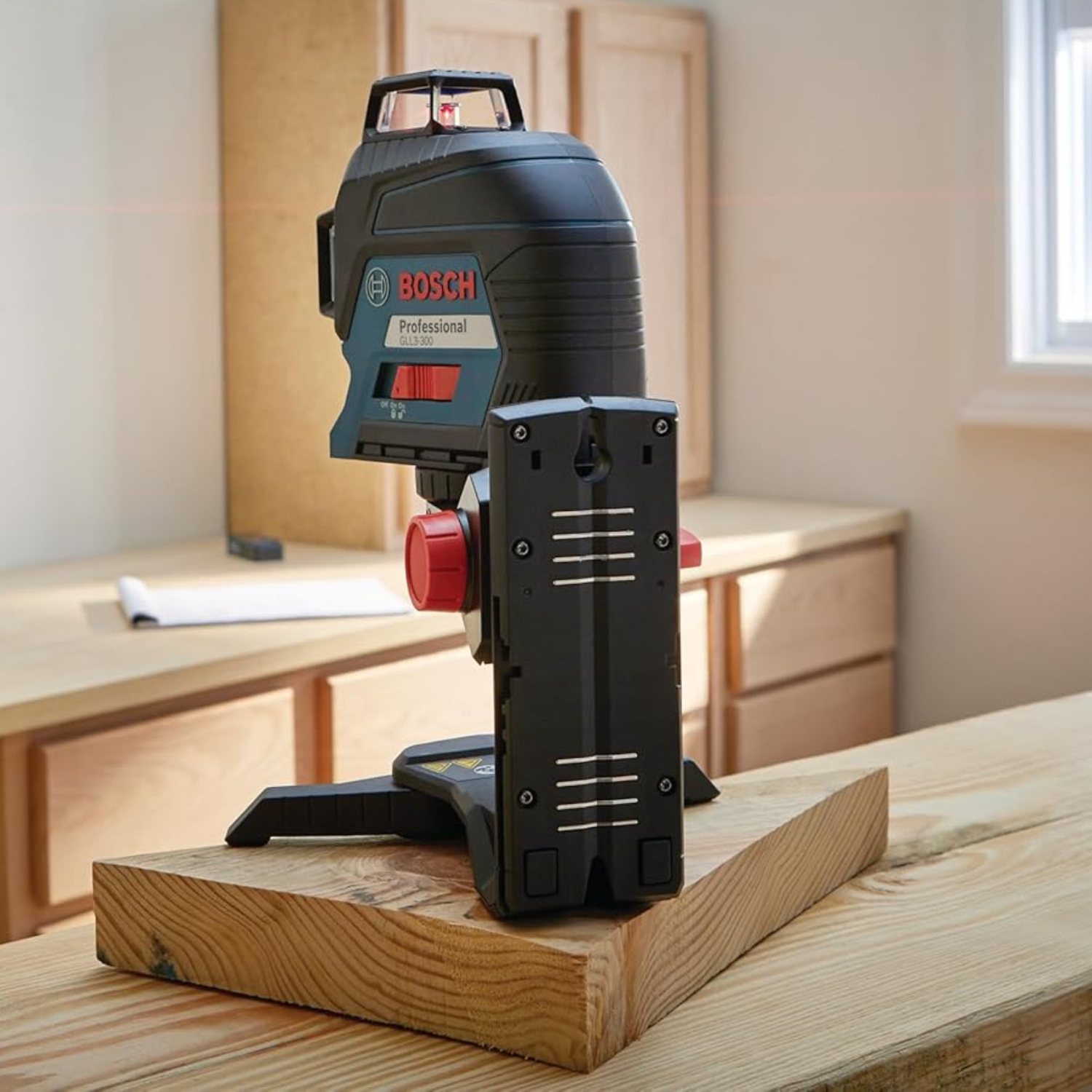

• BM 1 positioning device – clips to multiple surfaces, stands on floor with retractable feet and mounts to drywall or wood with screws for quick and easy setup
• CAL Guard – monitors the level laser for calibration trouble, such as drops or high heat
• Jobsite tough over-molded construction – withstands rainy or dusty jobsite conditions, and is IP54 rated

Specifications:

• Accuracy: Up to ±3/32-in @ 30-ft
• Battery Voltage: 12
• Height: 5.8"
• Length: 6.4"
• Width: 3.3"
• Laser Diode: Class II 630 – 650 nm
• Leveling Type: Self-Leveling, Up to 4°
• Mount Threading: 1/4-20, 5/8-11
• Operating Temperature: 14° F / -10° C up to 104° F / 40° C
• Range: Up to 200-ft. diameter
• Weight: 2.0 lb

Includes:

• GLL3-330C 360? Connected Three-Plane Leveling and Alignment-Line Laser
• 12V Max Battery
• 12V Max Charger
• BM 1 Positioning Device
• Laser Target Plate
• AA1 Alkaline Battery Adapter
• Heavy-Duty Pouch
• Hard Carrying Case
