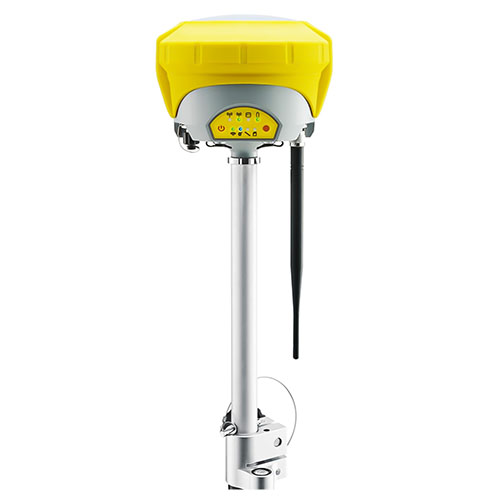

GeoMax Zenith35 Pro GSM-UHF Rover Set, Multi-Constellation

Model Number: 6013714

Features:
  • Full spectrum of satellite signals, full connectivity and the unique Tilt and Go functionality all in a compact GNSS make the Zenith35 Pro series the GNSS that works when you do.
  • With a max number of channels, all satellite systems and frequencies are supported with NovAtel technology.
  • Work how you want with selectable RTK modes.
  • Reach and measure hidden points with a tilted pole, and check and track pole verticality with the precise electronic bubble.
  • Zenith35 Pro is easy to take anywhere.
  • Move to any point needed.
  • With a IP68 certification, the Zenith35 Pro is water and dustproof.
  • The receiver is also protected against shock.
  • Bluetooth and WiFi connection
  • Access from any device connected to the internet, independent of your location
  • USB port for data transfer
  • Serial port for data output
  • Powerful UHF for base-rover setups
  • 3.75 G GSM for NTRIP connections
  • Connect up to 10 rovers simultaneously via GSM with Zenith35 Pro DynDNS technology
Specifications:
  • Receiver Specifications:
  • AdVance technologyHigh fix availability + reliability
  • Channels: 555, multi-frequency
  • GPS tracking: L1, L2, L2C, L5
  • GLONASS tracking: L1, L2, L3*
  • BeiDou tracking: B1, B2, B3**
  • Galileo tracking: E1, E5a, E5b, AltBOC, E6**
  • Positioning rate5Hz, 20Hz (opt)
  • SBASEGNOS, WAAS, MSAS, GAGAN, QZSS***
  • Receiver accuracy****:
  • RTK: Hz - 8 mm ± 1 ppm (rms) / V - 15 mm ± 1 ppm (rms)
  • Network RTK: Hz - 8 mm ± 0.5 ppm (rms) / V - 15 mm ± 0.5 ppm (rms)
  • Static: Hz - 3 mm ± 0.5 ppm (rms) / V - 5 mm ± 0.5 ppm (rms)
  • Static long: H - z3 mm + 0.1 ppm (rms) / V - 3.5 mm + 0.4 ppm (rms)
  • Interfaces:
  • Keyboard: On/off and function key
  • LED status indicators: Position, battery, Bluetooth, Wi-Fi, RTK receive, RTK transmit, data storage
  • LED mode indicators: Rover, base, static
  • Data recording: Dual; microSD card and8 GB internal memory
  • GSM/TCP/IP: Removable SIM card
  • Quality mode:
  • RTK modes: Selectable; ExtraSafe, Standard
  • Tilt and Go modes: Selectable; Single/Dual
  • Communication
  • GSM/GPRS module: Quad-Band GSM & Penta-Band UMTS 800 / 850 / 900 / 1900 /2100 MHz
  • UHF radio module: 500mW, 1000 mW transceiver, 403 – 473 MHz
  • Bluetooth: Device class II
  • Wi-Fi: 802.11 b/g/n
  • TNC connector: UHF antenna, UMTS/GSM antenna
  • Communication: port USB, serial & power
  • Physical specifications: Dimensions Height 131 mm, ø 161 mm
  • Weight: 1.17 kg without battery
  • Operating temp.: – 40°C to 65°C
  • Protection class: IP68 dust and waterproof
  • Humidity: 100%, condensing
  • Vibration: ASAE EP455 Section 5.15.1 Random, MIL-STD-810G,method 514.6E-I
  • Shock: Withstands 2 m drop onto hard surface
  • Power supply:
  • Internal battery: Removable, Li-Ion 3.4 Ah / 11.1 V
  • Operating time: 8 h in static / 6 h in rover mode
  • External power: 9 V to 18 V, LEMO plug
  • Warranty: One (1) Year Standard Warranty, Extendable Warranty (Yes)
