iDig CONNECT 2D+ Systems

Available Options:

  • 14000740-B: CT740
  • 14000741-B: CT741 with Big Combo System

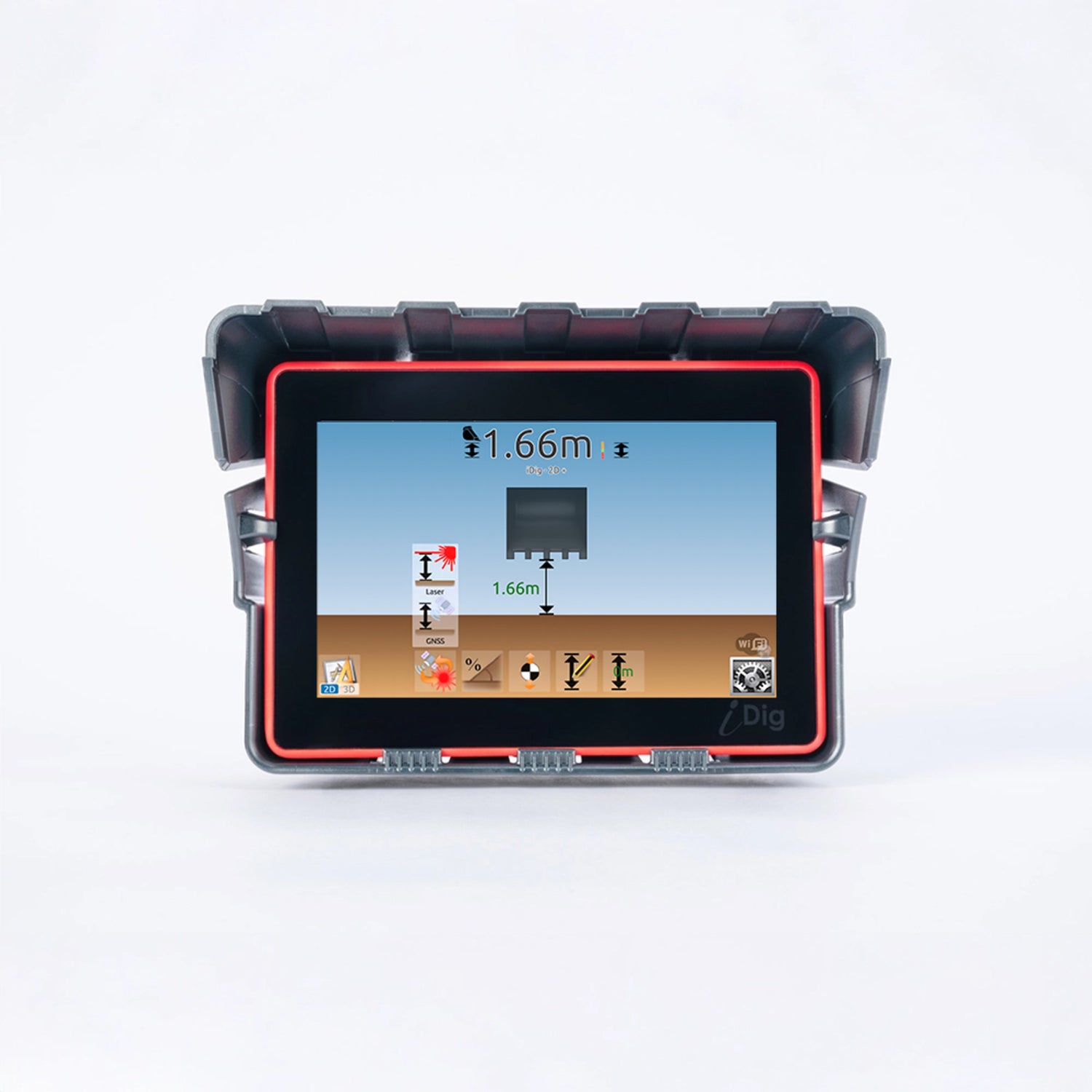

  • Contol Box

    Our Dual core Control box is a powerful and robust tool equipped with software designed with and for excavator operators. It has an intuitive and user-friendly interface built with features such as:

    • Level surface
    • Grade single or dual slope
    • Define dig reach distance and side distance
    • Height alert
    • Measuring tape
  • Sensors

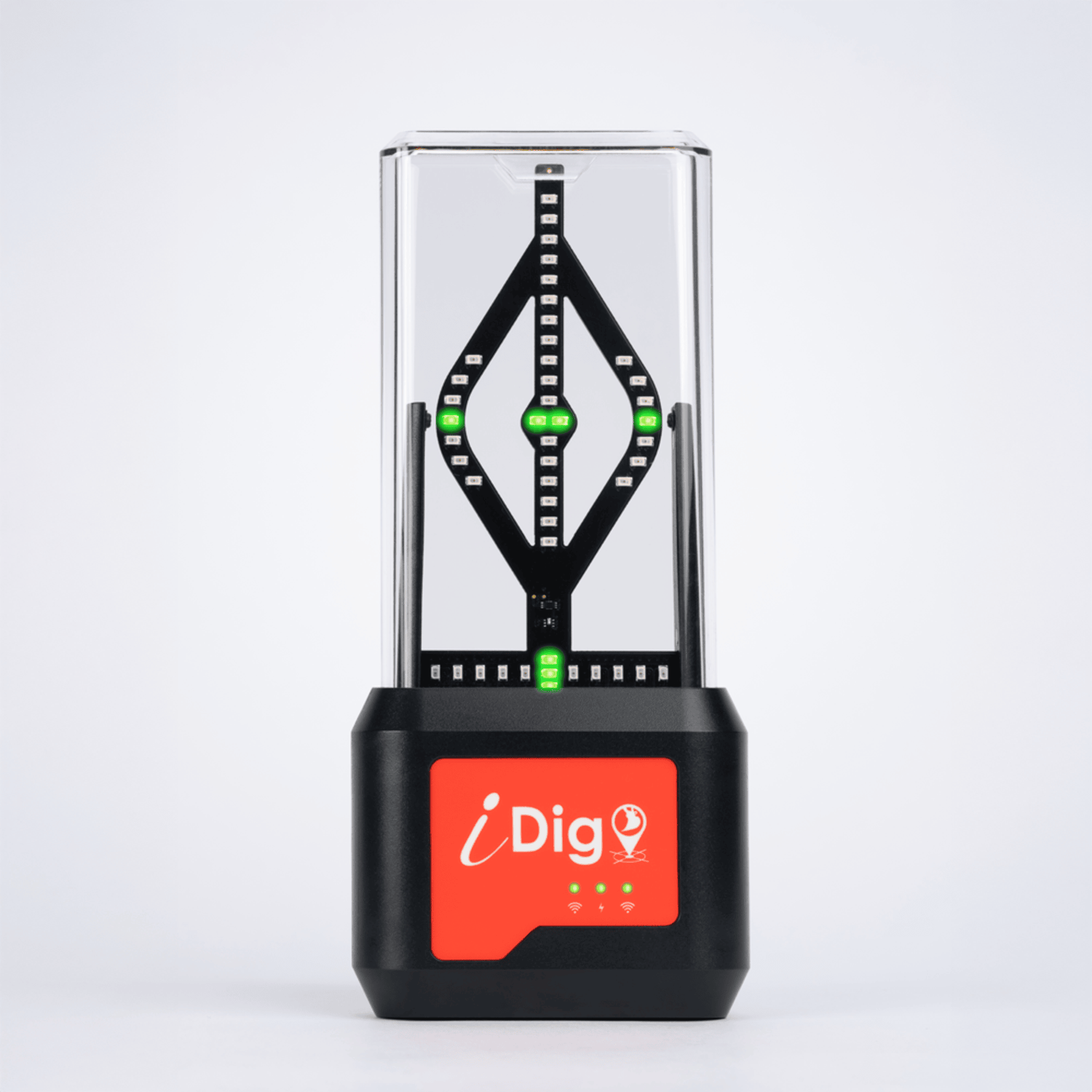

    Our LED display bargraph acts as a real assistant in your cab. The green, red, and orange lights function as reliable positioning indicators within your field of vision, providing accurate real-time guidance. Including additional LEDs to provide tilt/rotate information when working with leading manufacturers such as Rototilt, Steelwrist, Engcon and more.

  • Bargraph

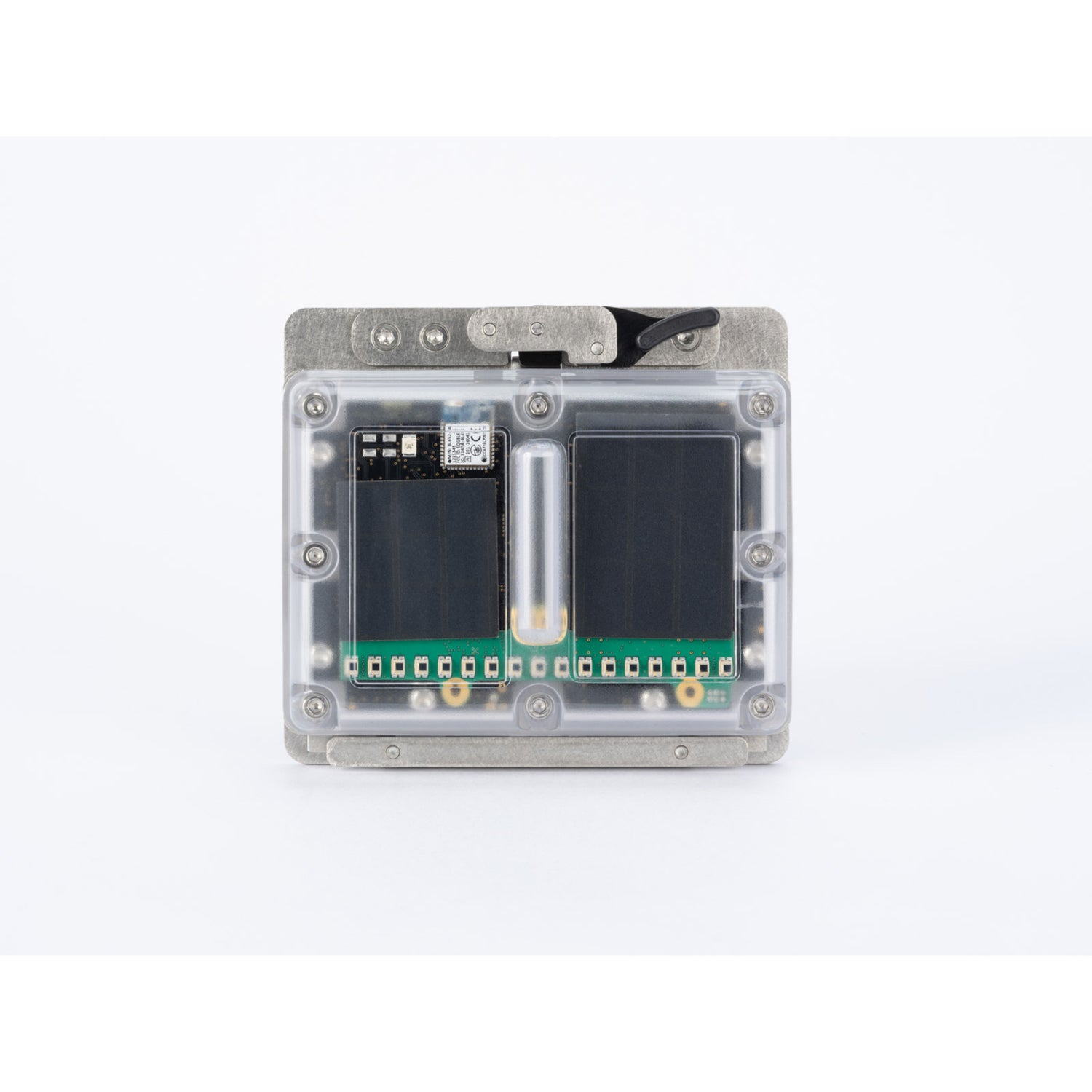

    Our unique wireless solar-rechargeable sensors snap onto your excavator and unclip to switch from one excavator to another in a few minutes. The CONNECT system benefits from Bluetooth communication measuring 100x per second.

Features:

  • Earthworks, foundations, technical trenches, platforms, construction, roads & other networks, landscaping, augers, parking lots, and more.
  • Covers all measurements: flat, single, or double slope, long axis, typical cross-section, distances, and depths.
  • Tape Measure mode gives the ability to measure vertical and horizontal distance and percentage of slope between points.
  • Height alarm feature warns of overhead restrictions.
  • Upgradable to CONNECT 2D PROJECT & CONNECT 3D which allow Digital Terrain Model uploads to the control box

Note: The only difference between the CT740 and CT741 models is that the CT741 features a longer Big Combo Sensor (approximately 6.3 inches). This extended sensor enables faster and easier “benching” (setting the reference point) when using a laser transmitter. While laser benching can improve speed and accuracy, it is entirely optional and not required for operation.

Info and Guides:

Click Here for Data Sheet

Click Here for Brochure
