Intimus 2.5 ST. 115V 60Hz Versatile Folder Inserter

Model Number: A0167802

Manufacturer: Intimus

Availability Notice: Most items are in stock and ready to ship. However, certain products may experience temporary delays or extended lead times due to ongoing industry-wide supply chain or manufacturing constraints. If your order is affected by a backorder or extended lead time, our team will contact you with the latest availability information. We appreciate your patience and understanding.

Important Configuration Notice: The supplied Intimus manufacturer data sheet is specifically labeled TSI-4G and lists 220–240V, 50/60Hz power requirements. It does not identify model A0167802 or confirm a 115V configuration. The specifications below therefore reflect the supplied TSI-4G manufacturer documentation where noted. Electrical compatibility for A0167802 should be confirmed before ordering or installation.

The Intimus versatile folder inserter is designed to automate repetitive mail preparation by folding documents, inserting them into envelopes, and supporting efficient processing of invoices, statements, direct-mail pieces, transactional documents, and other business correspondence.

The supplied Intimus TSI-4G documentation describes a system capable of processing up to 2,500 envelopes per hour, with a 7-inch full-color touchscreen, a document feeder capacity of 325 sheets, an envelope capacity of 150, and storage for up to 50 mailing jobs.

A wizard-based touchscreen interface simplifies setup for everyday operators. Intimus also incorporates Load'n'Go functionality, which can automatically measure loaded documents and envelopes and configure the appropriate settings, reducing setup time and operator intervention.

The system supports multiple fold configurations, including C-fold, Z-fold, V-fold, double-parallel, and no-fold processing. Advanced reading options are also available for OMR, 1D and 2D barcodes, Data Matrix, and QR codes, making the platform suitable for more sophisticated document-control and mailing workflows.

Ideal Applications

The Intimus Folder Inserter is designed for:

• Business Mailrooms
• Accounts Receivable Departments
• Billing Departments
• Invoice Processing
• Monthly Statements
• Transactional Mail
• Direct-Mail Campaigns
• Customer Correspondence
• Administrative Offices
• Financial Institutions
• Healthcare Offices
• Government Agencies
• Educational Institutions
• Insurance Offices
• High-Volume Business Mailing

Available Package Options

The supplied manufacturer documentation shows the TSI-4G platform in multiple feeder configurations, including one FlexFeeder, two FlexFeeders, and two FlexFeeders with an additional insert feeder. Exact configuration for model A0167802 should be confirmed before purchase.

Compare Package Options

Which Package Should I Choose?

A0167802 – Intimus Versatile Folder Inserter

This type of folder inserter is designed for organizations that regularly prepare invoices, statements, customer correspondence, direct mail, and other envelope-based communications and want to reduce the amount of manual folding and inserting required.

The automated workflow is especially useful when mailing volume is high enough that manually folding documents and stuffing envelopes becomes time-consuming.

Recommended For:

• Corporate Mailrooms
• Accounting Departments
• Billing Departments
• Banks & Financial Offices
• Insurance Companies
• Medical Offices
• Government Departments
• Schools & Universities
• Administrative Offices
• Direct-Mail Operations

Key Features

Automated Folding & Inserting

The system automates key steps in outgoing mail preparation, helping reduce the repetitive manual work involved in folding documents and placing them into envelopes.

This makes it suitable for recurring jobs such as invoices, monthly statements, customer notices, and transactional mail.

Up to 2,500 Envelopes Per Hour

The supplied TSI-4G manufacturer specification lists processing speed at up to 2,500 envelopes per hour, supporting higher-volume mailing operations.

Actual throughput can vary depending on document configuration, fold type, inserts, and job setup.

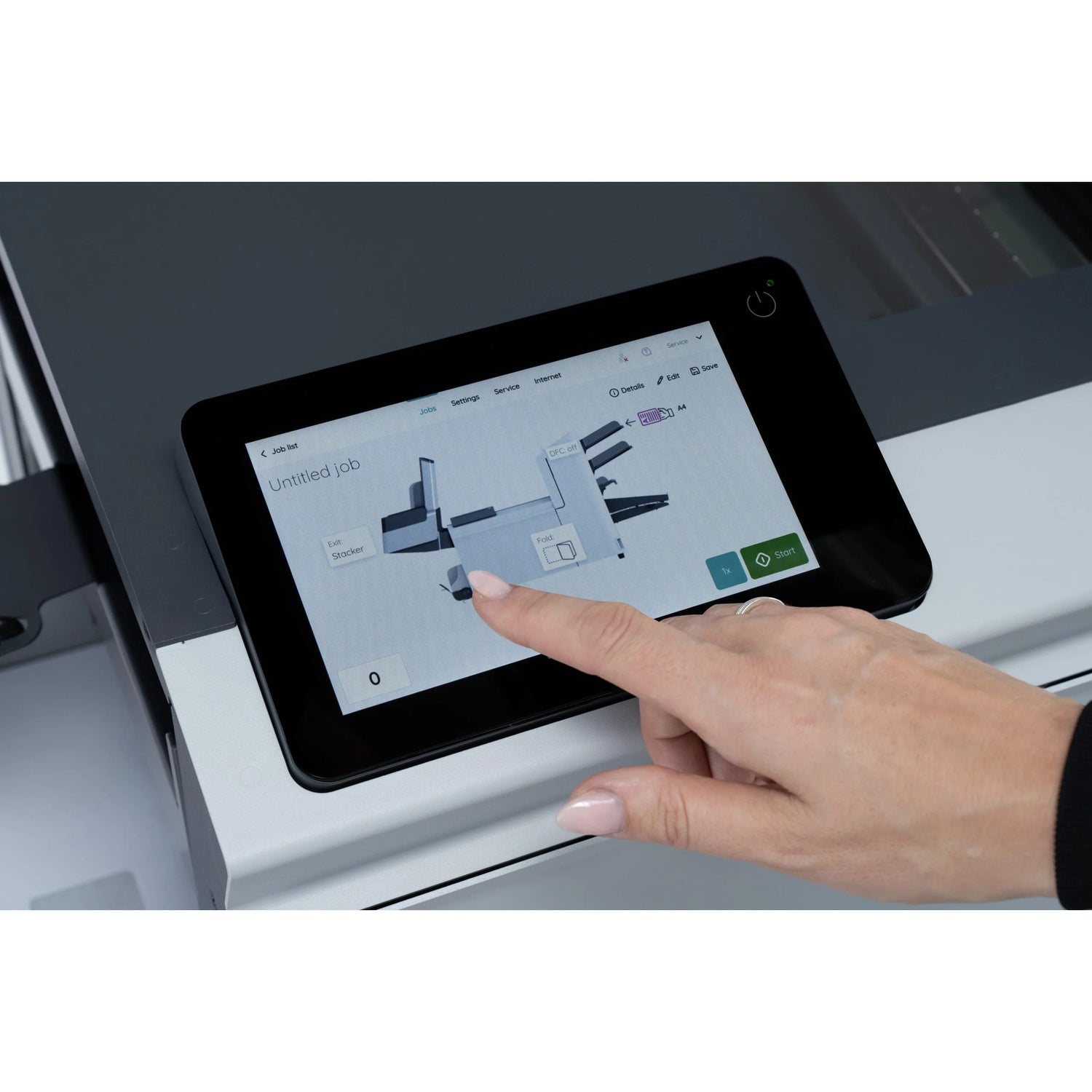

7-Inch Color Touchscreen

The manufacturer documentation specifies a 7-inch graphical color touchscreen with a step-by-step wizard.

Stored applications can be quickly recalled, while the guided interface helps operators configure and save job settings for future use.

Load'n'Go Automatic Setup

Intimus Load'n'Go functionality simplifies job preparation by automatically measuring loaded documents and envelopes and configuring the appropriate settings.

Operators can load the documents and envelopes and initiate the setup process with minimal manual adjustment.

FlexFeed System

The TSI-4G documentation describes an exclusive FlexFeed® tray system designed to accommodate a wide range of document sizes and types without complicated adjustments.

A semi-automatic envelope separation mechanism is designed to provide reliable feeding and easier configuration.

Multiple Fold Types

The supplied manufacturer specifications support:

• C-Fold
• Z-Fold
• V-Fold
• Double-Parallel Fold
• No Fold

This allows the machine to accommodate different document and mailing requirements.

Up to 50 Stored Jobs

The manufacturer specification lists memory for up to 50 jobs, allowing frequently used mailing configurations to be saved and recalled instead of rebuilding settings for every recurring mailing.

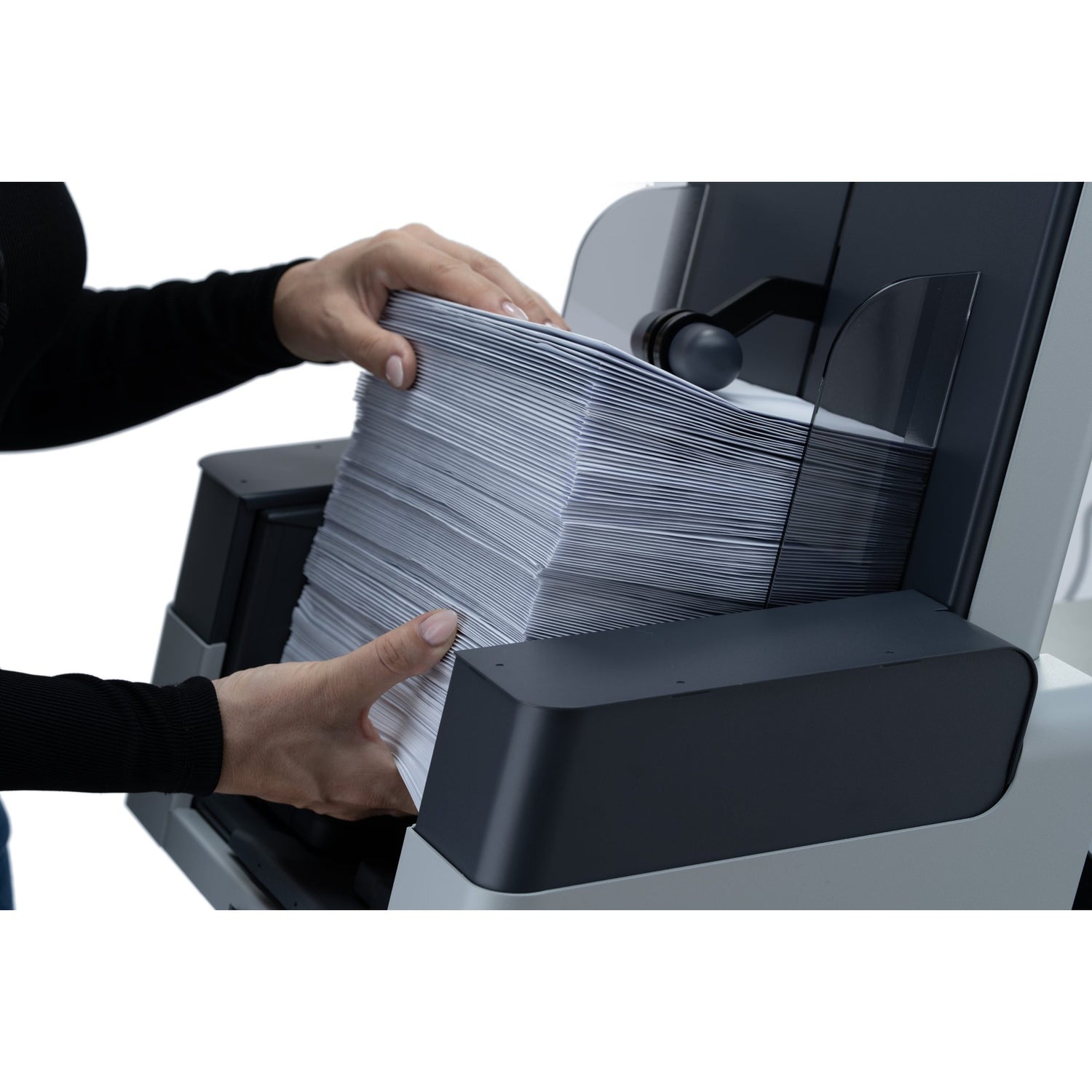

High-Capacity Document Feeding

The supplied TSI-4G specification lists a 325-sheet document feeder capacity and 150-envelope feeder capacity, helping reduce the frequency of operator reloading during larger mailing jobs.

Flexible Fold Capacity

The manufacturer specifies a fold capacity of:

• Up to 5 documents in C-fold
• Up to 8 documents in V-fold

These specifications are based on 80 g/m² paper.

Advanced Document Reading Options

The TSI-4G supports optional document-reading technologies including:

• OMR – Optical Mark Recognition
• 1D Barcodes
• 2D Barcodes
• Data Matrix
• QR Codes

The manufacturer states that codes can be positioned anywhere on the document, providing flexibility when designing automated mailing workflows.

Clamshell Paper-Path Access

A practical clamshell architecture provides access to the paper path for loading, inspection, cleaning, and jam clearing.

This design helps simplify routine maintenance and reduce downtime when operator intervention is required.

Visible Insertion Area

A viewing window in the top cover provides visual access to the insertion process, allowing operators to monitor operation and intervene when necessary.

Quiet Operation

The supplied TSI-4G specification lists a noise level of less than 68.3 dBA, making the system suitable for office and production environments where excessive equipment noise may be undesirable.

Technical Specifications

*Specifications marked above are from the supplied Intimus TSI-4G manufacturer data sheet. The data sheet does not specifically identify model A0167802 or verify the 115V configuration stated in the supplied product title.

Available Options & Accessories

The supplied Intimus documentation identifies several available system options:

The optional MaxiFeeder is described as accommodating up to 325 business reply envelopes, making it useful for applications involving higher-volume response-envelope insertion.

What's Included

• (1) Intimus Folder Inserter – Model A0167802

Exact feeder configuration, catch tray, furniture, MaxiFeeder, scanning capabilities, and other optional equipment should be confirmed for model A0167802 before ordering.

Important Electrical Configuration Notice

The supplied product title identifies this model as 115V / 60Hz. However, the supplied Intimus TSI-4G manufacturer data sheet specifies 220–240V, 50/60Hz and does not list model number A0167802.

Because voltage is an important installation and safety specification, do not use the TSI-4G data-sheet voltage as confirmation of the electrical requirements for A0167802. The electrical configuration should be verified for this specific model before purchase, installation, or connection to power.

Why Choose the Intimus Folder Inserter?

An automated folder inserter can significantly reduce the manual labor associated with recurring business mail. Instead of individually folding documents and inserting them into envelopes, the Intimus platform combines these processes into an automated workflow designed for repetitive mailing operations.

The supplied TSI-4G platform adds features such as a large color touchscreen, stored job settings, Load'n'Go setup, multiple fold configurations, flexible feeding, and optional document-reading technology. Together, these capabilities make it suitable for organizations processing everything from routine invoices and statements to more sophisticated transactional mailing jobs.

Common Applications

• Invoice Mailing
• Monthly Statements
• Billing Notices
• Customer Correspondence
• Transactional Documents
• Direct-Mail Campaigns
• Business Reply Mail
• Account Statements
• Insurance Correspondence
• Healthcare Mailings
• Government Mail
• Educational Mailings
• Financial Documents
• Recurring Business Mail

Why Buy From Titan Tools Direct?

When you purchase the Intimus Folder Inserter from Titan Tools Direct, you're buying from a trusted supplier of professional office and mail-processing equipment backed by knowledgeable product specialists.

• Authorized Intimus Dealer
• Competitive Pricing
• Nationwide Shipping
• Expert Sales & Technical Support
• Professional Mailroom & Office Equipment
• Customer Support Before & After the Sale

Questions?

Need help confirming the correct Intimus folder inserter configuration, voltage, feeder setup, or optional accessories for your mailing requirements?

Call or Text Sales & Technical Support: 832-727-9353

Email: Sales@TitanToolsDirect.com

Our knowledgeable team is happy to assist with product selection, compatibility questions, accessories, availability, and technical support before and after your purchase.

Frequently Asked Questions (FAQ)

Q1: What does an Intimus folder inserter do?

A folder inserter automates the process of preparing outgoing business mail by folding documents and inserting them into envelopes. It is designed to reduce the manual work required for recurring mailing jobs.

Q2: How fast can the system process mail?

The supplied Intimus TSI-4G manufacturer data sheet specifies processing speeds of up to 2,500 envelopes per hour. Actual production speed can vary based on the mailing configuration.

Q3: What size touchscreen does it have?

The supplied TSI-4G documentation specifies a 7-inch full-color graphical touchscreen with a step-by-step setup wizard.

Q4: How many mailing jobs can be stored?

The supplied TSI-4G specification lists memory for up to 50 jobs.

Q5: What fold types are supported?

The documented TSI-4G platform supports C-fold, Z-fold, V-fold, double-parallel, and no-fold configurations.

Q6: What is Load'n'Go?

Load'n'Go is an Intimus automatic setup function. The operator loads documents and envelopes, and the system measures their sizes to configure the appropriate settings, reducing manual setup.

Q7: Does the system support barcode or OMR reading?

The supplied TSI-4G documentation identifies support for OMR, 1D and 2D barcodes, Data Matrix, and QR codes. These scanning capabilities should be confirmed for the specific configuration being purchased.

Q8: What is the document feeder capacity?

The manufacturer data sheet specifies a 325-sheet document feeder capacity for the documented TSI-4G platform.

Q9: What is the envelope feeder capacity?

The manufacturer specification lists an envelope feeder capacity of 150.

Q10: Is a MaxiFeeder available?

Yes. Intimus identifies a MaxiFeeder as an available option, and the supplied documentation states that it can accommodate up to 325 business reply envelopes.

Q11: What voltage does model A0167802 require?

The supplied product information identifies A0167802 as 115V / 60Hz, but the attached manufacturer TSI-4G data sheet specifies 220–240V, 50/60Hz and does not identify A0167802. Because the supplied sources conflict, the correct electrical requirement for A0167802 should be confirmed before ordering or installation.

Q12: Is the Intimus folder inserter suitable for an office environment?

Yes. The TSI-4G documentation describes the machine as suitable for office or production environments and specifies a noise level below 68.3 dBA.
