Attention: This product has been discontinued

Features:

• Five second angular accuracy - accurate enough for any construction job
• Vertical axis compensation - tilt sensor provides the highest level of accuracy and be turned on or off depending upon job requirements
• Dual LCD with large characters - easy to see, angle readings, eliminate errors and reduce eye fatigue
• Simple six button keypad - quick set-ups and simple operation with low operator learning curve
• Laser beam is emitted directly from the aperture, but does not impede viewing
• Large beam can easily and accurately place anchor bolts at regular intervals on a line or set and angle and use the beam to verify your tape measure is properly aligned for the next stake or sight in foots, frames and tilt-up walls - all without pulling a string!

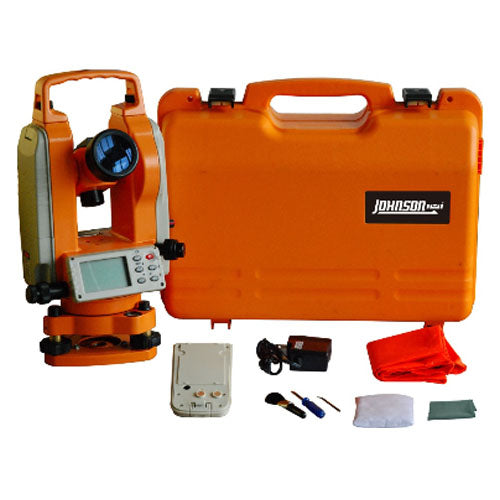

Includes:

• Five Second Theodolite with Laser
• NiMH rechargeable battery pack
• Alkaline battery compartment (batteries not included)
• 3-7.5V battery adapter
• Rain cover
• 3 Year Manufacturer's Limited Warranty
• Instruction manual with warranty card
• Hard-shell carrying case

Technical Specs

• Leveling Type: Manual Leveling
• Range w/o Detector: 100 ft.
• Modes: 3
• Plumb Down: Yes
• Plumb Up: No
• Power Source: Rechargeable Battery Pack, (5) AA Alkaline Batteries
• Accuracy: 5 sec.
• Preset Angle: 5 sec.
• Number of Beams: 1
• Beam Color: Red
• Laser Class: IIIa
• Wavelength: 635nm
• Max. Output: 5 mW
• Visual/Audible Indicators:Yes
• Auto Shutoff: No
• Dimensions: 6.30 x 5.90 x 12.99"
• Operating Temp: .4 to 104 Degrees F
• Thread Size: 5/8-11

View / Download Manual on Johnson Level 5-Second Digital Theodolite with Laser 40-6936 (PDF)
