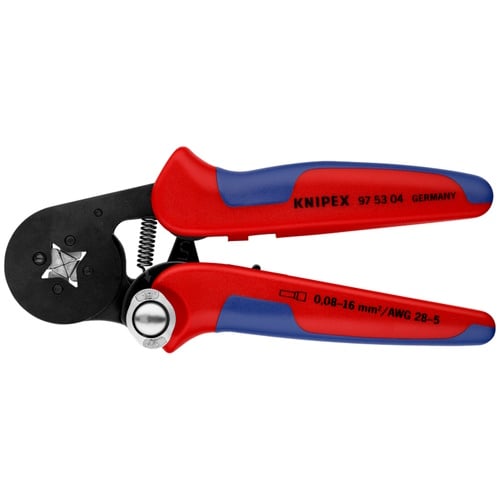

Knipex 7" Self-Adjusting Crimping Pliers For Wire Ferrules

Model Number: 97 53 04

Features:
  • The Knipex Self-Adjusting Crimping Pliers For Wire Ferrules are the ideal tool for crimping wire ferrules according to DIN 46228 parts 1 + 4. These pliers have a narrow handle width and an improved ergonomics for comfortable operation. They also have a square compression for wire ferrules up to 16 mm² that creates ideal contact surfaces in the clamp connection. They are especially suitable for all twin wire ferrules up to 2 x 4 mm² or 2 x AWG 12. The pliers have a self-adjustment feature that adapts to the size of wire ferrules required. They also have a ratchet mechanism that ensures repetitive, high crimping quality and can be unlocked if needed. The pliers have been set precisely (calibrated) in the factory and have an optimum transmission of force thanks to the toggle lever that reduces fatigue. The pliers have a handy shape and a low weight that provide high operation comfort. The pliers have a UL approval in conjunction with KNIPEX-AEH 97 99 330 - 399.
  • Self-adjusting crimping pliers with large capacity range
  • For crimping end sleeves (ferrules) in accordance with DIN 46228 Parts 1 + 4
  • Also suitable for all twin end sleeves (ferrules) up to 2 x 6 mm² or 2 x AWG 8
  • Feeding from the side
  • Adjust automatically to the desired size of end sleeve
  • Consistent crimping pressure due to integral lock (with release mechanism)
  • Crimping pressure calibrated in the factory
  • Manufactured from high-grade chrome vanadium electric steel, oil-hardened
  • With multi-component grips
Specifications:
  • Pliers: burnished
  • Handles: with multi-component grips
  • Weight: 459 g
  • Dimensions: 180 x 77 x 21 mm
  • REACH compliant: contains SVHC
  • RoHS compliant: not applicable
  • Application: Wire ferrules
  • Capacity in square millimetres: 0.08 — 10 / 16 mm²
  • Number of crimping positions: 1
  • AWG: 28 — 6
