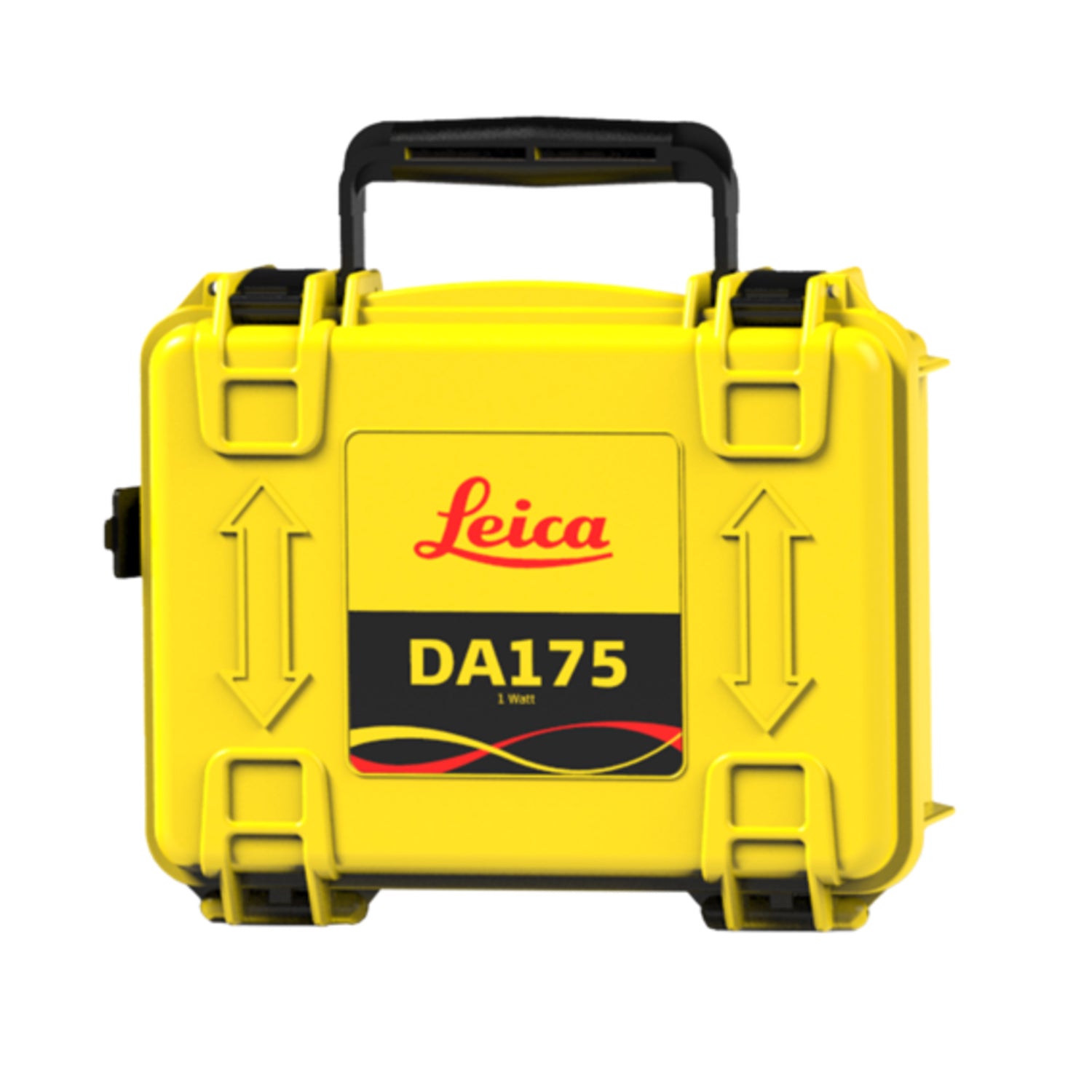

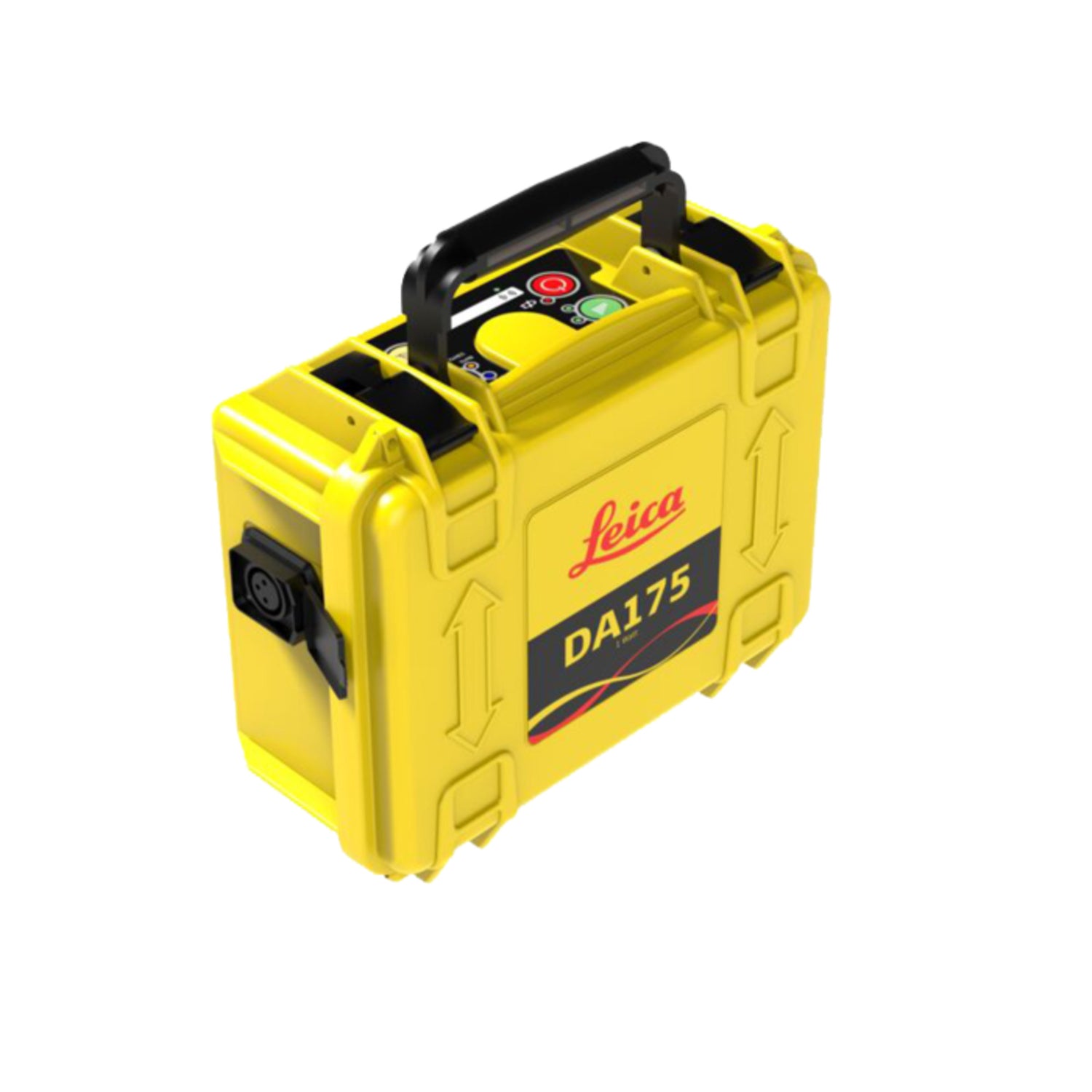

Leica DA175 1-Watt Signal Transmitter

Model Number: 949370

The SMART utility locator solution, including the DD230/220 cable locator series, DX Shield software and signal transmitters, is the only complete portfolio of detection solutions which allows users to detect buried utilities, transfer and access data remotely to a hosted service for multiple users, across multiple sites to manage site activities.

Leica DA175, 1 Watt Signal Transmitter incl. Li-ion battery and A100 charger, used to apply a trace signal to underground utilities. Features three trace frequencies, 8kHz, 33kHz and 131kHz with a variable power output level up from 1 Watt. to 3 Watts depending which product you choose.

Compatible with the Leica Detect DD130, DD120 locators.

Features:

• 1 Watt — ideal for short to medium range utility tracing
• Simple interface for quick setup and operation
• Fully dustproof and waterproof for rugged field conditions
• Long operational life for extended field use
• Works seamlessly with Leica DD series locators (DD120, DD130, DD175)
• Lightweight and portable for easy transport

Specifications:

• Mode
  • Induction: Up to 1 Watt max.
  • Connection mode: Model dependent, up to 1 Watt or 3 Watt, when connected to a buried utility with an impedance of 300 Ohms
  • Operating transmission frequencies
    • 32.768 (33) kHz
    • 8.192 (8) kHz
    • 512 Hz (DA230 series models)
    • 640 Hz DA230 series models)
  • Display panel
    • LED Indicators:
    • Battery low indicator
    • Connection mode
    • Frequency indicator
    • Power Output indicator
  • Keypad: 4 membrane push buttons
  • Audio
    • 85 dBA @ 30 cm
    • Induction mode:
    • Pulsed output with a differing rate for each frequency
    • Connection mode:
    • Low - No output: pulsed output, differing rate for each frequency
    • Good Connection output: constant tone, pitch dependent on power output
  • Battery type: 7.4 V Li-Ion pack
  • Typical operating time 3 Watt, 1 Watt: 15 hours at power level 2 connection mode
  • Dimensions: 250 x 206 x 113 mm/9.84 x 8.11 x 4.45 inches
  • Weight (incl. standard accessories and batteries): 2.38 kg with Li-Ion
  • Temperature: Operating -20°C to +50°C, -4°F to +122°F Storage -40°C to +70°C, -40°F to +158°F
  • Protection against water, dust and sand: Conforms to IP67 lid open or closed
  • Humidity
    • 95% RH non condensing
    • The effects of condensation are to be effectively counteracted by periodically drying out the product.
  • Approvals: CE, FCC
• A100 Lithium Ion Charger
  • Type: Li-Ion battery charger
  • Input voltage: 100 V AC-240 V AC, 50 Hz-60 Hz
  • Output voltage: 12 V DC
  • Output current: 3.0 A
  • Polarity: Shaft: negative
• A140 Lithium Ion Charger
  • Type: Li-Ion battery charger
  • Input voltage: 12 V DC
  • Output voltage: 12 V DC
  • Output current: 5.0 A
  • Polarity: Shaft: negative
• D Series Lithium-Ion Battery pack
  • Type: Li-Ion battery pack
  • Input voltage: 12 V DC
  • Input current: 2.5 A
  • Charge time: 5 hours (maximum) at 20°C

Package Includes:

• Leica DA175 1 Watt Signal Transmitter
• One Year Warranty
• 4 x D-cell Alkaline Batteries
