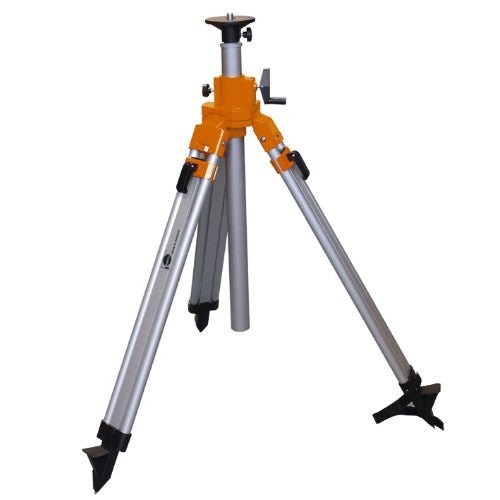

Nedo Medium-Duty Elevating Tripod with Retract and Go Locking System

Model Number: 210 616-185

Every Nedo elevating tripod features the same high standard of quality as our proven wooden and aluminum tripods.Thanks to the elevating mechanism, even heavy-duty lasers or machine control lasers can be easily lifted to the desired height and smoothly adjusted. Double telescopes offer an extremely wide working range. Unique features such as Nedo Slip Guard which prevents the tripod legs from spreading on smooth ground and quick release levers made of aluminum are a standard on every Nedo elevating tripod.

Description:

• Reinforced Indirect gear unit for easy handling and less wear and tear to the crank. No unintended decent of instrument.
• Circular bubble
• Strong aluminum extension legs, silver anodized
• Tripod head and plate made of aluminum, powder-coated
• Break-proof quick release levers, made of aluminum
• Brass hinge pins for extra stability
• Tripod feet made of aluminum w/ steel points
• Slip guard: integrated mechanical stop prevents tripod legs from spreading
• Retract-and-Go Leg locking system without straps offers maximum comfort: legs stay in position during transport

Specifications:

• Min. effective height: approx. 31" / 0.80 m
• Max. effective height: approx. 80" / 2.00 m
• Retracted length: approx. 40'' / 1.00 m
• Holding screw: 5/8’’ x 11 thread
• Weight: 11 lbs. / 5.10 kg
• Tripod plate: Ø 4.3’’ / 110 mm
• Telescopic section: 1-fold
• Adjustable column range: 22’’ / 555 mm
• Includes One Year Manufacturers Warranty
