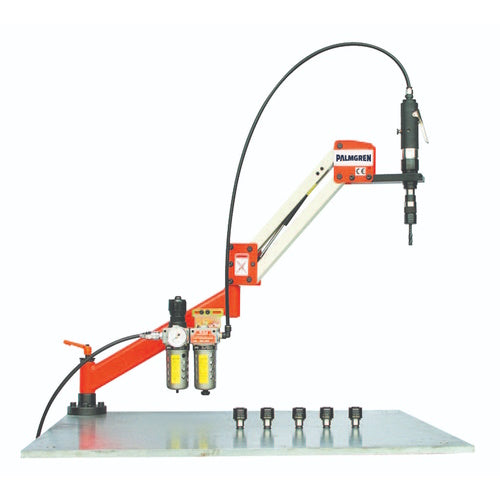

Palmgren Quick-Tap Pneumatic Tapping Machine 37" Reach - 400 RPM

Model Number: 9680420

Manufacturer: Palmgren

The Palmgren Quick-Tap Pneumatic Tapping Machine 37" Reach - 400 RPM is a high-performance articulated tapping system designed to improve thread production, increase accuracy, and reduce operator fatigue in manufacturing, fabrication, machine shops, maintenance departments, and production facilities. Engineered for small to medium-sized tapping applications, this pneumatic tapping machine delivers smooth, weightless operation with a high-torque reversible air motor, making repetitive tapping operations faster, safer, and more consistent than manual tapping.

Featuring a 37-inch articulated arm, 400 RPM pneumatic motor, and quick-change tooling system, the Palmgren Quick-Tap allows operators to rapidly produce accurate threads while minimizing tap breakage and improving overall productivity. Gas counterbalance springs and permanently lubricated swivel bearings provide effortless movement, allowing the operator to position the tap precisely over the workpiece with minimal effort.

Whether you're producing threaded holes in steel, aluminum, or other machinable materials, the Palmgren Quick-Tap Pneumatic Tapping Machine delivers reliable performance for production environments where speed, precision, and repeatability are essential.

Ideal Applications

The Palmgren Quick-Tap Pneumatic Tapping Machine is designed for:

• Machine Shops
• Metal Fabrication
• Manufacturing Facilities
• Production Lines
• Tool & Die Shops
• Maintenance Departments
• Automotive Manufacturing
• Aerospace Manufacturing
• Industrial Assembly
• Custom Fabrication
• Prototype Manufacturing
• Job Shops
• Repair Facilities
• Production Threading
• Repetitive Tapping Operations

Available Package Options

The Palmgren Quick-Tap Pneumatic Tapping Machine is available as a complete bench-mounted tapping system with all essential components required for installation and operation.

Why Choose a Pneumatic Tapping Machine?

Compared to manual tapping, a pneumatic tapping machine significantly improves productivity by maintaining consistent tapping speed, reducing operator effort, and minimizing broken taps caused by uneven feed pressure.

Benefits Include:

• Faster production
• Improved thread consistency
• Reduced operator fatigue
• Lower risk of tap breakage
• Greater positioning accuracy
• Increased production efficiency
• Easier repetitive tapping

Key Features

37-Inch Articulating Arm

The heavy-duty parallel arm provides a working reach from 4 inches to 37 inches, allowing operators to access a wide range of workpiece sizes while maintaining precise tap alignment.

Gas counterbalance springs create a virtually weightless feel, making positioning fast, smooth, and effortless.

High-Torque Pneumatic Motor

Powered by a reversible pneumatic motor operating at 400 RPM, the machine delivers excellent torque for demanding tapping applications while maintaining smooth and controlled operation.

Operating at 90 PSI, the motor produces:

• 27 ft-lb of torque
• Forward and reverse operation
• Consistent threading performance
• Long service life

Quick-Change Tooling System

The included quick-change tooling adapter allows operators to rapidly change tap sizes with minimal downtime, making the machine ideal for production environments where multiple thread sizes are used throughout the day.

Benefits include:

• Faster setup
• Reduced machine downtime
• Increased productivity
• Simplified tool changes

Weightless Operation

Integrated gas counterbalance springs support the tapping head, allowing the operator to move the arm effortlessly throughout its working range.

This greatly reduces fatigue during repetitive production work while improving positioning accuracy.

Permanently Lubricated Bearings

Every swivel point incorporates lubricated-for-life bearings, providing exceptionally smooth articulation while minimizing maintenance requirements and ensuring long-term reliability.

Air Preparation System Included

The supplied air preparation unit helps maximize motor performance and longevity by providing:

• Air filter
• Pressure regulator
• Lubricator
• Pressure gauge

This ensures clean, properly lubricated compressed air reaches the pneumatic motor for reliable day-to-day operation.

Heavy-Duty Bench Mount

The included stationary bench bracket provides a rigid mounting platform for stable tapping performance while maximizing usable workspace.

Technical Specifications

What's Included

• Palmgren Quick-Tap Pneumatic Tapping Machine
• Parallel Articulating Arm (4"–37" Reach)
• High-Torque Reversible Air Motor
• Vertical Motor Bracket
• Stationary Bench Mounting Bracket
• Quick-Change Tooling Adapter (Size 1)
• Air Preparation Unit
  • Filter
  • Lubricator
  • Regulator
  • Pressure Gauge
• Manufacturer Documentation

Why Choose the Palmgren Quick-Tap Pneumatic Tapping Machine?

The Palmgren Quick-Tap Pneumatic Tapping Machine is designed to increase productivity while reducing the physical demands of repetitive tapping operations. Its articulated arm, high-torque pneumatic motor, and quick-change tooling system allow operators to produce accurate, repeatable threads with greater speed and consistency than manual tapping methods.

The combination of weightless arm movement, permanently lubricated bearings, and a complete air preparation system makes this machine an excellent solution for production shops looking to improve efficiency, reduce tap failures, and achieve professional-quality threading results across a variety of materials.

Common Applications

• Production Tapping
• Thread Cutting
• Manufacturing
• Machine Shops
• Metalworking
• Tool & Die
• Fabrication
• Industrial Assembly
• Maintenance Shops
• Repair Facilities
• Prototype Manufacturing
• Custom Machining
• Aluminum Fabrication
• Steel Fabrication
• General Industrial Production

Why Buy From Titan Tools Direct?

When you purchase the Palmgren Quick-Tap Pneumatic Tapping Machine from Titan Tools Direct, you're buying from a trusted supplier of professional metalworking and industrial equipment backed by knowledgeable product specialists.

• Authorized Palmgren Dealer
• Competitive Pricing
• Fast Nationwide Shipping
• Expert Sales & Technical Support
• Trusted by Manufacturers, Fabricators & Machine Shops
• Customer Support Before & After the Sale

Questions?

Need help selecting the right tapping machine or determining the proper tap capacity for your application?

📞 Call or Text Sales & Technical Support: 832-727-9353

📧 Email: Sales@TitanToolsDirect.com

Our knowledgeable team is happy to assist with product selection, tooling compatibility, compressed air requirements, accessories, and technical support before and after your purchase.

Frequently Asked Questions (FAQ)

Q1: What is the Palmgren Quick-Tap Pneumatic Tapping Machine used for?

It is designed to produce accurate internal threads in metal workpieces quickly and efficiently using a pneumatic tapping system.

Q2: What materials can this machine tap?

The machine is suitable for a wide variety of machinable materials, including mold steel, aluminum, mild steel, stainless steel (within tap capacity), brass, and other non-ferrous metals.

Q3: What is the maximum tapping capacity?

The maximum recommended capacities are 1/2 inch in mold steel and 9/16 inch in aluminum.

Q4: Does the machine reverse automatically?

The machine features a high-torque reversible pneumatic motor, allowing forward and reverse operation for efficient tapping cycles.

Q5: What air pressure is required?

The motor is rated to deliver full performance at 90 PSI.

Q6: What is included with the machine?

The package includes the articulated arm, pneumatic motor, bench mounting bracket, quick-change tooling adapter, vertical motor bracket, complete air preparation unit, and manufacturer documentation.

Q7: Does the machine require frequent maintenance?

Very little. The articulating arm uses lubricated-for-life bearings, and the included air preparation unit helps ensure clean, properly lubricated air for long motor life.

Q8: Who is this tapping machine designed for?

The Palmgren Quick-Tap Pneumatic Tapping Machine is ideal for machine shops, production facilities, metal fabricators, industrial manufacturers, maintenance departments, and any operation requiring fast, accurate, and repeatable tapping with reduced operator fatigue.
