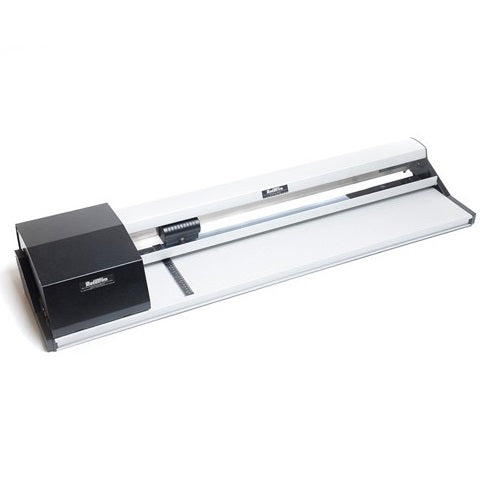

Rotatrim RCPT1250 - PowerTech Series 1250 - 49" Rotary Trimmer 60410

Model Number: 60410

The PT1250 is a popular size in the PowerTech ‘PT’ Series range and will power through materials of up to 49? (1250mm) in length, large enough to accommodate A0 landscape. It is a heavy duty precision trimmer which will cut most flexible materials up to 3.0mm in thickness.

• Powered trimmer with foot pedal operation
• Two speed variants available: normal (0.5M/sec) or high (1.0M/sec)
• Self-lifting clamp mechanism enables a single user to evenly cut large materials
• Overload protection feature
• Ultra hard Sheffield D2 ‘Tool Steel’€ self-sharpening, precision engineered blades
• Large single square stainless steel guide rail completely eliminates head swivel
• Aluminium baseboard, end frames, head and side rule

All PowerTech trimmers come complete with foot-pedal, mains power cable and a spare cutting wheel.

Machine Speed Variants
The PowerTech is available in both normal speed and high speed variants. The normal speed variant cuts at 0.5M/sec and has more torque so is better for trimming heavier materials. The high speed version cuts at 1.0M/sec and is better where lighter materials (generally up to 1.0mm) in thickness are being cut. On the high speed machine, it is also possible to remove the RCC plate (as it is used for thinner materials), to allow for a cut to be performed in both directions.

The PowerTech is a powered version of the Technical, operated by a foot pedal. Heavy-volume, large-format shops will see a quick return on investment through reduced manpower and increased productivity.

• The PowerTech frees both hands and decreases operator fatigue.
• The trimmer is electrically driven through a steel-reinforced belt for longevity.
• All-metal construction (and extruded aluminum baseboard, end frames and head) ensure robustness.
• An auto-lifting clamping mechanism locks materials into place as the head begins to cut, then automatically releases at the completion of the cut; prevents material and substrate scratching.
• A triple roller mechanism provides extreme down force for the cutting of heavy materials (maximum cut depth of 3mm).

Perfect for cutting up to 3mm:

• Aluminum (.5mm)
• Banners
• Canvas
• Card
• Cellophane
• Cibachrome
• Cork
• Digital prints
• Encapsulations
• Engraving lam (1mm)
• Flexographic plates (.067?)
• Floor graphics
• Foamex (1mm)
• Foil
• Inkjet paper
• Laminations
• Leather
• Lithoplate
• Magnetic Vinyl
• Masonite (2mm)
• MDF (2mm)
• Mount board
• Photo Paper
• Photo Film
• Polyester
• Polystyrene
• Posters
• Self-adhesive film
• Tissue paper
• Veneers

Specifications:

• All-metal construction (and extruded aluminum baseboard, end frames and head).
• Triple roller mechanism provides extreme down force for the cutting of heavy materials.
• Maximum cut depth of up to 3mm.
• Trimmer Voltage: 120V
• Self-Sharpening, Long-lasting, Rotary Blades
• Blades ground to extremely tight tolerances twice and then deflashed to remove any edge burring.
• Foot Pedal Operated: The trimmer is electrically driven through a steel-reinforced belt for longevity
• The cutting head will move alternately from left to right and right to left each time the footswitch is depressed.
• Cut Length: 85"
• Overall Size: 78 1/2?W x 13 1/2?D x 7?H
• ISO9001:2008 quality certified
• 1 year general manufacturers' warranty under normal use (excluding cutting wheels, motors and clamping strips)
• Made in England
