David White Horizontal / Vertical Green Beam Rotary Laser Kit w/ Tripod and Grade Rod

Available Options:

• Tripod and 8ths Grade Rod: 47-LM130HVGK-4C
• Tripod and 10ths Grade Rod: 47-LM130HVGK-4T

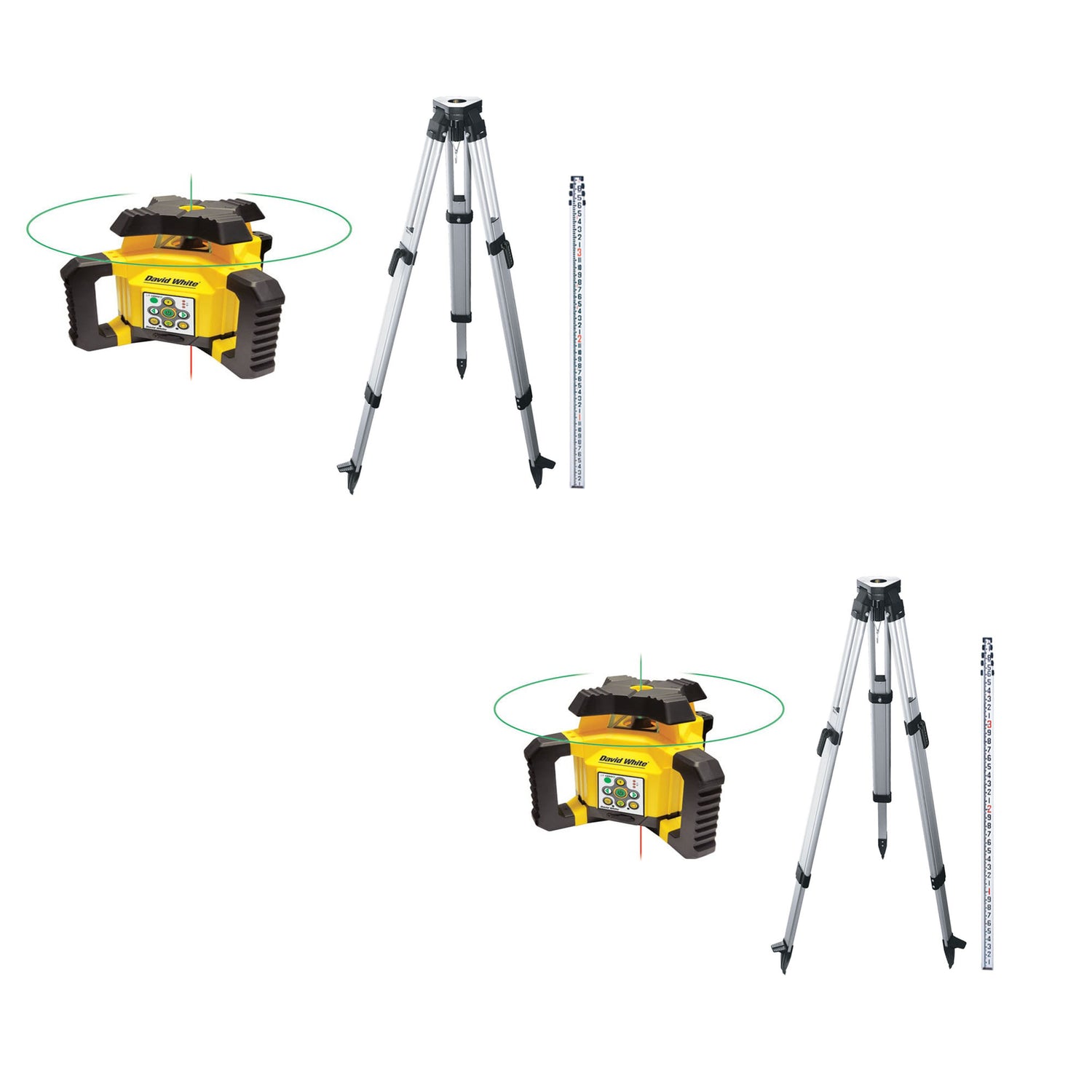

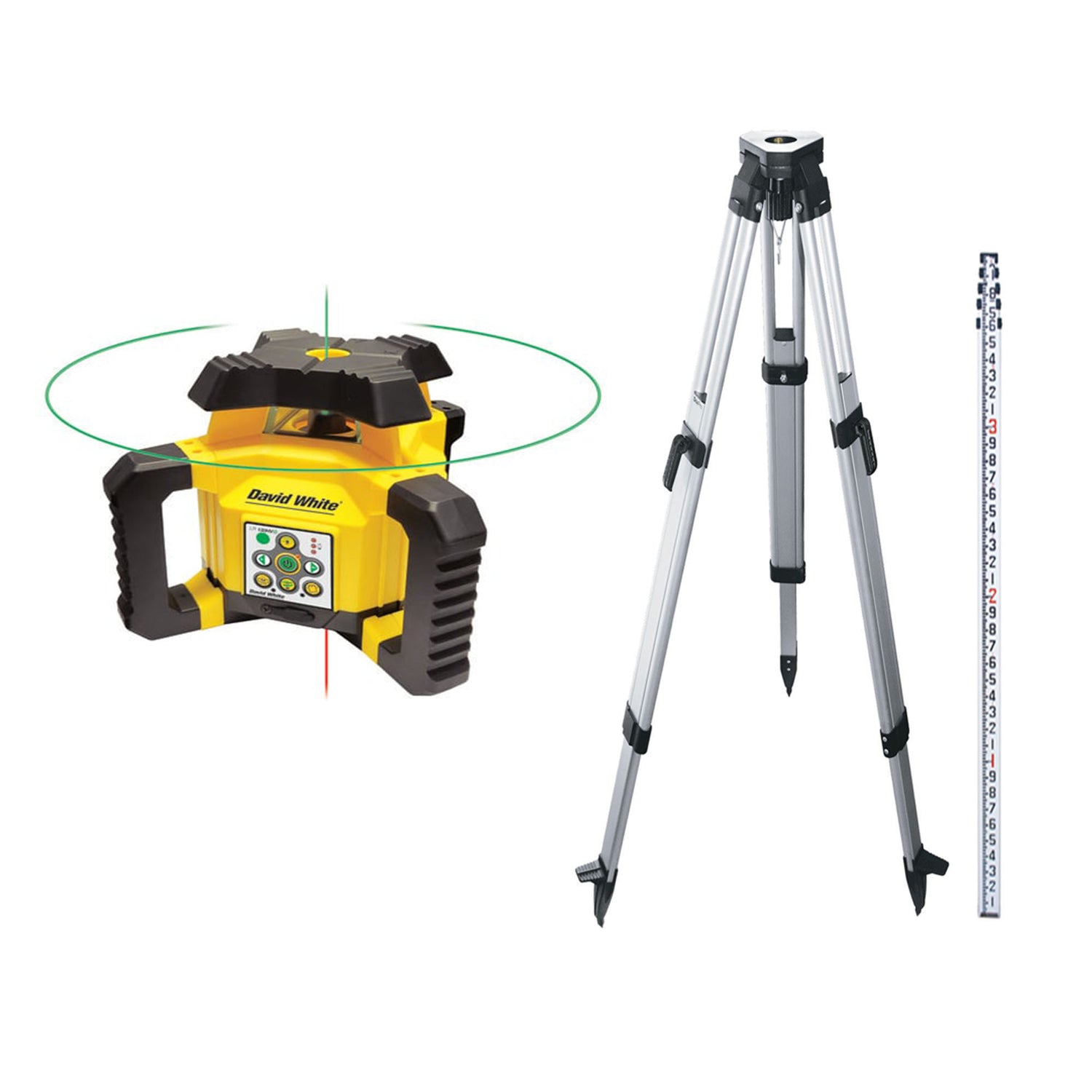

The David White LM130HVG Rotary Laser Kits feature a bright green beam for enhanced visibility, dual-axis slope capability, and horizontal/vertical self-leveling. Each kit includes a tripod, detector, and grade rod—choose between 8ths or 10ths rod formats depending on your measurement system.

Disclaimer: The tripod and grade rod shown in product images may vary slightly in appearance from what is included in the kit. Any variations are cosmetic only and do not affect functionality or performance.

Features:

• 4× brighter than red for improved outdoor performance.
• Electronic self-leveling in both axes.
• ±5° slope capability with remote control.
• Aligns laser to reference point or grade.
• ±1/8 in at 100 ft (3 mm at 30 m).
• Up to 2000 ft (600 m) with detector.
• Alerts user if laser is disturbed or misaligned.
• 0, 300, 600 RPM; scan angles from 0° to 180°.
• IP65-rated for water and dust resistance.
• Up to 25 hours with 7.4V / 2.6Ah Li-Ion battery.

Specifications:

• Beam Type: Green Beam, 635–650 nm, Class 3R
• Accuracy: ±1/8 in at 100 ft
• Working Range: Up to 2000 ft with detector
• Leveling Type: Electronic self-leveling (±5°)
• Slope Capability: Dual-axis ±5° (with remote)
• Rotation Speeds: 0, 300, 600 RPM
• Scan Angles: 0°, 10°, 45°, 90°, 180°
• Battery Life: Up to 25 hours
• Environmental Rating: IP65
• Operating Temp: -4°F to 122°F (-20°C to +50°C)
• Dimensions: 9.6 × 9.6 × 7.0 in
• Weight: 3.4 lb (1.54 kg)
