Spectra Precision HV1305C Horizontal/Vertical Red Beam Rotary Laser

Available Options:

• HV1305C-BCC: With NiMH Batteries & Small Case

• HV1305C-4: With HL760 Receiver, C70, RC1402 Remote, Vertical Adapter, NiMH Batteries, Charger, Ceiling Target, Glasses & Small Case

• HV1305C-BSC: With NiMH Batteries, Flat Head Tripod & System Case

• HV1305C-SC-2: With HL760 Receiver, C70, RC1402 Remote, Vertical Adapter, NiMH Batteries, Charger, GR152 Grade Rod, Flat Head Tripod & System Case

Manufacturer: Spectra Precision

Availability Notice: Most items are in stock and ready to ship. However, certain products may experience temporary delays or extended lead times due to ongoing industry-wide supply chain or manufacturing constraints. If your order is affected by a backorder or extended lead time, our team will contact you with the latest availability information. We appreciate your patience and understanding.

The Spectra Precision HV1305C Horizontal/Vertical Red Beam Rotary Laser is a professional, automatic self-leveling laser designed for construction leveling, vertical alignment, interior layout, and general jobsite measurement applications. Built for demanding field conditions, the HV1305C combines accurate laser performance, flexible rotation settings, wireless control, and rugged construction to help contractors complete layout and leveling tasks efficiently.

Featuring horizontal and vertical self-leveling with an accuracy of ±1.5 mm at 30 meters (1/16 inch at 100 feet), the HV1305C provides reliable reference planes for a wide range of construction applications. When paired with the compatible Spectra Precision HL760 laser receiver, the system supports an operating diameter of up to 1,200 meters (4,000 feet), making it suitable for both indoor and large outdoor projects.

The HV1305C offers six preset rotation speeds, adjustable scanning angles, Bluetooth smartphone connectivity, and remote-control operation. Its Height of Instrument (HI) Alert helps prevent incorrect measurements by stopping laser rotation if the instrument is disturbed after setup.

Designed for durability, the HV1305C features IP66 dust and water protection, an operating temperature range of -4°F to +122°F, and up to 45 hours of operation with its NiMH battery pack. A 5-year warranty provides additional confidence for professionals who depend on their laser equipment every day.

Four package configurations are available, ranging from the basic laser and carrying case to more comprehensive systems with the HL760 receiver, remote control, tripod, grade rod, and accessories.

Ideal Applications

The Spectra Precision HV1305C is designed for:

• Construction Leveling

• Horizontal Layout

• Vertical Alignment

• Interior Construction

• Exterior Construction

• Commercial Construction

• Building Layout

• Concrete Formwork

• Foundation Leveling

• Ceiling Installation

• Wall Layout

• Partition Installation

• Elevation Transfer

• Site Preparation

• General Construction Measurements

Available Package Options

Choose the HV1305C package that best matches your existing equipment and project requirements.

Compare Package Options

Which Package Should I Choose?

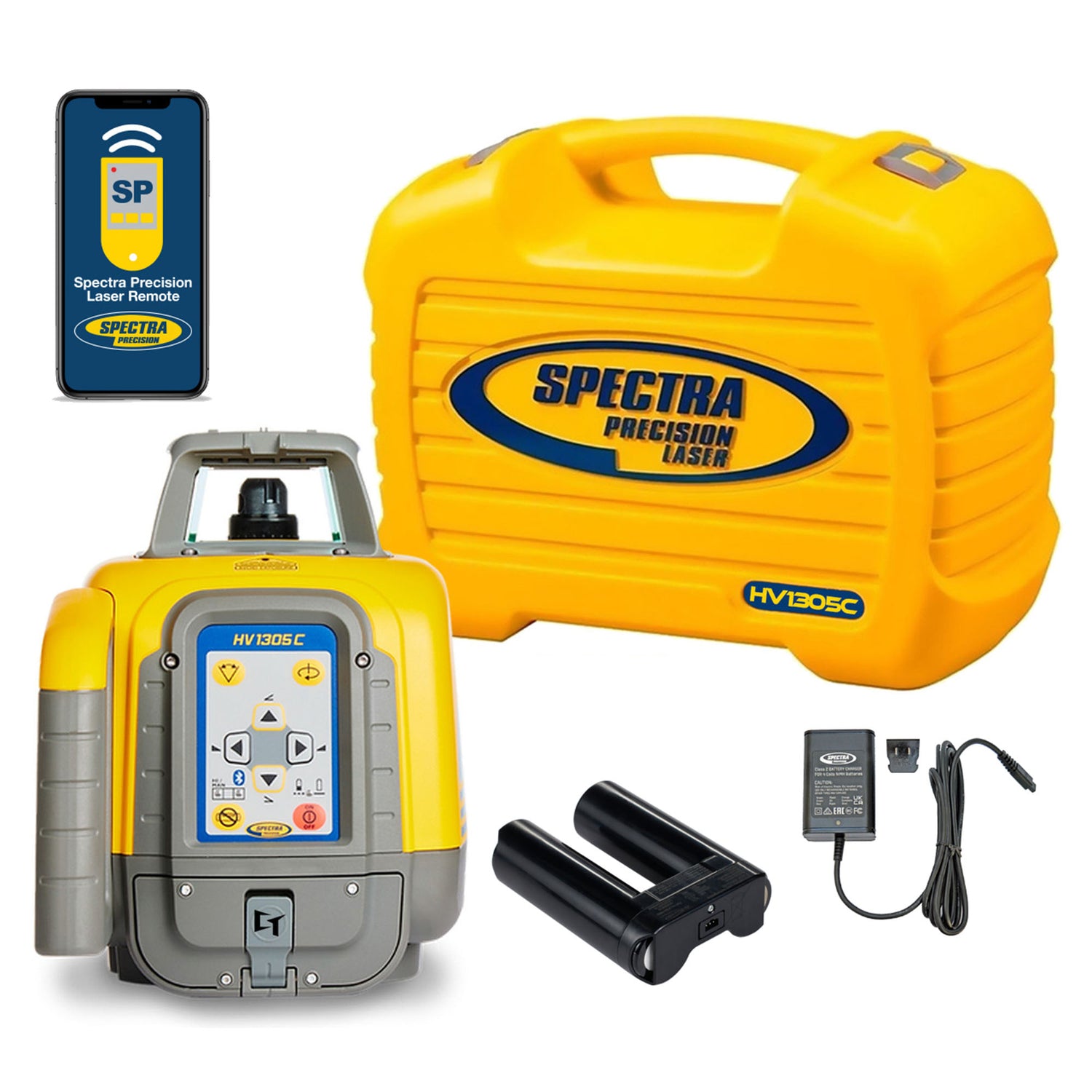

HV1305C-BCC – Basic Laser with NiMH Batteries & Small Case

Choose the HV1305C-BCC if you already own compatible laser receivers, tripods, and other accessories.

This package provides the HV1305C laser with its NiMH battery configuration and a compact carrying case.

Recommended For:

• Contractors Replacing an Existing Laser

• Professionals with Compatible Accessories

• Construction Leveling

• Horizontal & Vertical Layout

• Equipment Fleet Additions

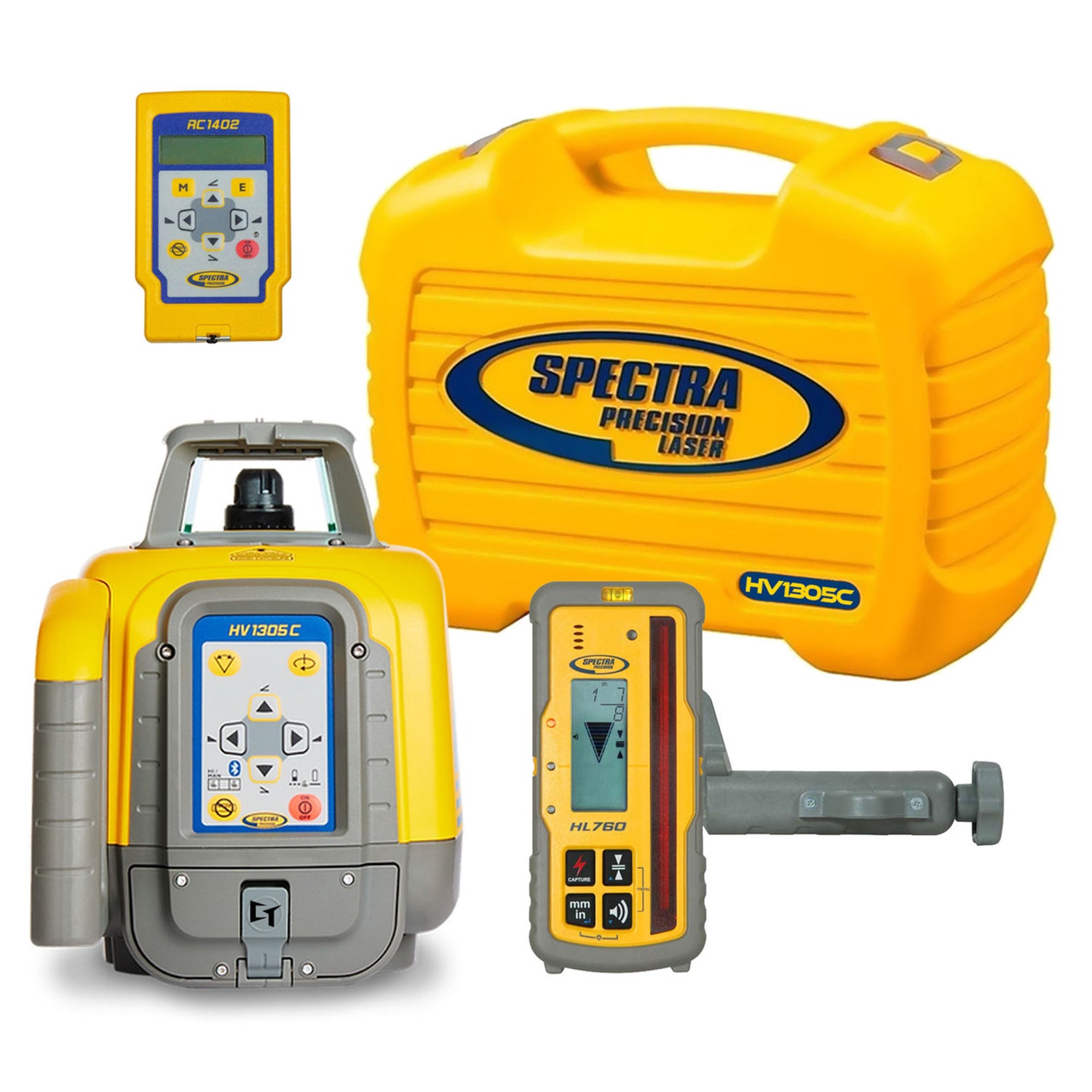

HV1305C-4 – Laser with HL760 Receiver & Remote

Choose the HV1305C-4 if you need a more versatile construction laser package with a receiver, remote control, vertical adapter, and interior layout accessories.

The included HL760 receiver supports outdoor leveling applications, while the ceiling target and glasses provide additional accessories for interior alignment work.

Recommended For:

• General Contractors

• Interior Construction

• Commercial Construction

• Ceiling Installation

• Vertical Alignment

• Outdoor Leveling

• Building Layout

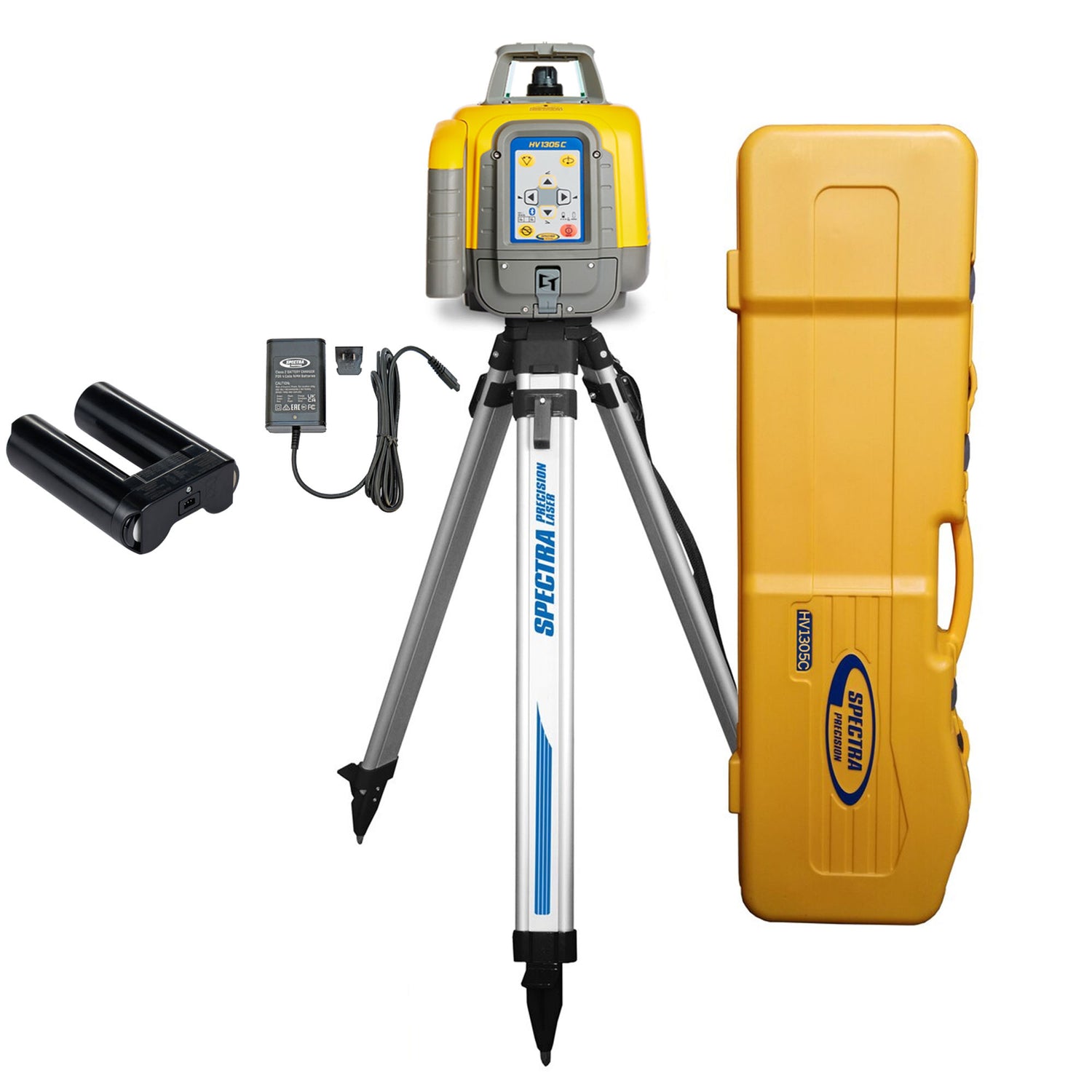

HV1305C-BSC – Laser with Flat Head Tripod & System Case

Choose the HV1305C-BSC if you need the HV1305C laser with a compatible tripod and larger system carrying case.

This configuration is useful for contractors who already have a compatible receiver and other accessories but need a dedicated tripod setup.

Recommended For:

• Construction Contractors

• Building Layout

• General Leveling

• Equipment Replacement

• Contractors with Existing Receivers

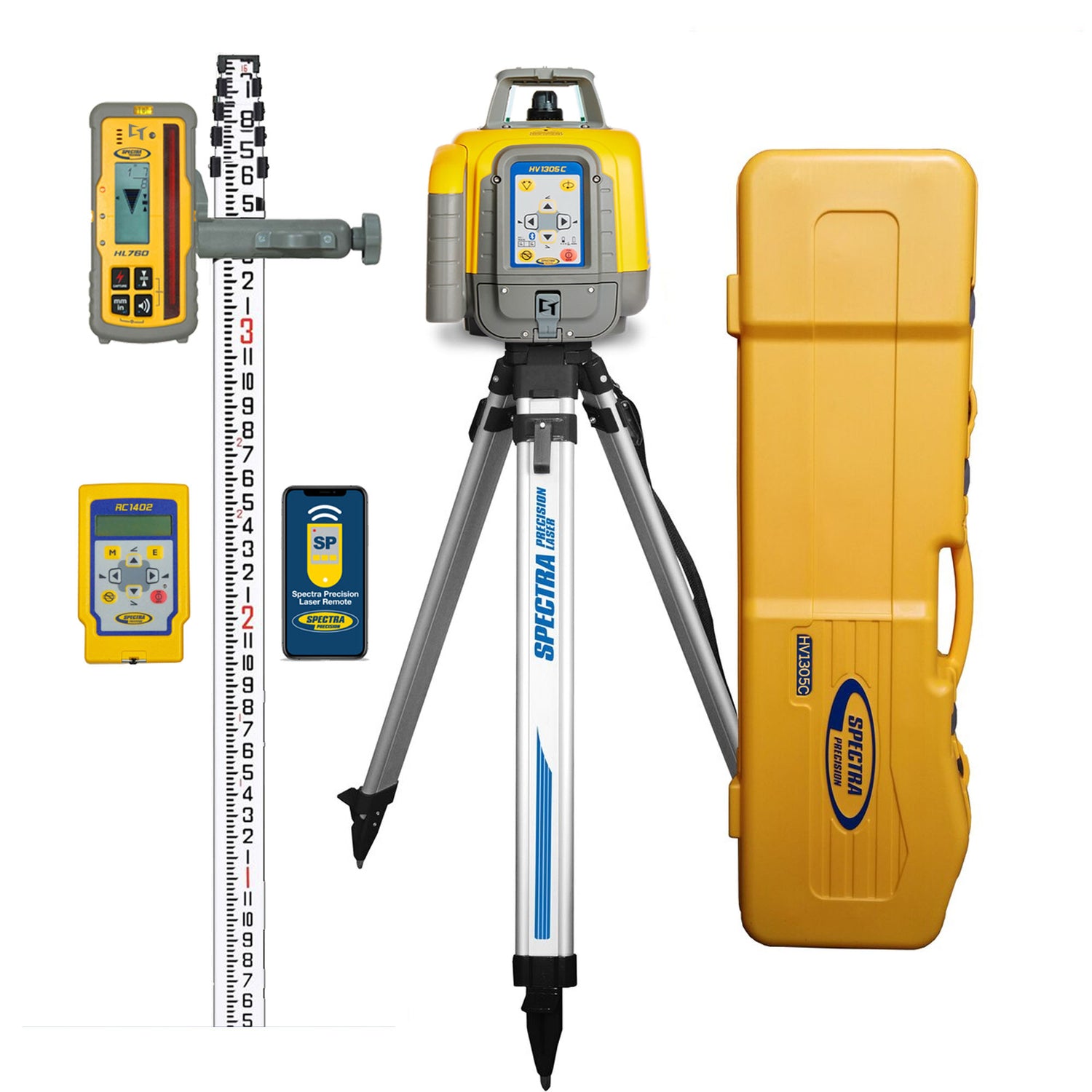

HV1305C-SC-2 – Complete Construction Leveling Package

Choose the HV1305C-SC-2 if you want the most comprehensive package among the listed configurations.

This package includes the HL760 receiver, RC1402 remote, vertical adapter, GR152 grade rod, flat head tripod, rechargeable battery equipment, and system case.

Recommended For:

• General Contractors

• Construction Layout Crews

• Commercial Construction

• Site Leveling

• Foundation Work

• Elevation Measurements

• Contractors Purchasing a New Laser System

Key Features

Automatic Horizontal & Vertical Self-Leveling

The Spectra Precision HV1305C automatically self-levels in both horizontal and vertical orientations.

This dual-function design allows the same laser to support horizontal leveling, vertical alignment, and a variety of construction layout applications.

High-Precision Leveling Accuracy

The HV1305C provides ±1.5 mm accuracy at 30 meters (1/16 inch at 100 feet), equivalent to approximately 10 arc seconds.

This precision supports accurate reference planes for construction leveling, layout, and alignment.

Up to 4,000 ft Working Diameter

When paired with the Spectra Precision HL760 receiver, the HV1305C supports a typical operating diameter of up to 1,200 meters (4,000 feet).

This makes the laser suitable for large construction sites and outdoor leveling applications.

High-Visibility Red Laser Beam

The HV1305C uses a red laser beam designed for construction alignment and layout applications.

For longer-distance measurements and bright outdoor conditions, a compatible laser receiver provides more reliable detection than visual beam observation alone.

Six Preset Rotation Speeds

The HV1305C provides six preset rotation speeds:

• 0 RPM

• 10 RPM

• 100 RPM

• 200 RPM

• 300 RPM

• 600 RPM

Rotation speeds above 100 RPM can also be adjusted in 10 RPM increments.

Adjustable Scan Angles

The laser supports preset scanning angles of:

• 5°

• 15°

• 45°

• 90°

Scanning angles can also be adjusted in 5° increments, providing flexibility for different alignment and layout applications.

Height of Instrument Alert

The Height of Instrument (HI) Alert helps protect measurement accuracy by stopping laser rotation if the instrument is jarred or disturbed after setup.

This alerts the operator to a potential change in the established reference elevation and helps prevent incorrect measurements.

Bluetooth Smartphone Connectivity

Integrated Bluetooth connectivity allows compatible smartphones to communicate with the laser through the supported remote-control application.

This provides convenient access to laser functions without requiring the operator to stand directly beside the instrument.

Remote-Control Operation

The HV1305C supports remote operation of laser functions, allowing users to make adjustments from other positions around the jobsite.

Select packages include the RC1402 remote control.

PlaneMatch Capability

The HV1305C provides PlaneMatch functionality with a typical operating distance of approximately 80 meters (260 feet).

This capability supports matching the laser reference plane to an existing reference or alignment requirement when used with the appropriate compatible equipment.

PlaneLok Capability

The HV1305C also supports PlaneLok functionality with a typical operating distance of approximately 80 meters (260 feet).

PlaneLok is designed to help maintain a laser reference plane relative to a compatible receiver.

Automatic Plumb-Down Reference

The HV1305C provides an automatic plumb-down reference with specified accuracy of 15 arc minutes, or approximately 5 mm at 1 meter.

The specified plumb-down roll limitation is ±8°.

IP66 Dust & Water Protection

The HV1305C features an IP66 environmental protection rating, providing protection against dust and powerful water jets.

Its rugged construction is designed for challenging construction environments.

Up to 45 Hours of Battery Operation

The HV1305C supports up to 45 hours of operation using its NiMH battery pack, helping reduce interruptions during extended workdays.

The laser also supports an alternative power configuration using four 1.5V D-cell alkaline batteries.

Horizontal & Vertical Tripod Mounting

The laser features 5/8 × 11 tripod attachments for both horizontal and vertical mounting orientations.

This allows the instrument to be positioned for different leveling and alignment applications.

Five-Year Warranty

The Spectra Precision HV1305C is backed by a 5-year warranty, providing long-term manufacturer support for professional construction use.

Technical Specifications

Laser & Rotation Specifications

Battery & Power Specifications

Environmental & Physical Specifications

What's Included

HV1305C-BCC

• (1) Spectra Precision HV1305C Red Beam Rotary Laser

• NiMH Batteries

• Small Carrying Case

HV1305C-4

• (1) Spectra Precision HV1305C Red Beam Rotary Laser

• (1) HL760 Laser Receiver

• (1) C70 Accessory

• (1) RC1402 Remote Control

• (1) Vertical Adapter

• NiMH Batteries

• (1) Battery Charger

• (1) Ceiling Target

• Laser Glasses

• Small Carrying Case

HV1305C-BSC

• (1) Spectra Precision HV1305C Red Beam Rotary Laser

• NiMH Batteries

• (1) Flat Head Tripod

• System Carrying Case

HV1305C-SC-2

• (1) Spectra Precision HV1305C Red Beam Rotary Laser

• (1) HL760 Laser Receiver

• (1) C70 Accessory

• (1) RC1402 Remote Control

• (1) Vertical Adapter

• NiMH Batteries

• (1) Battery Charger

• (1) GR152 Grade Rod

• (1) Flat Head Tripod

• System Carrying Case

Why Choose the Spectra Precision HV1305C?

The Spectra Precision HV1305C combines horizontal and vertical laser functionality in a single professional instrument, making it a versatile choice for contractors performing leveling, alignment, and construction layout.

Its ±1/16-inch accuracy at 100 feet, automatic self-leveling, adjustable rotation speeds, scanning functionality, and long operating range with the HL760 receiver provide the flexibility needed for both indoor and outdoor construction work.

With Bluetooth connectivity, remote-control capability, HI Alert protection, IP66 durability, and up to 45 hours of rechargeable battery operation, the HV1305C is designed to support efficient work across demanding jobsites.

Four available configurations allow buyers to select a package based on their existing equipment, accessory requirements, and preferred carrying system.

Common Applications

• Horizontal Leveling

• Vertical Alignment

• Construction Layout

• Building Layout

• Interior Wall Layout

• Ceiling Installation

• Concrete Formwork

• Foundation Leveling

• Elevation Transfer

• Commercial Construction

• Residential Construction

• Site Preparation

• General Construction Leveling

• Outdoor Laser Measurements

• Alignment & Positioning

Why Buy From Titan Tools Direct?

When you purchase the Spectra Precision HV1305C Horizontal/Vertical Red Beam Rotary Laser from Titan Tools Direct, you're buying from a trusted supplier of professional construction lasers, leveling equipment, and surveying instruments backed by knowledgeable product specialists.

• Authorized Spectra Precision Dealer

• Competitive Pricing

• Nationwide Shipping

• Expert Sales & Technical Support

• Professional Construction Laser Equipment

• Trusted by Contractors, Surveyors & Construction Professionals

• Customer Support Before & After the Sale

Questions?

Need help selecting the correct HV1305C package, confirming receiver compatibility, or choosing the right tripod, grade rod, and accessories?

Call or Text Sales & Technical Support: 832-727-9353

Email: Sales@TitanToolsDirect.com

Our knowledgeable team is happy to assist with product selection, compatibility questions, accessories, availability, and technical support before and after your purchase.

Frequently Asked Questions (FAQ)

Q1: What is the Spectra Precision HV1305C used for?

The HV1305C is a horizontal and vertical self-leveling rotary laser designed for construction leveling, building layout, vertical alignment, elevation transfer, and general construction measurements.

Q2: Is the HV1305C a red or green beam laser?

The HV1305C is a red beam rotary laser with a specified laser wavelength of 630–643 nm.

Q3: What is the accuracy of the HV1305C?

The HV1305C provides ±1.5 mm accuracy at 30 meters, equivalent to approximately ±1/16 inch at 100 feet.

Q4: What is the maximum working range?

When used with the compatible Spectra Precision HL760 receiver, the HV1305C supports a typical operating diameter of up to 1,200 meters (4,000 feet).

Q5: Does the HV1305C automatically level in both horizontal and vertical positions?

Yes. The HV1305C features automatic horizontal and vertical self-leveling with a typical leveling range of ±5°.

Q6: What rotation speeds are available?

The HV1305C provides preset rotation speeds of 0, 10, 100, 200, 300, and 600 RPM, with additional adjustments in 10 RPM increments above 100 RPM.

Q7: Can I control the HV1305C using a smartphone?

Yes. The HV1305C supports Bluetooth connectivity for control through a compatible smartphone application.

Q8: Does the HV1305C include a remote control?

The RC1402 remote control is included with the HV1305C-4 and HV1305C-SC-2 packages.

It is not listed as included with the HV1305C-BCC or HV1305C-BSC configurations.

Q9: How long does the battery last?

The HV1305C provides up to 45 hours of operation with its NiMH battery pack, depending on operating conditions and settings.

Q10: Can the HV1305C use alkaline batteries?

Yes. The laser supports an alternative power configuration using four 1.5V D-cell alkaline batteries.

Q11: Is the HV1305C waterproof?

The HV1305C carries an IP66 rating, providing protection against dust and powerful water jets. It is not rated for continuous submersion.

Q12: What is Height of Instrument Alert?

The Height of Instrument Alert stops laser rotation if the instrument is disturbed after setup, helping prevent incorrect measurements caused by an unintended change in the reference elevation.

Q13: What is the difference between the HV1305C-BCC and HV1305C-BSC?

The HV1305C-BCC includes the laser, NiMH batteries, and small case.

The HV1305C-BSC includes the laser, NiMH batteries, flat head tripod, and system case.

Q14: What is the difference between the HV1305C-4 and HV1305C-SC-2?

Both packages include the HV1305C laser, HL760 receiver, C70, RC1402 remote, vertical adapter, NiMH batteries, and charger.

The HV1305C-4 includes a ceiling target, glasses, and small case, while the HV1305C-SC-2 includes a GR152 grade rod, flat head tripod, and system case.

Q15: What is the warranty on the Spectra Precision HV1305C?

The HV1305C is backed by a 5-year warranty.
