Spectra Precision HV1305GC Horizontal/Vertical Green Beam Rotary Laser

Available Options:

• HV1305GC-BCC: With NiMH Batteries & Small Case

• HV1305GC-7: With HL760U Receiver, C70, RC1402 Remote, Vertical Adapter, NiMH Batteries, Charger, Target, Glasses, Wall Mount & Small Case

• HV1305GC-BSC: With NiMH Batteries, Flat Head Tripod & System Case

Manufacturer: Spectra Precision

Availability Notice: Most items are in stock and ready to ship. However, certain products may experience temporary delays or extended lead times due to ongoing industry-wide supply chain or manufacturing constraints. If your order is affected by a backorder or extended lead time, our team will contact you with the latest availability information. We appreciate your patience and understanding.

The Spectra Precision HV1305GC Horizontal/Vertical Green Beam Rotary Laser is a professional, automatic self-leveling construction laser designed for precise horizontal leveling, vertical alignment, interior layout, and exterior construction applications. Featuring a high-visibility green laser beam, the HV1305GC is particularly well suited for commercial construction, ceiling installation, wall alignment, concrete formwork, and other applications where clear laser visibility and accurate positioning are essential.

With ±1.5 mm accuracy at 30 meters (1/16 inch at 100 feet), the HV1305GC delivers reliable horizontal and vertical reference planes for demanding construction tasks. When paired with a compatible Spectra Precision HL760U laser receiver, the system supports a typical working diameter of up to 1,200 meters (4,000 feet) under suitable conditions.

The HV1305GC provides six preset rotation speeds, adjustable scanning angles, automatic plumb-down capability, and precise electronic beam positioning. Built-in Bluetooth connectivity allows operators to control laser functions using the Spectra Precision Laser Remote App on a compatible smartphone, while the optional RC1402 remote provides another convenient control method.

Engineered for rugged jobsite conditions, the HV1305GC features IP66 dust and water protection, a durable enclosed laser housing, and a design capable of withstanding drops of up to 3 feet onto concrete and tripod tip-overs up to 5 feet under the manufacturer's specified conditions. The rechargeable NiMH battery system provides up to 30 hours of operation, and the laser is backed by a 5-year warranty.

Three configurations are available, ranging from the basic laser and carrying case to a package with the HL760U receiver, remote control, wall mount, and additional construction layout accessories.

Ideal Applications

The Spectra Precision HV1305GC is designed for:

• Horizontal Construction Leveling

• Vertical Alignment

• Commercial Construction

• Industrial Construction

• Interior Layout

• Exterior Construction

• Ceiling Installation

• Drywall Installation

• Wall & Partition Layout

• Concrete Formwork

• Foundation Leveling

• Footing Alignment

• Tilt-Wall Construction

• Anchor Bolt Alignment

• Building Layout

• Elevation Transfer

• Interior Finishing

• General Construction Measurements

Available Package Options

Choose the HV1305GC package that best matches your existing equipment, preferred mounting setup, and construction requirements.

Compare Package Options

Which Package Should I Choose?

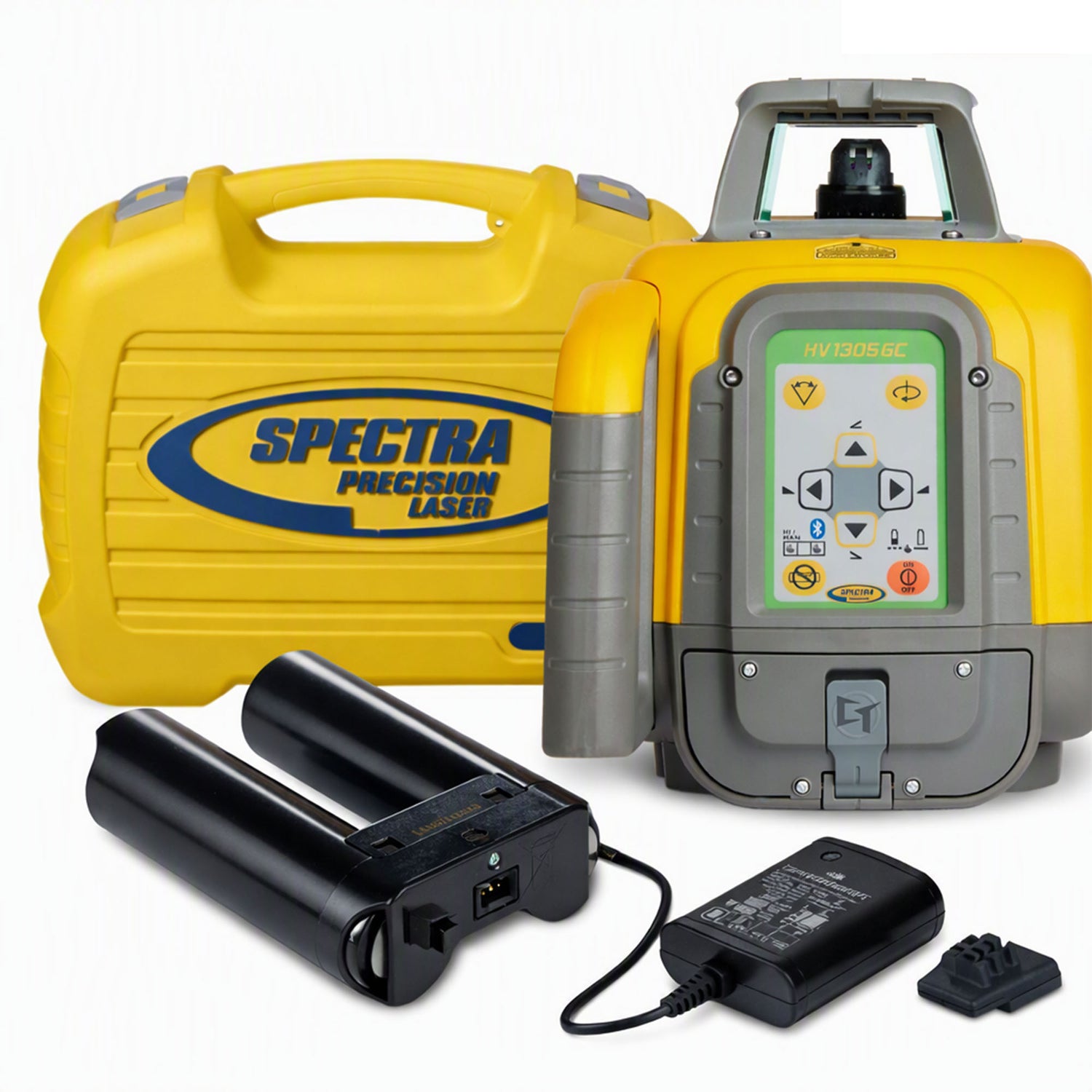

HV1305GC-BCC – Basic Green Beam Laser with NiMH Batteries & Small Case

Choose the HV1305GC-BCC if you already own compatible laser receivers, tripods, and mounting accessories.

This configuration provides the HV1305GC laser with NiMH batteries and a compact carrying case, making it a practical option for replacing an existing laser or expanding an equipment fleet.

Recommended For:

• Contractors Replacing an Existing Laser

• Professionals with Compatible Accessories

• Interior Construction

• Horizontal & Vertical Layout

• Equipment Fleet Additions

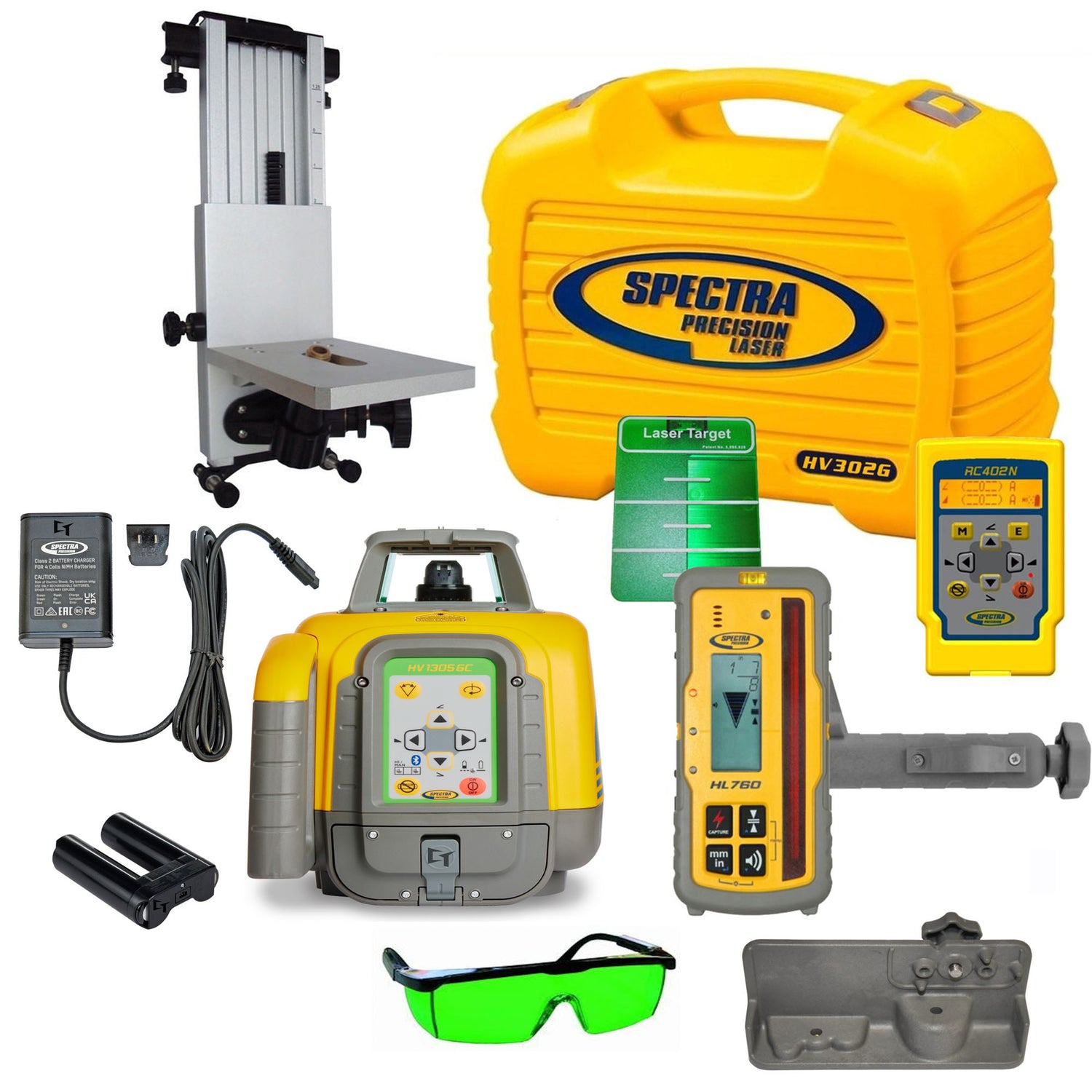

HV1305GC-7 – Green Beam Laser with HL760U Receiver & Remote

Choose the HV1305GC-7 if you need a versatile construction laser package with accessories for both interior and exterior applications.

The included HL760U digital laser receiver supports long-distance leveling, while the RC1402 remote, vertical adapter, target, glasses, and wall mount provide additional flexibility for alignment and interior layout.

Recommended For:

• Commercial Contractors

• Interior Construction

• Ceiling Installation

• Drywall Installation

• Vertical Alignment

• Wall Layout

• Exterior Leveling

• Building Construction

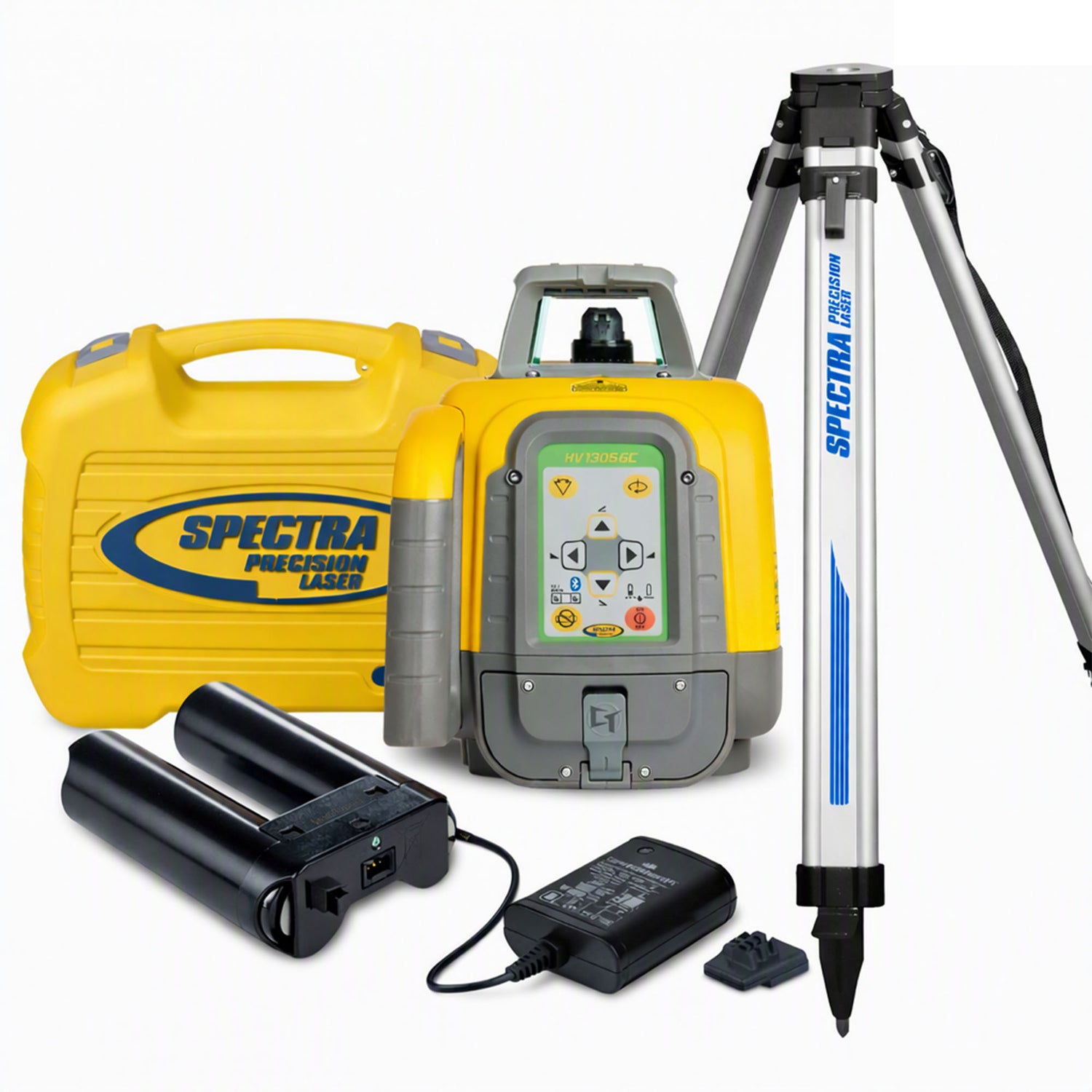

HV1305GC-BSC – Green Beam Laser with Tripod & System Case

Choose the HV1305GC-BSC if you need the HV1305GC laser with a flat head tripod and system carrying case.

This configuration is useful for contractors who already own compatible laser receivers and other accessories but need a dedicated tripod setup.

Recommended For:

• General Contractors

• Construction Leveling

• Building Layout

• Interior & Exterior Construction

• Contractors with Existing Receivers

• Equipment Replacement

Key Features

High-Visibility Green Laser Beam

The HV1305GC uses a green laser beam with a wavelength of 510–530 nm, providing enhanced visual visibility for interior construction and alignment applications.

The green beam is particularly useful when working on ceiling installations, drywall layouts, wall alignment, and other tasks where operators need to visually identify the laser reference.

For long-distance outdoor work, a compatible laser receiver provides reliable detection when the beam becomes difficult to see.

Automatic Horizontal & Vertical Self-Leveling

The HV1305GC automatically self-levels in both horizontal and vertical orientations.

This allows contractors to use one instrument for horizontal leveling, vertical alignment, wall layout, and a variety of interior and exterior construction applications.

High-Precision Leveling Accuracy

The HV1305GC provides ±1.5 mm accuracy at 30 meters (1/16 inch at 100 feet), equivalent to approximately 10 arc seconds.

This precision supports accurate reference planes for commercial construction, building layout, form alignment, and general leveling.

Up to 4,000 ft Working Diameter

When used with a compatible Spectra Precision HL760U receiver, the HV1305GC supports a typical operating diameter of up to 1,200 meters (4,000 feet) under suitable conditions.

This extended operating range makes the laser suitable for both indoor projects and large outdoor construction sites.

Six Preset Rotation Speeds

The HV1305GC provides six preset rotation speeds:

• 0 RPM

• 10 RPM

• 100 RPM

• 200 RPM

• 300 RPM

• 600 RPM

Rotation speeds above 100 RPM can also be adjusted in 10 RPM increments, providing additional flexibility for different layout and alignment requirements.

Adjustable Scan Angles

The laser supports preset scanning angles of:

• 5°

• 15°

• 45°

• 90°

Scanning angles can also be adjusted in 5° increments, allowing operators to concentrate the laser beam in the desired working area.

Height of Instrument Alert

The Height of Instrument (HI) Alert helps protect measurement accuracy by stopping laser rotation if the instrument is disturbed after setup.

This helps prevent incorrect readings caused by an unintended change in the established reference elevation.

Bluetooth Smartphone Control

Built-in Bluetooth connectivity allows the HV1305GC to be controlled through the Spectra Precision Laser Remote App on a compatible smartphone.

Operators can adjust laser functions remotely without repeatedly returning to the instrument.

RC1402 Remote Control Compatibility

The HV1305GC supports the Spectra Precision RC1402 remote control, which provides a radio operating range of up to 100 meters (330 feet) under suitable conditions.

The RC1402 remote is included with the HV1305GC-7 package.

Automatic Plumb-Down Beam

The HV1305GC features an automatic plumb-down beam designed to simplify vertical setup and alignment.

The specified plumb-down accuracy is 15 arc minutes, or approximately 5 mm at 1 meter.

Precise Electronic Beam Positioning

Electronic pointing allows operators to make precise beam-positioning adjustments, particularly when using the laser in vertical alignment or zero-RPM operation.

PlaneMatch Capability

The HV1305GC supports PlaneMatch functionality with a typical operating distance of approximately 80 meters (260 feet).

This feature supports matching the laser reference plane to an established reference when used with the appropriate compatible equipment.

PlaneLok Capability

The HV1305GC also supports PlaneLok functionality with a typical operating distance of approximately 80 meters (260 feet).

PlaneLok helps maintain the laser reference plane relative to a compatible receiver.

Rugged Construction

The HV1305GC is designed to withstand demanding construction environments.

According to Spectra Precision, the laser is built to survive:

• Drops of up to 1 meter (3 feet) onto concrete

• Tripod tip-overs of up to 1.5 meters (5 feet)

These durability characteristics help reduce downtime and potential repair costs during everyday jobsite use.

IP66 Dust & Water Protection

The HV1305GC features an IP66 environmental rating, providing protection against dust and powerful water jets.

Its enclosed laser housing is designed to withstand harsh field conditions.

Up to 30 Hours of NiMH Battery Operation

The HV1305GC provides up to 30 hours of operation with its rechargeable NiMH battery pack.

The laser also supports an alternative power configuration using four 1.5V D-cell alkaline batteries.

Horizontal & Vertical Tripod Mounting

The laser features 5/8 × 11 tripod attachments for both horizontal and vertical orientations.

This allows the instrument to be mounted for different leveling and alignment applications.

Five-Year Warranty

The Spectra Precision HV1305GC is backed by a 5-year manufacturer warranty.

Technical Specifications

Laser & Rotation Specifications

Battery & Power Specifications

Environmental & Physical Specifications

HL760U Receiver Specifications

The Spectra Precision HL760U Digital Readout Receiver is included with the HV1305GC-7 package.

RC1402 Remote Control Specifications

The RC1402 remote control is included with the HV1305GC-7 package.

What's Included

HV1305GC-BCC

• (1) Spectra Precision HV1305GC Green Beam Rotary Laser

• NiMH Batteries

• Small Carrying Case

HV1305GC-7

• (1) Spectra Precision HV1305GC Green Beam Rotary Laser

• (1) HL760U Digital Readout Laser Receiver

• (1) C70 Rod Clamp

• (1) RC1402 Remote Control

• (1) Vertical Adapter

• NiMH Batteries

• (1) Battery Charger

• (1) Laser Target

• Laser Glasses

• (1) Wall Mount

• Small Carrying Case

HV1305GC-BSC

• (1) Spectra Precision HV1305GC Green Beam Rotary Laser

• NiMH Batteries

• (1) Flat Head Tripod

• System Carrying Case

Why Choose the Spectra Precision HV1305GC?

The Spectra Precision HV1305GC combines the visibility of a green laser beam with the versatility of horizontal and vertical self-leveling, making it a practical solution for contractors performing commercial construction, interior layout, ceiling installation, and outdoor leveling.

Its ±1/16-inch accuracy at 100 feet, long-distance receiver compatibility, adjustable rotation speeds, scanning capability, and precise electronic positioning support a wide range of construction alignment tasks.

With Bluetooth smartphone control, automatic plumb-down capability, HI Alert protection, IP66 durability, and up to 30 hours of rechargeable battery operation, the HV1305GC is designed for demanding professional use.

Three package configurations allow contractors to select the laser system that best matches their existing accessories and project requirements.

Common Applications

• Horizontal Leveling

• Vertical Alignment

• Commercial Construction

• Interior Wall Layout

• Ceiling Installation

• Drywall Installation

• Concrete Formwork

• Foundation Leveling

• Tilt-Wall Alignment

• Anchor Bolt Layout

• Building Construction

• Elevation Transfer

• Interior Finishing

• Exterior Construction

• General Construction Leveling

Why Buy From Titan Tools Direct?

When you purchase the Spectra Precision HV1305GC Horizontal/Vertical Green Beam Rotary Laser from Titan Tools Direct, you're buying from a trusted supplier of professional construction lasers, leveling equipment, and surveying instruments backed by knowledgeable product specialists.

• Authorized Spectra Precision Dealer

• Competitive Pricing

• Nationwide Shipping

• Expert Sales & Technical Support

• Professional Construction Laser Equipment

• Trusted by Contractors, Surveyors & Construction Professionals

• Customer Support Before & After the Sale

Questions?

Need help choosing the correct HV1305GC package, confirming receiver compatibility, or selecting mounting accessories for horizontal and vertical applications?

Call or Text Sales & Technical Support: 832-727-9353

Email: Sales@TitanToolsDirect.com

Our knowledgeable team is happy to assist with product selection, compatibility questions, accessories, availability, and technical support before and after your purchase.

Frequently Asked Questions (FAQ)

Q1: What is the Spectra Precision HV1305GC used for?

The HV1305GC is a horizontal and vertical self-leveling green beam rotary laser designed for construction leveling, commercial building layout, ceiling installation, wall alignment, and general construction measurements.

Q2: Is the HV1305GC a green or red beam laser?

The HV1305GC is a green beam laser, operating at a wavelength of 510–530 nm.

Q3: What is the accuracy of the HV1305GC?

The HV1305GC provides ±1.5 mm accuracy at 30 meters, equivalent to approximately ±1/16 inch at 100 feet.

Q4: What is the maximum working range?

When used with a compatible HL760U receiver, the HV1305GC supports a typical operating diameter of up to 1,200 meters (4,000 feet) under suitable conditions.

Q5: Does the HV1305GC automatically level in horizontal and vertical positions?

Yes. The HV1305GC provides automatic horizontal and vertical self-leveling with a typical leveling range of ±5°.

Q6: What is the difference between the HV1305C and HV1305GC?

The HV1305C uses a red laser beam, while the HV1305GC uses a green laser beam.

Both provide horizontal and vertical self-leveling, ±1.5 mm accuracy at 30 meters, Bluetooth connectivity, and IP66 protection.

The HV1305C provides up to 45 hours of NiMH battery operation, while the HV1305GC provides up to 30 hours.

Q7: Can the HV1305GC be controlled using a smartphone?

Yes. The HV1305GC features Bluetooth connectivity and supports control through the Spectra Precision Laser Remote App on a compatible smartphone.

Q8: Does the HV1305GC include a remote control?

The RC1402 remote control is included with the HV1305GC-7 package.

It is not listed as included with the HV1305GC-BCC or HV1305GC-BSC configurations.

Q9: How long does the HV1305GC battery last?

The HV1305GC provides up to 30 hours of operation using its rechargeable NiMH battery pack.

Q10: Can the HV1305GC use alkaline batteries?

Yes. The laser supports an alternative power configuration using four 1.5V D-cell alkaline batteries.

Q11: Is the HV1305GC waterproof?

The HV1305GC carries an IP66 environmental rating, providing protection against dust and powerful water jets. It is not rated for continuous submersion.

Q12: What is Height of Instrument Alert?

The Height of Instrument Alert stops laser rotation if the instrument is disturbed after setup, helping prevent incorrect measurements caused by an unintended change in the reference elevation.

Q13: What is the difference between the HV1305GC-BCC and HV1305GC-BSC?

The HV1305GC-BCC includes the laser, NiMH batteries, and small carrying case.

The HV1305GC-BSC includes the laser, NiMH batteries, flat head tripod, and system carrying case.

Q14: What is included with the HV1305GC-7 package?

The HV1305GC-7 includes the green beam laser, HL760U receiver, C70 rod clamp, RC1402 remote, vertical adapter, NiMH batteries, charger, target, glasses, wall mount, and small carrying case.

Q15: What is the warranty on the Spectra Precision HV1305GC?

The HV1305GC is backed by a 5-year manufacturer warranty.
