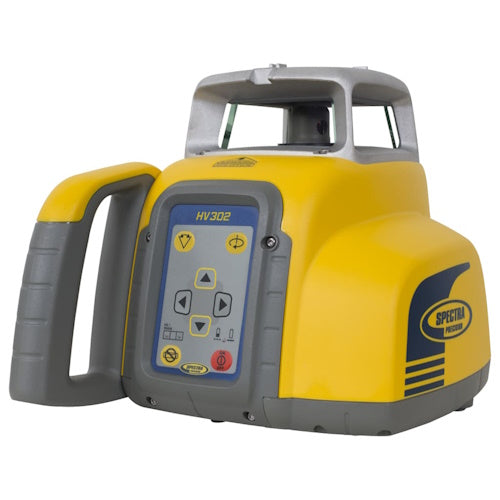

Spectra Precision HV302 Base Unit w/ Alkaline Batteries, No Receiver

Model Number: HV302-BCA

Features:

• The Spectra Precision HV302 Base Unit w/ Alkaline Batteries, No Receiver is a versatile and rugged laser level that can handle any horizontal, vertical, and plumb applications in both indoor and outdoor projects.
• Automatic horizontal and vertical self-leveling
• Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
• Working range of 800 m (2,600 ft) diameter
• High-visibility beam – easily visible even in brightly lit conditions
• Split beam – enables plumb point transfer and 90-degree layout
• Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
• Long range RC402N Radio remote control
• Radio communication between the HL760 DRO receiver and the laser provides automatic Grade Matching and PlaneLok
• Extremely durable and portable
• 5 Year warranty
• Includes:
• Receiver: HL760
• Wall Mount: No
• Ceiling Target: No
• Remote: RC402N

All part numbers include HV302 transmitter, case and NiMH battery pack with charger

Applications:

• Interior and exterior, light to medium commercial and residential construction
• Leveling and aligning of forms and footers
• Leveling and aligning of interior walls
• Installation of ceilings and raised floors
• Interior finishing work

Specifications:

HV302 Specifications
• Leveling accuracy1,3: ± 1.5 mm/30 m, 1/16" @ 100 ft, 10 arc seconds
• Operating diameter1,2: appr. 800 m (2600 feet)
• Rotation: 0, 10, 80, 200, 600 rpm
• Pre-selected scan sizes: 5°, 15°, 45°, 90°, 180° and 0
• Laser type: red diode laser 600-680 nm
• Laser class : Class 3A/3R, max. 5 mW
• Self-leveling range: ± 5° (±9%)
• Leveling indicators: LED flashes
• Radio range (HL760): up to 100 m (330 ft)
• Power source: 10.000 mAh NiMH battery pack
• Battery life1: 45 hours NiMH; 60 hours alkaline
• Operating temp.: -20°C to 50°C (-4°F to 122°F)
• Storage temp.: -20°C to 70°C (-4°F to 158°F)
• Tripod attachments: 5/8 x 11 horizontally and vertically
• Dust and waterproof: Yes - IP66
• Weight: 3.1 kg (6.8 lbs)
• Low voltage indication: LED battery indicator
• Low voltage disconnection: unit shuts off
• Warranty: 5 Years

(1) at 21° Celsius (70° F)
(2) under optimal atmospheric circumstances
(3) along the axis
