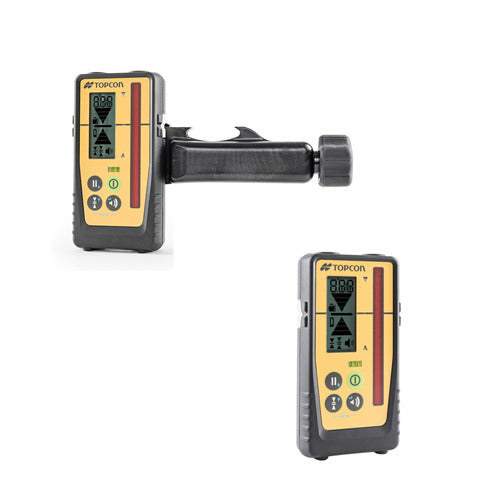

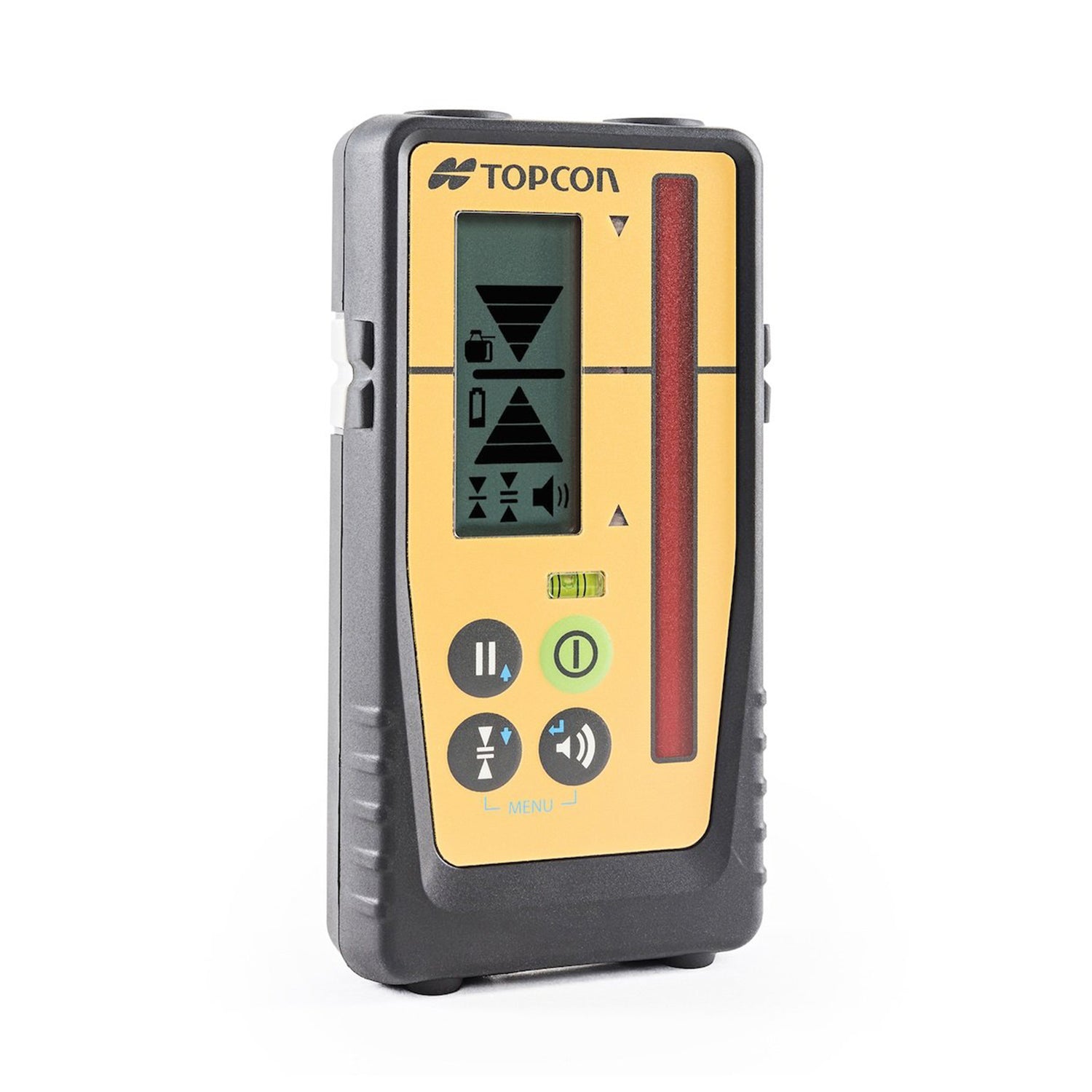

Topcon LS-100D (Kit) Compact Digital Laser Receiver

Available Options:

• 1026030-01: Laser Receiver with Holder
• 1011989-04: Laser Receiver without Holder


The Topcon LS-100D is a portable digital laser receiver built to improve elevation and vertical alignment accuracy in construction and surveying projects. It delivers precise readings and intuitive features, making it a dependable choice for professionals. It is embedded with two strong round magnets that effortlessly attach it to any metal surface. Significantly boosts efficiency and accuracy across various tasks such as steel erections or excavation grade checking. This advanced sensor combines intuitive technology with superior precision, specifically tailored for easily controlling elevation and vertical alignment. The LS-100D Topcon receiver offers four accuracy settings ranging from ±0.5mm to ±10mm, catering to diverse operational needs. Its expansive 90mm reception height allows for capturing a wide laser beam, ensuring reliable performance even in challenging environments. Engineered with strobe-proof protection, the sensor guarantees dependable and swift results, empowering professionals with the confidence to achieve precise outcomes efficiently.

Features:

• Digital Readout: Displays the exact distance to on-grade, facilitating quick and accurate readings.
• Dual LCD Displays: Large, front and rear screens provide nine channels of grade information, ensuring visibility from multiple angles.
• Extra-Wide Beam Capture Sensor: Minimizes interference from strobe lights, enhancing measurement reliability.
• Multiple On-Grade Precision Settings: Offers five resolution options: ±0.5 mm, ±1.0 mm, ±2.0 mm, ±5.0 mm, and ±10.0 mm, allowing flexibility based on project requirements.
• visual cues for grade positioning.

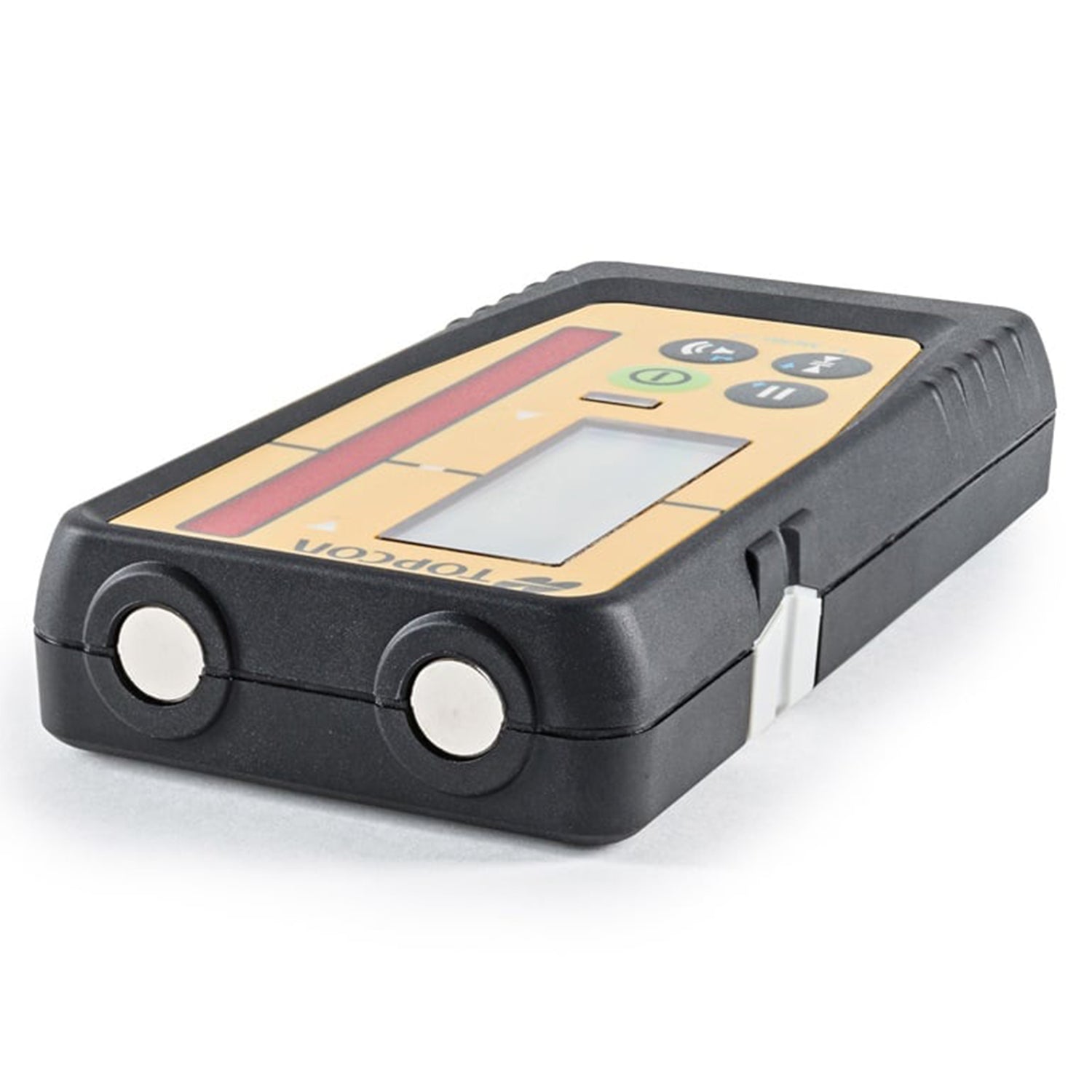

• Built-in Magnet Mount: Facilitates vertical operation by easily attaching to metal surfaces, ideal for steel erection tasks.
• Hold Function: Locks the display to retain measurement readings for convenient reference.

Compact Digital Laser Receiver Specifications:

• Working Range (diameter): 2,600 feet with the RL-H4C, RL-SV2S, and RL-200 Series
• Vertical Detecting Range: 3.5 inches (-1.1 in to +2.3 in.)
• LCD Digital Readout Range: 2.7 inches; (-0.7 in. to +1.9 in.)
• Horizontal Detecting Range: ±45º
• Strobe Light Suppression: Yes
• Units: mm / cm/inch / fractional inch
• On-Grade Resolution: ±0.02 inch, ±0.05 inch, ±0.10 inch, ±0.20 inch, ±0.50 inch
• LCD Grade Indicators: 9 Channels
• LED Grade Indicators: Orange, Green, Red (On/Off selectable)

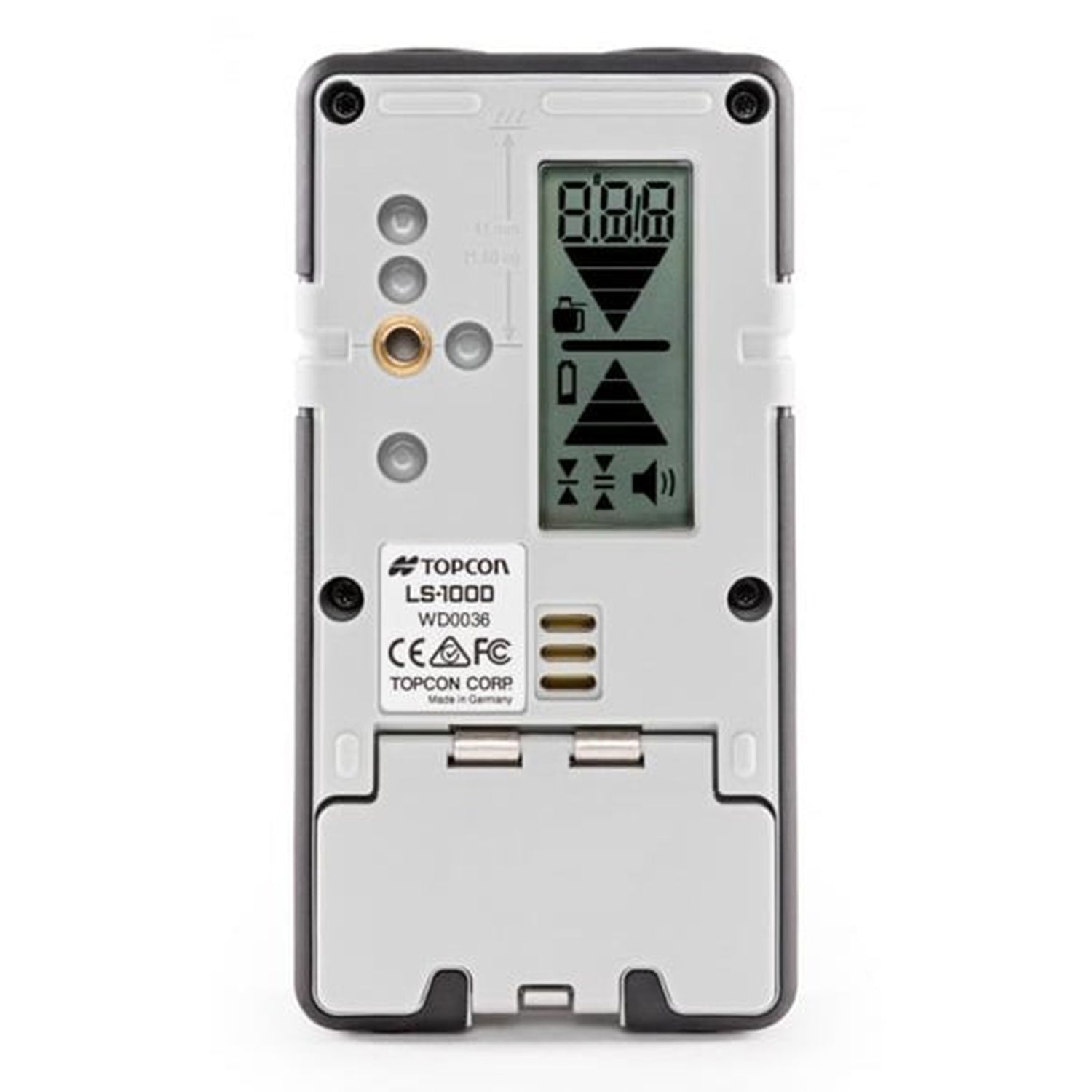

• Display: LCD on each side
• Buzzer: Loud/Low/Off selectable
• Bubble Tube: Yes
• Warning Icons: HI Alert, Low
• Battery: (for the RL-H4C, RL-SV2S, and RL-200 Series) Battery One AA/LR6 dry-cell battery
• Operating Time: Up to 45 hours with alkaline batteries
• Battery Level Indicator: LCD Icon
• Auto Shut-off: Approx. 30 minutes
• Dust/Water Rating: IP67 (IEC 60529)
• Operating Temperature: -20°C to 50°C
• Dimension: (l x w h) 5.275 x 2.716 x .985 inches
• Weight: .41888 lbs (including one AA/LR6 battery)

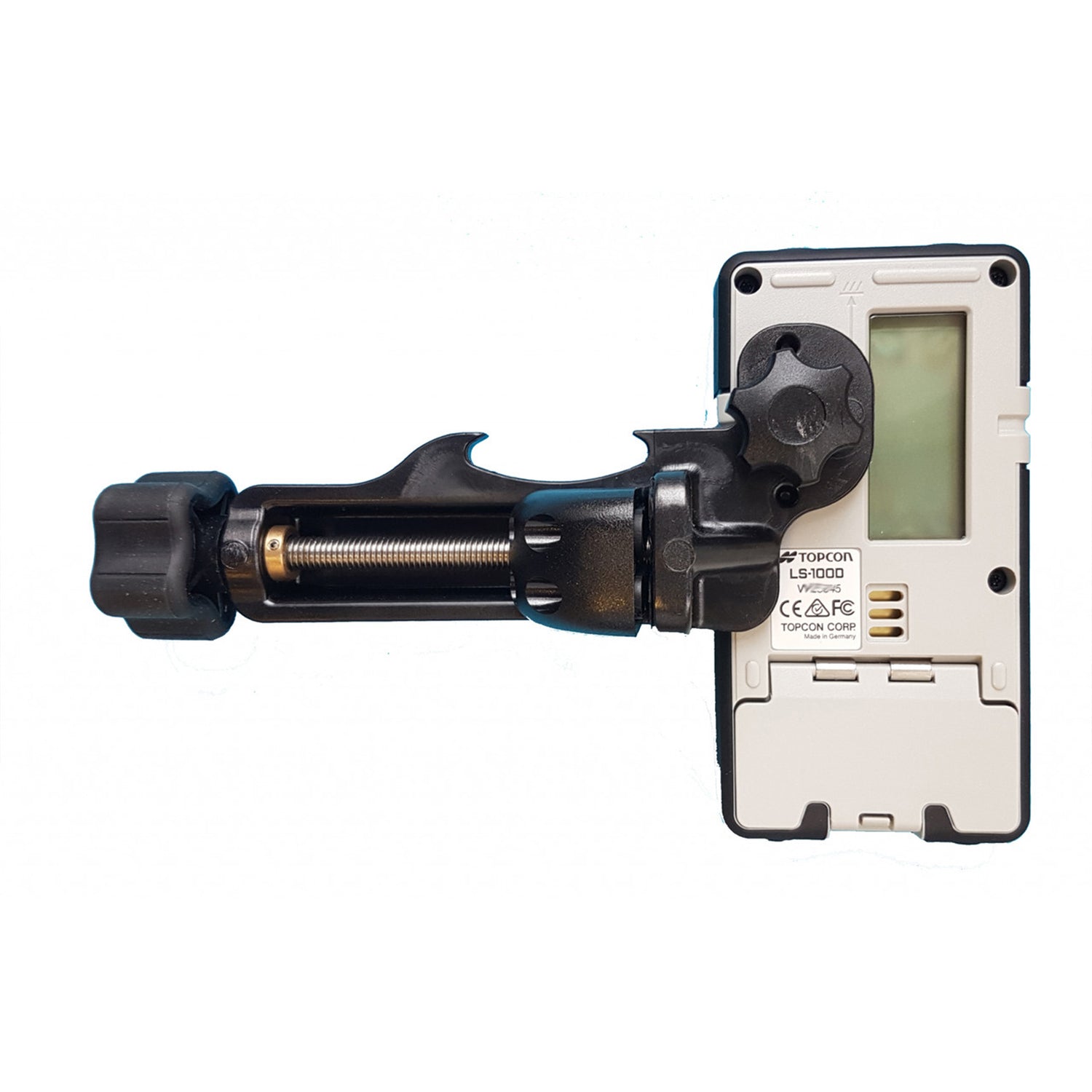

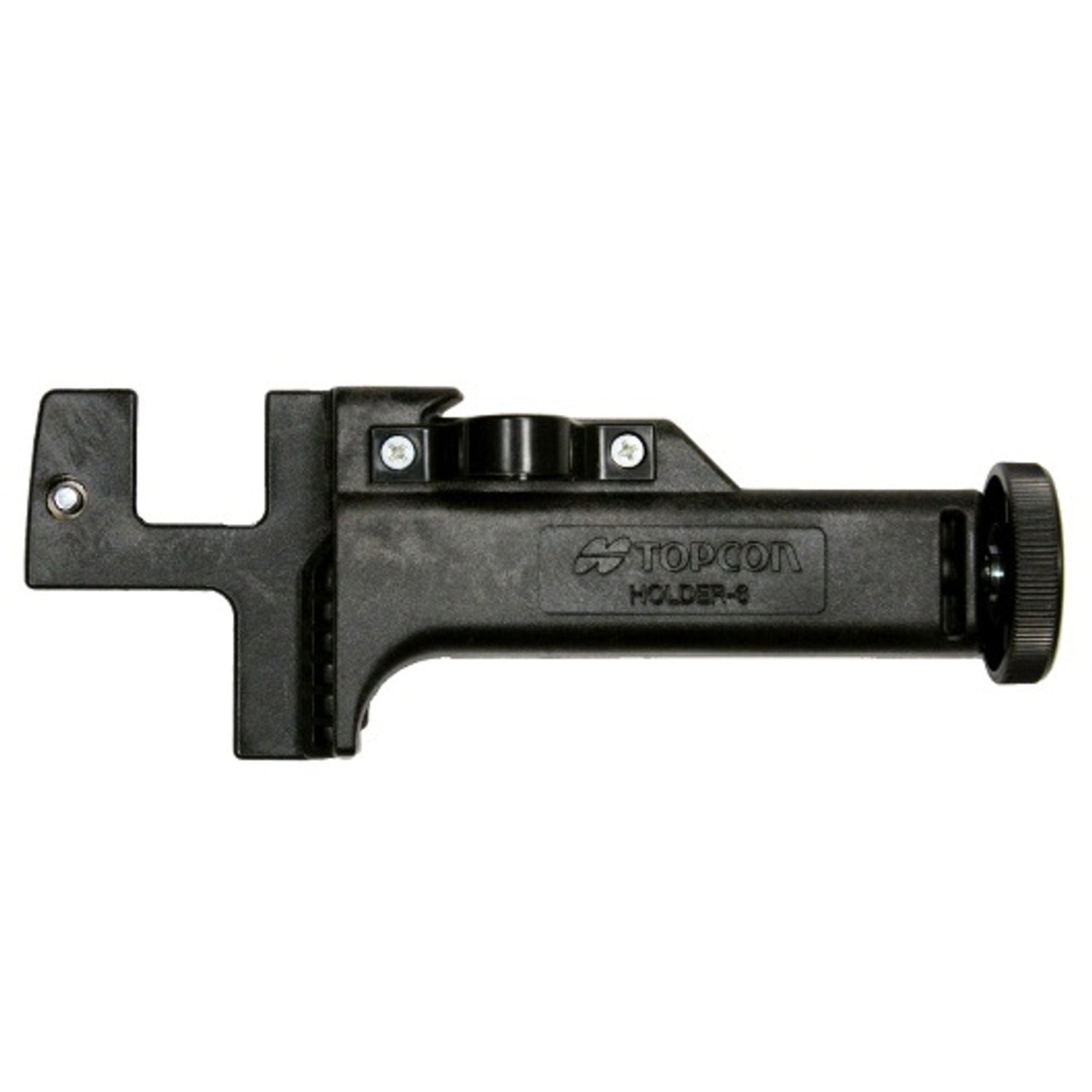

Rod Bracket Holder 110 Specifications:

• Bracket/Clamp: Senor Holder 110
• Compatibility: Topcon RL-H4C, RL-SV2S, and RL-200 Series
• Dimensions: 5.3" L x 2.7" W x 1" H
• Magnet Mount: Two round magnets on top
• Protection Class: IP67 dustproof and water-immersible up to 3.3 feet (1m)
• Warranty: 1-year
• Weight: 0.43lbs (195g)

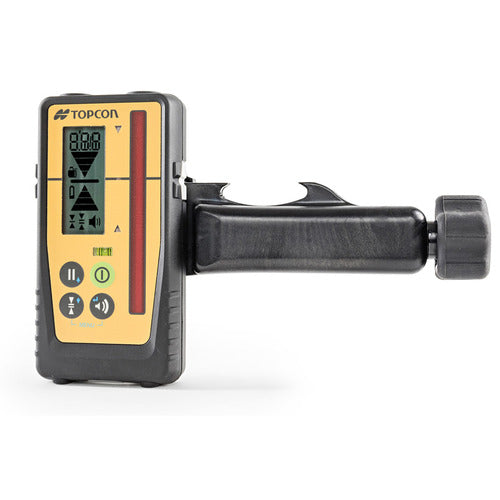

1026030-01: Laser Receiver with Holder Package Includes:

• Topcon LS-100D
• Sensor Holder 100 Screw mount

1011989-04: Laser Receiver without Holder Package Includes:

• Topcon LS-100D


Info and Guides:

Click Here for Brochures

NOTE: Due to interstate and international shipping constraints, Topcon products do not include alkaline batteries
