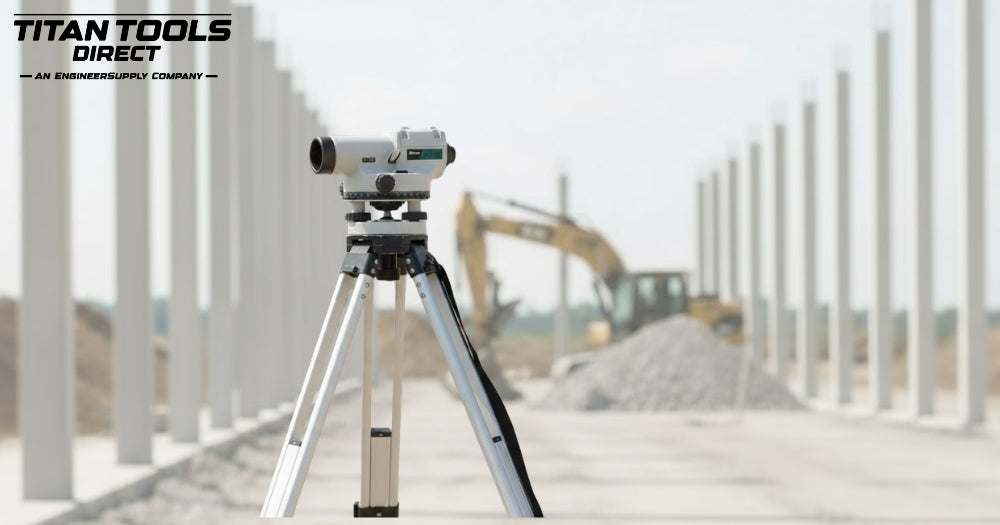

How to Use Nikon Auto Levels: Complete Guide

Nikon Auto Levels, such as the AX-2S, AC-2S, and AP-8, are precision surveying instruments widely used in construction, civil engineering, and topographic work. Using them correctly ensures accurate measurements, efficiency in the field, and long-lasting instrument performance. Titan Tools Direct provides step-by-step instructions, practical tips, and maintenance advice for Nikon Auto Levels.

Key Features of Nikon Auto Levels

Understanding the instrument’s components makes operation easier:

1. Focusing knob – Sharpens the target image.



2. Sighting guides – Help align the telescope with the rod or target.



3. Crosshairs adjustment screws – Fine-tune crosshair alignment.



4. Crosshairs focusing ring – Ensures accurate targeting.



5. Eyepiece – View the target clearly.



6. Horizontal rotation ring & angle index – Measure horizontal angles.



7. Angle index reading line – Align with horizontal rotation.



8. Leveling screws – Adjust instrument level.



9. Base plate – Mounts the instrument on the tripod.



10. Circular level adjustment screws – Calibrate the circular level.



11. Horizontal tangent knob – Fine horizontal adjustments.



12. Circular level – Ensures precise leveling.



13. Mirror for circular level reading – Improves visibility.



14. Objective lens – Gathers light for sharp imagery.



Step 1: Setting Up the Instrument

1. Tripod Setup: Position the tripod on firm, stable ground. Adjust legs for rough leveling.



2. Mount the Auto Level: Secure it to the tripod’s base plate.



3. Leveling: Use the circular level and adjust the leveling screws until the bubble is centered.



4. Focus the Crosshairs: Rotate the crosshairs focusing ring for a sharp view of your target.



5. Check Parallax: Move your eye while viewing; if crosshairs shift relative to the rod, adjust the focus until no parallax occurs.



Pro Tip: Correct parallax ensures accurate elevation and distance measurements.

Step 2: Aligning the Instrument

1. Aim roughly at your target using the sighting guides.



2. Adjust with the focusing knob to bring the target into sharp view.



3. Use the horizontal tangent knob to precisely center the target in crosshairs.



4. Verify the circular level bubble; the compensator corrects minor tilts automatically.



Step 3: Measuring Elevation

To establish the height of instrument (HI) and measure point elevations:

1. Place a grade rod on a known elevation (e.g., 30.55 m).



2. Take a telescope reading (e.g., 1.72 m).



3. Calculate the HI:
   HI = Known Elevation + Rod Reading = 30.55 + 1.72 = 32.27 m



4. Determine the elevation of a new point:
   Elevation = HI – Rod Reading at new point



Example:

• HI = 32.27 m



• Rod Reading at Point = 31.02 m



• Point Elevation = 32.27 – 31.02 = 1.25 m difference

Step 4: Measuring Distance Using Stadia Lines

1. Read the upper and lower stadia lines on the rod:



• Upper: 1.436 m



• Lower: 1.152 m



2. Find the difference: 1.436 – 1.152 = 0.284 m



3. Multiply by the stadia constant (100) and add 0.1 m:
   Distance = 0.284 × 100 + 0.1 = 28.5 m



Pro Tip: Stadia lines provide a simple method for calculating distances without electronic devices.

Step 5: Calculating Elevation Differences Between Two Points

1. Position the instrument approximately halfway between points A and B.



2. Take readings:



• Point A = 1.726 m



• Point B = 1.259 m



3. Calculate difference: d = A – B = 1.726 – 1.259 = 0.467 m



4. Adjust grade rods at both points to match line of sight.



Tip: Small line-of-sight inclinations do not affect readings if the instrument is positioned midway.

Step 6: Angle Measurements

1. Set the tripod over a known hub; center the plumb-bob.



2. Attach the instrument and align the telescope to the first target.



3. Set the horizontal rotation ring to 0° aligning with the index line.



4. Sight the second target and read the horizontal angle.



Step 7: Adjusting the Instrument

Circular Level Calibration:

1. Center the bubble using leveling screws.



2. Rotate the telescope 180°; check the bubble.



3. Adjust using circular level screws to eliminate half of any residual error.



4. Repeat until the bubble stays centered in all positions.



Crosshairs Adjustment:

• If the line of sight does not match expected readings, use the crosshairs’ adjustment screws (under cover) to fine-tune alignment.



Step 8: Maintenance & Care

• Transport and store in the carrying case.



• Carry vertically when mounted on tripod.



• Store in a dry, shaded area.



• Clean with a soft, lint-free cloth; carefully clean eyepiece and objective lens.



• Wipe off after rain or wet conditions and allow the instrument to dry with the case open.



Tip: Regular maintenance prolongs precision and reduces costly repairs.

Step 9: Safety Tips

• Caution: Avoid unsafe handling to prevent minor injuries or damage.



• Note: Observe all instrument guidelines to maintain accuracy.



• Avoid over-tightening screws during adjustments.



Step 10: Specifications Overview

Pro Tips for Accurate Surveying

• Always check level and line of sight before readings.



• Use consistent measurement methods.



• Carry spare batteries and cleaning cloths.



• Calibrate regularly for long-term accuracy.



• Avoid working on unstable or wet terrain for best results.



Where to Buy Nikon Auto Levels

For the best Nikon Auto Levels, trust Titan Tools Direct, your authorized dealer:

• Expert guidance on selecting the right model



• Accessory and spare parts support



• Fast, reliable service and warranty coverage



Upgrade your surveying workflow today! Contact us for a consultation or explore Nikon Auto Levels online.

Frequently Asked Questions

What should I check before taking measurements with a Nikon auto level?

Make sure the tripod is stable, the circular level bubble is centered, the crosshairs are focused, and parallax is eliminated. Double-check before each reading for best results.

How should I maintain my Nikon auto level for long-term use?

Store it in a dry, shaded area in its case. Clean lenses with a soft cloth, carry it vertically on the tripod, and let it dry after rain. Regular cleaning and careful handling prolong its life.

Why is my Nikon auto level giving incorrect readings?

Common causes include poor leveling, parallax error, loose tripod setup, or misaligned crosshairs. Always check the bubble, focus correctly, and confirm the instrument is stable before measuring.

What should I do if the crosshairs are blurry?

Rotate the crosshairs focusing ring until the target or rod is sharp. Make sure the eyepiece is also focused for your eye

How do I choose the right Nikon Auto Level model?

Choosing the right model depends on your job needs. Titan Tools can guide you to pick the best Nikon Auto Level for construction, civil, or topographic work.
