CHCNAV Apache 3 Pro High Performance Bathymetric Single-Beam Survey USV w/ Software

Model Number: 8004010033

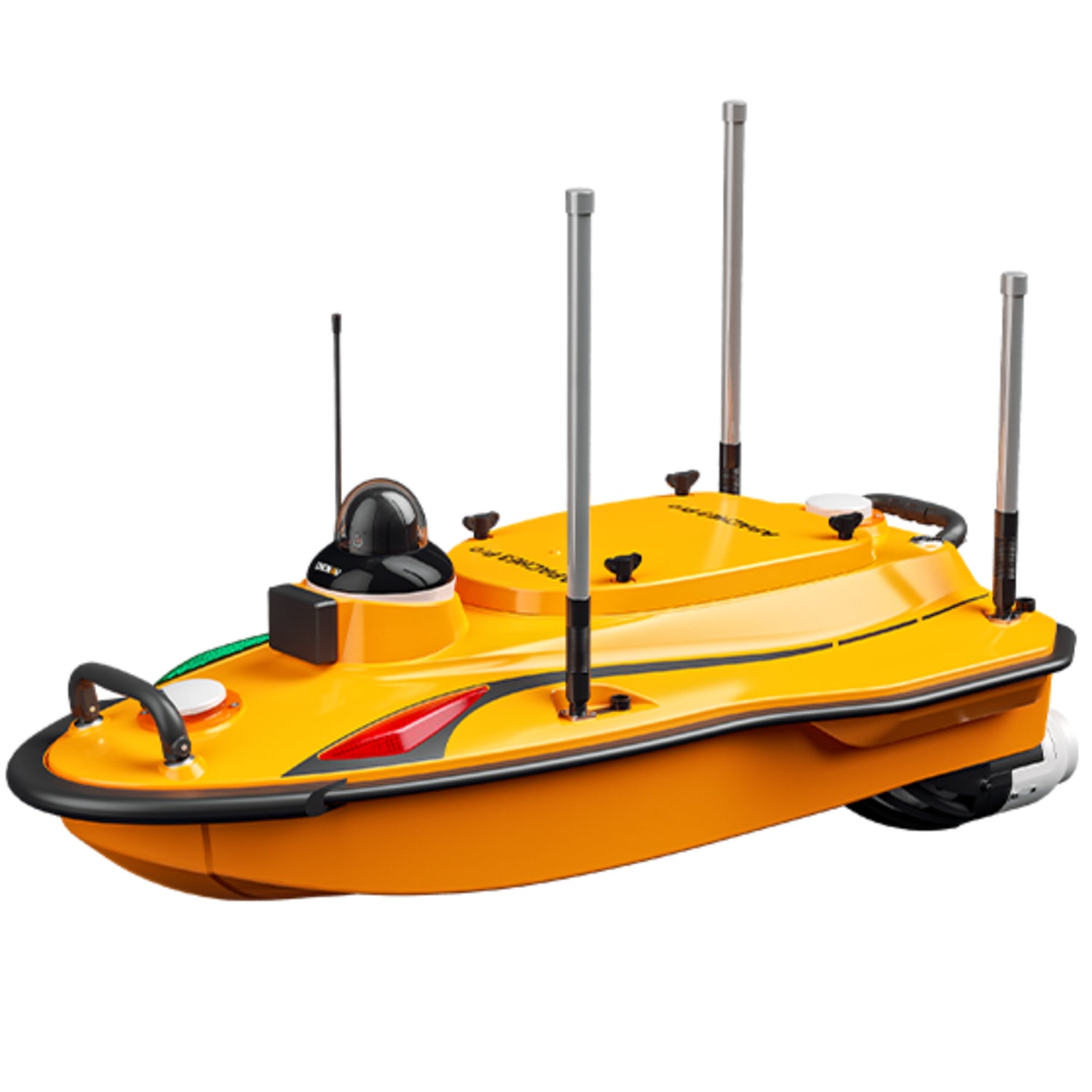

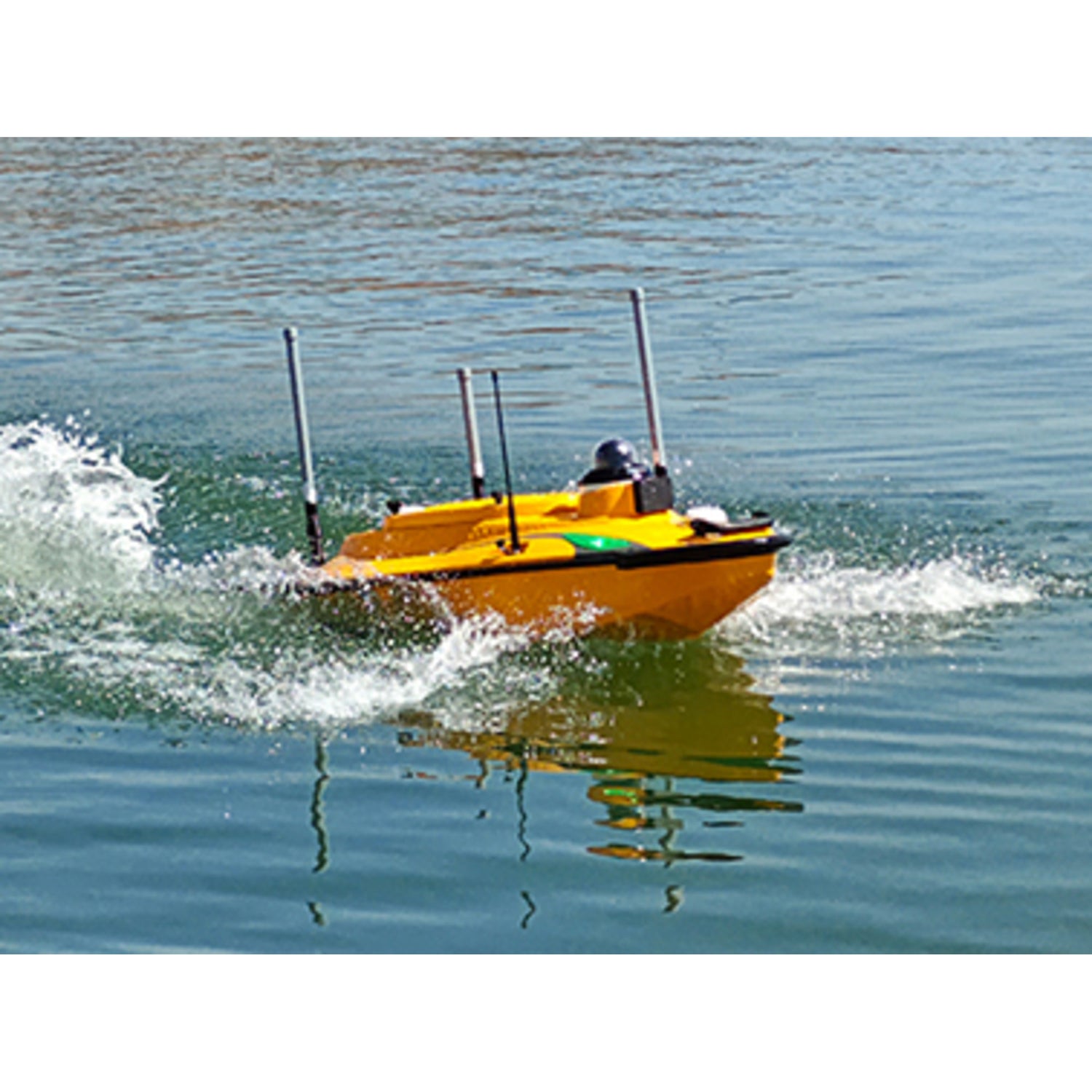

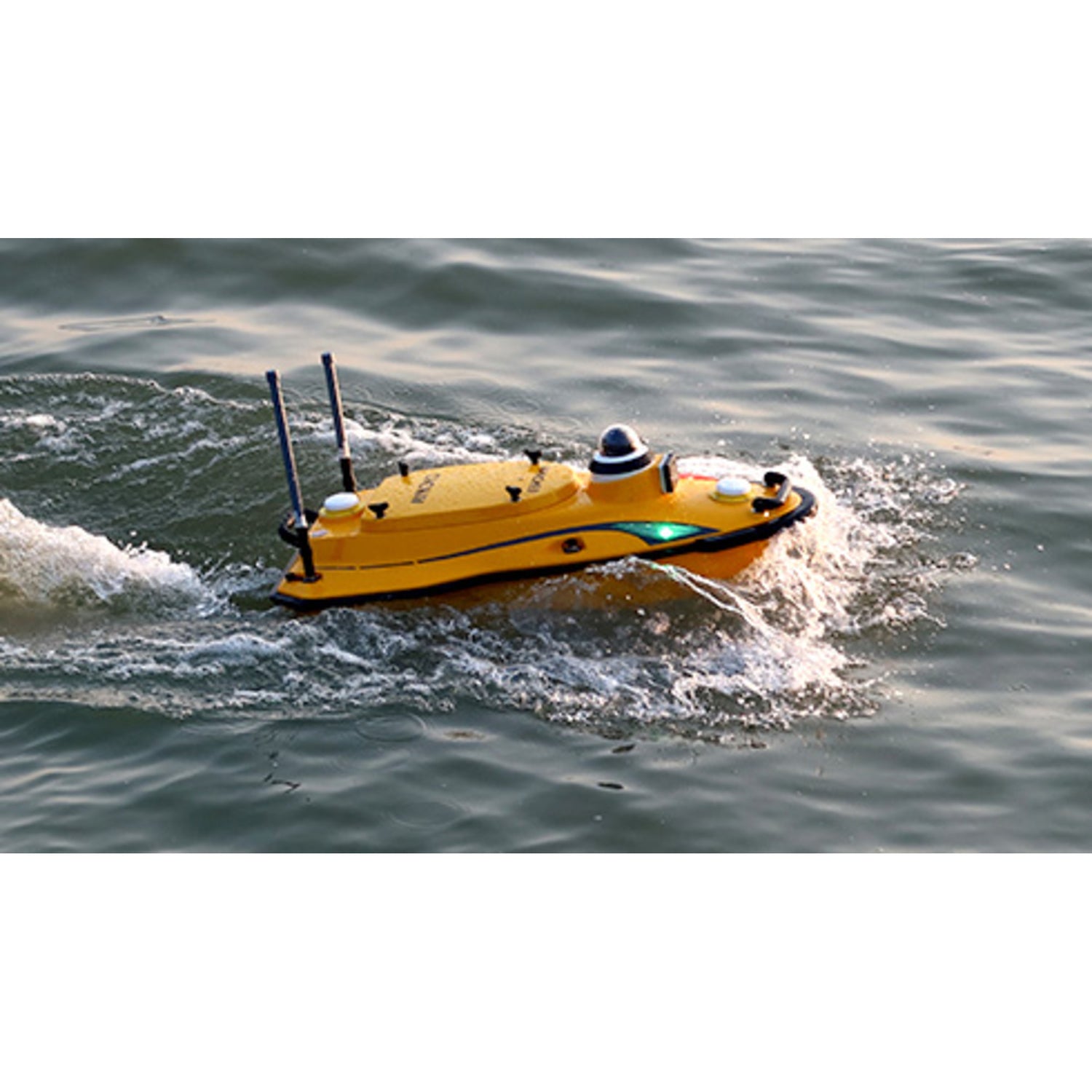

The APACHE 3 Pro is a compact unmanned surface vehicle (USV) for autonomous bathymetric surveys in shallow water environments such as lakes, rivers, and coastal zones. Its lightweight carbon fiber hull, advanced GNSS RTK + INS navigation, and integrated single-beam echosounder ensure precise depth measurements and stable positioning even in challenging conditions like under bridges or near infrastructure.

Reach out to our sales team for a quote: Call or Text: 434-755-7717

Sales@TitanToolsDirect.com

Features:

• High-Precision Navigation: Maintain consistent survey accuracy even in GNSS-denied environments. The integrated GNSS RTK and Inertial Navigation System ensures precise positioning under bridges, along urban waterways, and in other signal-obstructed areas.
• Advanced Depth Measurement: Deliver reliable and accurate bathymetric data using the CHCNAV D270 single-beam echosounder. Its integrated water temperature sensor corrects sound velocity in real time for enhanced depth measurement performance.

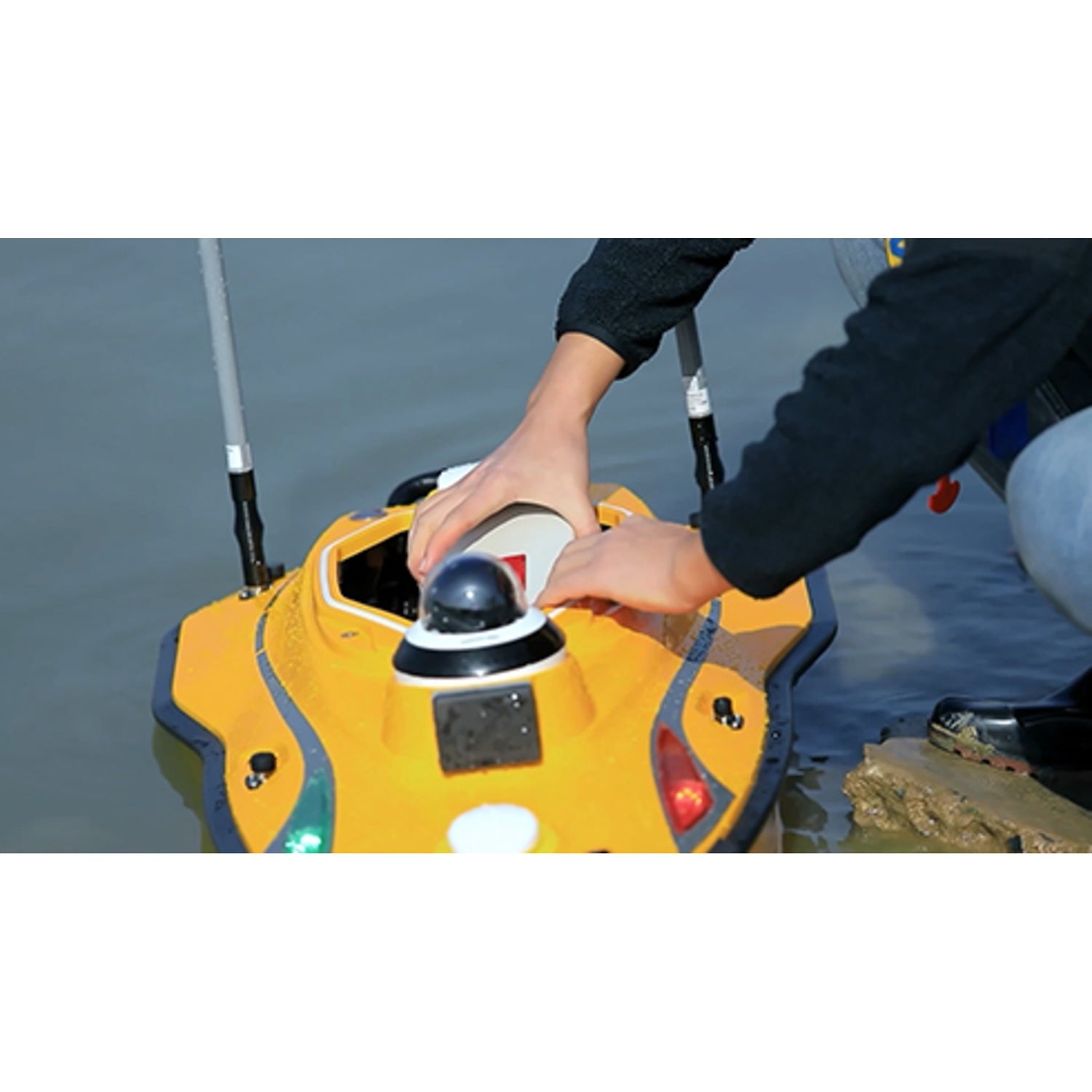

• Smart Power Management: Stay mission-ready with an intelligent power system that supports hot-swappable batteries. In case of interruption, the Apache 3 Pro resumes its route from the exact point of disruption, ensuring operational continuity.
• Dual-Mode Communication: Maintain stable data and control links through 4G connectivity and 2.4 GHz remote communication. Easily switch between SIM and manual control modes for seamless operations in diverse environments.
• Adaptable Performance: Engineered with high-sensitivity, anti-interference transducers and adaptive bathymetric algorithms, the Apache 3 Pro adjusts automatically to variable water terrains, delivering high-resolution data in complex survey scenarios.
• Anti-Entanglement Design: Minimize downtime with a titanium alloy mesh guard and hybrid water pressure conversion system that reduce the risk of aquatic vegetation entanglement. The system alerts operators if an obstruction is detected, protecting the motor during critical missions.

Specifications:

• Performances
  • Speed max.: 7 m/s max
  • Payload capacity: 35 kg max
  • Draft: 10 cm
  • Positioning: Full GNSS + IMU
• Echosounder
  • Type: Single beam, 200 kHz
  • Range: 0.1 to 200 m
  • Accuracy: ±0.01 m + 0.1% x D
• Sensors
  • Camera: 360° video

Info and Guides:

Click Here for Data Sheet

Disclaimer: Some products featured on this page may require additional software to function properly. Such software may be sold separately and is not included in the listed product price. Please review individual product specifications for complete system requirements and compatibility details. For further information, please contact our sales team at sales@engineersupply.com, who will be happy to assist you.

FAQs:

• What water environments can the APACHE 3 PRO operate in?
  • The APACHE 3 PRO is optimized for shallow water conditions, including lakes, rivers, reservoirs, and nearshore areas.
• How does the APACHE 3 PRO maintain accuracy under bridges?
  • The integrated GNSS RTK + INS system maintains real-time positioning when GNSS signals are blocked, such as under bridges or overhangs.
• What materials are used in the construction of the APACHE 3 PRO?
  • Built from high-strength, high-modulus carbon fiber, the Apache 3 Pro hull offers superior impact resistance andd unsinkability.
• Does the APACHE 3 PRO supports obstacle avoidance?
  • Yes, the APACHE 3 PRO uses a millimeter-wave radar system that detects and autonomously navigates around obstacles within a 110° field of view.

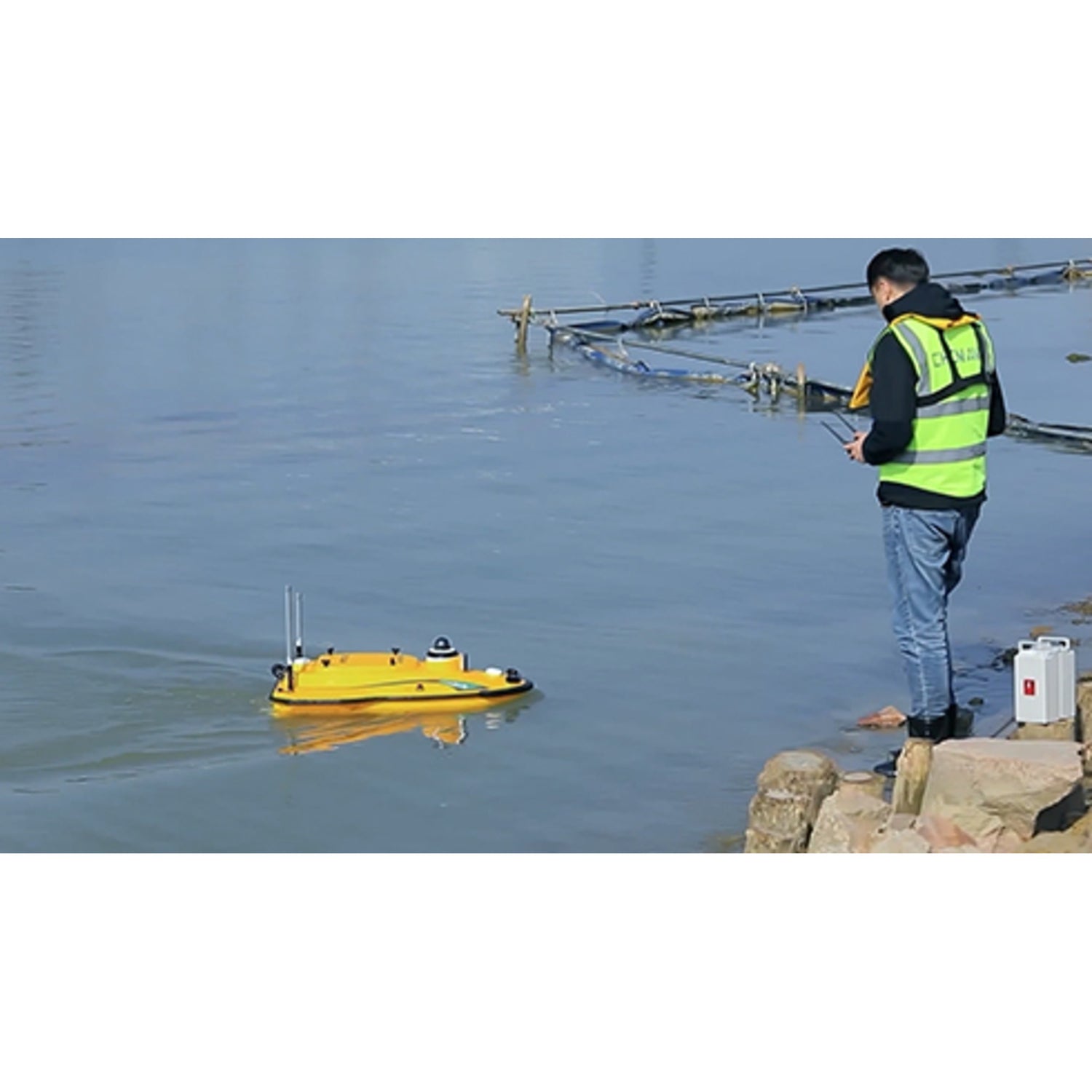

• Is the APACHE 3 PRO suitable for single-person operation?
  • Absolutely. Its compact, lightweight design (6 kg) supports easy, one-person deployment and handling.
• What is the price of the CHCNAV APACHE 3 PRO ?
  • The price of the APACHE 3 PRO USV depends on your selected configuration. For detailed pricing and options, please contact CHC Navigation through the inquiry page.
