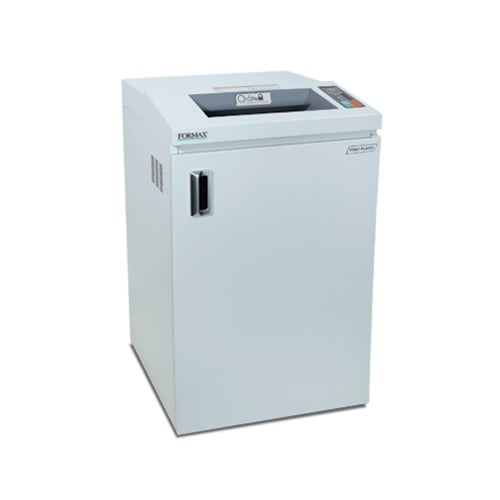

Formax OnSite Plastic & Laminate Shredder, Strip/Spiral Cut

Model Number: FD 87 Plasti

Features:

• The Formax OnSite Plastic & Laminate Shredder, Strip/Spiral Cut has a unique dual-blade system that combines a strip cut blade and a spiral blade to shred plastic sheets, laminated cards, paper and more in seconds.
• Abilities:
  • Shreds a Variety of Media: Rugged two-stage dual-blade system shreds paper, plastic sheets and folders, laminated ID and insurance cards, synthetic paper, and more
  • Accepts staples, paper clips and credit cards
  • Manual Function: For shredding small paper or films which can’t be detected by the sensor
• Standard Features:
  • Dual-Blade Cutting System: Strip cut blade and spiral blade work together in a two-stage process to efficiently shred media
  • Heat-Treated Steel Cutting Blades: Specially ground for longevity and require minimal oil
  • Auto Start/Auto Stop: Optical sensor detects paper and starts operation automatically
  • LED Control Panel with Load Indicator: Provides machine status and helps operators avoid jams
  • ECO Mode: Automatically enters energy-saving standby mode after 5 minutes of inactivity
  • Door Safety Sensor: Motor stops automatically if cabinet door is opened
  • Auto Reverse: In case of paper jam, built-in controls switch motor into reverse to clear jam
  • High Quality Geared Motor: Powerful, efficient AC geared-motor with heavy duty steel gears for high performance, minimal noise and continuous operation
  • All-Metal Cabinet with casters
  • Auto Sensor: Motor stops automatically when waste bin is full
  • Lifetime Guaranteed Heavy-Duty Waste Bin
  • Auto Cleaning: Press reverse button for 5 seconds and motor will run in reverse for 1 minute
  • Oil Indicator: Control panel LED flashes to suggest oiling cutting blades for optimal performance
  • Self-Diagnosis System: Records a variety of information for use by service technicians
  • Thermal Overload Protection
  • Safety Circuit Breaker: Ensures safe operation
• Supplies:
  • Cutting Head Lubricating Oil: #8000-10, six 8-ounce bottles per case
  • Shredder Bags: Uses #8000-50, case of 100

Specifications:

• Cutting Style: Cross Cut
• Shred Size - Laminated: .12" x .55" (3 x 14mm)
• Shred Size - Paper Only: .24" x .55" (6 x 14mm)
• Paper Capacity: 36 to 38 sheets*
• Laminate Capacity: 1mm to 2.25mm stack**
• Speed: 10 fpm
• Feed Opening: 12.2" (310mm)
• Dimensions: 21.6" W x 21.6” D x 38” H
• Bin Capacity: 30 gal. (115 liters)
• Weight: 238 lbs. (108kg)
• Security Level: P-4
• Power Supply: 115V, 60 Hz, 400W

* Paper capacity varies depending on paper type and power supply
** Capacity varies based on laminate thickness and power supply. Samples can be sent to Formax for testing
