Leica GRZ101 - 360 Degree Mini Prism - 644327

SKU:
ES7408
$965.00
$965.00

Order today and Save! Price going up soon

✅ Free shipping over $175
🛡️100% satisfaction
🏅 Authorized dealer
💬 Have a question?
In Stock
$965.00
$965.00
Quantity
$965.00
$965.00
Shipping calculated at checkout.
Guaranteed Safe Checkout
American Express Apple Pay Discover Google Pay Mastercard PayPal Shop Pay Visa

📍 Location:

3310 Mayflower Dr, Lynchburg, Va, 24501

🗨️ Let’s Talk! Reach out to us anytime at:

540-600-4204

TRUSTED INDUSTRY EXPERTS

AEC & construction specialists

Fast & Free Delivery

Free Shipping over $175*

30 Days Returns

Hassle-free 30-day returns*

USA-BASED EXPERT SUPPORT

Real experts, Real guidance

Leica 360 Degree Mini Prism - 644327

Model Number: GRZ101

Description:

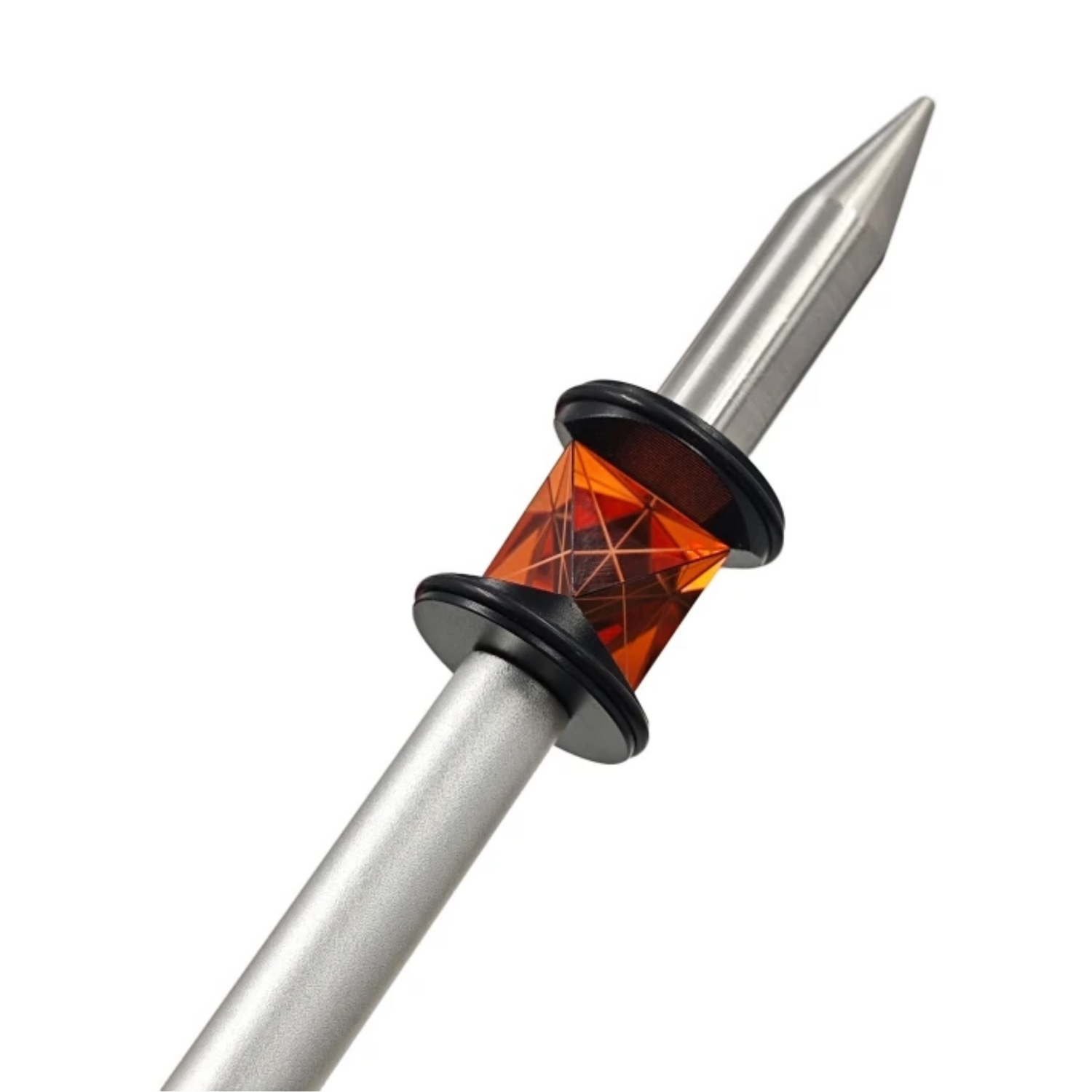

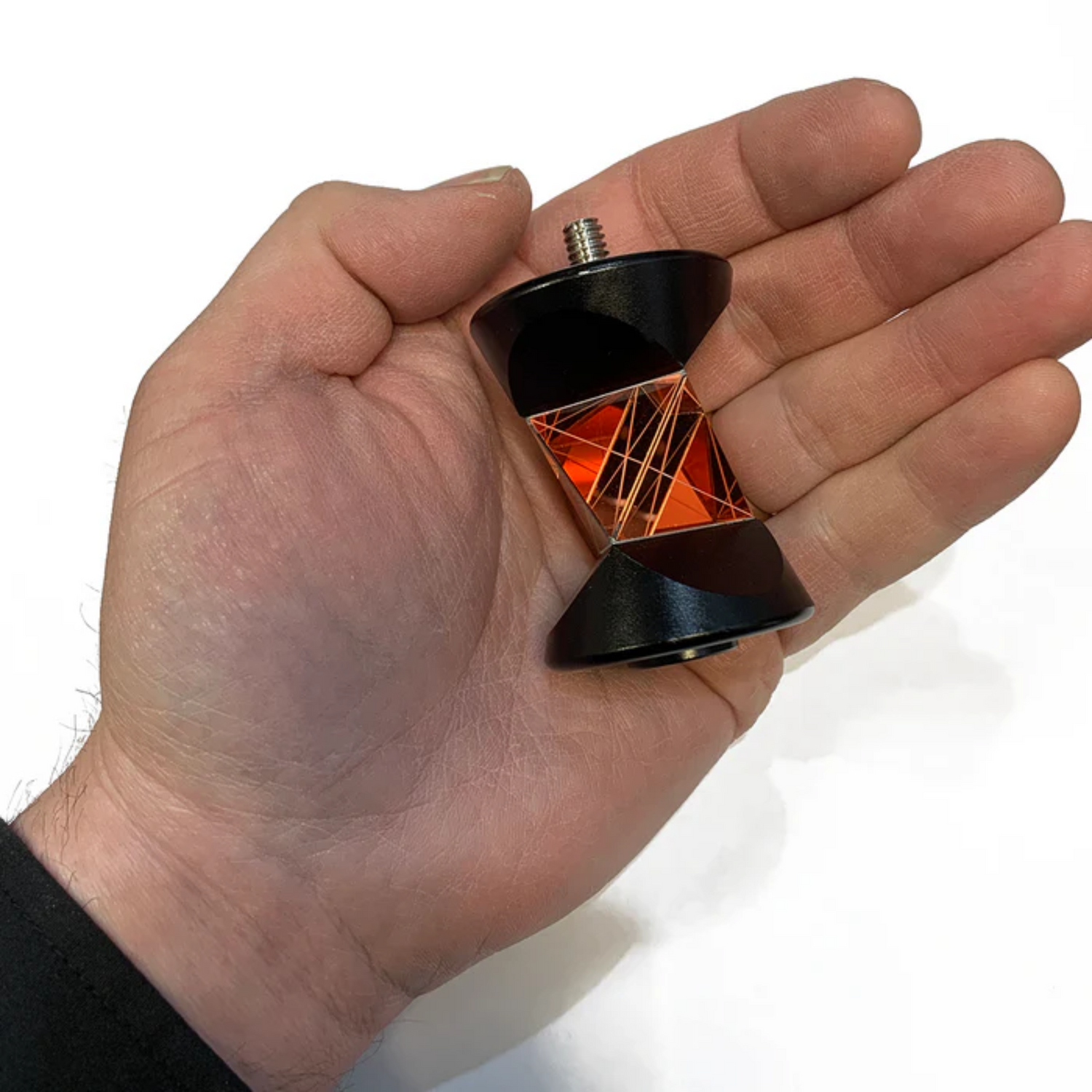

  • Light-weight, passive reflectors for use with robotic Total Stations. For efficient operation without the need for directing the reflector toward the instrument, a 360° prism is required. This type of reflector consists of six corner-cube prisms joined together. The arrangement allows the measuring beam to reflect directly back to its source from any position on the prism set. The even distribution of the prisms provides similar offset and accuracy readings from any side.
  • Due to its small size, this low cost alternative provides the greatest pointing accuracy of 1.5mm. However, the GRZ101 has restricted functionality with the TPS Power Search, and a shorter ATR range than the standard size reflectors.

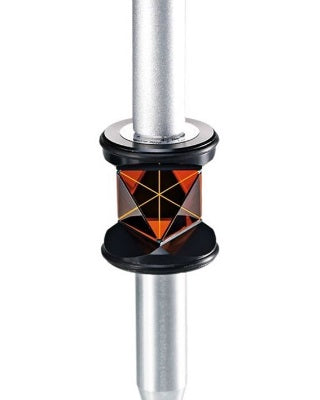

  • The GAD103 Adapter allows the mini reflector to be mounted on all survey poles having a Wild pin stub. The adapter provides the correct offset in order for the prism height to be read directly off the pole scale.
