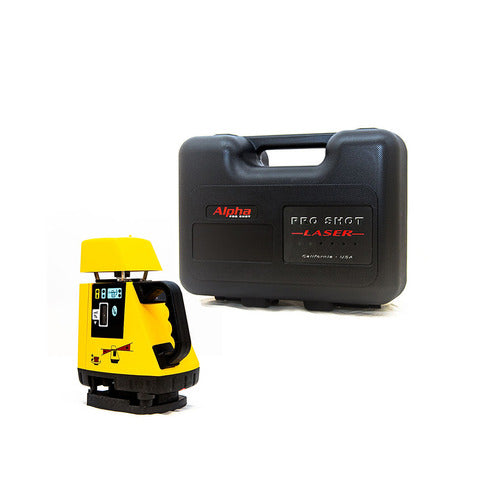

Pro Shot Laser AS2 Dual Grade Rotary Laser with Case

Model Number: 300-0000P

Manufacturer: Pro Shot Laser

Availability Notice: Most items are in stock and ready to ship. However, certain products may experience temporary delays or extended lead times due to ongoing industry-wide supply chain or manufacturing constraints. If your order is affected by a backorder or extended lead time, our team will contact you with the latest availability information. We appreciate your patience and understanding.

The Pro Shot Laser AS2 Dual Grade Rotary Laser with Case is a precision slope laser designed for contractors who need accurate grade control across demanding construction, drainage, and sitework applications. With slope adjustment from 0 to 25% in 0.01% increments, the AS2 gives operators the precision needed to follow engineering specifications and establish consistent grades over large working areas.

A servo-driven automatic leveling system helps maintain accuracy even when working at steeper slopes. Unlike basic manual-slope lasers, the AS2 is designed to self-level while the slope is set, helping improve reliability and reduce setup error in the field.

The AS2 provides ±14 arc-second accuracy, equivalent to approximately ±2.0 mm at 30 m, along with coverage up to a 2,000 ft diameter. Its 600 RPM rotation speed also makes it suitable for machine-control applications.

Built for professional construction environments, the AS2 features an IP56 dust and water resistance rating, operates from -4°F to +140°F (-20°C to +60°C), and is backed by an 8-year manufacturer warranty.

Ideal Applications

The Pro Shot Laser AS2 is designed for:

• Sanitary Sewer Installation
• Drainage Projects
• Site Grading
• Excavation
• Earthwork
• Slope Construction
• Foundation Work
• Road Construction
• Site Preparation
• Trenching
• Utility Installation
• Agricultural Grading
• Machine Control
• Large-Area Leveling
• Civil Construction

Available Package Options

The AS2 is supplied as a rotary laser package with a protective carrying case.

Compare Package Options

Which Package Should I Choose?

300-0000P – Pro Shot AS2 Dual Grade Rotary Laser

Choose the AS2 if your work requires precise slope adjustment, automatic leveling, and dependable grade control over large construction areas.

Its ability to set slopes from 0 to 25% in 0.01% increments makes it especially useful for drainage, sanitation, utility, and civil projects where accurately matching engineering plans is critical.

Recommended For:

• Excavation Contractors
• Civil Contractors
• Utility Contractors
• Drainage Contractors
• Sitework Crews
• Road Builders
• Grading Contractors
• Machine Control Users
• General Contractors
• Agricultural Contractors

Key Features

0 to 25% Precision Slope Capability

The AS2 supports slope adjustments from 0 to 25% on a single axis.

This broad range makes the laser suitable for both subtle grade changes and steeper slope applications.

0.01% Slope Resolution

Slope can be adjusted in precise 0.01% increments, allowing contractors to closely follow engineering plans and specified grades.

This is particularly useful for sanitation, drainage, and utility projects where minor grade differences can affect system performance.

True Automatic Leveling

The AS2 uses servo-driven automatic leveling technology rather than relying solely on manual adjustment.

The system is designed to maintain its leveling capability even after slope has been set, helping improve jobsite accuracy and consistency.

Servo Motor Leveling

The laser uses a servo motor leveling system with a leveling range of ±4°.

Servo-driven leveling helps maintain a stable laser plane during demanding grade-control applications.

±14 Arc-Second Accuracy

The AS2 provides specified accuracy of ±14 arc seconds, equivalent to approximately:

• ±0.080 in. per 100 ft
• ±2.0 mm per 30 m

This level of precision supports professional construction and grading applications.

Up to 2,000 ft Diameter Coverage

The AS2 provides coverage across a working diameter of up to 2,000 feet, helping crews control elevation and grade over large sites from a single setup location.

600 RPM Rotation Speed

The laser rotates at 600 RPM, providing consistent beam coverage for receiver-based construction work.

Its rotation performance also supports machine-control applications.

Machine Control Compatible

The AS2 is compatible with machine-control applications, including high-speed rotation requirements.

This allows the laser to serve both traditional grade-checking crews and contractors using machine-mounted receivers.

Optional Compound Slope Adapter

A compound slope adapter is available as an optional accessory for applications requiring additional slope capability.

IP56 Environmental Protection

The AS2 is sealed to IP56 international standards, providing protection against dust and water exposure during field use.

Wide Operating Temperature Range

The laser operates in temperatures from:

-4°F to +140°F (-20°C to +60°C)

This wide operating range supports year-round construction use in demanding environments.

Long Battery Life

Using four alkaline C-cell batteries, the AS2 provides up to 200 hours of continuous operation.

An optional NiMH rechargeable battery kit provides up to 95 hours of continuous operation.

8-Year Manufacturer Warranty

The AS2 is backed by an 8-year manufacturer warranty, providing long-term coverage for professional users.

Technical Specifications

Power Options

What's Included

• (1) Pro Shot Laser AS2 Dual Grade Rotary Laser
• (1) Carry Case

Why Choose the Pro Shot Laser AS2?

The Pro Shot AS2 is designed for contractors who need more precise slope control than a standard horizontal rotary laser can provide. Its 0–25% slope range and fine 0.01% adjustment resolution allow operators to accurately establish grade according to project specifications.

Its servo-driven automatic leveling system helps maintain reliable performance even when working with more aggressive slopes, while the 2,000 ft working diameter and 600 RPM rotation speed make it suitable for both conventional grade-control and machine-control applications.

With IP56 construction, long battery life, a wide operating temperature range, and an 8-year manufacturer warranty, the AS2 is built for long-term use on demanding construction and civil projects.

Common Applications

• Sewer Installation
• Sanitation Projects
• Drainage Construction
• Site Grading
• Excavation
• Earthwork
• Utility Installation
• Trenching
• Road Construction
• Foundation Work
• Civil Engineering Projects
• Agricultural Grading
• Machine Control
• Site Preparation
• General Construction

Why Buy From Titan Tools Direct?

When you purchase the Pro Shot Laser AS2 Dual Grade Rotary Laser from Titan Tools Direct, you're buying from a trusted supplier of professional construction laser, surveying, grading, and machine-control equipment backed by knowledgeable product specialists.

• Authorized Pro Shot Laser Dealer
• Competitive Pricing
• Nationwide Shipping
• Expert Sales & Technical Support
• Trusted by Contractors, Grading Crews & Construction Professionals
• Customer Support Before & After the Sale

Questions?

Need help determining whether the Pro Shot AS2 is the right slope laser for your grading, drainage, or machine-control application?

Call or Text Sales & Technical Support: 832-727-9353

Email: Sales@TitanToolsDirect.com

Our knowledgeable team is happy to assist with product selection, compatibility questions, accessories, availability, and technical support before and after your purchase.

Frequently Asked Questions (FAQ)

Q1: What is the Pro Shot Laser AS2 used for?

The AS2 is designed for precision grade and slope applications including sanitary sewer installation, drainage, grading, excavation, utility work, road construction, earthwork, and machine control.

Q2: What slope range does the AS2 support?

The AS2 supports single-axis slope adjustment from 0 to 25%.

Q3: How precisely can the slope be adjusted?

Slope can be adjusted in increments as fine as 0.01%, allowing operators to closely match specified engineering grades.

Q4: How accurate is the AS2?

The AS2 has a specified accuracy of ±14 arc seconds, equivalent to approximately ±0.080 in. at 100 ft or ±2.0 mm at 30 m.

Q5: What is the working range of the AS2?

The laser provides coverage across a diameter of up to 2,000 feet.

Q6: Is the AS2 self-leveling?

Yes. The AS2 uses servo motor automatic leveling with a leveling range of ±4°.

Q7: Can the AS2 be used with machine control systems?

Yes. The AS2 is machine-control compatible, including applications requiring high-speed laser rotation.

Q8: What batteries does the AS2 use?

The standard power source is four alkaline C-cell batteries, providing up to approximately 200 hours of continuous operation.

Q9: Is a rechargeable battery available?

Yes. An optional NiMH rechargeable battery kit is available and provides up to approximately 95 hours of continuous operation.

Q10: Is the AS2 weather resistant?

The AS2 carries an IP56 dust and water resistance rating for use in demanding field conditions.

Q11: What is the operating temperature range?

The AS2 operates from -4°F to +140°F (-20°C to +60°C).

Q12: What warranty comes with the Pro Shot AS2?

The AS2 includes an 8-year manufacturer warranty.
