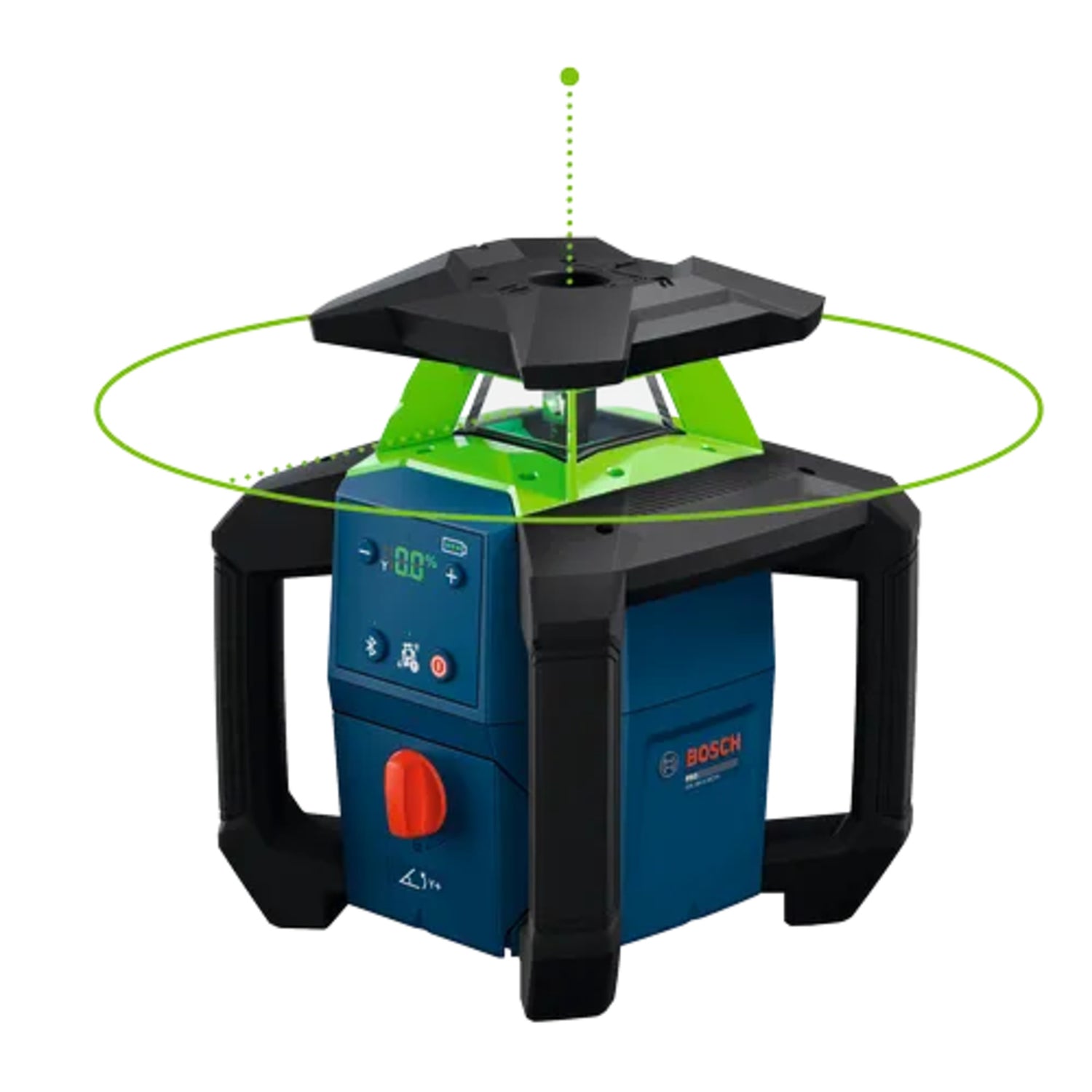

Bosch 18V Green-Beam Horizontal/Vertical Rotary Laser Kit with Carrying Case

Model Number: GRL18V-34K

Engineered to be a comprehensive solution for complex outdoor jobsite leveling, the Bosch GRL18V-34K 18V Rotary Laser Kit delivers high precision with convenient power flexibility to keep the workday moving. Use with either the included 18V 4 Ah battery or C alkaline batteries (sold separately) for extended use or backup power on the jobsite. The intuitive single dial-in slope features an expanded ±15% Y-axis range for more precise results in grading or sloping applications.

A simplified bi-color LED display provides clear visual feedback, making it easy to know if the laser has a slope set (red) or is level (green). IP66 rated, the laser is dust-tight and water-resistant for enhanced durability in harsh job site conditions. It’s also tested to withstand a 5 Ft. tripod tip-over for added confidence on the job. Built for precision, the rotary laser has a working range of up to 1,500 Ft. and delivers accuracy up to ±1/16 In. at 100 Ft. in horizontal applications and ±1/8 In. at 100 Ft. in vertical mode. The enhanced self-leveling range of ±15% helps support faster setup on uneven surfaces and reduces the need for manual adjustments. Fully featured with Bluetooth® connectivity, control the setup of the laser from across the room when paired with a smartphone and the free Bosch Leveling Remote App. An all-in-one solution, this kit comes complete with an LR20 receiver, 18V 4 Ah battery, charger, alkaline battery adapter, tripod, grade rod and plastic carrying case.

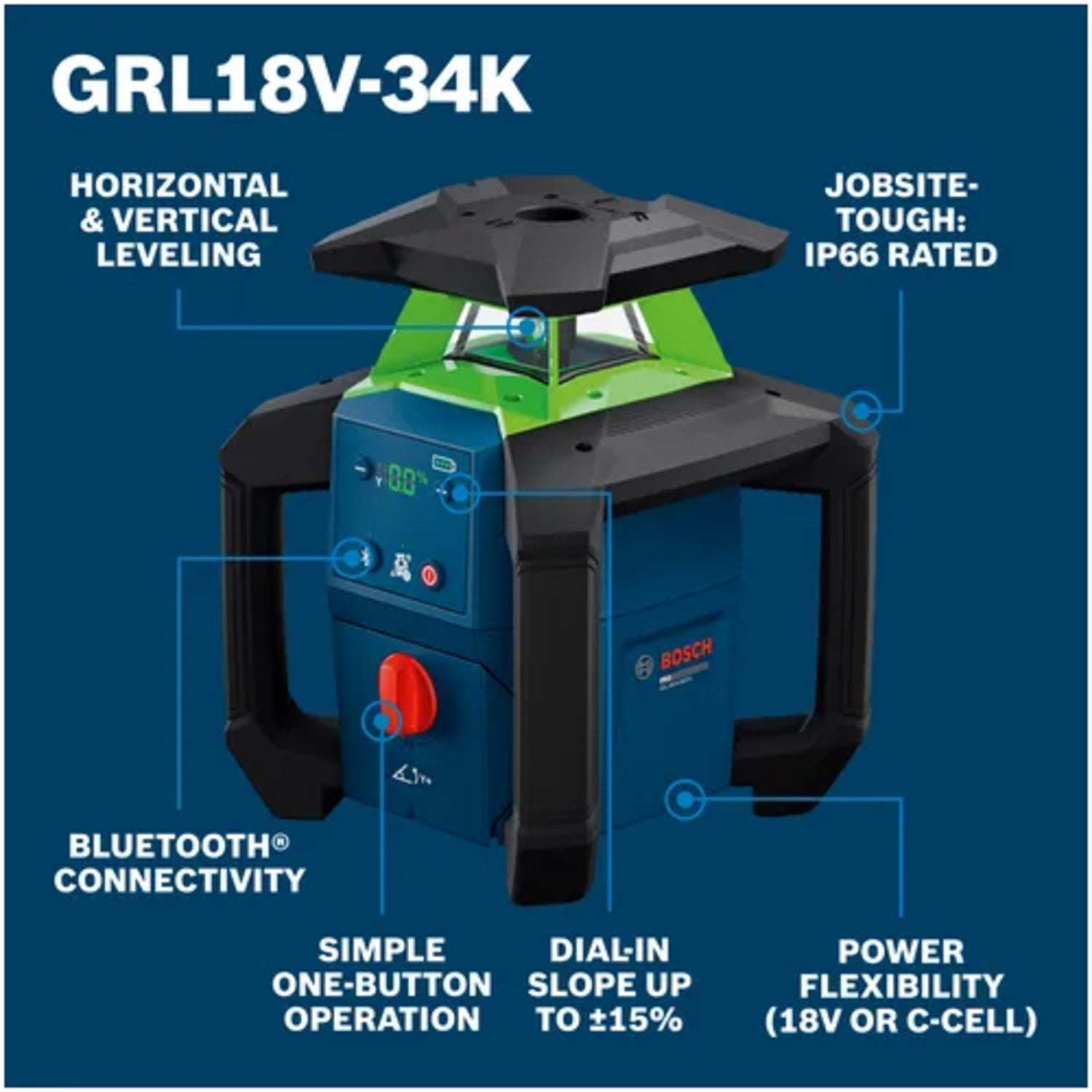

Features:

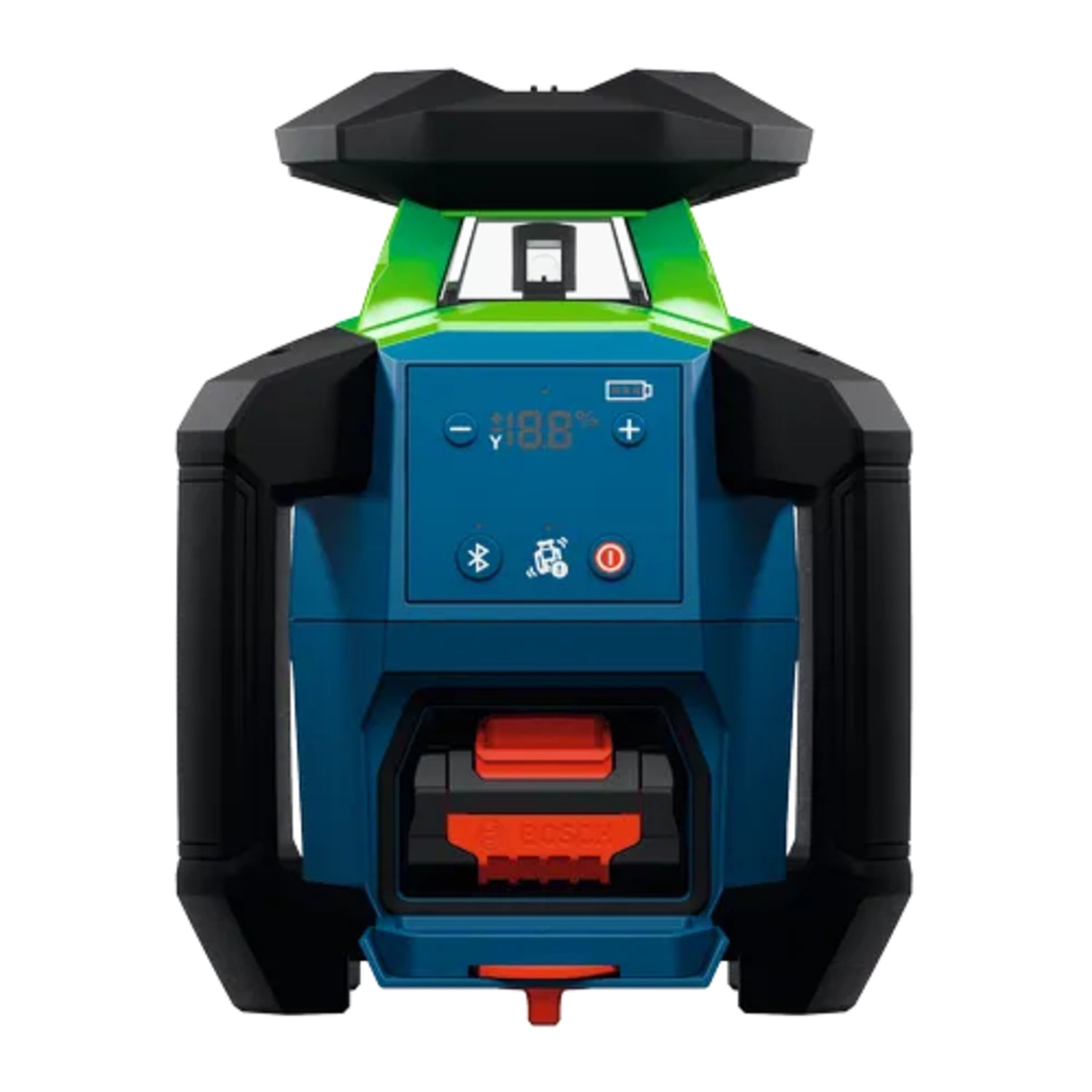

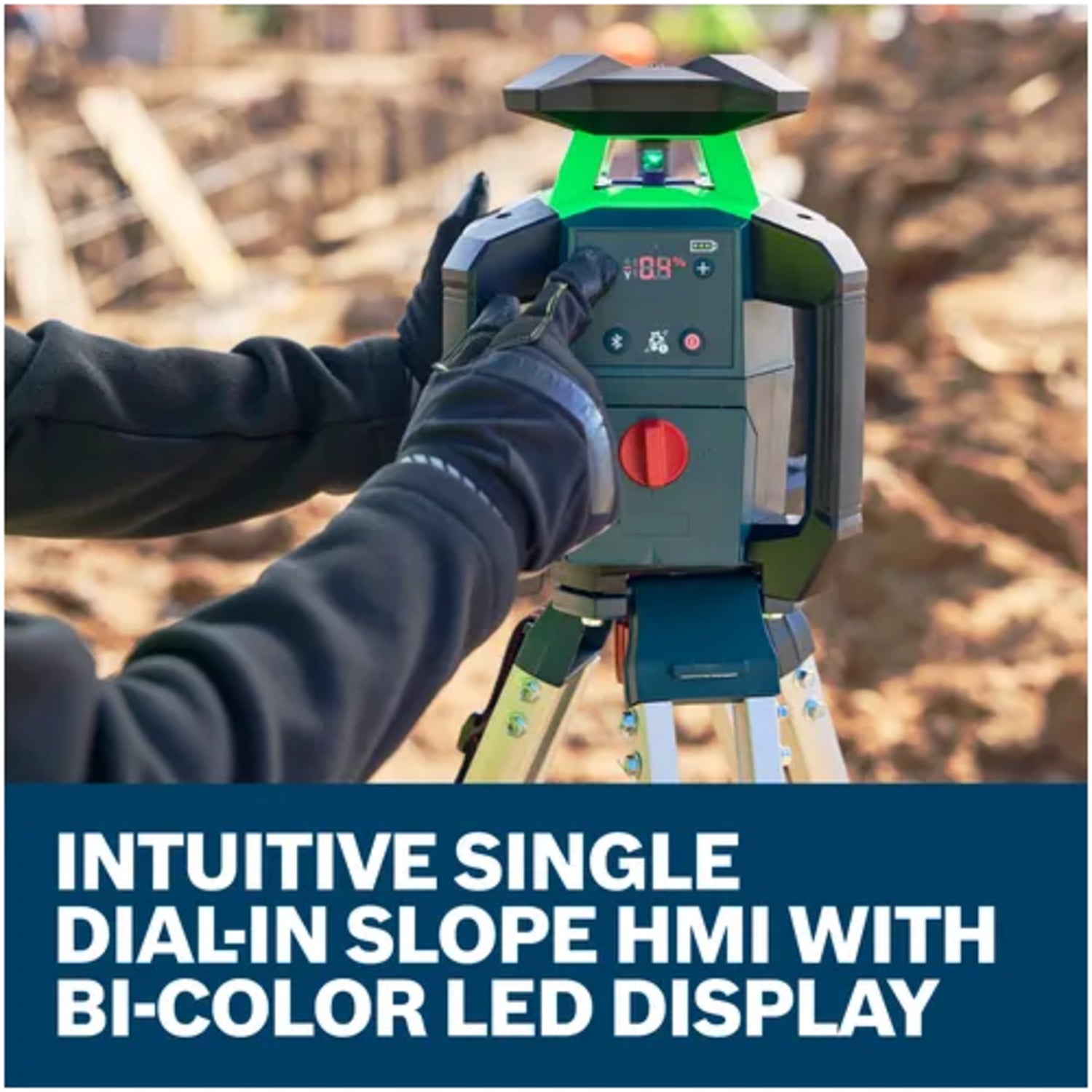

• Simplified, intuitive user interface – with easy-to-read bi-color LED display for quick single dial-in slope readings (green for levelled, red for slope)
• Enhanced slope range – of up to 15% on the Y-Axis

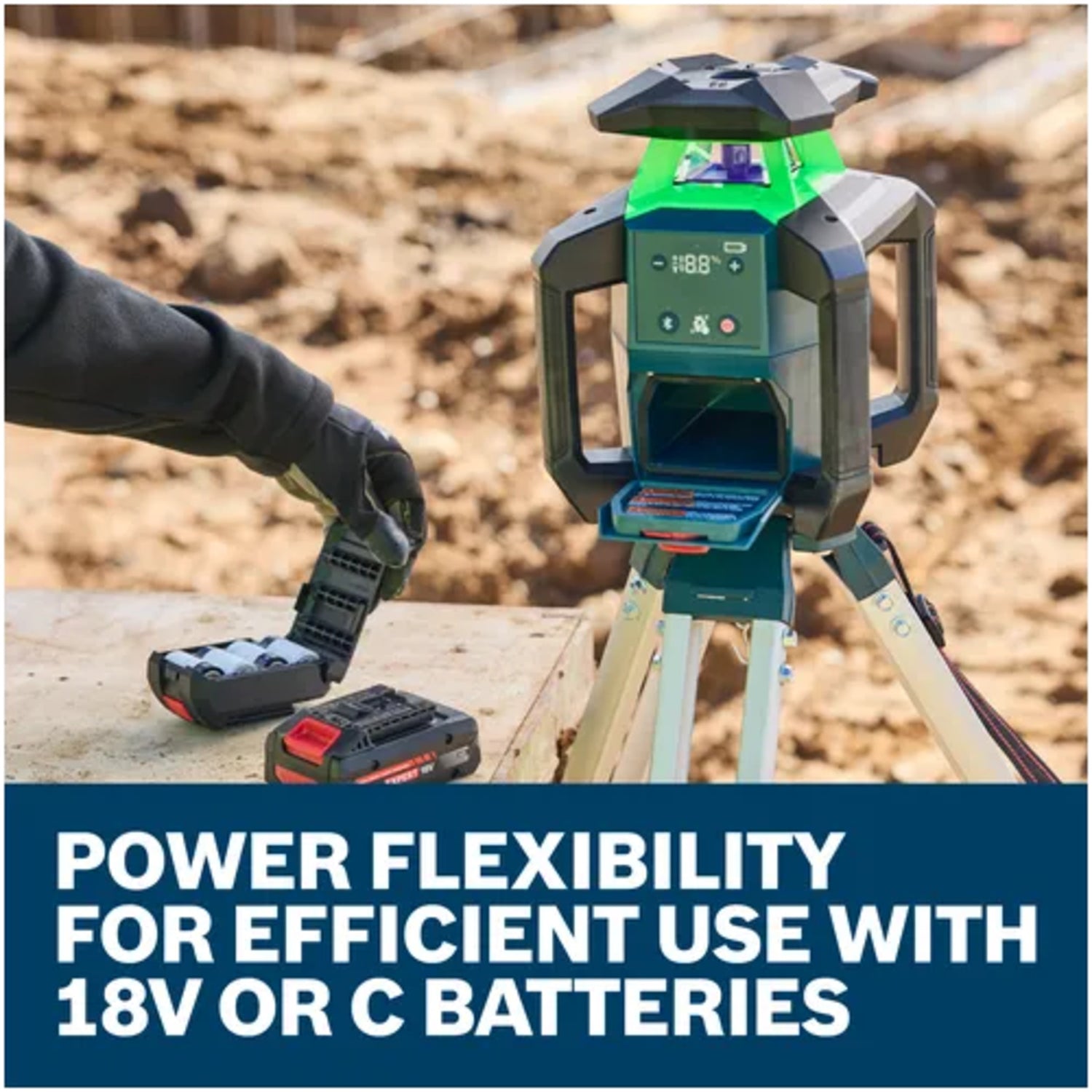

• Power flexibility – works with the included 18V 4 Ah battery or 4 x C alkaline batteries (sold separately)

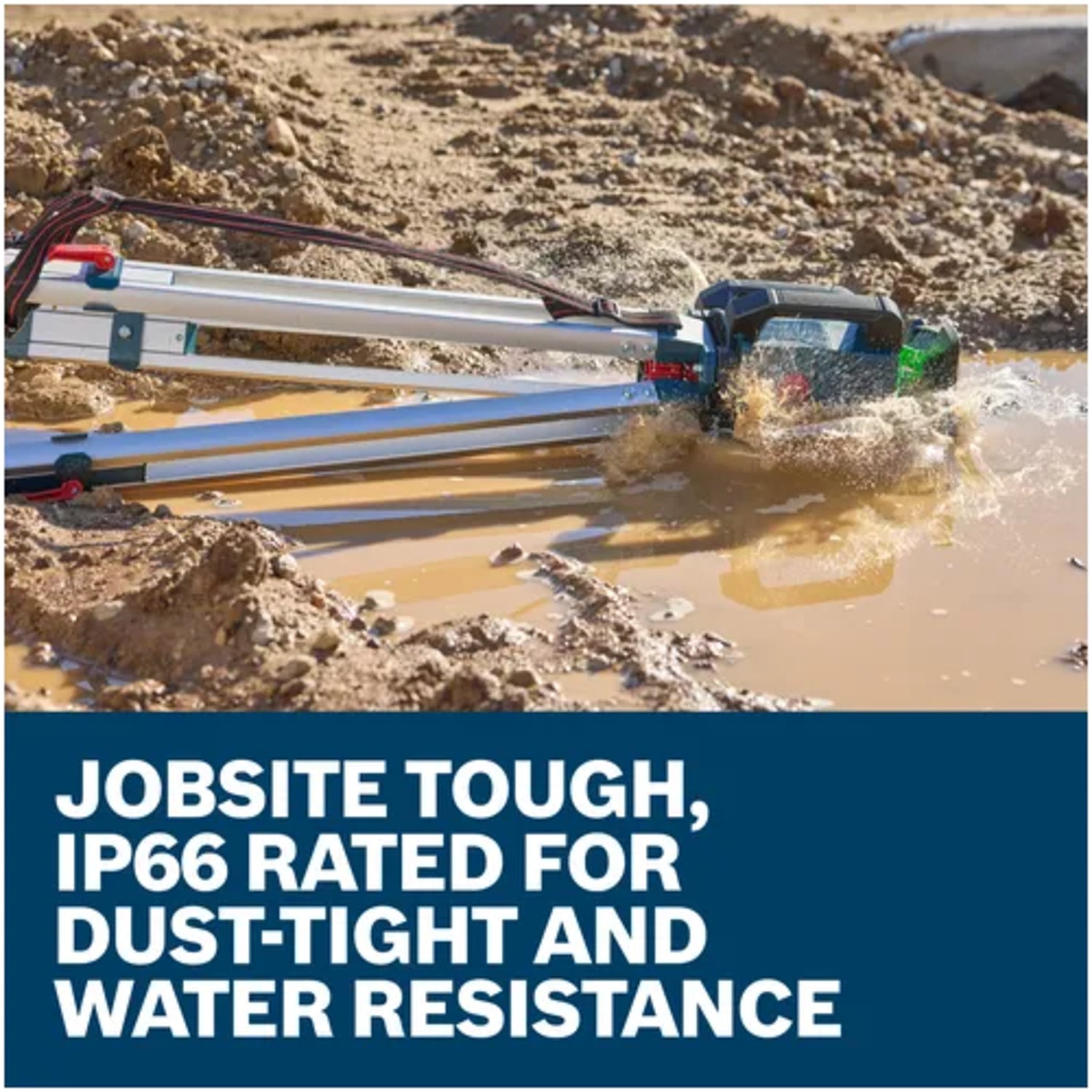

• Jobsite tough construction – IP66 rated for dust-tight, water-resistant durability, and built to help withstand a 5 Ft. tripod tip-over for added robustness
• Bluetooth® connectivity – allows for set-up of laser from a distance using paired smartphone and the Bosch Leveling Remote App ¼ In. and 5/8 In. threading mount – for secure tripod attachment and easy compatibility with the Bosch BB1 Batter Board and WM5 Wall Mount
• Long working range – of up to 1,500 Ft. with accuracy of up to ±1/16 In. at 100 Ft. in horizontal mode, ±1/8 In. at 100 Ft. in vertical mode, and a self-leveling range of ±15%
• Complete rotary laser kit – with LR20 receiver, 18V 4 Ah battery, charger, alkaline adapter, tripod, grade rod and carrying case
• AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
• AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
• Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
• Bosch 18V batteries are covered by a three year limited warranty - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
• Bosch 18V chargers are covered by a five year limited warranty - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99

Specifications:

• Connected: Yes
• Height in: 7.5 "
• IP Rating: IP 66
• Laser Beam Color: Red
• Laser Diode: Class 3R <5mW @ 630 ~ 670nm
• Length in: 7 "
• Leveling Type: Self-Leveling, Up to 5°
• Material: Plastic Composite
• Mount Threading: 5/8-11
• Operating Temperature: 14° F / -10° C ~1 22° F / 50° C
• Range: Up to 2,000-ft.
• Weight: 3.9 lb
• Width in: 6.7 "
• Works With: Laser Receivers, LR20, Tripods, BT160, BT170HD, BT300HD, Grade Rods, GR500, GR16, Mounts and Positioning Devices, WM5, BB1

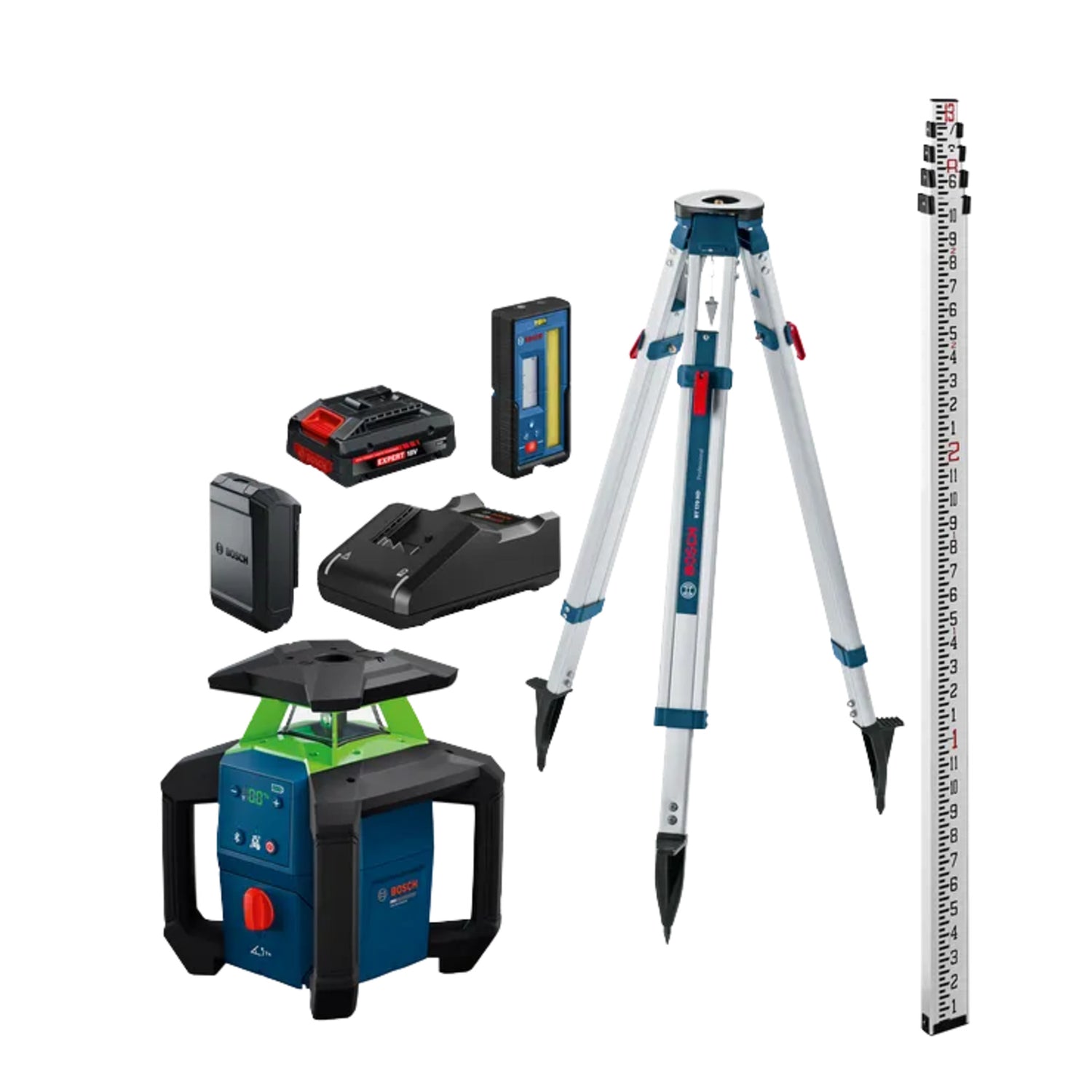

Package Includes:

• (1) GRL18V-4-34CVG Rotary Laser
• (1) EXBA18V-40 18V 4 Ah Battery
• (1) GAL18V-40 Battery Charger
• (1) BA18-C Alkaline Adapter
• (1) LR20 Laser Receiver
• (1) BT170HD Tripod
• (1) GR13 13 Ft. Grade Rod (1) Plastic Carrying Case
