CHCNAV AlphaAir 450 (AA450) Airborne LiDAR+RGB System
Model Number: 8005 010 044
Manufacturer: CHCNAV
Availability Notice: Most items are in stock and ready to ship. However, certain products may experience temporary delays or extended lead times due to ongoing industry-wide supply chain or manufacturing constraints. If your order is affected by a backorder or extended lead time, our team will contact you with the latest availability information. We appreciate your patience and understanding.

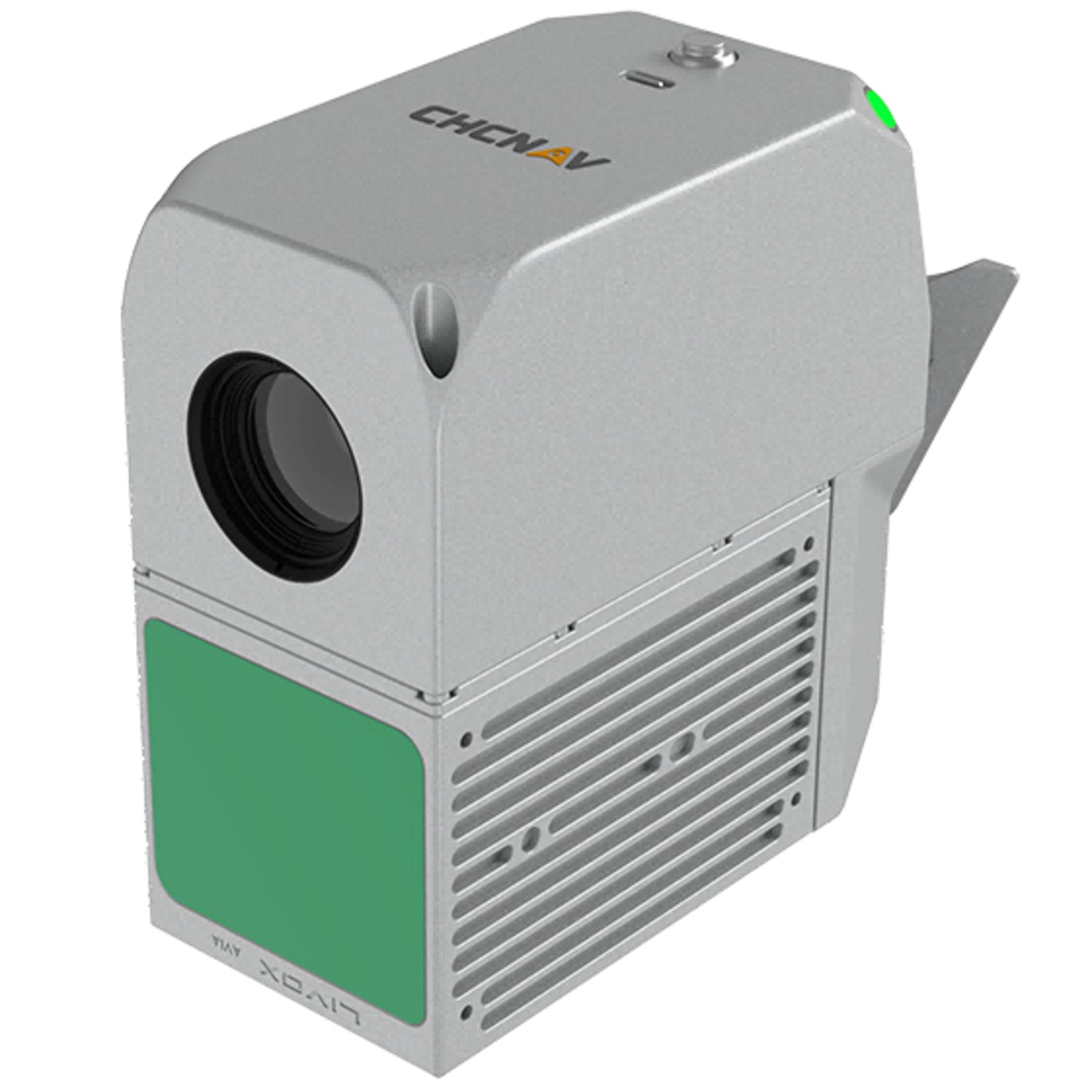

The CHCNAV AlphaAir 450 (AA450) Airborne LiDAR+RGB System is a lightweight aerial reality-capture solution that combines LiDAR scanning, high-resolution RGB imaging, and GNSS + IMU positioning in a single integrated system. Designed to make professional geospatial data acquisition more accessible, the AA450 provides an efficient platform for topographic mapping, surveying, infrastructure inspection, emergency response, and other UAV-based mapping applications.
At the center of the AA450 is a Livox Avia laser scanner capable of measurement ranges up to 450 meters and selectable scanning rates of 240,000, 480,000, or 720,000 pulses per second. The LiDAR scanner provides a 70.4° field of view and supports up to 3 returns, allowing users to efficiently capture dense 3D point clouds across large survey areas.
The LiDAR system is complemented by an integrated professional-grade 26 MP industrial RGB camera, providing high-resolution imagery that can be combined with LiDAR information for enhanced visualization and mapping. Full GNSS positioning and a 500 Hz IMU provide the positioning and orientation information needed for airborne geospatial data collection.
Designed for flexible UAV deployment, the AlphaAir 450 can integrate with platforms including the DJI M300/M350 and CHCNAV BB4, as well as compatible multi-rotor and fixed-wing aircraft. Its IP64 environmental rating provides additional protection for field operations, while included CoPre Standard and CoProcess Engineering Version software support professional post-processing and geospatial data workflows.
Ideal Applications
The CHCNAV AlphaAir 450 is designed for:
- Airborne LiDAR Mapping
- UAV LiDAR Surveys
- Topographic Mapping
- Aerial Surveying
- 3D Reality Capture
- Terrain Mapping
- Corridor Mapping
- Road & Highway Surveys
- Infrastructure Inspection
- Construction Surveys
- Utility Mapping
- Asset Management
- Urban Mapping
- Environmental Surveys
- Emergency Response Mapping
- RGB + LiDAR Data Collection
- DEM & DSM Generation
- Engineering Surveys
- Geospatial Data Collection
Available Package Options
This configuration combines the AlphaAir 450 LiDAR+RGB system with CHCNAV processing software and field accessories.
| Package |
Includes |
Best For |
| CHCNAV AlphaAir 450 LiDAR+RGB System |
AA450 Unit with AlphaPorts, CoPre Standard, CoProcess Engineering Version, CoPre USB Dongle, Data Accessories & Transport Container |
Surveyors, engineers, UAV mapping professionals, and geospatial teams requiring an integrated LiDAR and RGB aerial mapping solution. |
Compare Package Options
| Feature |
CHCNAV AlphaAir 450 |
| Integrated LiDAR Scanner |
✔ |
| Livox Avia Scanner |
✔ |
| Maximum Range Up to 450 m |
✔ |
| Up to 720,000 Pulses/Second |
✔ |
| 70.4° Field of View |
✔ |
| Up to 3 Returns |
✔ |
| Full GNSS |
✔ |
| 500 Hz IMU |
✔ |
| Integrated 26 MP RGB Camera |
✔ |
| DJI M300/M350 Compatibility |
✔ |
| CHCNAV BB4 Compatibility |
✔ |
| CoPre Standard |
✔ |
| CoProcess Engineering Version |
✔ |
| IP64 Rating |
✔ |
Which Package Should I Choose?
CHCNAV AlphaAir 450 LiDAR+RGB System
Choose the AA450 if you need an integrated airborne mapping system that combines LiDAR point cloud collection, RGB imagery, and GNSS + IMU positioning in one streamlined UAV payload.
The AA450 is particularly well suited for organizations looking for a cost-effective entry into professional airborne LiDAR without sacrificing the core capabilities required for surveying, topographic mapping, infrastructure inspection, and 3D reality capture.
Recommended For:
- Professional Land Surveyors
- Geospatial Mapping Companies
- UAV Survey Companies
- Engineering Firms
- Construction Companies
- Infrastructure Consultants
- Transportation Agencies
- Utility Companies
- Government Agencies
- Emergency Response Teams
- Environmental Consultants
- Research Organizations
Key Features
Integrated LiDAR + RGB Mapping
The AlphaAir 450 combines a Livox Avia LiDAR scanner with a professional-grade 26 MP industrial camera, allowing operators to capture both dense 3D point clouds and high-resolution RGB imagery during aerial survey missions.
This integrated approach provides richer geospatial datasets for mapping, visualization, terrain modeling, infrastructure inspection, and other reality-capture applications.
Up to 450-Meter LiDAR Range
The AA450 provides a maximum specified LiDAR measurement range of up to 450 meters, enabling efficient aerial data collection across large project areas.
Its extended range helps operators cover more terrain efficiently during a single UAV flight.
Selectable High-Speed Scanning
The LiDAR scanner supports multiple scanning rates:
- 240,000 pulses/second
- 480,000 pulses/second
- 720,000 pulses/second
Selectable scanning rates allow survey teams to adapt data acquisition to different project requirements.
70.4° Field of View
A 70.4-degree field of view provides broad LiDAR coverage during flight, helping improve data collection efficiency across topographic and infrastructure mapping projects.
Up to 3 Returns
The AA450 supports up to 3 returns, allowing the LiDAR system to capture multiple target responses from individual laser pulses.
This provides additional information when surveying complex surfaces and areas containing vegetation.
Integrated 26 MP Industrial Camera
A professional-grade 26 MP RGB camera is integrated into the AlphaAir 450, providing high-resolution aerial imagery alongside LiDAR data.
Combining RGB imagery with point clouds can improve feature interpretation, visualization, colorization, and 3D mapping workflows.
Full GNSS Positioning
The AA450 incorporates full GNSS positioning to provide spatial positioning information during airborne data collection.
500 Hz IMU
A high-frequency 500 Hz IMU records aircraft motion and orientation information, supporting accurate georeferencing of the collected LiDAR and imaging data.
Positioning Precision
The supplied specifications list maximum positioning precision of:
- 10 cm Horizontal
- 5 cm Vertical
Actual project accuracy can vary based on flight conditions, GNSS availability, survey configuration, processing methods, and other operational factors.

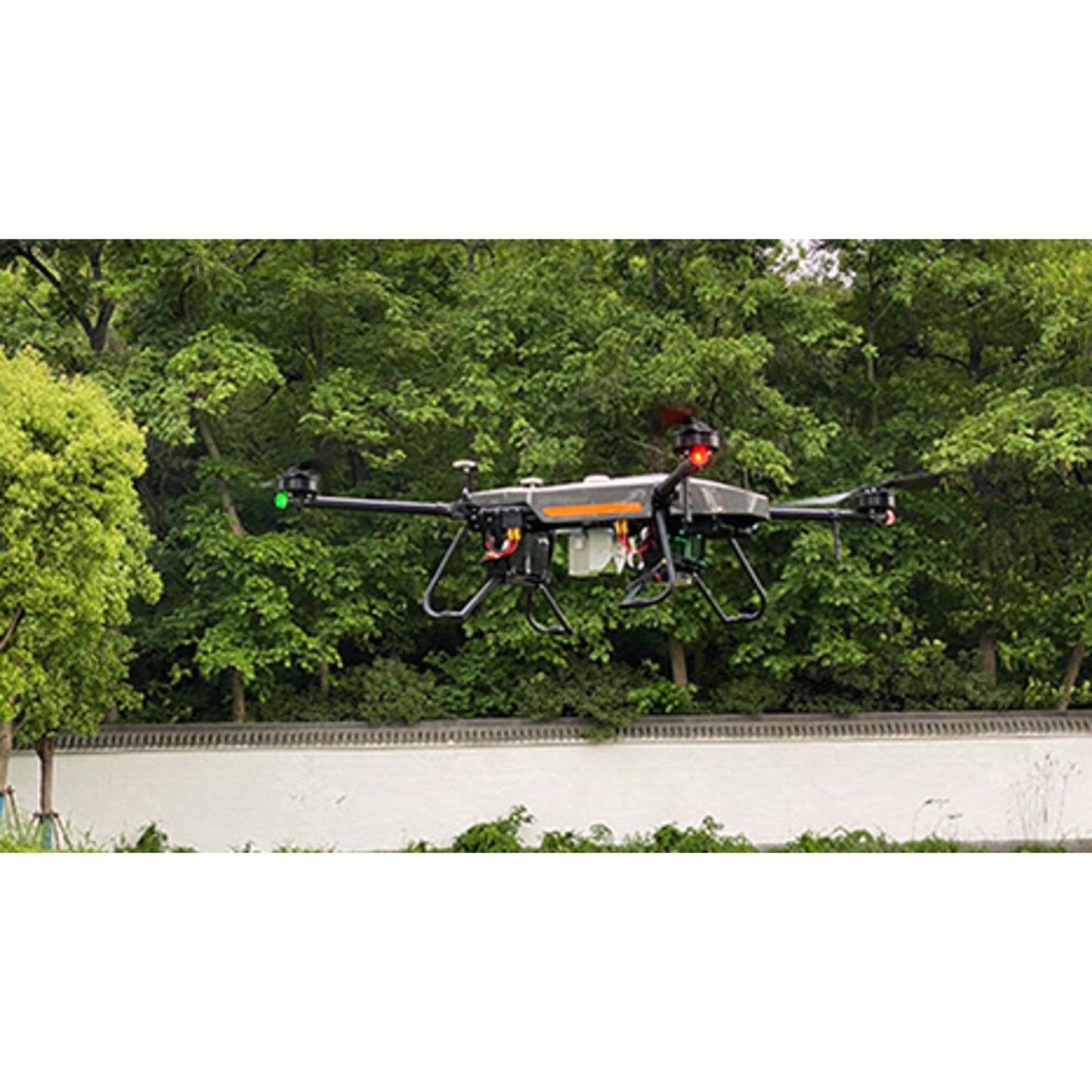

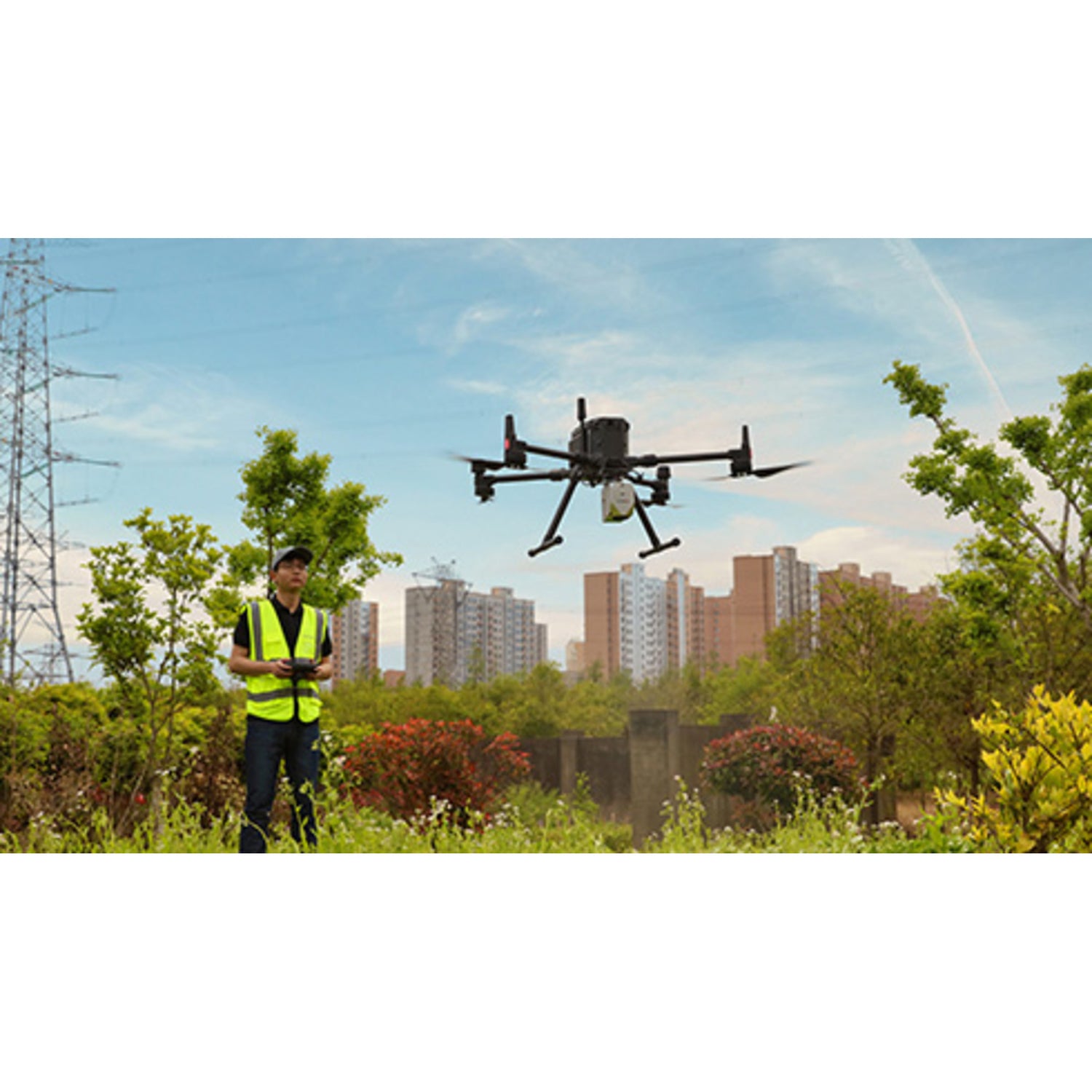

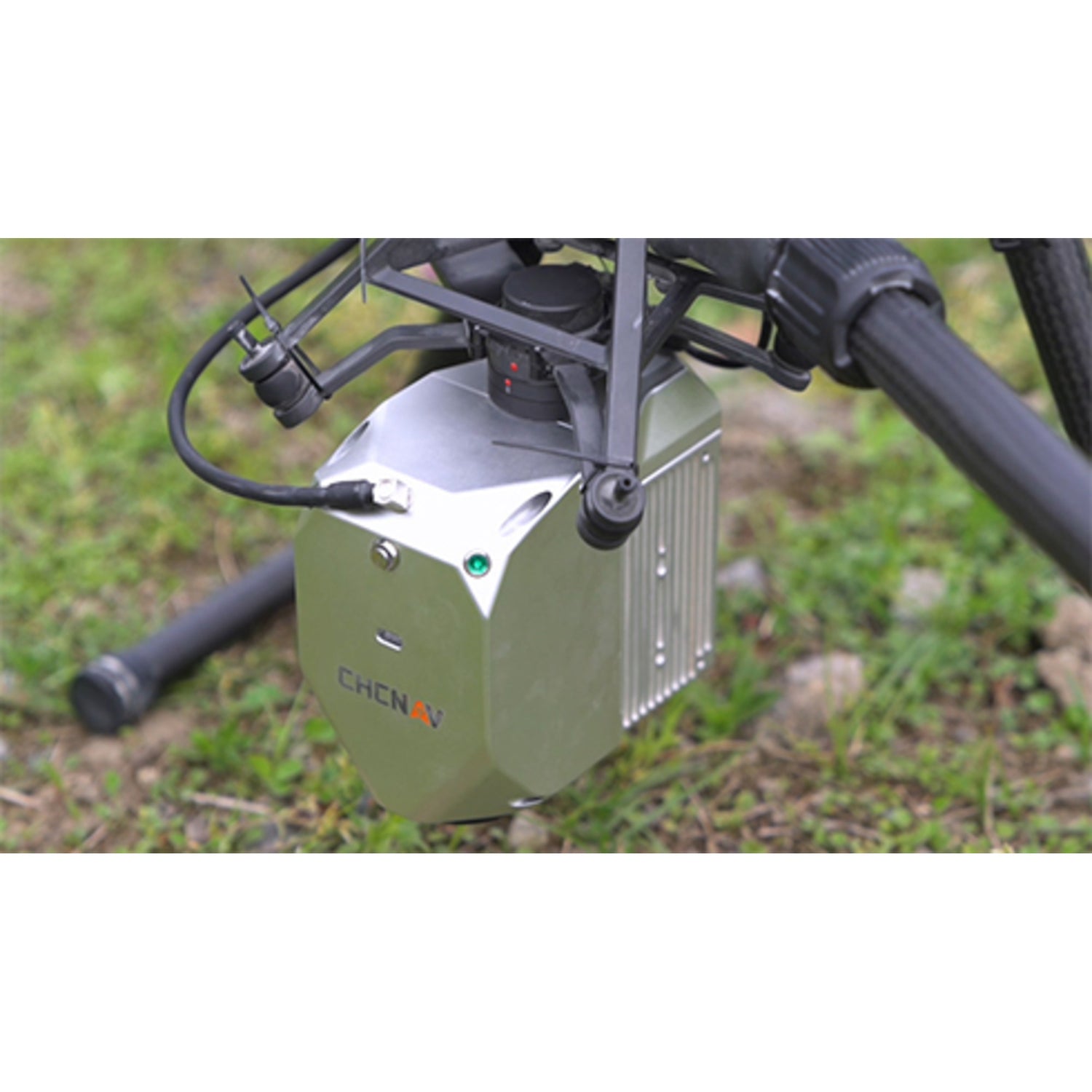

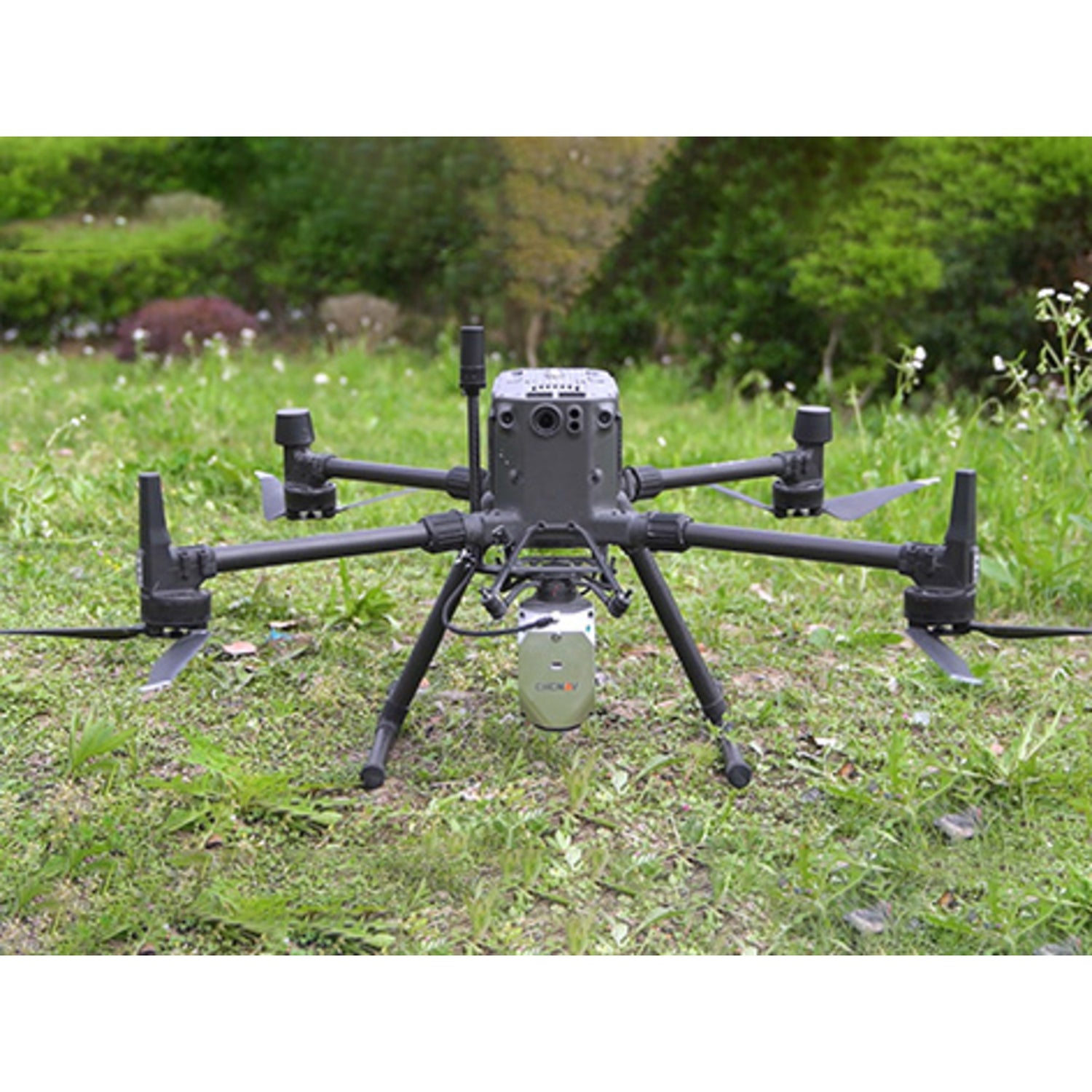

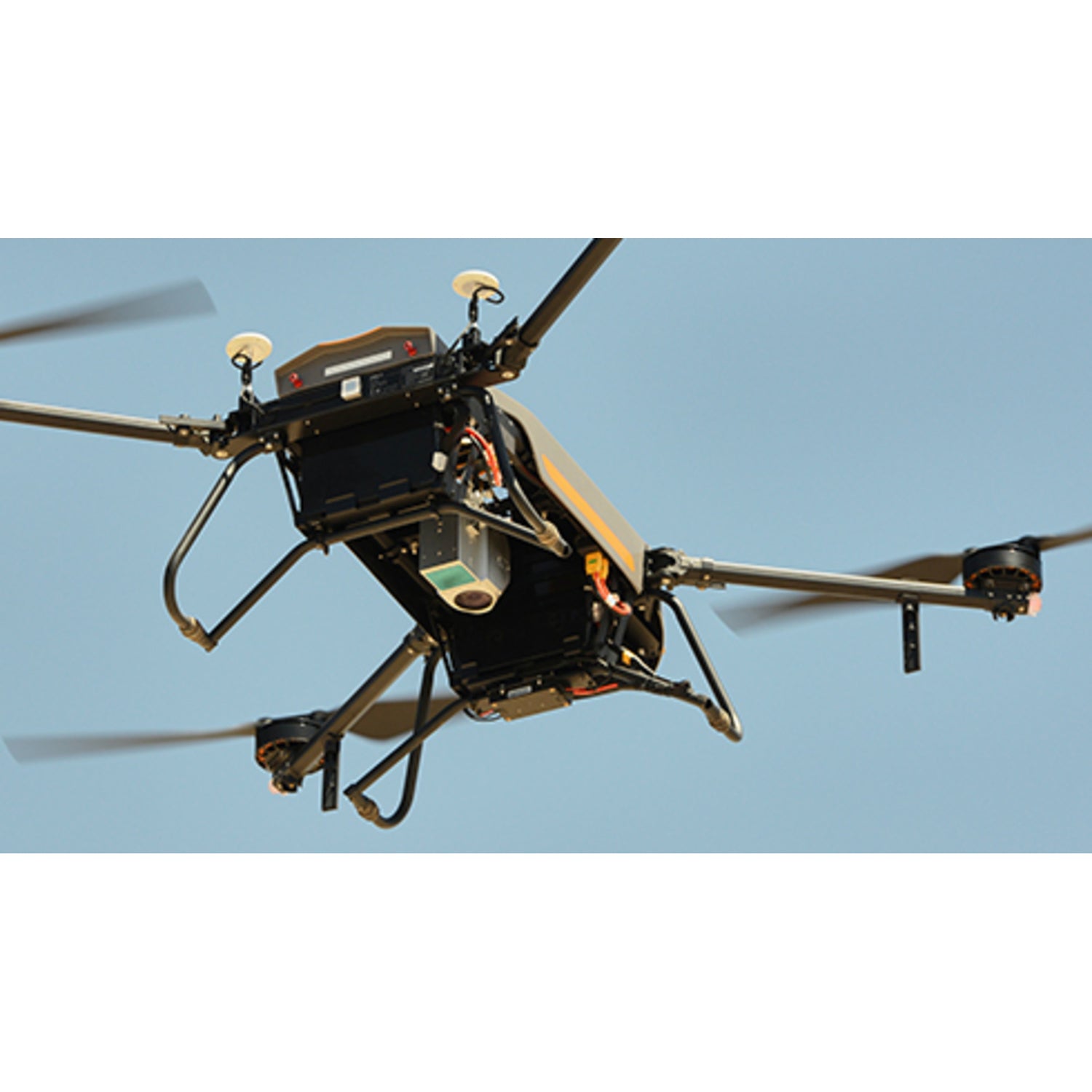

Multi-Platform UAV Integration
The AlphaAir 450 supports integration with multiple UAV platforms, including:
- DJI M300
- DJI M350
- CHCNAV BB4
- Compatible Multi-Rotor UAVs
- Compatible Fixed-Wing UAVs
This flexibility allows survey teams to select an aircraft appropriate for their project requirements.
AlphaPort Integration
This package includes the AlphaAir 450 Unit with AlphaPorts, supporting integration within CHCNAV's aerial mapping ecosystem.
Wireless & Cellular Connectivity
The AA450 provides multiple connectivity options, including:
- Bluetooth
- Wi-Fi
- NFC
- 4G LTE
These connectivity capabilities support flexible system communication and field workflows.
IP64 Environmental Protection
The IP64-rated system provides protection against dust and water exposure, supporting professional field operation in a variety of environmental conditions.
CoPre Standard Included
This package includes CoPre Standard, supporting professional data post-processing and alignment workflows.
CoProcess Engineering Version Included
The package also includes CoProcess Engineering Version, expanding the system's processing workflow for engineering and geospatial applications.
Technical Specifications
| Specification |
Value |
| Product Type |
Airborne LiDAR + RGB Mapping System |
| Model |
AlphaAir 450 (AA450) |
| Model Number |
8005 010 044 |
| Manufacturer |
CHCNAV |
| Laser Scanner |
Livox Avia |
| Maximum Range |
Up to 450 m |
| Scanning Rates |
240,000 / 480,000 / 720,000 Pulses/Second |
| Field of View |
70.4° |
| Returns |
Up to 3 |
| GNSS |
Full GNSS |
| IMU |
500 Hz |
| Maximum Horizontal Positioning Precision |
10 cm |
| Maximum Vertical Positioning Precision |
5 cm |
| RGB Camera |
Integrated |
| Camera Resolution |
26 MP |
| Environmental Rating |
IP64 |
| UAV Compatibility |
DJI M300/M350, CHCNAV BB4 & Compatible UAV Platforms |
Connectivity Specifications
| Specification |
Value |
| Bluetooth |
Yes |
| Wi-Fi |
Yes |
| NFC |
Yes |
| Cellular |
4G LTE |
Software
| Software |
Package Status |
| CoPre Standard |
Included |
| CoProcess Engineering Version |
Included |
| CoPre USB Dongle |
Included |
| Additional Software |
May Be Required Depending on Application |
What's Included
- (1) Y1A201179500000002 – AlphaAir 450 Unit (AlphaPorts)
- (1) 3204 070 002 – USB Dongle for CoPre
- (2) 1904 110 662 – CoPre Standard
- (1) 4109 020 169 – CoProcess Engineering Version
- (1) 0105 030 123 – Type-C to USB 3.1 Data Copy Cable, 1 m
- (1) 4108 030 009 – CZ73 32 GB USB Disk
- (1) 4106 040 184 – Transport Container for AlphaAir 450
Software Notice
This AlphaAir 450 package specifically lists CoPre Standard and CoProcess Engineering Version among its included components.
Some applications, processing workflows, or optional equipment may require additional software or licenses that are sold separately. Additional software should not be assumed to be included unless specifically identified in the package contents.
Contact Titan Tools Direct to confirm software licensing, UAV integration requirements, and the complete system configuration needed for your application.
Why Choose the CHCNAV AlphaAir 450?
The CHCNAV AlphaAir 450 provides an accessible solution for organizations looking to add professional airborne LiDAR and RGB reality capture to their surveying and mapping capabilities. Its integrated Livox Avia scanner, 26 MP industrial camera, full GNSS, and 500 Hz IMU combine the primary components required for aerial geospatial data collection into one system.
With a range of up to 450 meters, scanning rates reaching 720,000 pulses per second, and compatibility with popular UAV platforms such as the DJI M300/M350 and CHCNAV BB4, the AA450 can support projects ranging from topographic mapping and infrastructure surveys to emergency response and urban mapping.
The included CoPre Standard and CoProcess Engineering software further support the workflow from field data acquisition through processing, making the AA450 a practical option for surveying, engineering, and geospatial organizations implementing airborne LiDAR technology.
Common Applications
- UAV LiDAR Mapping
- Aerial Surveying
- Topographic Mapping
- Terrain Modeling
- 3D Reality Capture
- Road Surveys
- Highway Mapping
- Corridor Mapping
- Infrastructure Inspection
- Construction Mapping
- Utility Mapping
- Asset Management
- Urban Mapping
- Engineering Surveys
- Environmental Mapping
- Emergency Response
- DEM Generation
- DSM Generation
- RGB Point Cloud Visualization
- Geospatial Data Collection
Why Buy From Titan Tools Direct?
When you purchase the CHCNAV AlphaAir 450 (AA450) Airborne LiDAR+RGB System from Titan Tools Direct, you're buying from a trusted supplier of professional surveying, geospatial, LiDAR, and aerial mapping equipment backed by knowledgeable product specialists.
- Authorized CHCNAV Dealer
- Competitive Pricing
- Nationwide Shipping
- Expert Sales & Technical Support
- System Configuration Assistance
- Trusted by Surveyors, Engineers & Geospatial Professionals
- Customer Support Before & After the Sale
Questions?
Need help determining whether the CHCNAV AlphaAir 450 is the right airborne LiDAR system for your UAV and mapping workflow?
Call or Text Sales & Technical Support: 832-727-9353
Email: Sales@TitanToolsDirect.com
Our knowledgeable team is happy to assist with product selection, UAV compatibility, software requirements, system configuration, accessories, availability, and technical support before and after your purchase.
Frequently Asked Questions (FAQ)
Q1: What is the CHCNAV AlphaAir 450 used for?
The AA450 is designed for airborne LiDAR and RGB data collection for applications including topographic mapping, corridor surveys, infrastructure inspection, road mapping, urban mapping, construction surveys, environmental monitoring, emergency response, and 3D reality capture.
Q2: What LiDAR scanner does the AlphaAir 450 use?
The AA450 integrates a Livox Avia laser scanner for airborne point cloud acquisition.
Q3: What is the maximum LiDAR range of the AA450?
The AlphaAir 450 has a maximum specified measurement range of up to 450 meters.
Q4: What scanning rates does the AA450 support?
The system supports selectable scanning rates of 240,000, 480,000, and 720,000 pulses per second.
Q5: Does the AlphaAir 450 include a camera?
Yes. The AA450 integrates a professional-grade 26 MP industrial RGB camera for collecting high-resolution imagery alongside LiDAR data.
Q6: Which UAVs are compatible with the AlphaAir 450?
The AA450 supports UAV platforms including the DJI M300, DJI M350, and CHCNAV BB4, along with other compatible multi-rotor and fixed-wing platforms.
Q7: What positioning technology does the AA450 use?
The AA450 combines full GNSS positioning with a 500 Hz IMU to provide position and orientation information for airborne mapping.
Q8: What is the specified positioning precision?
The supplied specifications list maximum positioning precision of 10 cm horizontal and 5 cm vertical.
Q9: How many LiDAR returns does the AA450 support?
The AlphaAir 450 supports up to 3 returns.
Q10: What software is included with the AlphaAir 450?
The supplied package list includes CoPre Standard and CoProcess Engineering Version, along with a USB dongle for CoPre.
Q11: What connectivity does the AA450 support?
The system supports Bluetooth, Wi-Fi, NFC, and 4G LTE connectivity.
Q12: Is the AlphaAir 450 weather resistant?
The AA450 carries an IP64 environmental rating, providing protection against dust and water exposure for field operation.
