CHCNAV i83 Smart IMU-RTK GNSS Rover Kit | Survey-Grade RTK GPS Receiver with 34-Hour Battery Life

Professional GNSS Rover for Land Surveying, Construction Layout, GIS Mapping, and Utility Data Collection

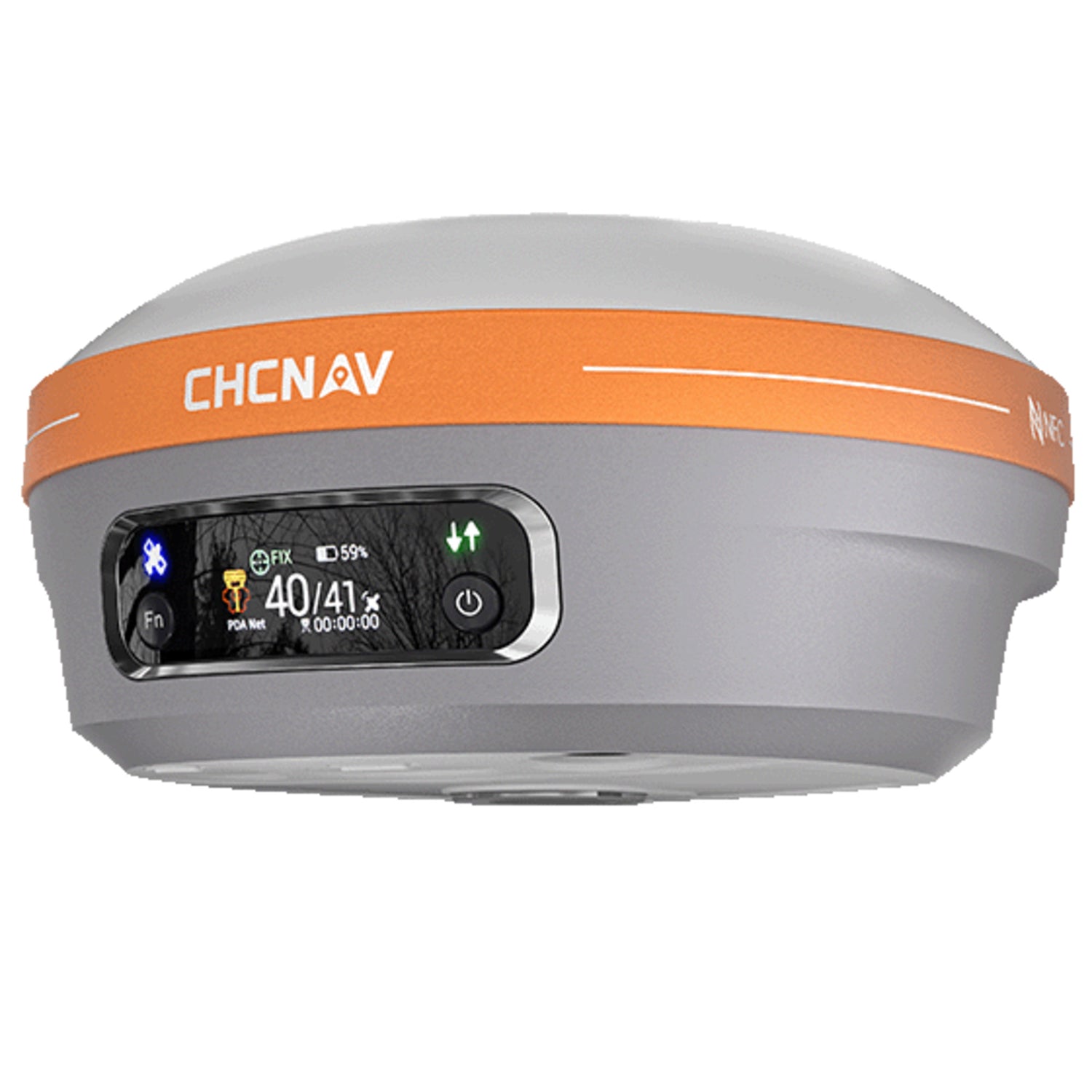

The CHCNAV i83 Smart IMU-RTK GNSS Rover Kit is a powerful survey-grade RTK GPS receiver designed for land surveyors, construction professionals, engineers, utility contractors, and GIS specialists who require reliable centimeter-level accuracy in demanding field conditions. Featuring 1408 GNSS channels, advanced IMU tilt compensation, full multi-constellation satellite tracking, and industry-leading connectivity options, the i83 delivers the speed, precision, and flexibility needed for modern surveying workflows. Whether you're performing boundary surveys, topographic mapping, construction staking, utility locating, as-built documentation, or GIS data collection, the CHCNAV i83 helps crews work faster while maintaining exceptional positioning accuracy.

Built for all-day productivity, the i83 combines Bluetooth, Wi-Fi, NFC, UHF radio, and 4G LTE connectivity into a rugged IP67-rated housing that weighs just 1.15 kg. Its calibration-free IMU technology allows users to accurately collect points without leveling the survey pole, increasing field efficiency by up to 30% while improving safety around roadways, structures, vegetation, and difficult terrain. With up to 34 hours of continuous RTK rover operation, a high-resolution OLED display, and a perpetual software license included, the CHCNAV i83 is one of the most capable and cost-effective GNSS rover solutions available today. Titan Tools Direct is a trusted source for CHCNAV GNSS equipment, providing expert product guidance, competitive pricing, fast nationwide shipping, and knowledgeable support before and after the sale.

Why Surveyors Choose the CHCNAV i83

The CHCNAV i83 is engineered for professionals who need dependable RTK performance without sacrificing portability, battery life, or ease of use.

Key Benefits

• Survey-grade RTK GPS accuracy
• 1408-channel GNSS engine
• Advanced calibration-free IMU tilt compensation
• Up to 34 hours of continuous RTK rover operation
• GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS support
• Bluetooth, Wi-Fi, NFC, UHF, and 4G LTE connectivity
• Rugged IP67 and MIL-STD-810H certified design
• Lightweight and compact for all-day field use
• Perpetual software license included

Calibration-Free IMU Tilt Compensation

One of the most valuable features of the CHCNAV i83 is its advanced IMU tilt compensation technology.

Unlike traditional GNSS receivers that require the pole to remain perfectly vertical, the i83 allows users to measure points accurately while the pole is tilted.

Benefits of Tilt Compensation

• Faster point collection
• Improved field productivity
• Reduced setup time
• Increased safety near roads and hazardous locations
• Easier measurements around buildings, fences, and obstacles
• No calibration required

For many surveyors, IMU technology can dramatically reduce field time while maintaining professional-grade accuracy.

Full GNSS Tracking with 1408 Channels

The i83 supports all major satellite constellations simultaneously, providing exceptional signal availability and positioning reliability.

Supported GNSS Constellations

• GPS
• GLONASS
• Galileo
• BeiDou
• QZSS
• SBAS

By tracking more satellites across multiple constellations, the i83 maintains strong RTK performance even in challenging environments such as urban corridors, wooded areas, and construction sites.

Built for Long Days in the Field

The integrated 9600 mAh battery provides exceptional operating time for demanding projects.

Battery Performance

• Up to 34 hours as an RTK rover
• Up to 16 hours as an RTK base
• Reduced downtime
• Fewer charging interruptions
• Ideal for large projects and multi-day field operations

For surveyors working long shifts, battery life is often one of the most important factors when selecting a GNSS receiver.

Rugged Design for Real-World Surveying

The CHCNAV i83 is designed to withstand the harsh conditions encountered on active jobsites.

Durability Features

• IP67 dustproof and waterproof rating
• MIL-STD-810H certified
• Shock resistant
• Vibration resistant
• Built for construction, surveying, and infrastructure projects

Whether you're working in rain, dust, heat, cold, or rugged terrain, the i83 is built to perform.

Who Should Buy the CHCNAV i83?

The i83 is an excellent choice for:

Land Surveyors

Boundary surveys, control surveys, topographic mapping, and stakeout work.

Construction Contractors

Construction layout, grading, excavation, and site development projects.

Utility Mapping Professionals

Utility locating, infrastructure documentation, and asset management.

GIS Specialists

High-accuracy GIS data collection and geospatial mapping projects.

Engineering Firms

Infrastructure, transportation, environmental, and civil engineering applications.

Frequently Asked Questions

What accuracy does the CHCNAV i83 provide?

The i83 delivers survey-grade RTK accuracy with positioning performance up to 0.8 cm horizontal and 1.5 cm vertical under optimal conditions.

How long does the battery last?

The integrated 9600 mAh battery provides up to 34 hours of continuous RTK rover operation.

Does the CHCNAV i83 support tilt compensation?

Yes. The i83 features calibration-free IMU tilt compensation that allows accurate point collection without leveling the pole.

Which satellite constellations are supported?

The receiver supports GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS.

Is the CHCNAV i83 waterproof?

Yes. The receiver carries an IP67 rating for dust and water resistance and is designed for demanding outdoor environments.

Is a software license included?

Yes. The CHCNAV i83 includes a perpetual software license, helping reduce long-term ownership costs.

What's Included in the CHCNAV i83 Rover Kit?

• CHCNAV i83 GNSS Receiver
• UHF Whip Antenna
• USB-C Cable
• Range Pole
• Auxiliary H.I. Tool
• Power Adapter
• Protective Transport Hard Case

Everything needed to deploy a professional RTK GNSS rover in the field.

Why Buy the CHCNAV i83 from Titan Tools Direct?

Titan Tools Direct supplies professional GNSS receivers, RTK GPS systems, surveying equipment, construction layout tools, GIS mapping solutions, and geospatial technology to customers across North America.

When purchasing from Titan Tools Direct, customers receive:

• Competitive pricing
• Expert GNSS product guidance
• Assistance selecting the right rover and base station configuration
• Fast nationwide shipping
• Support before and after the sale
• Access to accessories and replacement components
• Knowledgeable staff experienced in surveying and RTK workflows

Unlike general online retailers, Titan Tools Direct works directly with surveyors, engineers, contractors, municipalities, and GIS professionals to ensure customers purchase the right equipment for their specific application.

If you're looking for a rugged, highly accurate, and feature-rich RTK GNSS rover with exceptional battery life and advanced IMU technology, the CHCNAV i83 is one of the best values in professional surveying equipment available today.
