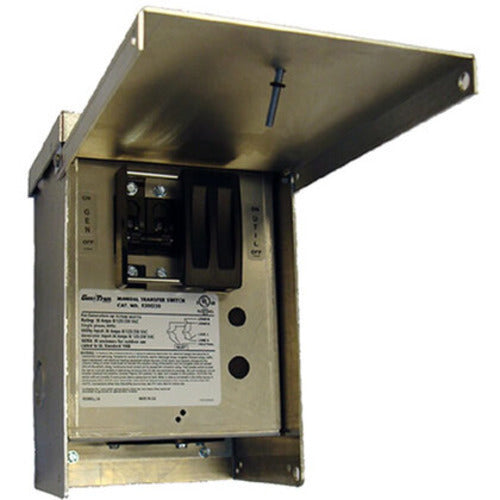

The Generac 30A Single-Circuit Manual Transfer Switch is designed for portable generators with a minimum output of 5kW and a 30-Amp receptacle, this manual transfer switch allows you to safely power 1-2 critical circuits—such as a gas furnace, well pump, or electric water heater—or two smaller circuits like a refrigerator or sump pump. It can be installed indoors or outdoors and features a direct cord connection for quick and easy setup with your generator.

• NEMA 3R enclosure (outdoor rated)
• Feed generator power to one or two critical circuits during a power outage--for example, a well pump, water heater, or septic lift pump
• L14-30 inlet on bottom of enclosure for cord connection

• Model: 6377
• UPC Code: 696471063776
• Number of Circuits Provided: 2
• Maximum Number of Circuits: 2
• Maximum Amperage: 30
• Voltage: 125 / 250, 1Ø
• Required AC Frequency: 60 Hz
• Included Breakers: 30 Amp, 2-Pole
• Enclosure: Outdoor (NEMA 3R)
• NEMA Configuration of Inlet: L14-30
• Warranty: Two Year Limited

• 6337 - 30A Power Inlet Box: Rain-tight resin (bottom connection), NEMA L14-30
• 6340 - 30A Power Inlet Box: Rain-tight resin with flip lid (bottom connection), NEMA L14-30
• 6343 - 30A Power Inlet Box: Rain-tight aluminum (bottom connection), NEMA L14-30
• 6346 - 30A Power Inlet Box: Aluminum with flip lid (front connection), NEMA L14-30
• 6327 - 10 ft (3 m) 30A Generator Cord: NEMA L14-30 ends
• 6328 - 25 ft. (7.6 m) 30A Generator Cord: NEMA L14-30 ends
• 6329 - 50 ft. 30A (15.2 m) Generator Cord: NEMA L14-30 ends

• Product L x W x H (in / mm): 9 x 6 x 5 (229 x 152 x 127)
• Product Weight - lbs (kg): 5 (2.25)

Click Here for Owners Manual

Click Here for Spec Sheet

*Spec sheet might include optional accessories not included with this purchase
