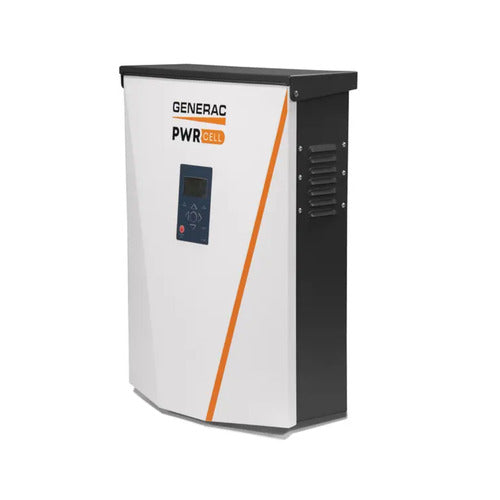

The Generac PWRcell Inverter - 7.6kW Single-Phase Inverter w/ CTs offers a simple, efficient design for integrating smart batteries with solar and Generac generators. Ideal for backup power applications, as well as self-supply and zero-export energy cost management, PWRcell Inverters are among the most feature-rich in the industry.

• Single inverter for solar + battery storage and generator integration
• Simplified system design: No autotransformer or battery inverter needed
• User-selectable modes for backup power, self-supply, time-of-use, zero-import and export limiting
• Integrated system monitoring for installers and users via PWRfleet web portal and PWRview™ mobile apps

• AC Output/Grid-Tie
  • Cont. Grid-tied ac power @ 50°c (122°f): 7600 w
  • Ac output voltage: 120/240, 1ø vac
  • Ac frequency: 60 hz
  • Maximum continuous output current: 32 a, rms
  • Charge battery from ac: Yes1
  • Thd (current): < 2%
  • Typical nighttime power consumption²: < 7 w

• AC Output (Island Mode)
  • Max. Ac power³: 7600 w
  • Max. Ac power with external transfer switch and single 6 module battery cabinet?: 9000 w
  • Max. Ac power with external transfer switch and 2x battery cabinets (8 modules min.)?: 11000 w
  • Peak motor starting current (2 sec): 50 a, rms
  • Ac backup output voltage: 120/240, 1ø vac
  • Ac frequency: 60 hz
  • Thd (voltage): < 2%
  • Allowable split phase imbalance: Up to 30%

• DC Input
  • Dc input voltage range: 360-420 vdc
  • Nominal dc bus voltage: 380 vdc
  • Max input current per dc input: 24 a
  • Dc distribution input breakers: 4 x 2-pole 30 a
  • Dc bus export fuses (+/-): 40 a
  • Reverse-polarity protection: Yes
  • Transformerless, ungrounded: Yes
  • 2-pole disconnection: Yes
  • Ground-fault isolation detection: Included

• Efficiency
  • Peak efficiency: 97.3%
  • CEC WEIGHTED EFFICIENCY: 97%
  • TYPICAL ROUNDTRIP EFFICIENCY5: 90%

• Features and Modes
  • Modes: Island mode, grid sell, self-consumption, zero export, zero import, time-of-use, grid support
  • Compatible equipment: Pwrcell battery, pwrzone solar, ac coupled pv6, pwrgenerator, pwrmanager, pwrcell automatic transfer switches, smart management modules (smms)
  • Ess pcs operation modes (import only, export only): Yes

• Additional Features
  • Supported communication interfaces: REbus™, Ethernet
  • System monitoring: PWRfleet and PWRview™ Mobile App
  • Backup loads disconnect: 50 A Circuit Breaker
  • Inverter bypass switch: Automatic
  • Warranty: 10 Years

• Standard Compliance
  • Safety: UL 1741 +SA, CSA 22.2 #107.1, UL 1998
  • Grid connection standards: IEEE 1547, Rule 21, Rule 14H (HECO V1.1), CSIP, UL 1741 PCS CRD (Import Only, Export Only)

• Dimensions and Installation Specifications
  • Enclosure knockouts - qty, size - in (mm): 6 x Combo 3/4" x 1" (19 x 25.4) 7 x Combo 1/2" x 3/4" (12.7 x 19) 1 x 0.575" exclusively for optional LTE antenna mounting
  • DIMENSIONS L x W x H - IN (MM): 24.5" x 19.25" x 8" (622.3 x 488.9 x 203.2)
  • Weight - lb (kg): 62.7 (28.4)
  • Cooling: Forced convection
  • Audible noise: < 40 dBA
  • Operating temperature: -4 to 122 °F (-20 to 50 °C)7
  • Enclosure type: Type 3R

• Installation Guidelines
  • Battery types supported: PWRcell™ Battery
  • Pv substring size per pv link optimizer: Varies, refer to PV Link Installation Manual
  • Maximum recommended dc power from pv8: 10 kW


*Up to 7.68 kW of AC Coupled PV. May not combine AC Coupled and DC Coupled PV sources. Requires M6 PWRcell Battery. SMMs must be set to lockout loads during backup.

*7Includes ambient temperature rising from inverter operation. Reduced power at extreme temperatures.

Values provided for PV-only or small energy storage systems. Additional PV power is permissible if sufficient battery storage capacity is installed.

Click Here for Spec Sheet

*Spec sheet might include optional accessories not included with this purchase
