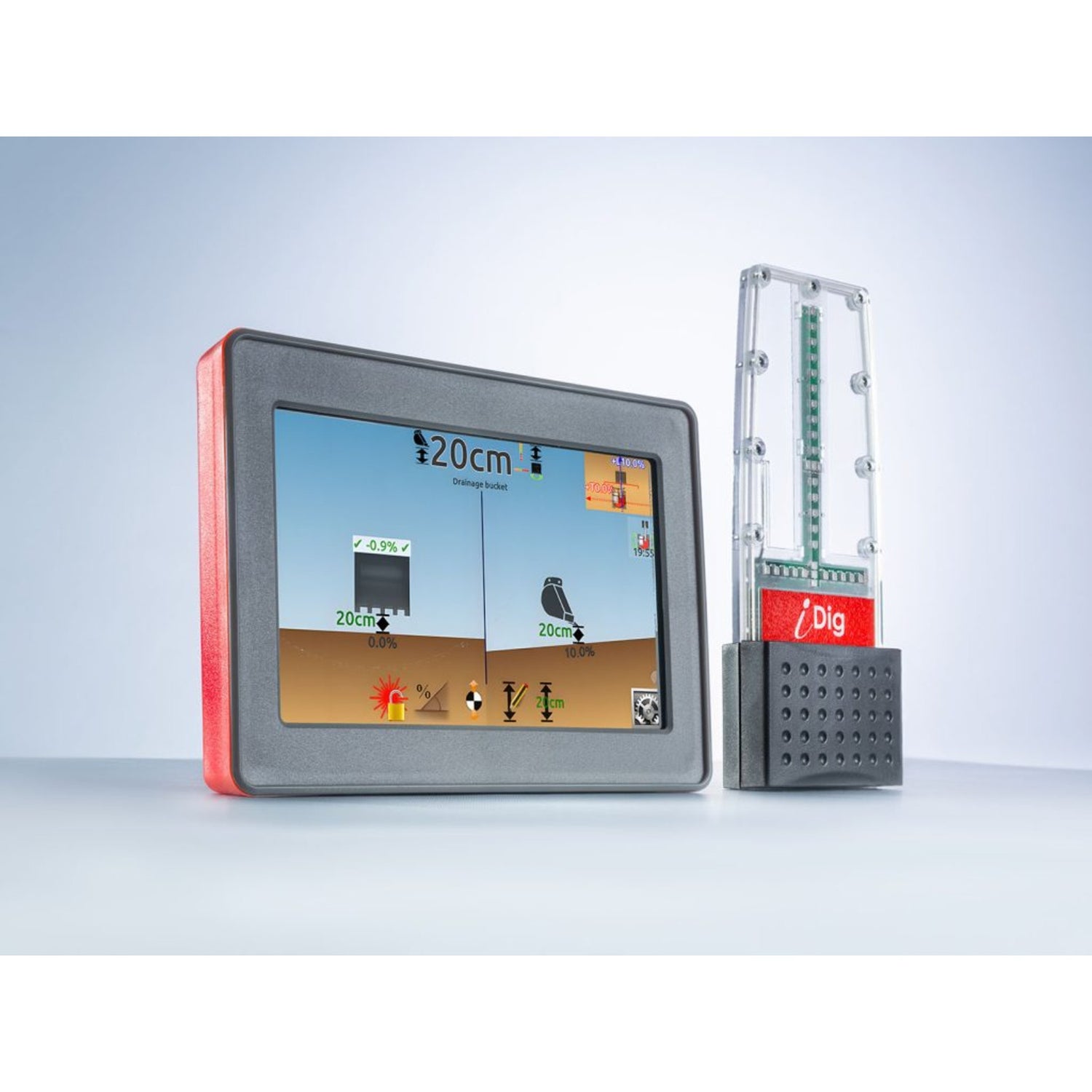

iDig TOUCH 2D Excavator Guidance System

Available Options:

• 13003701: XD610
• 13003703: XD611 with Big Combo

Manufacturer: iDig

Availability Notice: Most items are in stock and ready to ship. However, certain products may experience temporary delays or extended lead times due to ongoing industry-wide supply chain or manufacturing constraints. If your order is affected by a backorder or extended lead time, our team will contact you with the latest availability information. We appreciate your patience and understanding.

The iDig TOUCH 2D Excavator Guidance System is a wireless excavator guidance solution designed to provide operators with accurate, real-time digging information directly in the cab. Developed around the needs of excavator operators, the system combines an intuitive control box, wireless solar-rechargeable sensors, and an LED bargraph to help operators efficiently work to the required depth, distance, and slope.

The TOUCH 2D system supports a wide range of measurements and excavation configurations, including level surfaces, single slopes, dual slopes, distances, depths, long-axis measurements, and typical cross-sections. Operators can also define dig reach and side distances while using the system's height-alert feature to help identify overhead restrictions.

iDig's wireless sensors attach directly to the excavator and can be removed and transferred between machines without permanently wiring the guidance system into a single excavator. The sensors are also solar rechargeable, helping simplify everyday operation and reducing the need for conventional charging connections on the machine.

Two configurations are available: the XD610 and XD611 with Big Combo. The primary difference is the longer Big Combo sensor included with the XD611. At approximately 6.3 inches long, the extended sensor makes laser benching faster and easier when establishing a reference from a laser transmitter. A laser is not required to operate the iDig TOUCH 2D system.

Ideal Applications

The iDig TOUCH 2D is designed for:

• Earthwork
• Excavation
• Foundations
• Trenching
• Utility Installation
• Platform Construction
• Road Construction
• Drainage
• Landscaping
• Auger Applications
• Parking Lots
• Site Preparation
• Grading
• Depth Control
• Slope Excavation
• General Construction

Available Package Options

Choose between the XD610 and XD611 based primarily on whether you want the longer Big Combo sensor for easier laser benching.

Compare Package Options

Which Package Should I Choose?

13003701 – XD610

Choose the XD610 if you want the core functionality of the iDig TOUCH 2D excavator guidance system and do not need the longer Big Combo sensor.

The XD610 supports the same primary 2D excavation guidance functions and can be used without a laser transmitter.

Recommended For:

• General Excavation
• Trenching
• Foundations
• Landscaping
• Utility Installation
• Roadwork
• Parking Lots
• Site Preparation
• Operators Who Do Not Regularly Laser Bench

13003703 – XD611 with Big Combo

Choose the XD611 with Big Combo if your workflow regularly involves benching the system from a laser transmitter.

The approximately 6.3-inch Big Combo Sensor provides a longer detection area that can make establishing the laser reference faster and easier. Laser benching is optional and is not required for normal TOUCH 2D operation.

Recommended For:

• Frequent Laser Benching
• Professional Excavation Crews
• Utility Contractors
• Grade-Control Applications
• Road Construction
• Foundation Work
• Contractors Seeking Faster Reference Setup

Key Features

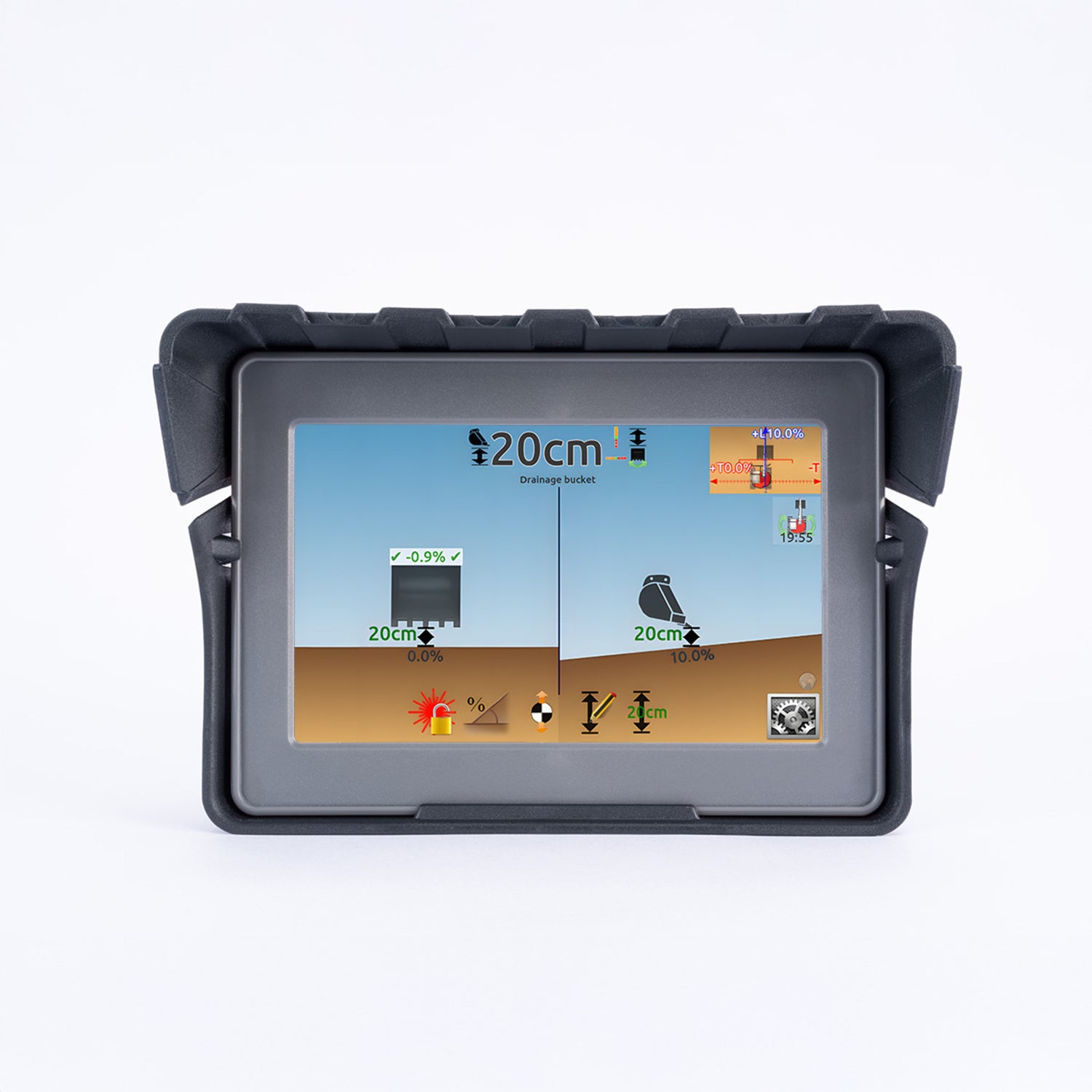

Excavator-Focused Control Box

The iDig TOUCH 2D uses a powerful dual-core control box with software developed specifically around excavator operation.

Its interface provides operators with direct access to the primary measurements and guidance functions required during excavation.

Level Surface Guidance

Operators can establish and work to a level reference surface, helping maintain consistent excavation depth across the work area.

This is useful for foundations, pads, platforms, parking areas, and general site preparation.

Single & Dual Slope Guidance

The system supports both single-slope and dual-slope configurations, allowing operators to work to specified grades without relying solely on manual measurements.

This functionality is particularly useful for drainage, roads, utilities, platforms, and other projects requiring controlled slopes.

Depth & Distance Measurements

The TOUCH 2D system supports multiple excavation measurements, including:

• Depth
• Dig Reach Distance
• Side Distance
• Long Axis
• Flat Surfaces
• Single Slope
• Double Slope
• Typical Cross-Sections

This provides operators with the information needed to perform a broad range of excavation tasks from inside the cab.

Wireless Sensor Technology

The iDig sensors communicate wirelessly, reducing the need for permanent wiring along the excavator.

This helps simplify installation and makes the system easier to move between compatible machines.

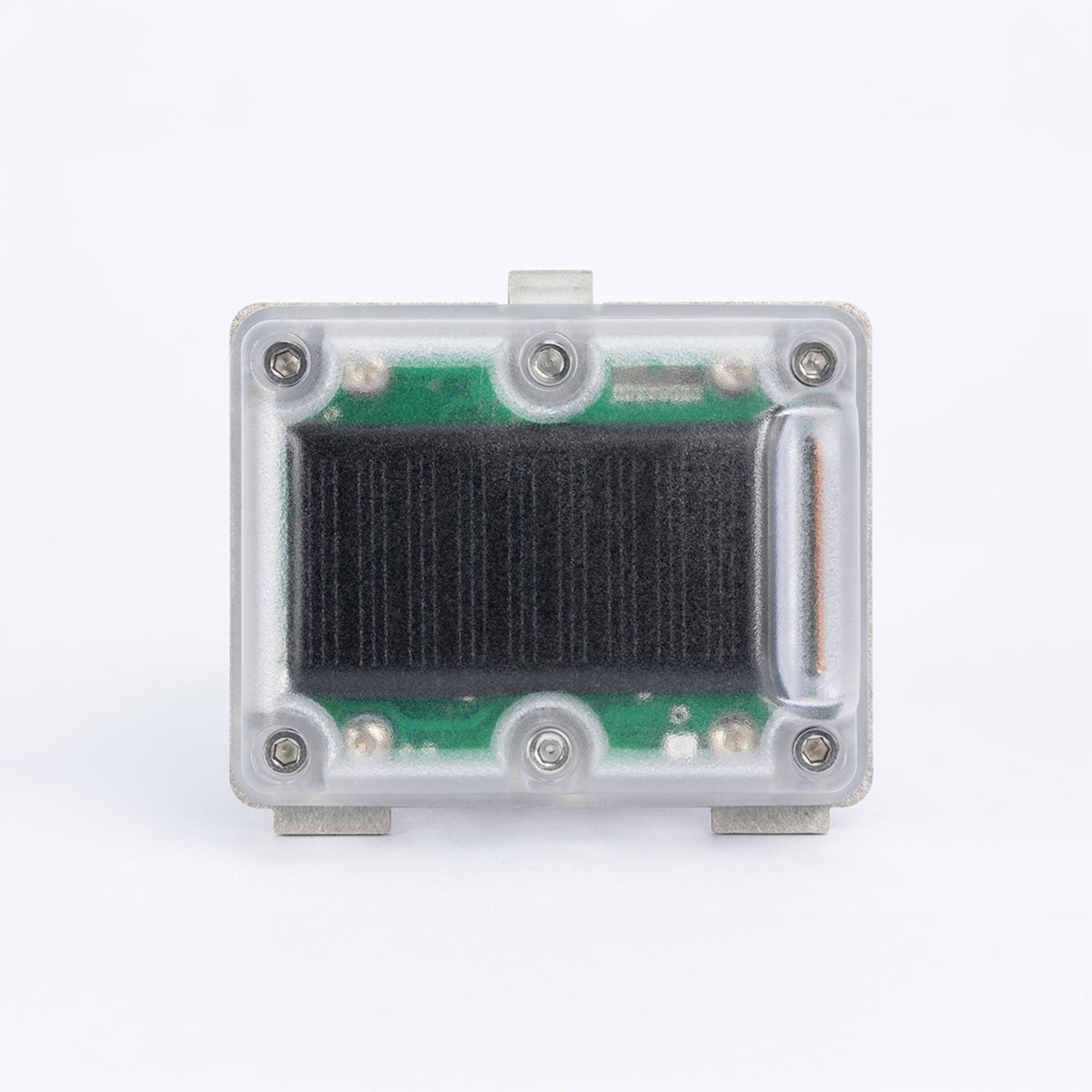

Solar-Rechargeable Sensors

The wireless sensors are solar rechargeable, allowing them to maintain power during normal outdoor operation without conventional wired charging connections on the excavator.

Transfer Between Excavators

The sensors are designed to snap onto the excavator and unclip when needed, allowing the system to be transferred from one excavator to another.

This provides additional flexibility for contractors operating multiple machines.

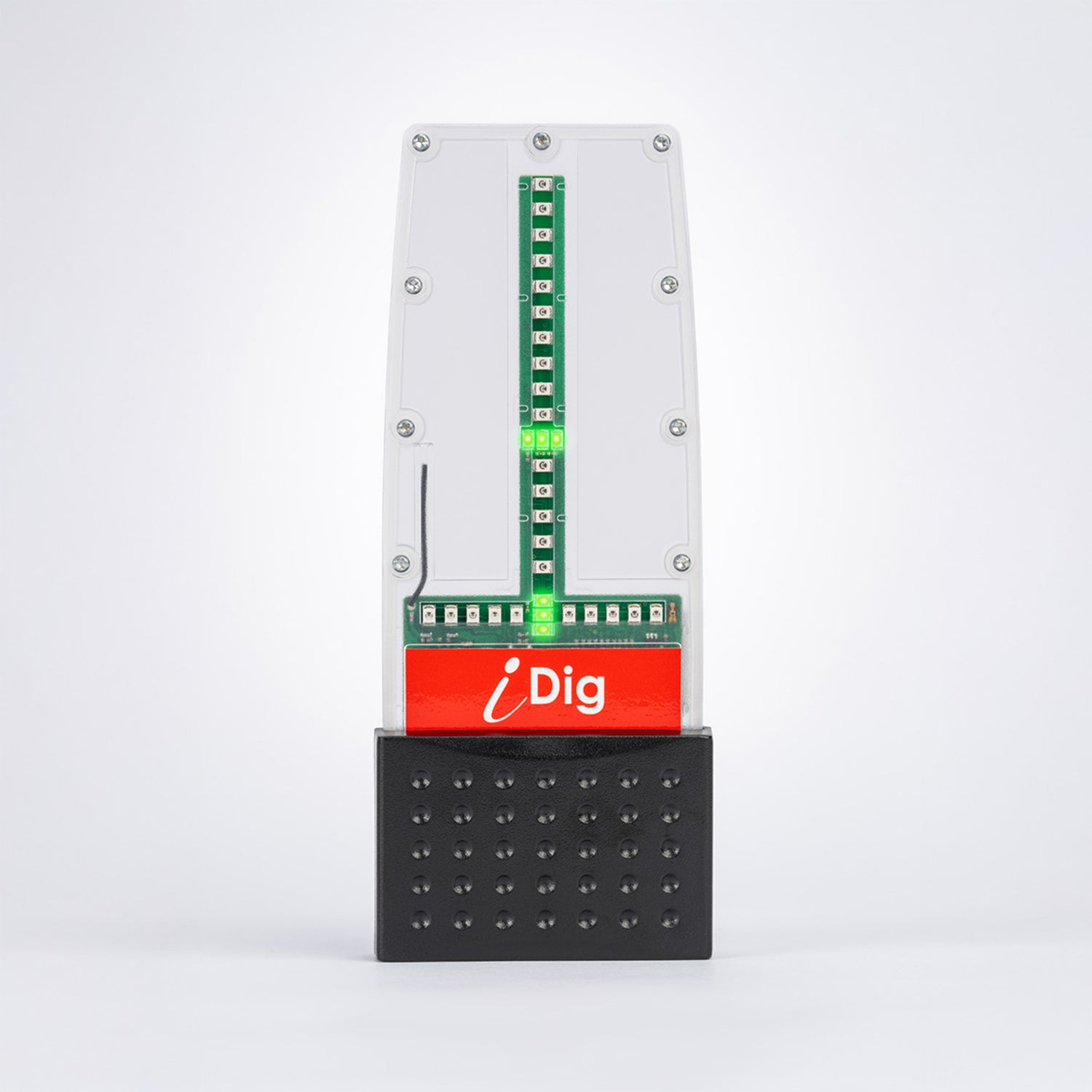

Real-Time LED Bargraph

The in-cab LED bargraph acts as a visual guidance system for the operator.

Green, red, and orange LEDs provide positioning information within the operator's field of vision, helping the operator make adjustments while digging.

Tilt & Rotate Information

Additional LEDs can provide tilt and rotate information when working with supported equipment from manufacturers such as:

• Rototilt
• Steelwrist
• Engcon
• Other Compatible Manufacturers

Height Alert

The TOUCH 2D includes a height alarm that can warn the operator of overhead restrictions.

This provides an additional reference when operating near height-limited areas.

Optional Laser Benching

A laser transmitter can be used to establish or update the system's reference point through laser benching.

However, a laser transmitter is not required for operation.

XD611 Big Combo Sensor

The XD611 incorporates an approximately 6.3-inch Big Combo Sensor.

Its longer design makes it faster and easier to find the laser reference when benching the system from a laser transmitter.

Technical Specifications

XD610 vs. XD611 Big Combo

The primary difference between the XD610 and XD611 is the Big Combo Sensor included with the XD611.

The longer sensor is intended to simplify the process of benching the excavator guidance system from a laser transmitter.

What's Included

13003701 – XD610

• iDig TOUCH 2D XD610 Excavator Guidance System

13003703 – XD611 with Big Combo

• iDig TOUCH 2D XD611 Excavator Guidance System
• Big Combo Sensor – Approximately 6.3 in.

Exact component quantities and individual package contents beyond the supplied configuration information are not specified here.

Why Choose the iDig TOUCH 2D?

The iDig TOUCH 2D gives excavator operators real-time guidance directly inside the cab, helping reduce dependence on repeated manual measurements while digging. Its software is designed around excavation workflows and supports level surfaces, single and dual slopes, depths, distances, long-axis measurements, and typical cross-sections.

Wireless, solar-rechargeable sensors eliminate much of the permanent wiring associated with traditional excavator guidance systems and allow the equipment to be moved between machines more easily.

The availability of the XD610 and XD611 Big Combo configurations also lets contractors choose whether they need the longer sensor for faster laser benching without making laser use mandatory for everyday operation.

Common Applications

• Excavation
• Earthwork
• Foundation Excavation
• Trenching
• Utility Installation
• Drainage
• Road Construction
• Platform Construction
• Parking Lot Construction
• Landscaping
• Auger Work
• Site Preparation
• Grading
• Depth Control
• Single-Slope Excavation
• Dual-Slope Excavation
• General Construction

Why Buy From Titan Tools Direct?

When you purchase the iDig TOUCH 2D Excavator Guidance System from Titan Tools Direct, you're buying from a trusted supplier of professional construction, excavation, grading, and machine-guidance equipment backed by knowledgeable product specialists.

• Authorized iDig Dealer
• Competitive Pricing
• Nationwide Shipping
• Expert Sales & Technical Support
• Trusted by Excavation, Utility & Construction Professionals
• Customer Support Before & After the Sale

Questions?

Need help choosing between the iDig TOUCH 2D XD610 and XD611 Big Combo?

Call or Text Sales & Technical Support: 832-727-9353

Email: Sales@TitanToolsDirect.com

Our knowledgeable team is happy to assist with product selection, compatibility questions, accessories, availability, and technical support before and after your purchase.

Frequently Asked Questions (FAQ)

Q1: What is the iDig TOUCH 2D?

The iDig TOUCH 2D is a 2D excavator guidance system that provides operators with real-time information for depth, distance, level, and slope applications directly in the excavator cab.

Q2: What is the difference between the XD610 and XD611?

The primary difference is the Big Combo Sensor included with the XD611. The longer sensor is approximately 6.3 inches and makes laser benching faster and easier.

Q3: Does the XD611 provide different core 2D guidance functions than the XD610?

No. Based on the supplied product information, the primary difference is the longer Big Combo Sensor. The core TOUCH 2D guidance functionality is otherwise the same.

Q4: Do I need a laser transmitter to use iDig TOUCH 2D?

No. Laser benching is optional and a laser transmitter is not required for normal system operation.

Q5: What is laser benching?

Laser benching uses a laser transmitter as a reference to establish or update the guidance system's reference point. The longer Big Combo Sensor on the XD611 is designed to make finding this laser reference faster and easier.

Q6: What types of slopes can the TOUCH 2D system handle?

The system supports level surfaces, single slopes, and dual slopes, along with additional measurements used for excavation and grading.

Q7: What measurements can the system provide?

The supplied system capabilities include depth, dig reach distance, side distance, long-axis measurements, flat surfaces, single and double slopes, and typical cross-sections.

Q8: Are the iDig sensors wireless?

Yes. The system uses wireless sensors, reducing the need for permanent wiring on the excavator.

Q9: How are the sensors charged?

The sensors are solar rechargeable, helping maintain power during normal outdoor use.

Q10: Can the system be moved between excavators?

Yes. The sensors are designed to attach and detach from the excavator, allowing them to be transferred between machines more easily.

Q11: What does the LED bargraph do?

The in-cab bargraph uses green, red, and orange LEDs to provide real-time visual positioning guidance within the operator's field of vision.

Q12: Does the system have a height warning?

Yes. The TOUCH 2D includes a height alert feature that warns the operator about configured overhead restrictions.
