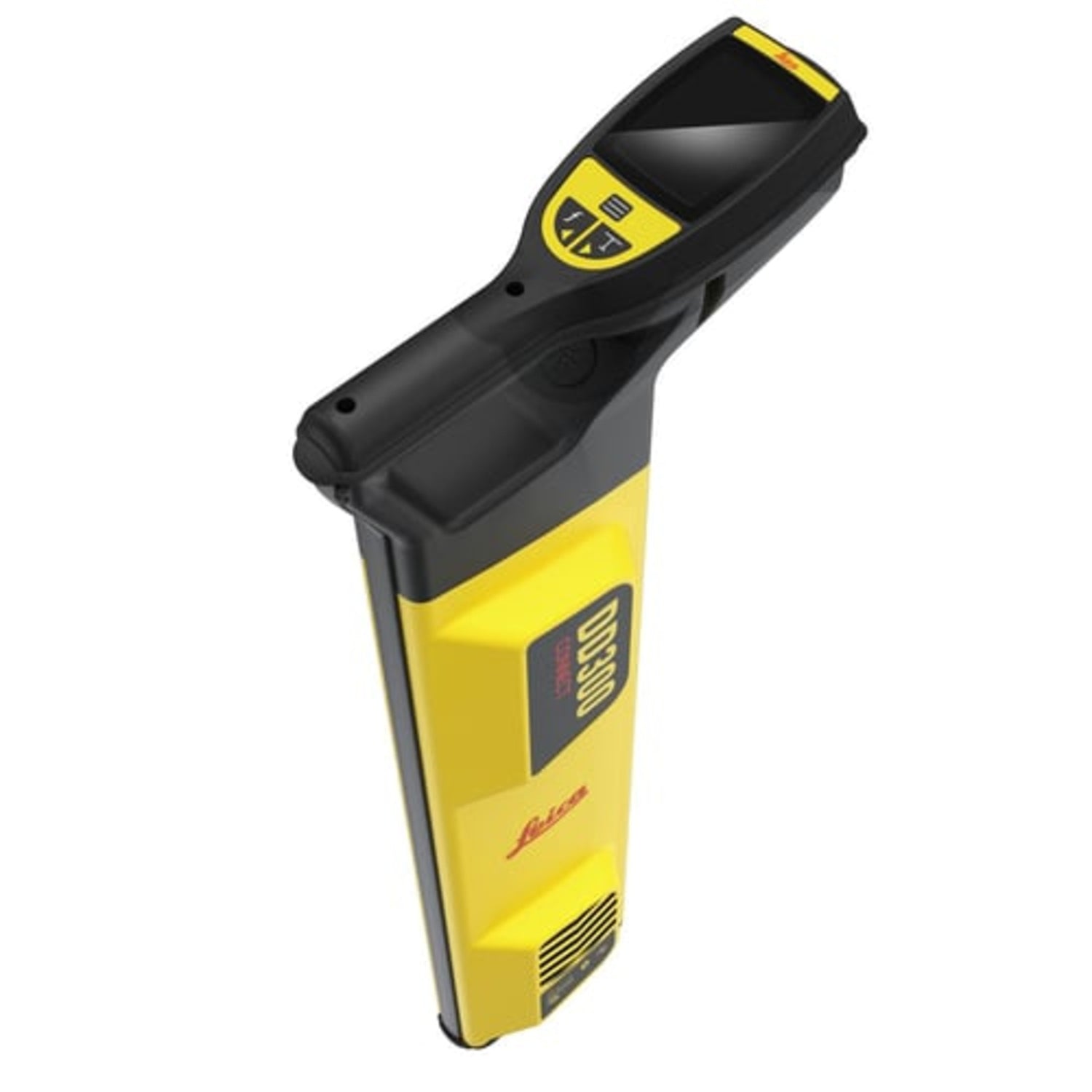

Leica DD300 Connect Buried Utility Locator with Color Display & Smart Modes

Model Number: 1003191

The Leica DD300 CONNECT utility locator, part of Leica’s advanced detection systems, is engineered to help professionals locate buried utilities with greater depth, speed, and precision. It integrates seamlessly with DX Shield software and the DA300 signal transmitter, forming a complete detection solution for construction, surveying, and utility maintenance teams.

The DD300 Connect combines all the essential features for both novice and experienced users in a single, versatile device. Its vibrant LCD color display includes integrated video tutorials that guide users through each step of the survey process with ease. Supporting a broad spectrum of standard frequencies, the unit features an advanced 83kHz high-frequency setting that effectively bridges the range between 33kHz and 131kHz. Enhanced by a cutting-edge digital trim function, it ensures precise detection even in complex environments with multiple underground targets.

Features:

• Enables deeper and more accurate detection of underground assets compared to traditional systems.
• Designed for both novice and expert users, with intuitive controls and automatic features that simplify operation.

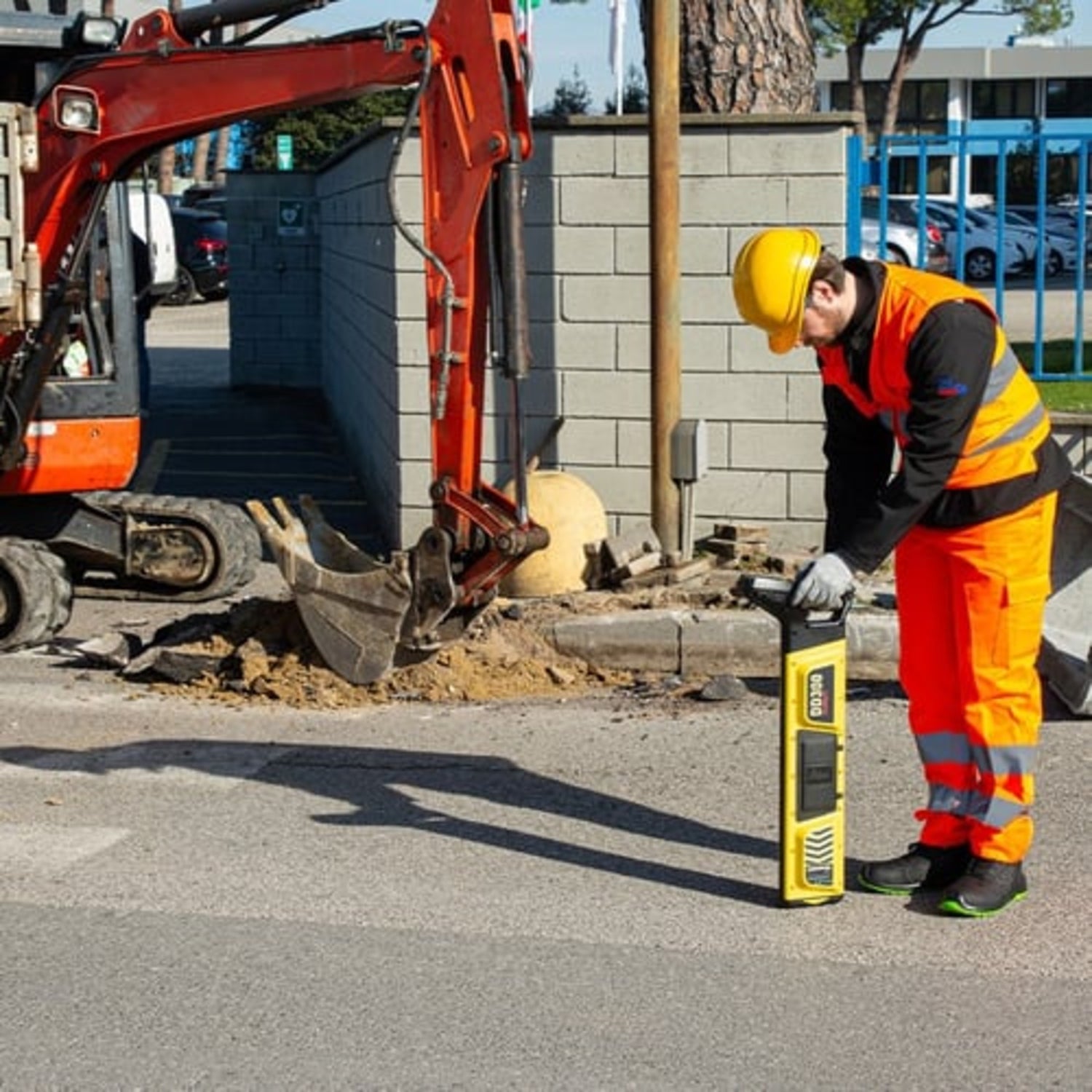

• Helps mitigate risks on construction sites by accurately identifying buried pipes and cables before excavation.
• Equipped with Bluetooth, USB, and internal GNSS for data logging and integration with Leica’s DX Shield cloud platform.
• Includes Auto, Power, Radio, Transmitter, and Sonde modes for versatile field applications.
• Built to withstand tough job site conditions with a durable, weather-resistant housing.

Specifications:

• Mode: DD300 CONNECT
• Power: 50 / 60 Hz mains electrical and harmonics
• Radio: 15kHz to 60kHz
• Auto: Power, Radio, 33kHz
• Transmitter Modes: 131.072 (131) kHz | 83.078 (83) kHz | 32.768 (33) kHz | 8.192 (8) kHz | 512 Hz | 640 Hz
• Depth Range: Line 0.1m to 7m | 4 inches to 23 feet | Sonde 0.1 to 10m | Sonde 4 inches to 32.8 feet
• Depth Accuracy: 5%
• Bluetooth: Class 2 BLE dual mode module – Bluetooth Classic 2.1 | Bluetooth 4.0 (LE)
• GPS
  • Chipset (1): u-blox®GPS
  • Receiver Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1
  • Accuracy (2): Horizontal Position 2.5 m Autonomous, 2.0 m SBAS,CEP
  • Start time: Cold 45 s typical, Aided 7 s typical, Hot 1 s typical
• Memory Capacity: 8 GB internal memory
• Environmental Standard: IP65
• Operating Temperature: -20 °C to +50 °C | -4 °F to +122°F
• Battery: 4 X LR20 Alkaline Battery – Li-Ion as Optional
• Battery operating time: 10 h
• Dimensions (HxWxD): 765x290x93mm | 30.12 x11.42×3.66 inches
• Weight with batteries: 2.86Kg | 6.3 lbs
