Leica DISTO X6 P2P-Package

Model Number: 950878

Features:

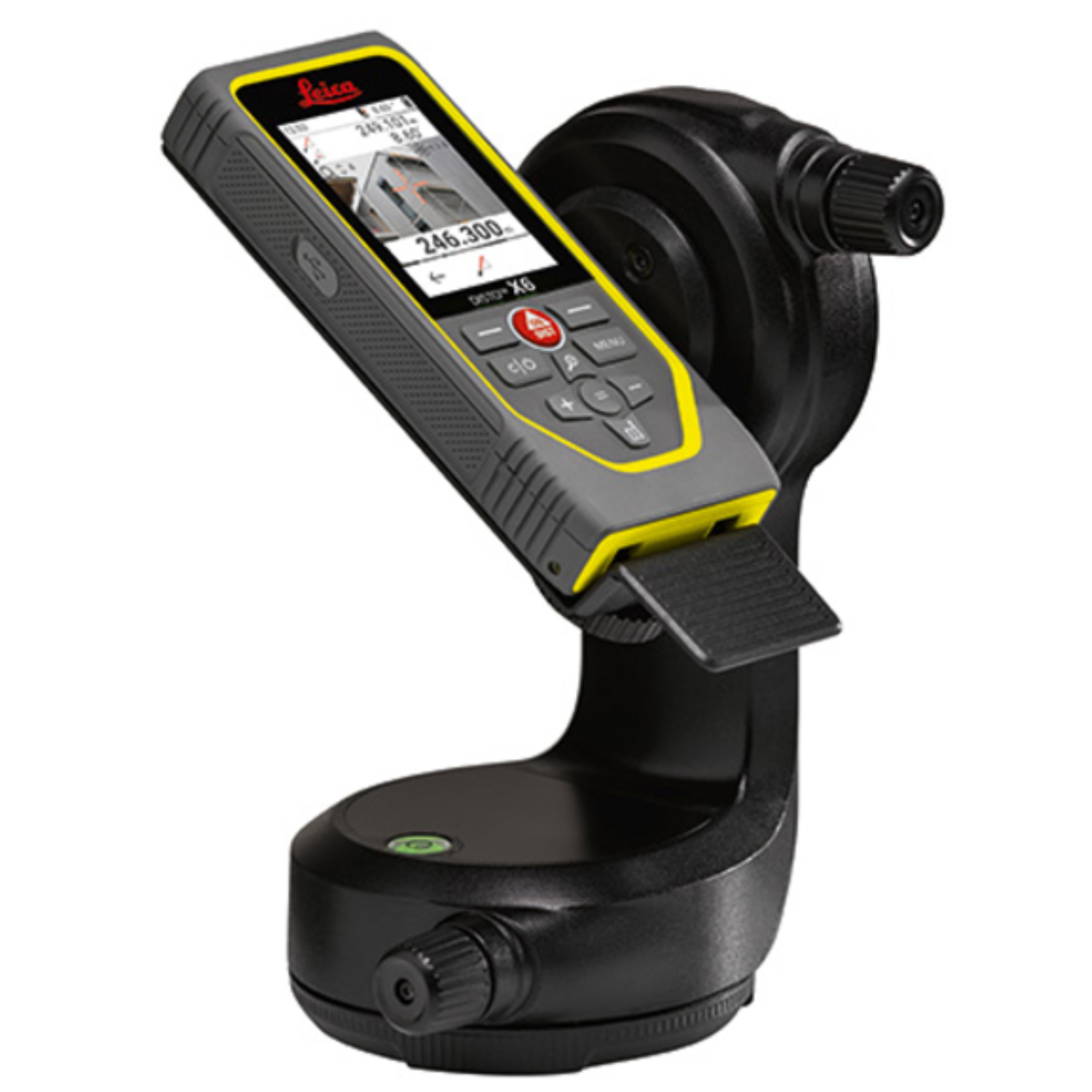

The DISTO X6 combined with the Leica DST 360-X Adapter enables P2P Technology, allowing you to measure distances between any two points or complex areas from a safe location, even in inaccessible areas. Results can be downloaded as organized DXF files for further processing in CAD software. The DISTO Plan app lets you visualize data on-site, ensuring no measurement points are missed. This package supports digitalization, shortens workflows, saves money, and reduces errors.

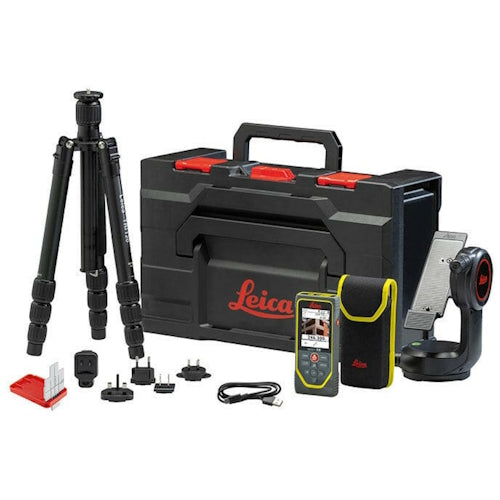

Includes:

• Leica DISTO™ X6
• Pouch
• Charger with Cable
• Hand Loop
• DST 360-X Adapter
• TRI 120 Tripod
• GZM 3 Target Plate
• Quick Start Guide
• Warranty Card
• Safety Manual
• Calibration Certificate Silver

Specifications:

• Accuracy with favourable conditions *: 1.0 mm / 1/16" ***
• Accuracy with unfavourable conditions **: 2.0 mm / 1/8" ***
• Range with favourable conditions *: 0.05 – 250 m / 0.07 – 820 ft ***
• Range with unfavourable conditions **: 0.05 – 150 m / 0.07 – 500 ft ***
• Smallest unit displayed: 0.1 mm / 1/32 in
• X-Range Power Technology: Yes
• Laser: class 2, 635 nm, <1 mW
• Digital Pointfinder with 4-fold zoom: Yes
• Tilt measuring range ****: 360°
• Tilt measuring tolerance" ± 0.2°
• Measuring range with Leica DST 360-X horizontal: 360°
• Measuring range with Leica DST 360-X vertical: -64° to > 90°
• Tolerance P2P function at distances:
  • ± 5 mm / 5 m
  • ± 10 mm / 10 m
• ø laser point | at distances: 6 / 30 / 60 mm | 10 / 50 / 100 m
• Auto. laser switch off after: 90 s
• Auto. power switch off after: 180 s
• Memory: for 300 reports and 1’000 captured 3D points
• Bluetooth® Smart: Bluetooth® v5.0
• Range of Bluetooth® Smart: up to 10 m
• Battery durability (Li-Ion 2 000 mAh):
  • up to 4’000 measurements
  • up to 8 hours operation time
• Dimension of the device incl. adapter (H x D x W): 208 x 190 x 150 mm
• Weight (with batteries): 1580 g
• Temperature range storage | operation (Applies to X6 device only.): -25 to 70 °C | -10 to 50°C

* favourable conditions: white and diffuse reflecting target (white painted wall), low background illumination and moderate temperatures.
** unfavourable conditions: targets with lower or higher reflectivity or high background illumination or temperatures at the upper or lower end of the specified temperature range.
*** Tolerances apply from 0.05 m to 10 m with a confidence level of 95%. Above 5 m the tolerance may deteriorate according to the values given in the manual of the unit.
**** after user calibration. Additional angle related deviation are according to the values given in the manual of the unit.
