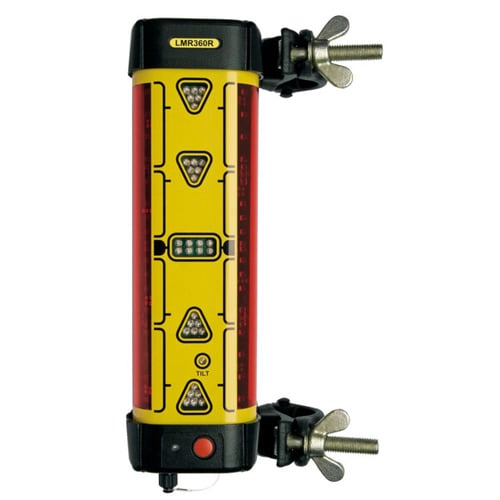

The Leica LMR360R Receiver with Clamps offers accurate grade information for all visual machine control applications. Large 360° detection windows pick up any rotating laser, from any angle. Built-in vertical indicator monitors angle of the stick, signaling if it‘s plumb or under- or overextended. Vertical position ensures consistent and accurate grade readings, saving money by reducing over- or under-cutting. Large magnets allow quick mount and easy movement from machine to machine

• LED indicators show position of cutting edge in relation to the laser reference beam. Seven display channels (indicators) in coarse mode; nine channels in fi ne mode.
• Memory stores the last signal received. Arrows indicate which way to move the cutting edge to reach the reference plane.
• Receiver has plumb LED indicator; remote display has direction arrows for plumbing up the dipper stick. If used on a dozer or grader, these LEDs can be turned off for a simpler display and longer battery life.
• Rugged, waterproof construction. Built-in shock mounts minimize machine vibrations.

• Operating radius*: 200 m (650 ft.
• Reception: 360 °
• Capture window: 25 cm (9.75”)
• Accuracy: Fine 6 mm (1/4”)
• Vertical indicator: Coarse 12 mm (1/2”)
• Waterproof: IP67
• Power: Rechargeable NiMh battery
• Battery life: 30 hours
• Charging time: 12 hours
• Frequency range: 30 m (100’) between LMR360R and LMD360R
• Size: 37.5 x 7.5 x 10.7 cm (14.75” x 3” x 4.25”) * Range and accuracy vary with laser used.
• Weight: 1.8 kg (4 lbs.) without clamp
